Summary of Contents for Currys Essentials CCHOBKN10

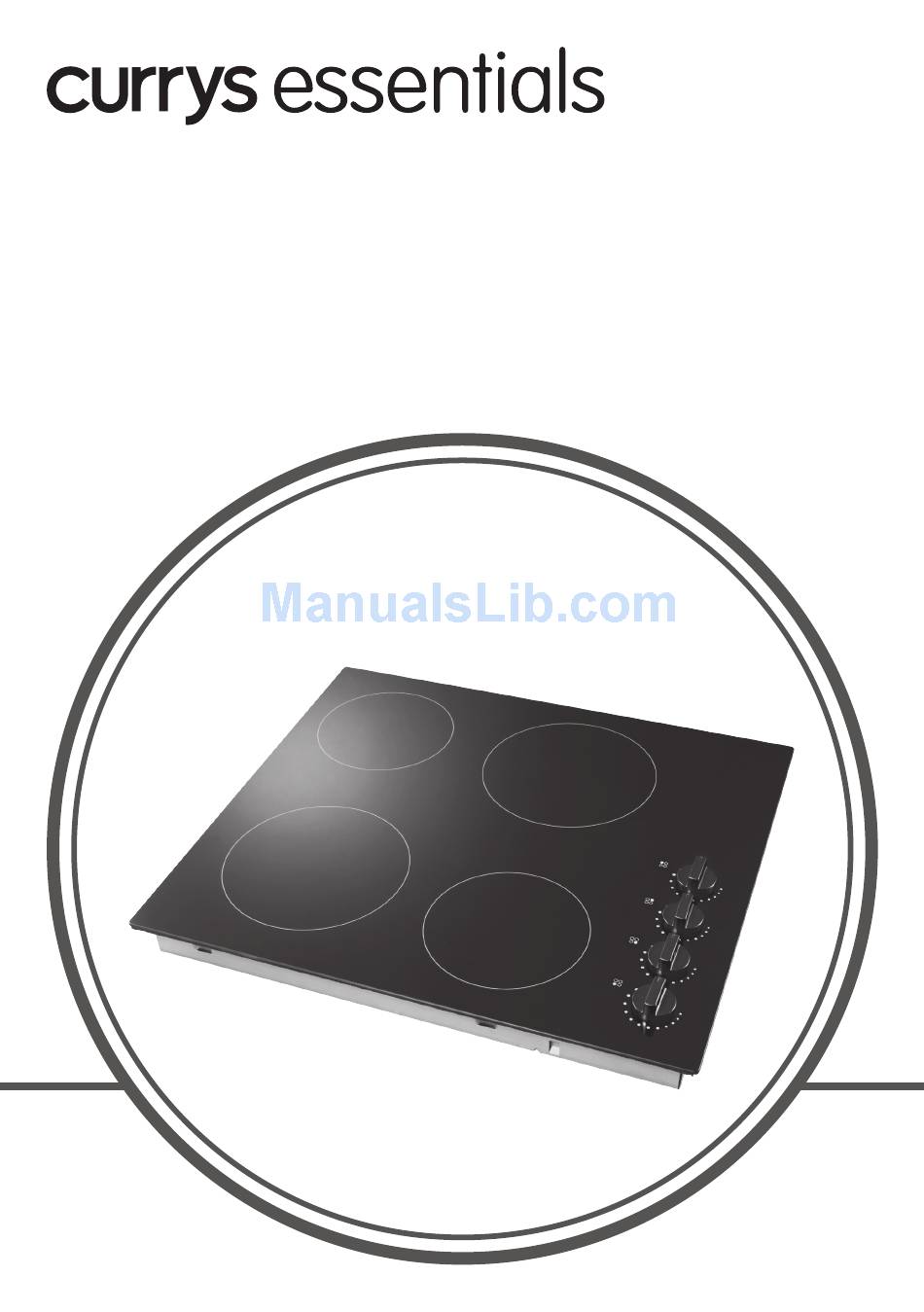

- Page 1 BUI LT- IN CE RAMIC HO B I N S TR U C TI O N / INST AL LA T ION MANUAL C C H O B KN1 0...
-
Page 2: Table Of Contents
Contents Unpacking ............................. 3 Product Overview ......................... 4 Top View ..................................4 Control Panel ................................4 Before Using Your New Ceramic Hob ..................5 Choosing the Right Cookware ..................... 5 Using Your Ceramic Hob ....................... 6 To Start Cooking ...............................6 Hot Hob Warning Indicator ...........................6 When You Have Finished Cooking ........................6 Cooking Guidelines ........................ -
Page 3: Unpacking
Thank you for purchasing your new Currys Essentials Built-in Ceramic Hob. We recommend that you spend some time to read this manual in order to fully understand how to install and operate it correctly. Read all the safety warnings carefully before use and keep this manual for future reference. -
Page 4: Product Overview

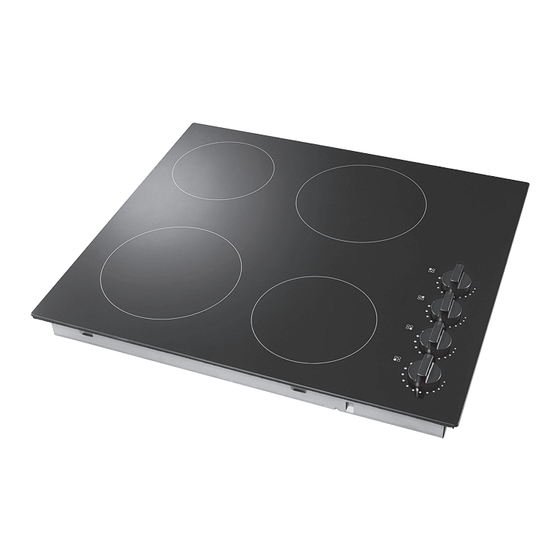

Product Overview Top View Max.1200 W zone Max.1800 W zone Max.1200 W zone Max.1800 W zone Ceramic Glass Control Panel Control Panel Hot Hob Warning Indicators Power Regulating Controls... -
Page 5: Before Using Your New Ceramic Hob
Before Using Your New Ceramic Hob • Read this guide, taking special note of the ‘Safety Warnings’ section. • Remove any protective film that may still be on your ceramic hob. Choosing the Right Cookware Do not use cookware with jagged edges or a curved base. Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. -
Page 6: Using Your Ceramic Hob
Using Your Ceramic Hob To Start Cooking Place a suitable pan on the cooking zone you wish to use. • Make sure the bottom of the pan and the surface of the cooking zone are clean and dry. Adjust the power regulating control to the desired level to turn on the control. -
Page 7: Cooking Guidelines
Cooking Guidelines Take care when frying as oil and fat heat up very quickly. At extremely high termperatures oil and fat will ignite spontaneously and this presents a serious fire risk. Cooking Tips • When food comes to the boil, reduce the temperature setting. • Using a lid will reduce cooking times and save energy by retaining the heat. -
Page 8: Care And Cleaning
Cleaning and Maintenance What? How? Important! Everyday soiling on Switch the power to the ceramic • When the power to the ceramic hob glass hob off. is switched off, there will be no ‘hot (fingerprints, marks, surface’ indication but the cooking Apply a ceramic hob cleaner while stains left by food or zone may still be hot! -
Page 9: Hints And Tips
See ‘Care and cleaning’ . cleaning products being used. Please do not disassemble the unit by yourself to avoid any dangers and damages to the ceramic hob. Specification Model CCHOBKN10 Rated Voltage 230 – 240V~ Rated Frequency 50 Hz Overall Dimension (W x D X H) 590 (W) ×... -
Page 10: Installation
Installation Preparing the Worktop Cut out the work surface following the dimensions shown in the drawing below. For the purpose of installation and use, a minimum distance of 5cm space must be left around the cut out. Be sure the thickness of the work surface is at least 20mm. Use a heat-resistant work surface material to avoid deformation caused by the heat from the hob. -
Page 11: Before Locating The Fixing Brackets
Fastening the Fixing Brackets The unit should be placed on a stable, smooth surface (use the packaging). Turn the hob upside down, place it on a soft surface and fasten the brackets to the approriate holes. DO NOT tighten the screws at this stage. Apply sealing strips around the edge of the hob. -
Page 12: Connecting The Hob To The Mains Power Supply
Connecting the Hob to the Mains Power Supply Remove the screw A. Push the top plate back and then lift it up. screw A Remove the 2 screws B. Remove the 4 screws C in the terminal box and insert the power cord at the connection. screw C screw B The power supply should be connected in compliance with the relevant standard, or a single-pole circuit... - Page 13 Assemble the cable clamp, be aware that the ellipse hole on cable clamp must match the ellipse hole on. Fix the top plate. Fix the top plate.
-
Page 14: Safety Warnings
Safety Warnings Operation and Maintenance Your safety is important to us. Please read this information before using your ceramic hob. Electrical Shock Hazard Installation • Do not cook on a broken or cracked ceramic hob. If the ceramic hob surface should break or Electrical Shock Hazard crack, switch the appliance off immediately at the • Disconnect the appliance from the mains... - Page 15 Important Safety Instructions • Do not use pans with jagged edges or drag pans across the ceramic glass surface as this can scratch • Never leave the appliance unattended when in use. the glass. Boilover causes smoking and greasy spillovers that may ignite.
- Page 16 There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd. • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England (P.N.: CCHOBKN10-004)
