Mitsubishi Electric Mr.Slim MS09NW Technical & Service Manual page 19

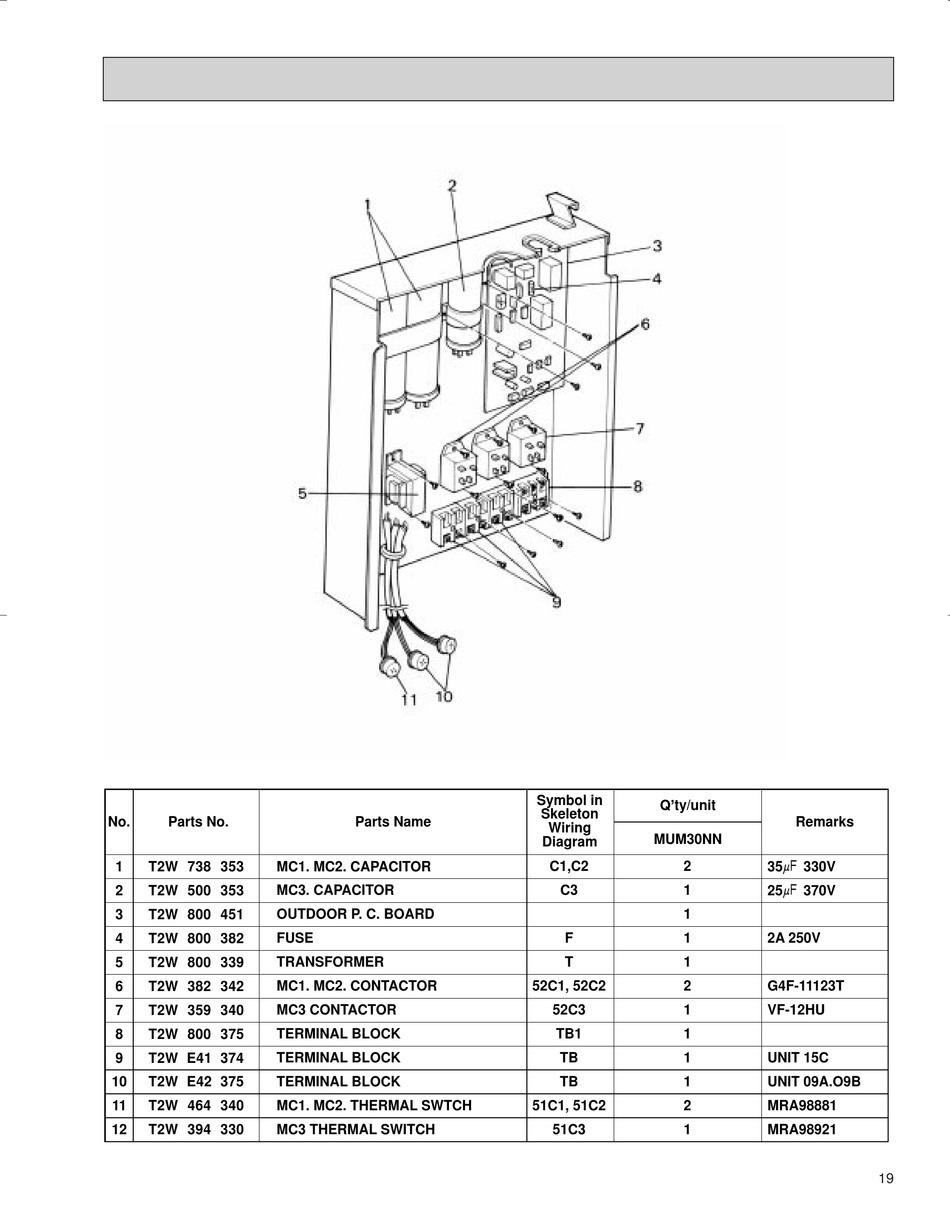

No. Parts No.
1 T2W 738 353
2 T2W 500 353
3 T2W 800 451
4 T2W 800 382
5 T2W 800 339
6 T2W 382 342
7 T2W 359 340
8 T2W 800 375
9 T2W E41 374
10 T2W E42 375
11 T2W 464 340
12 T2W 394 330
Parts Name
MC1. MC2. CAPACITOR
MC3. CAPACITOR
OUTDOOR P. C. BOARD
FUSE
TRANSFORMER
MC1. MC2. CONTACTOR
MC3 CONTACTOR
TERMINAL BLOCK
TERMINAL BLOCK
TERMINAL BLOCK
MC1. MC2. THERMAL SWTCH
MC3 THERMAL SWITCH
,
Symbol in
Q ty/unit
Skeleton
Wiring
MUM30NN
Diagram
C1,C2 2
C3 1
1
F 1
T 1
52C1, 52C2 2
52C3 1
1
TB1
TB 1
TB 1
51C1, 51C2 2
51C3 1
Remarks
35+ 330V
25+ 370V
2A 250V
G4F-11123T
VF-12HU
UNIT 15C
UNIT 09A.O9B
MRA98881
MRA98921
19
