8

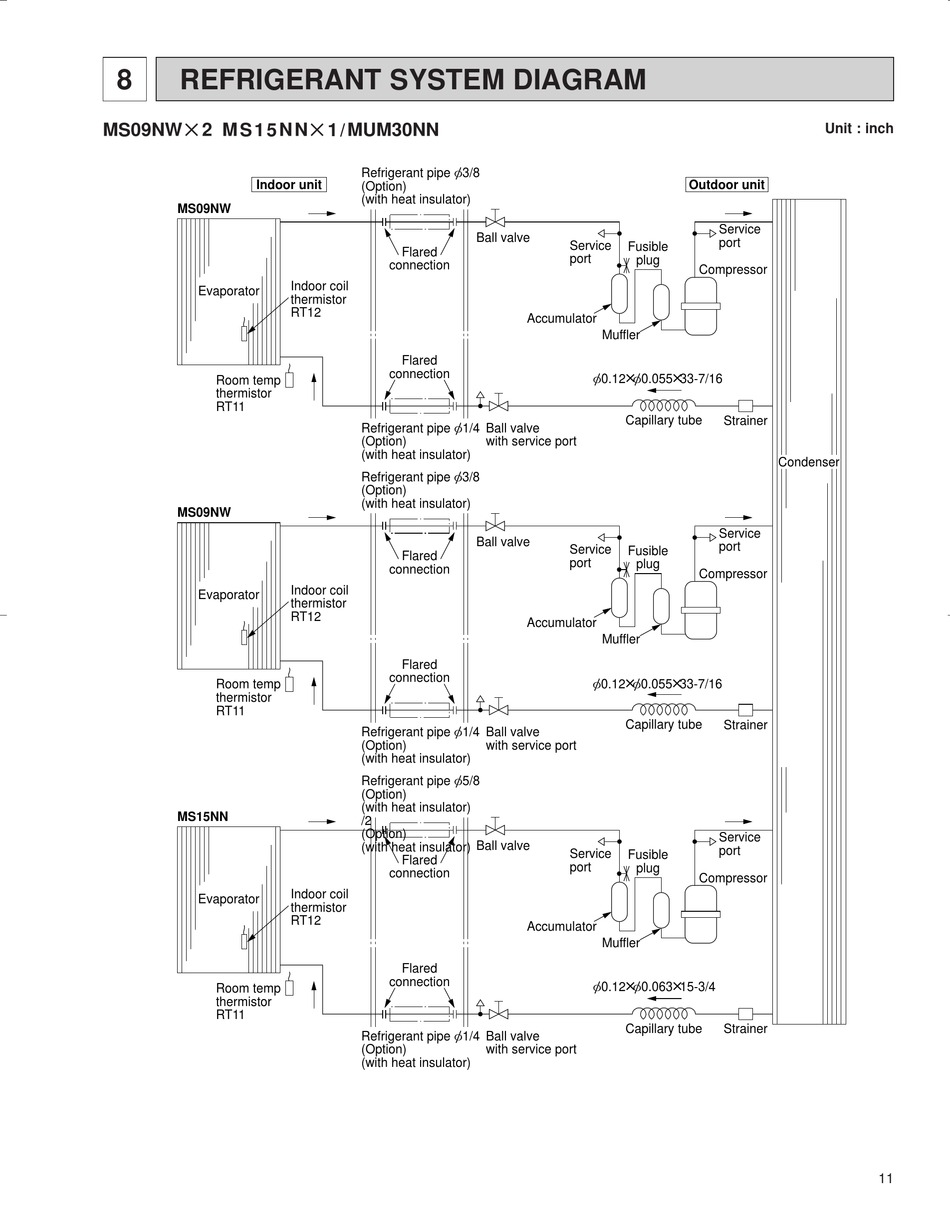

REFRIGERANT SYSTEM DIAGRAM
MS09NW
2 M S 1 5 N N
Indoor unit
MS09NW
Evaporator
Room temp
thermistor
RT11
MS09NW
Evaporator
Room temp
thermistor
RT11
MS15NN
Evaporator
Room temp
thermistor
RT11
1 / MUM30NN
Refrigerant pipe [3/8
(Option)
(with heat insulator)
Flared
connection
Indoor coil
thermistor
RT12
Flared
connection
Refrigerant pipe [1/4
(Option)
(with heat insulator)
Refrigerant pipe [3/8
(Option)
(with heat insulator)
Flared
connection
Indoor coil
thermistor
RT12
Flared
connection
Refrigerant pipe [1/4
(Option)
(with heat insulator)
Refrigerant pipe [5/8
(Option)
(with heat insulator)
/2
(Option)
(with heat insulator) Ball valve
Flared
connection
Indoor coil
thermistor
RT12
Flared
connection
Refrigerant pipe [1/4
(Option)
(with heat insulator)
Ball valve
Service
Fusible
port
Accumulator
Muffler
[0.12o[0.055o33-7/16
Capillary tube
Ball valve
with service port
Ball valve
Service
Fusible
port
Accumulator
Muffler
[0.12o[0.055o33-7/16
Capillary tube
Ball valve
with service port
Service
Fusible
port
Accumulator
Muffler
[0.12o[0.063o15-3/4
Capillary tube
Ball valve
with service port
Outdoor unit
Service
port
plug
Compressor
Strainer
Condenser
Service
port
plug
Compressor
Strainer
Service
port
plug
Compressor
Strainer
Unit : inch
11
