Clearing Paper Jams; Jam Location Indicators - Utax CDC 1520 Instruction Manual

Clearing Paper Jams

If a paper jam occurs, the touch panel
will display Paper misfeed and the
copying will stop. Refer to these
procedures to remove the jammed
paper.

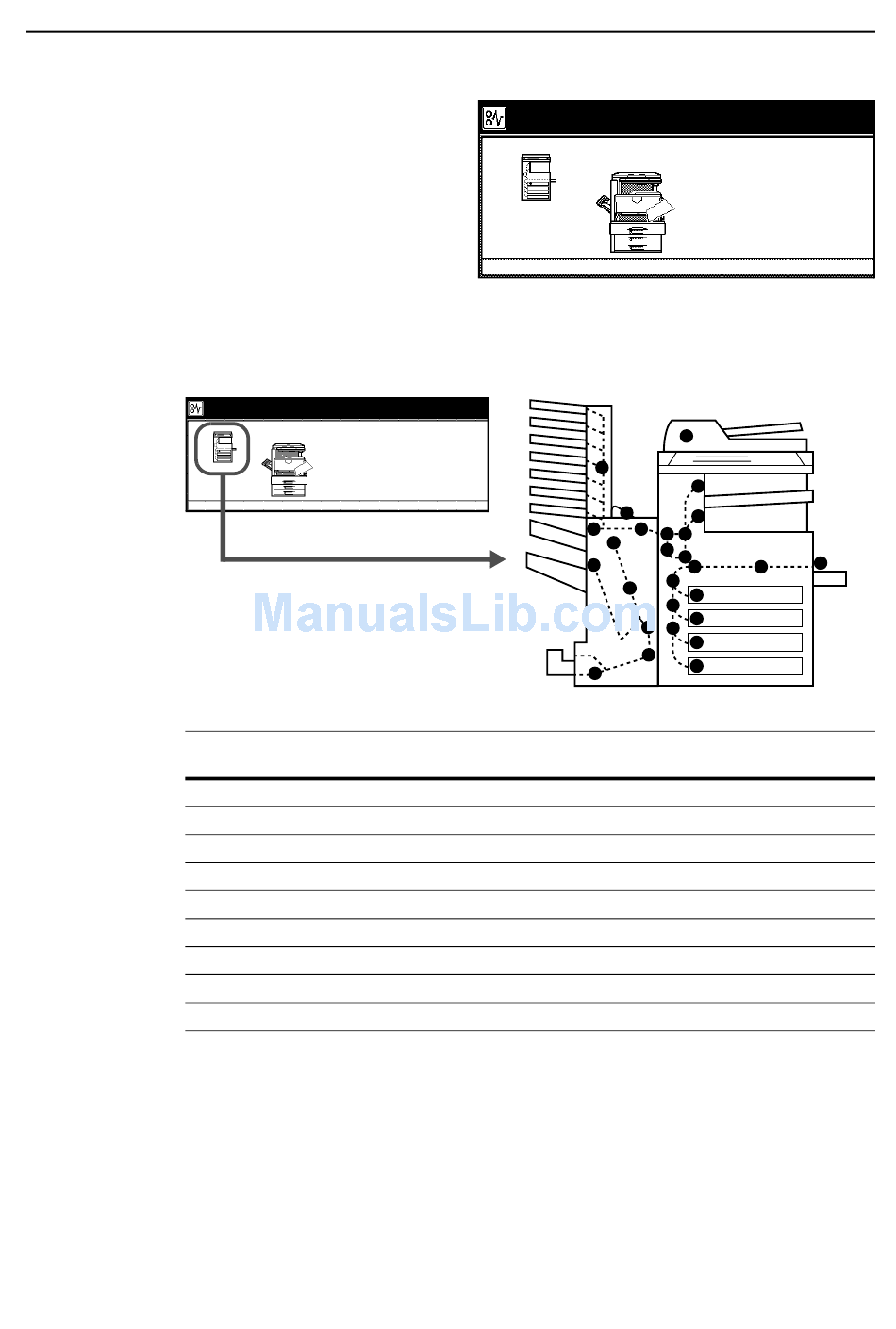

Jam Location Indicators

When a paper jam occurs, the jam location indicators and corrective action are displayed. Jam
location indicators indicate the paper jam position, as shown below.
Jam Location
Indicators
A
B
C
D
E
F
G
H
I
After clearing the jam, the machine will warm up again and the error message will be cleared. The
machine resumes from the page on which the jam occurred.
Paper misfeed.
1.Remove paper.
2.Open duplex unit A1 and
remove any paper that is inside.
3.Open cassette 1.
4.Remove paper.
5.Reset the cassette and close the cover.
JAM 00
Paper Jam Location
Cassette 1
Cassette 2
Cassette 3, 4 (option)
MP Tray
Left Cover 1 Interior
Left Cover 2 Interior
Fixing Unit
Document Processor (option)
Document Finisher (option)
Paper misfeed.
JAM 00
1
1
1 1
- /
1
-
-
1
-
1
.
. *
1
1
1
Troubleshooting
1.Remove paper.
2.Open duplex unit A1 and
remove any paper that is inside.
3.Open cassette 1.
4.Remove paper.
5.Reset the cassette and close the cover.
0
/
/
,
, ,
+
+
Reference
Page
page 6-16
page 6-17
page 6-18
page 6-19
page 6-23
page 6-24
page 6-24
page 6-26
page 6-27
6-15
