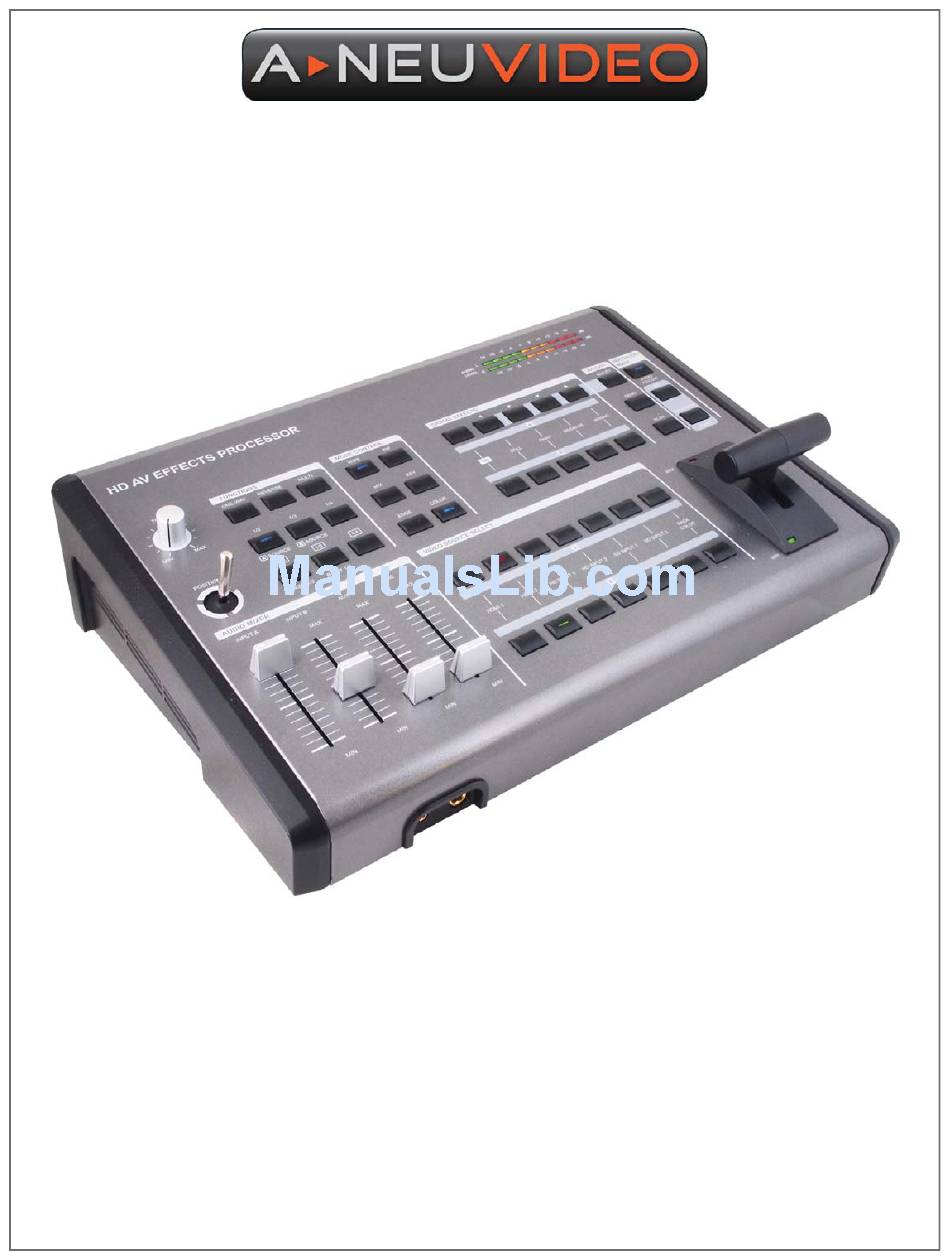

- Page 1 ANI-PS112 HD/SD Digital Multi-Format Live Video Production Switcher INSTRUCTION MANUAL www.A-NeuVideo.com Frisco, Texas 75034 (317) 456-2461 V.1.1...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
50/60 and 1080i 50/60. The output resolutions can also be automatically adjusted so it is more consistent. Please refer to the diagram on the right for additional information. PACKAGE CONTENTS ANI-PS112 SD/HD Video and Audio Mixer 1× Component (YPbPr) Cable 1x HDMI Cable 1×... -
Page 4: Features
FEATURES FEATURES • Selective size and position for digital effects area and PIP windows. • Automatic fade and wipe with speed preset control. • Digital effects- Still,Mosaic,Paint and Negative. • 96 wipe patterns. • Chroma key & Luminance key. • High Picture Quality. •... -
Page 5: Specifi Cations
SPECIFICATIONS SPECIFICATIONS SOURCE INPUT: 6 (SOURCE 1/6) • HDMI Input: 2x Digital Video YUV (480i/p, 576i/p, 720p50/60, 1080i50/60, 1080p50/60) • Component Input: 2x Analog Video YUV (480i/p, 576i/p, 720p50/60, 1080i50/60) • Y/C Input: 2x • Y Signal: 1.0 Vp-p 75Ω, Mini Din 4-pin connector •... -
Page 6: Hardware Description
HARDWARE DESCRIPTION FRONT PANEL PHONES: Connect ear phone to listen the audio signal. MIC: Connect the MIC to insert audio. REAR PANEL Source 3 HD stereo audio input 1. Source 4 HD stereo audio input 2. ... -
Page 7: Connector And Installation
CONNECTOR AND INSTALLATION REAR PANEL CONNECTIONS OUTPUT RESOLUTIONS The output can select HD or SD system. Users can use SD PREVIEW to adjust the output system resolution, or a short cut is to press two keys for 1 second simultaneously. The combinations below: ... -
Page 8: Operation Controls And Functions
OPERATION CONTROLS AND FUNCTIONS POSITION/TIME Time Control For adjusting the transition time of the Auto Fade and the Auto Wipe functions. Joystick Control This joystick control has two functions; control the position of the square wipe pattern and P-IN-P picture. FUNCTIONS ... - Page 9 OPERATION CONTROLS AND FUNCTIONS MODE CONTROL Wipe button For selecting the wipe effect. PIP button Picture in picture mode can be selected by pressing this button. Mix(Fade) button Press this button to select the fade In/Out mode. ...
-
Page 10: Digital Effects
OPERATION CONTROLS AND FUNCTIONS DIGITAL EFFECTS A-bus digital effect ON button. A-bus Still button and OSD left adjust. A-bus Paint button and OSD right adjust. A-bus Negative button and OSD up adjust. A-bus Mosaic button and OSD down adjust. ... -
Page 11: Audio Level
OPERATION CONTROLS AND FUNCTIONS VIDEO/AUDIO MIXER AUDIO FOLLOW When turn on the Audio Follow A/B bus’s sound indicator will follow the VIDEO slider movement. When turn off the Audio Follow, the audio indicator will become independent to adjust from ... -
Page 12: Video Source Select
OPERATION CONTROLS AND FUNCTIONS VIDEO SOURCE SELECT Used to select Source1,HDMI1. Used to select Source2,HDMI2. Used to select Source3,HD input 1. Used to select Source4,HD input 2. Used to select Source5,SD input 1. When connecting both S-Video and CV at the same the time S-Video will be the fi rst priority source to be display. -
Page 13: Operation
OPERATION BASIC OPERATION Turn the power switch at the rear panel to the ON Position. The LEDs on the panel will light up and the unit is now in initial mode for operation. INPUT SIGNAL SELECTION AND BACKGROUND COLOR SELECTION ... -
Page 14: Video Mix
OPERATION VIDEO MIX → Press the MIX button → Press one of the A-bus selection button. → Press one of the B-bus selection button. → Mix effect will be controlled by video slide by sliding A to B or B to A. VIDEO WIPE Reset the operation panel to initial mode: ... -
Page 15: Wipe Pattern Selection
OPERATION WIPE PATTERN SELECTION There are Six wipe modes available can be selected as follows: → Press the diagonal wipe button repeatedly to toggle through the available wipe patterns. Four are available: Top right to bottom left, bottom right to top left, bottom left to top right and top left to bottom right. -
Page 16: Multiple Pattern Selection
OPERATION MULTIPLE PATTERN SELECTION Reset the operation panel to initial mode: → Press the WIPE button to place the unit in WIPE mode. → Select a wipe pattern e.g. straight wipe by pressing button → ... -
Page 17: Picture-In-Picture
OPERATION PICTURE-IN-PICTURE Reset the operation panel to initial mode: → Move the Video Slider fully to the A or B-bus position. → Press one of the A-bus selection buttons to select a source. → Press one of the B-bus selection buttons to select a source. ... -
Page 18: Key
OPERATION Reset the operation panel to initial mode: How to use the LUMA KEY effect: → Press the KEY button to place the unit in KEY mode. → Press one of the A-bus selection buttons to select a source. ... -
Page 19: Auto Fade/Wipe Selection
OPERATION AUTO FADE/WIPE SELECTION Reset the operation panel to initial mode: → Press the ON button to enter into AUTO FADE/WIPE mode. → FADE/WIPE transition time can be adjusted with the TIME control → Press the WIPE button to select the wipe effect. -
Page 20: Osd Adjust
OPERATION OSD ADJUST Reset the operation panel to initial mode: When turn off the OSD adjust in SD PREVIEW, output will show A/B-bus and output system information. As shown below. INFORMATION A INPUT: HDMI 1 SYSTEM: 1080i60 B INPUT: YPbPr 1 SYSTEM: 480p60 OUTPUT: NTSC F/W Version ... - Page 21 TERMS AND CONDITIONS OF USE PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions.
