SoundMax SM-LCD810 Instruction Manual

Portable lcd color tv
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SM-LCD810
Portable LCD Color TV
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-LCD810 and is the answer not in the manual?

Questions and answers

Related Manuals for SoundMax SM-LCD810

Summary of Contents for SoundMax SM-LCD810

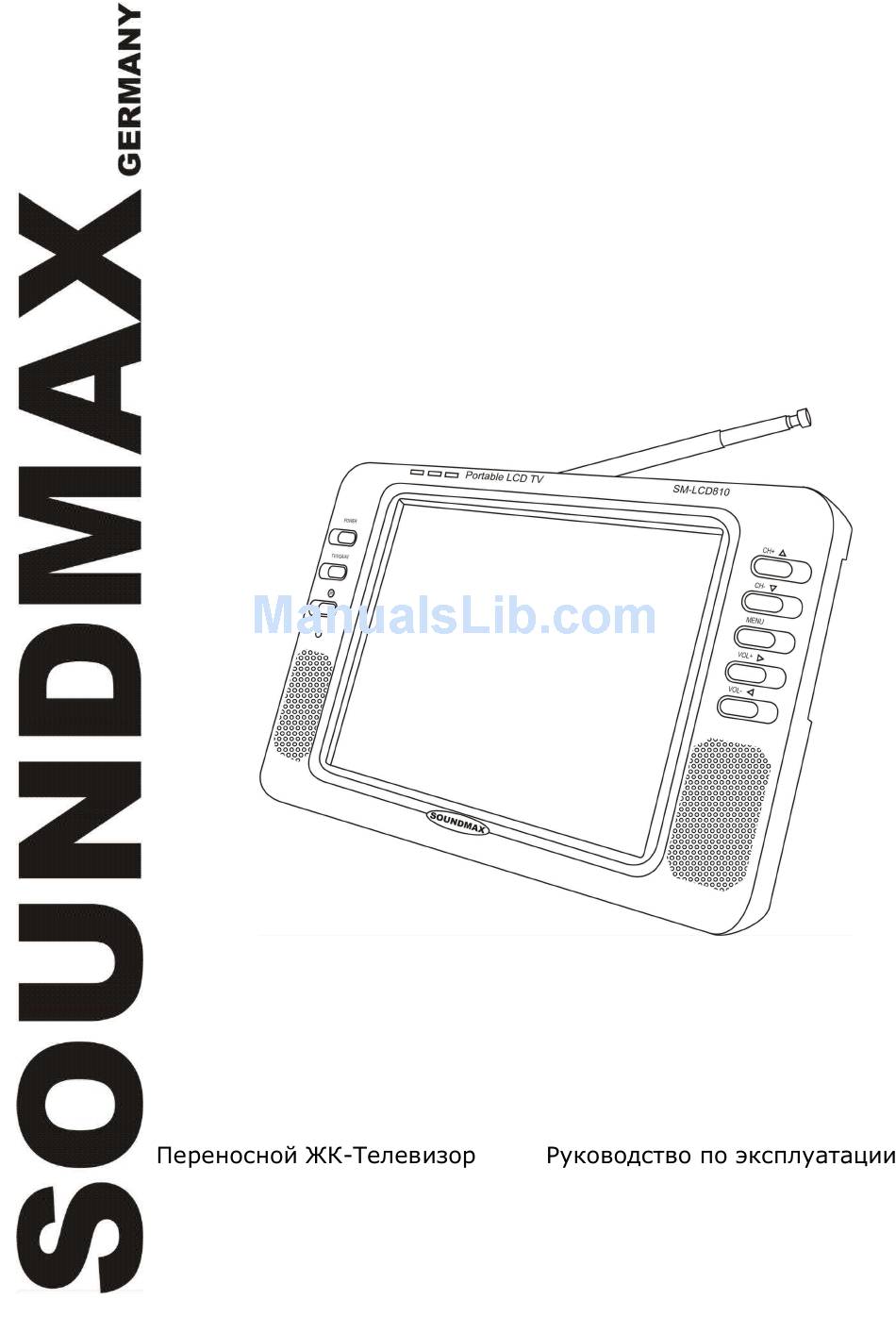

  • Page 1 SM-LCD810 Portable LCD Color TV Instruction manual...

  • Page 2: Table Of Contents

    Dear consumer! Thank you for purchasing the TFT-LCD color television. To enjoy the features of this unit and to ensure safety and years of trouble-free operation, be sure to carefully read this manual and follow the instructions contained herein Contents Contents..............2 Caution ..............3 Accessories ..............3...

  • Page 3: Caution

    Caution Never attempt your own maintenance. If something appears strange, please turn the TV off and consult your TV dealer. The TV is composed of many delicate electronic components that can be damaged or broken if you open the TV or attempt to modify it. Do not exposing the TV to high humidity, dust, steam, oil, smoke, direct sunlight etc.

  • Page 4: Aspect

    6. Car adaptor 7. AAA type batteries 8. Remote control Aspect Main Part FRONT 1.Standby Power on/off 2.TV/AV Shift 3.Remote receiving window 4.Speaker 5.TFT-LCD screen 6.Telescopic antenna 7.Channel+ option 8.Channel - option 9.Menu 10.Volume+ selection + 11.Volume - selection 12.Speaker BACK 13.Power switch 14.AV2 IN jack...

  • Page 5: Remote Control

    Remote control 1. Power switch/Exit game 2. Channel select 3. Channel shift 4. Channel select + 5. Volume - 6. Channel select - 7. Mode button 8. Timer 9. Language 10. Horizontal 11. Vertical 12. Mute 13. Return 14. Volume + 15.

  • Page 6: Power Selection

    CALL (Call): Press this button to display the character of program currently watching. TIMER: Time setup of sleep off, it is used to set the time off within 120 minutes. LANG: Press this button can realize the switch of English and Russian OSD menu.

  • Page 7: Menu Operation

    Connection Method of AV Input 1.Insert the external video cord into the yellow port of the AV exchange head, the left sound track into the white port and the right sound track into the red port. Then plug the AV exchange head in AV1/IN jack.
  • Page 8 Menu Option Press MENU to enter into menu Option . Press CH +/- to select and press VOL +/- to change setting. a. Language: Change OSD menu language among English, Russian, Chinese, German, Portuguese, Spanish, Italian and Arabic. b. Calendar: Press CH +/- to select Calendar and press VOL +/- to display a calendar.
  • Page 9 Once you have reached the maximum of 23 hours and the button is pressed again it will go back to zero hours. Once you have set a specified time, the device will start automatically at that designated time. Off-Time: When you have adjusted the time, you can set time for "Off-Time".
  • Page 10 a. Color-Sys: select color system in your country as follows: AUTO, PAL, N3.58, N4.43, SECAM. b. Sound-Sys: Select appropriate sound system in your country as follows: 5.5 m, 6.0 m, 6.5 m. In the System menu, press CH +/- to select Sound system and press VOL +/- to select appropriate sound system in your country.

  • Page 11: Before You Request Repair Service

    In order to receive clearer picture Adjust the length, angle and direction of the telescopic antenna to obtain optimum image. Draw back the antenna from the butt end after usage. ! Caution In case the signal intensity is too weak, the image will remain inferior whatever you adjust the antenna, and cause loud noise wave, shaking image and inferior sound, etc., which is not TV fault.

  • Page 12: Specification

    Specification Product name: 8" portable LCD color television Receivable channels: 48.25 MHz - 863.25 MHz Resolution: 1440(H) x 468(V) Brightness: 300 cd /m² Contrast: 150:1 Audio input: 0.3Wx2 Response Speed (ms): R: 10 / F: 20 View Angle: U: 40 / D: 60, R / L : 60 Connectors: external antenna input jack, stereo earphone jack, audio/video input jack, external power input jack.
  • Page 13 ............13 ........14 ............14 ............15 ..........16 ........17 .......... 17 ..........18 ... 22 ....23 ......24...
  • Page 14 40° . 20° 60° . 2. AC...
  • Page 15 TV/AV 5.TFT-LCD AV2 IN 12V DC IN AV1 IN...
  • Page 16 AV/TV Power CH+, CH-. ((0-9) - / - - ): «- / - -», VOL - / + ( VOL - VOL + MODE ( POWER ( MENU ( MUTE ( VOL+/ VOL- CALL (Call):...
  • Page 17 TIMER ( LANG ( AV ( TV / AV): TV / AV. AUTO ( DC12V.
  • Page 18 AV1/IN AV2/IN Power CH-/CH+ POWER CH +/- MENU « » MENU, « ». CH +/-, VOL +/-, CH +/-, VOL +/-...
  • Page 19 CH +/-, VOL +/- CH +/-, VOL +/- CH +/-, VOL +/- NTSC « » MENU, « ». CH +/-, VOL +/-, +/-, VOL +/-, CH +/-, VOL +/-, CH +/-, VOL +/-, CH+, « » MENU, « ». CH +/-, VOL +/-, VOL +/-, «00:00»,...
  • Page 20 CH +/-, VOL +/-, «00:00». VOL +, VOL -, VOL +/-, «00:00», VOL +, VOL -, (00:00), VOL +/-, VOL -, VOL +/-, VOL +, VOL -, CH +/-, VOL +/-,...
  • Page 21 « » MENU, « ». CH +/-, VOL +/-, CH +/-, VOL +/-, : AUTO, PAL, N3.58, N4.43, SECAM. CH +/-, VOL +/-, (5.5 m, 6.0 m, 6.5 m). « ». [V+] [V-], [V+] [V-], « » MENU, « ». CH +/-, VOL +/-, : V-L, V-H, UHF.
  • Page 22 CH +/-, VOL +/-, CH +/-, VOL +/-, VOL +/-, VOL +/- MENU, CH +/-, NTSC. VOL +/-. CATV.
  • Page 23 TV/AV? « »...
  • Page 24 : 8" : 48.25 - 863.25 : 1440 ( ) x 468 ( ) : 300 / ² : 150:1 : 0.3 ): R: 10 / F:20 : U: 40 / D:60, R / L : 60 (12 ) : 257 x 165 x 42...
