Summary of Contents for SoundMax SM-LCD715

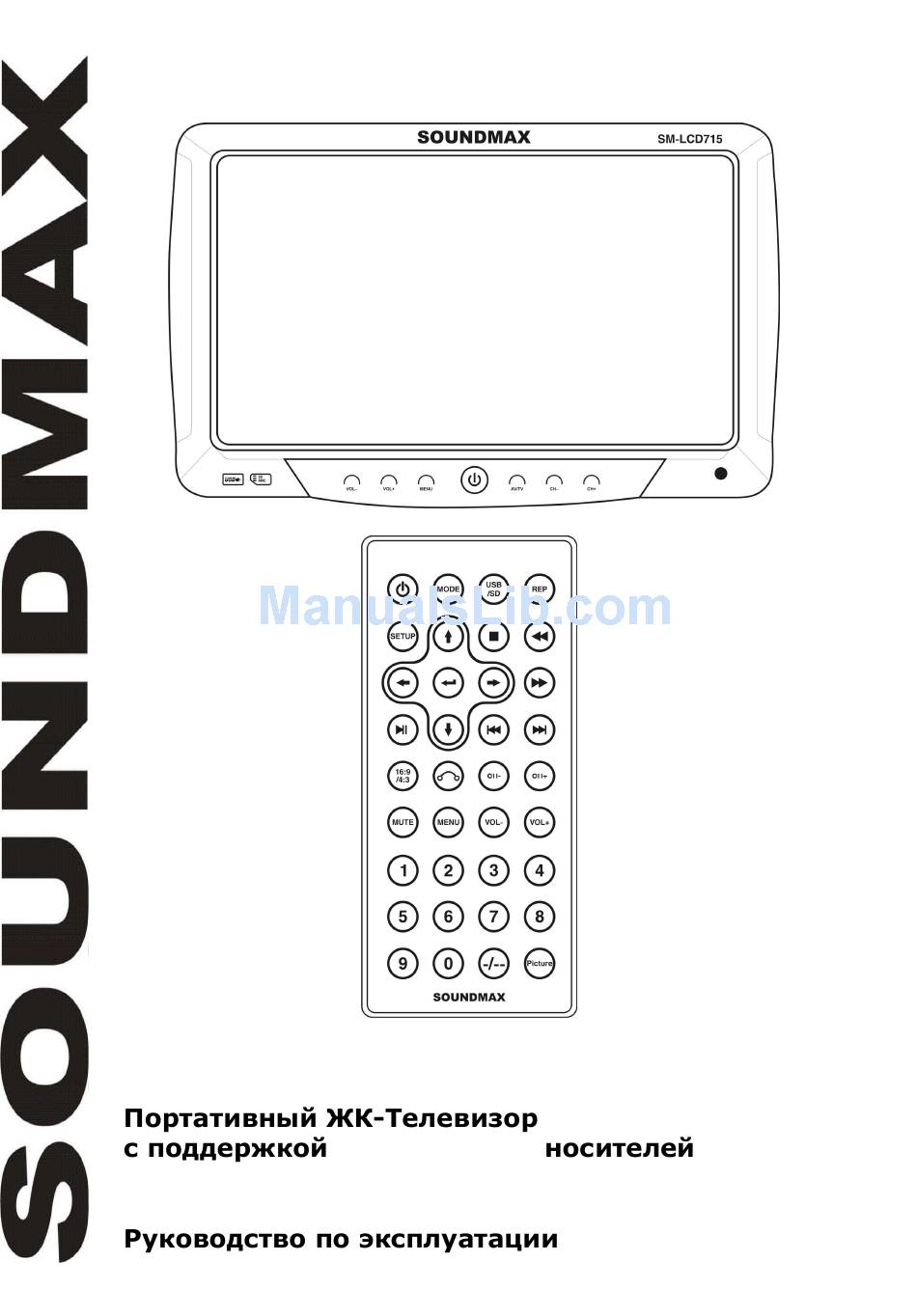

- Page 1 SM-LCD715 Portable LCD TV with USB/SD/MMC support USB/SD/MMC- Instruction manual...
-
Page 2: Table Of Contents
Dear customer! Thank you for purchasing our product. Please read this manual carefully before connecting, operating and adjusting the unit, so you will know how to operate this unit properly and safely. Keep the manual for reference in the future. Contents Contents................ -
Page 3: Important Safeguards
It is recommended to never use the earphone continuously for a long time. Note: SM-LCD715 is a portable TV-receiver capable of playing audio, video and photo files from SD and USB. Maximum supported volume is 8 Gb. For handy use and navigation in folders and files, the unit supports Russian characters. -
Page 4: Control Elements
Control elements Front panel 1. VOL+/VOL- buttons 2. MENU button 3. POWER button 4. TV/AV button 5. CH+/CH- buttons 6. Display 7. IR sensor Not indicated: USB slot (right panel) Antenna in (back panel) Bottom panel 1. SD/MMC card slot 2. -
Page 5: Battery Installation
Caution: 1. Please align the RC with the infrared-receiving window on TV set in operation. 2. Never squeeze, drop, wet or disassembly the RC. 3. Never press any button continuously and swiftly. Operation interval is at least 2 seconds. Battery installation Insert the battery according to the picture above,... -
Page 6: Installation And Connection
PICTURE button: Press select picture mode Standard/Bright/Soft/ Gorgeous. Cursor buttons (UP/DOWN/LEFT/RIGHT): Press to navigate in various menus. While playing a picture file from USB/memory card, press to rotate the picture. Installation and connection Stand installation: Release the metal washer on the top of the bracket but do not separate it from the bracket. -
Page 7: Car Backing Signal Connection
Car backing signal connection Using the control wire included, connect the AV switch control socket to car backing. When backing, the unit will automatically switch to AV mode; so, if a rear view camera is connected to the unit, the display will show the picture of behind the vehicle. -
Page 8: Menu Operation
Menu operation AV Mode/USB mode Press MENU button to access setting menu for picture, audio, function, system and clock. Press CH+/CH- buttons to choose the parameter you need to adjust. Then press VOL+/VOL- buttons to adjust the parameter. AUDIO PICTURE FUNCTION SIGNAL VOLUME... -
Page 9: On-Screen Setup Menu
On-screen setup menu Menu operation When a file from USB/SD/MMC is being played, press SETUP button to enter the on-screen setup menu. Press UP/DOWN cursor buttons to go to parameter list and to select the needed parameter. Press RIGHT cursor button to go to option list for each parameter. -
Page 10: Additional Information
Additional information The accessories include a CD with file samples supported by the unit (Video/Audio/Picture folders). Besides, VIDEO CONVERSION folder contains a typical program for converting various video files into format supported by the unit. The program installation is standard for PCs working under Windows operation system. -
Page 11: Specification
Specification Product name: 7” TFT LCD color TV Aspect ratio: 16:9/4:3 Color system: PAL/SECAM/NTSC Resolution: 480 (H) x 234 (V) Brightness: 300 cd/m² Contrast: 300:1 Supported formats: MP3, AVI, JPEG, MPEG4 (DivX) Supported storages: USB/SD/MMC Memory positions: View Angle: 120 (V), 120 (H) Connectors: Audio/video input, Earphone jack Power supply:... - Page 12 .................12 ............13 ............13 ...............13 ................14 ..............14 ................14 ) ........14 ..............15 ..............15 ............16 ..............16 ...........16 ....16 ............17 ............17 ........17 USB- ..........17 ............17 ..............18 ........19 ..............19 ............19 ..........20 ..........21 ..........22...
- Page 13 20° +60° . 0° +40° . SM-LCD715 USB. miniUSB-USB...
- Page 14 VOL+/VOL- MENU POWER TV/AV CH+/CH- SD/MMC MODE POWER SETUP ENTER PLAY/PAUSE RETURN 16:9/4:3 MUTE MENU USB/SD STOP REWIND/F.FORWARD PREVIOUS/NEXT CH-/CH+ VOL-/VOL+ PICTURE...
- Page 15 – 2 (-). Cr2025. POWER: MENU: V/ V: : TV/AV/SD/USB. VOL-/VOL+: VOL- VOL+ MUTE: VOL+/VOL- CH-/CH+: <-/--> ( «- -»), MODE: REP: USB/SD: REWIND/F.FORWARD: : X2=>X4=>X8=>X16=> X32=> STOP: SETUP: ENTER: PREVIOUS/NEXT: PLAY/PAUSE:...
- Page 16 RETURN: 16:9/4:3: PICTURE: POWER,...
- Page 17 , +12 . USB- Mini USB-USB SD/MMC...
- Page 18 MENU, CH+/CH-, VOL+/VOL- – – AV/TV/SD/USB; – – – MENU, CH+/CH-, VOL+/VOL- – – – –...
- Page 19 USB- SD/MMC SETUP ENTER SETUP. /LB: –...
- Page 20 Video, Audio, Picture). VIDEO CONVERSION Windows. :C\My Documents\ 2009\ \Honeymoon. (16:9). USB.
- Page 21 TV/AV »...
- Page 22 16:9/4:3 PAL/SECAM/NTSC 480 ( ) x 234 ( ) ² 300:1 MP3, AVI, JPEG, MPEG4 (DivX) USB/SD/MMC 120 ( ), 120 ( ) ( ) x 120 ( ) x 19 ( ) ~ 0,4...
