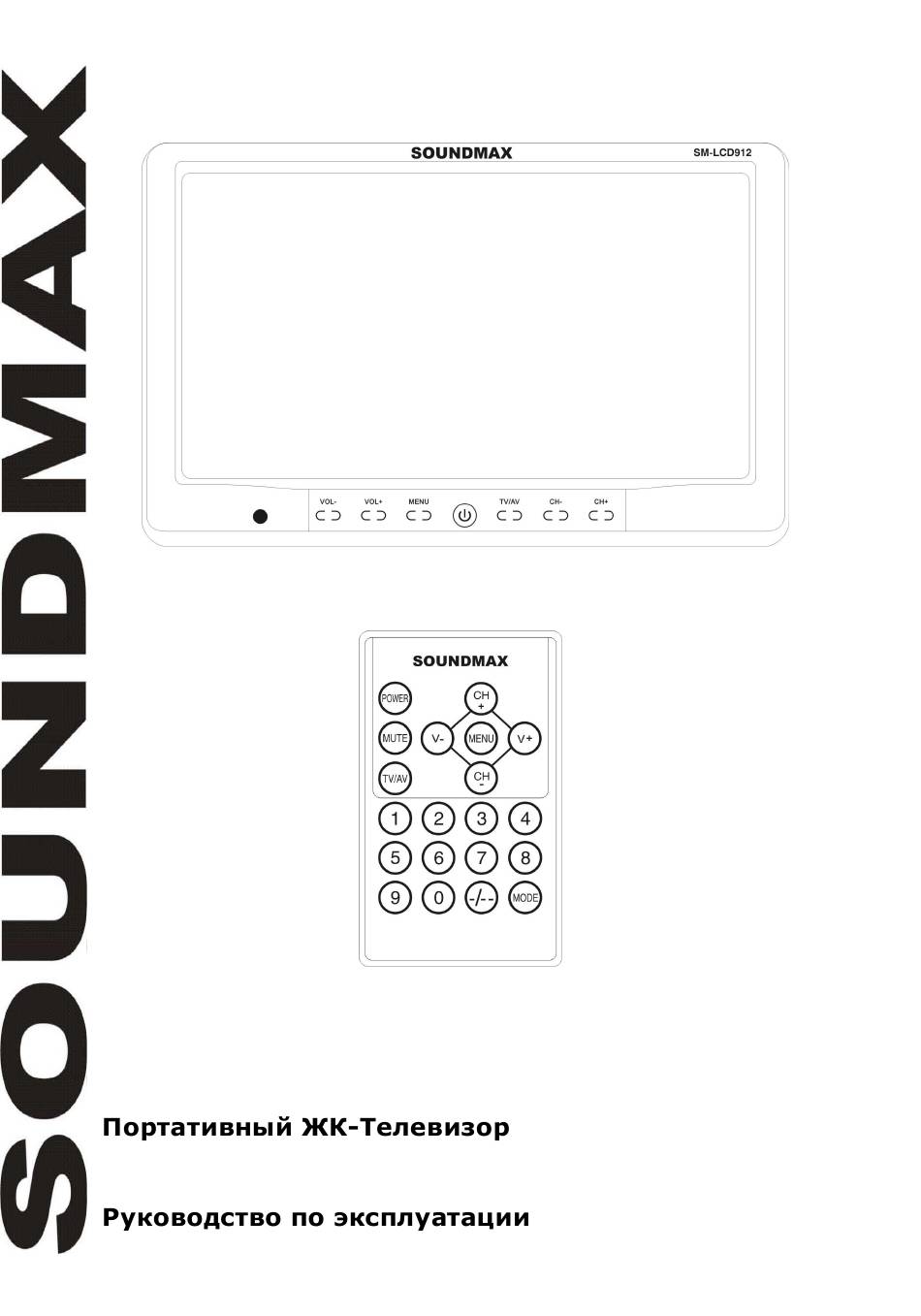

- Page 1 SM-LCD912 Portable LCD TV Instruction manual...
-
Page 2: Table Of Contents
Dear customer! Thank you for purchasing our product. Please read this manual carefully before connecting, operating and adjusting the unit, so you will know how to operate this unit properly and safely. Keep the manual for reference in the future. Contents Contents .............. -
Page 3: Important Safeguards
Important safeguards Never attempt your own maintenance. If something appears strange, please turn the TV off and consult your TV dealer. The TV is composed of many delicate electronic components that can be damaged or broken if you open the TV or attempt to modify it. Do not expose the TV to high humidity, dust, steam, oil, smoke, direct sunlight etc. -
Page 4: Control Elements
Control elements Front panel 1. IR-sensor 2. VOL+/VOL- buttons 3. MENU button 4. POWER button 5. TV/AV button 6. CH+/CH- button 7. LCD display Bottom panel 1. AV in jack 2. Earphone jack 3. Power jack Remote controller (RC) 1. POWER button 2. -
Page 5: Battery Installation
Battery installation Insert the battery according to the picture above, observing the correct polarities (+) and (-). Use one Cr2025 size battery. If the RC fails to work even operated near the unit, replace the battery. Do not use rechargeable batteries. Remove the battery when the RC will not be in use for a long time. -
Page 6: Installation/Connection
Installation/connection Stand installation: Release the metal washer on the top of the bracket but do not separate it from the bracket. Insert the metal washer with the bracket into a hollow at the back of the unit and move the bracket up to a suitable height. Tighten the screw 1 up on the bracket to fix the stand with the unit. -
Page 7: Menu Operation
Menu operation AV Mode Press MENU button to access setting menu for picture, audio, function, system and clock. Press CH+/CH- buttons to choose the parameter you need to adjust. Then press VOL+/VOL- buttons to adjust the parameter. AUDIO PICTURE FUNCTION VOLUME BRIGHT SIGNAL... -
Page 8: Troubleshooting
Troubleshooting The following occurrences do not indicate that the television is faulty. Before you request repair, follow the listed methods to check the device. Occurrences Possible reasons No picture and AC adapter or automobile adapter is not properly sound connected. Uncertified power is being used. Power switch is off. -
Page 9: Specification
Specification Product name: 9” TFT LCD color TV Receivable channels: 48.25 MHz - 863.25 MHz Aspect ratio: 16:9/4:3 Color system: PAL/SECAM/NTSC Resolution: 640 (H) x 234 (V) Brightness: 300 cd/m² Contrast: 300:1 Speaker output: Response Speed (ms): <25 Memory positions: View Angle: 120 (V), 120 (H) Connectors:... - Page 10 ............... 10 ..........11 ............11 ............. 11 ..............12 ..............12 ................ 12 )........12 ..............13 ..............13 ..........14 ..............14 ............14 ............14 ........... 14 .... 14 ............15 ......... 16 ........17...
- Page 11 20° +60° . 0° +40° .
- Page 12 VOL+/VOL- MENU POWER TV/AV CH+/CH- POWER VOL- MUTE TV/AV MENU VOL+ MODE – 2...
- Page 13 (-). Cr2025. POWER: MENU: AV/TV: MUTE: VOL+/VOL- VOL-/VOL+: VOL- VOL+ CH-/CH+: «- -»), MODE:...
- Page 14 POWER/,...
- Page 15 MENU, CH+/CH-, VOL+/VOL- – – AV/TV/SD/USB; – – – MENU, CH+/CH-, VOL+/VOL- – – – –...
- Page 16 TV/AV »...
- Page 17 9” 48.25 - 863.25 16:9/4:3 PAL/SECAM/NTSC 640 ( ) x 234 ( ) ² 300:1 <25 120 ( ), 120 ( ) ( ) x 140 ( ) x 20 ( ) ~ 1,2 k...
