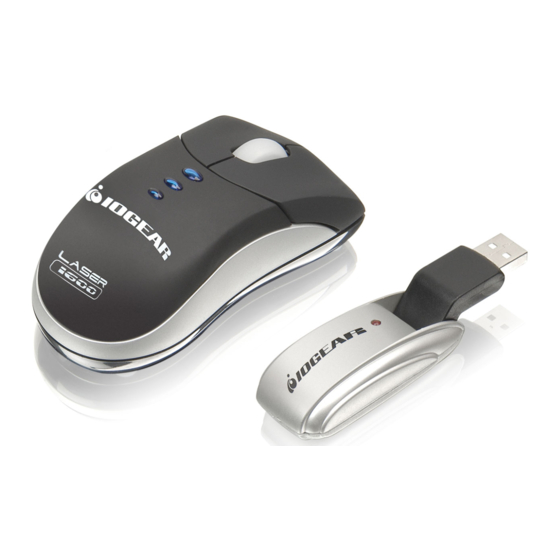

- Page 1 Wireless Laser Travel Mouse Manual (GME227R)
- Page 2 Apple Computer, Inc. All other brand and product names are trademarks or registered trademarks of their respective holders. IOGEAR makes no warranty of any kind with regards to the infor- mation presented in this document. All information furnished here is for informational purpose only and is subject to change without notice.
- Page 3 Welcome Thank you for purchasing IOGEAR’s new Wireless Laser Travel Mouse is an excellent tool for mobile professionals, gamers, and desktop users. IOGEAR only manufactures high quality devices, so we are sure you will be satisfi ed with your purchase. IOGEAR is dedicated to customer service and satisfaction, and wishes you the best with your new Wireless Laser Travel Mouse.
-
Page 4: Table Of Contents
Table of contents Package Contents ... 5 Overview ... 6 Features ... 7 System Requirements ... 8 Safety Notice ... 9 Pictorial Introduction ... 10 Installation ... 12 Operation ... 16 Troubleshooting ... 17 Technical Support ... 19 Radio & TV Interference Statement ... 20 Warranty ... -
Page 5: Package Contents
Package Contents This package contains: 1 Wireless Laser Mouse 1 USB Receiver 1 USB extension cable 1 Carrying Case 1 User Manual 1 Warranty/Registration Card If any items are damaged or missing, please contact your dealer. -
Page 6: Overview
Overview IOGEAR’s new Wireless Laser Travel Mouse is an excellent tool for mobile professionals, gamers, and desktop users. This new IOGEAR mouse uses VCSEL (Vertical Cavity Surface Emitting Laser) as the light source, which provides 30x more tracking power than mice using an optical sensor. VCSEL allows the mouse... -
Page 7: Features
• Advance laser technology provide 30x more tracking capability then optical mice • Works on most surfaces, including glass • Super high resolution of 1600dpi reduces hand movement • Uses very little real estate on your workspace – only needs a few inches for accurate movement •... -
Page 8: System Requirements
System Requirements • Windows 2000, XP • Mac OS X 10.1.5 (For Mac 9X or earlier, it works only as a one button mouse) • Available USB port... -
Page 9: Safety Notice
This product complies with IEC 60825-1, class 1 laser product. Your product complies with FCC and CE rules. This product has no serviceable parts. Use of controls or adjustments of procedures other than the user guide may result in dangerous. Please DO NOT direct the laser beam at anyone’s eye. -
Page 10: Pictorial Introduction
Pictorial Introduction On/Off switch Channel Reset button Battery cover button Mouse wheel Battery cover... - Page 11 LED Light Channel reset button Pictorial Introduction...
-
Page 12: Installation
Installation Battery Installation Step1 Press the button on the mouse and pull the battery cover backward. Step 2 Insert the batteries as shown inside the battery compartment then place the cover back. - Page 13 Receiver Installation The receiver needs to plug into a USB port on your computer. This RF Laser Mouse is a plug- and-play device. Normally, it’s not necessary to setup the RF channel. But if some interference happens, then you must setup the connection RF Channel.
- Page 14 Installation Setup the connection RF channel between the Mouse and the Receiver Step 1 Push the channel reset button on the mouse. Step 2 Push the channel reset button on the receiver. If the cursor does NOT move after 30 seconds, please do the step above again.
- Page 15 LED indications: LED blinking every 0.5 second indicates the Receiver is searching for channel LED blinking in a consistant speed indicates the channel connection has been established LED on indicates no movement on the mouse Installation...
-
Page 16: Operation
Operation Using your mouse How to use the wheel Your mouse has a wheel that functions both as a wheel for Windows Scrolling and also as a customized button. It can be used as a standard mouse button, click (press down) the wheel. To Use the Middle Button, Directly Press down the Wheel. -
Page 17: Troubleshooting
Press the “Channel Reset” button on the receiver, and then press the “Channel Reset” button on the mouse. B. Mouse not detected. When using the mouse, it may not be detected by the computer or receiver. To remedy this problem, try the following •... - Page 18 Make sure that the battery low indicator is NOT lit on. Replace batteries if the low battery indicator is lit on. • You may also need to change the RF Channel for the mouse, Press the “Channel Reset” button on the receiver, then press the “Channel Reset” button on the mouse.
-
Page 19: Technical Support
Technical Support If you need technical support, please check out our IOGEAR Tech Info Library (TIL) at http://www.iogear.com/support for the latest tips, tricks, and troubleshooting. The TIL is designed to provide you with the latest technical information about our products. Most of the answers to your questions can be found here, so please try it out before contacting technical support. -
Page 20: Radio & Tv Interference Statement
Radio & TV Interference Statement WARNING!! This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause interference to radio communications. This equipment has been tested and found to comply with the limits for a Class B computing device pursuant to Subpart J of Part 15 of FCC Rule, which are designed to provide reasonable protection against such interference when operated in a commercial environment. -
Page 21: Warranty
Warranty IN NO EVENT SHALL THE DIRECT VENDOR’S LIABILITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION EXCEED THE PRICE PAID FOR THE PRODUCT. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fi... - Page 22 Contact Info. Hubble • Irvine, CA 92618 • (P) 949.453.8782 • (F) 949.453.8785 • www.iogear.com...
