- Page 1 Wireless Bluetooth MiniMouse Wireless Bluetooth MiniMouse Wireless Bluetooth MiniMouse Wireless Bluetooth MiniMouse Wireless Bluetooth MiniMouse User Manual ®...
- Page 2 All information furnished here is for informational purposes only and is subject to change without notice. IOGEAR assumes no responsibility for any inaccuracies or errors that may appear in this document. Reproduction in whole or part without permission is prohibited.
-
Page 3: Table Of Contents
Package Contents... Overview... Features... Requirements... Additional Bluetooth products... Pictorial Introduction... Installation... Operation... Specification... Radio & TV Interference Statement... Limited Warranty... Table of Contents... -
Page 4: Package Contents
Package Contents This package contains: 1 Wireless Bluetooth MiniMouse 1 Carrying case 1 USB battery charger cable 1 User manual 2 AAA rechargeable batteries 1 Warranty/Registration card If any of the items are missing or damaged, please contact your dealer immediately. -
Page 5: Overview

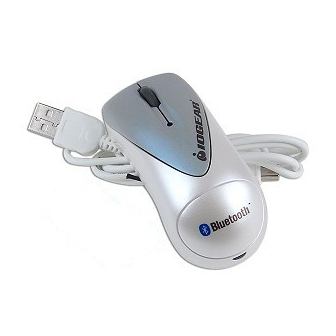

Overview IOGEAR's Wireless Bluetooth Mini Mouse delivers the convenience of a wireless mouse, with the robustness offered by Bluetooth technology. This class 2 Bluetooth mouse gives you a strong signal ranging up to 66 feet. The small and portable design saves precious space in your mobile work area, and it is one less tangled wire in your laptop carrying case. -
Page 6: Features
• Compatible with any Bluetooth-enabled computer that supports HID profile • Works up to 66 feet away from computer • 800 dpi resolution offers twice the accuracy of typical mouse movement • Operates on most surfaces without the need for a mouse pad •... -
Page 7: Requirements
• Bluetooth enabled computer with HID profile support • For MAC’s: OS X v10.3.5 or later • If the computer is not Bluetooth enabled, a Bluetooth USB dongle will be required. Please refer to IOGEAR part no. GBU311, GBU211 for details... -
Page 8: Additional Bluetooth Products
Additional Bluetooth Products Bluetooth USB Adapter, class 2 (GBU211) Bluetooth USB Adapter, class 1 (GBU311) Bluetooth USB Printer Adapter, class 2 (GBP201) Bluetooth Combo (USB/Parallel) Print Adapter, class 1 (GBP301) Bluetooth GPS (GBGPS201) -
Page 9: Pictorial Introduction
Pictorial Introduction 1. Scroll Wheel 2. Left Click Button 3. Right Click Button 4. Battery Compartment 5. Battery Cover Release 6. Optical Sensor 7. Power On/Off Switch 8. Connect Button 9. Battery Charging Connection... -
Page 10: Installation
4. Make sure the power On/Off switch is at ON position. We do recommend that you charge the batteries for 10 hours before using the mouse. 5. To charge the batteries, just plug the USB charger cable into the USB port on... - Page 11 Installation INSTALLATION INSTRUCTIONS Before you can use the IOGEAR Bluetooth mouse with your computer, you will first need to establish communication and then connect to it. The procedures below may be different for you, depending on the Bluetooth software you are using. If you need additional help, please consult the manual for your Bluetooth software.
- Page 12 2. Turn ON the mouse. 3. Open your Bluetooth software (My Bluetooth Places, in our example) 4. Press and hold the Connect button located under the mouse for approximately five (5) seconds; this will set the mouse in discovery mode.
- Page 13 7. Right-click the IOGEAR Bluetooth mouse and select “Pair Device.” When prompted to enter a pass key, enter “1234”. Your computer and mouse should now be paired. 8. Next, right-click on the mouse icon and select “Connect Device” and when prompted to connect, click Yes.
- Page 14 Installation 9. You should now be able to use the IOGEAR Bluetooth Mini Mouse. Once you have connected and paired your mouse with your Bluetooth-enabled computer, you don’t need to repeat this procedure. Even if you turn on/off the Bluetooth mouse or shut down your computer, the mouse will still connect to the computer when both devices are turned on.
- Page 15 MICROSOFT BLUETOOTH STACK (Windows XP SP2) The instructions below apply to Windows XP systems with Service Pack 2 installed. 1. Make sure that your computer is Bluetooth-enabled and that the Bluetooth icon shows on your traybar 2. Right-click on the Bluetooth icon and select “Add a Bluetooth Device.”...
- Page 16 3. Before proceeding with the Bluetooth Wizard, please do the following: Switch ON the Bluetooth mouse Press and hold the “connect” button underneath the mouse for five (5) seconds and then release Click the checkbox “My device is setup and ready to be found” and...
- Page 17 Installation 4. Your computer will scan for Bluetooth devices in your area and display all found devices. On this window, you should see “Bluetooth Mouse” as shown below. Select the mouse and click Next to continue.
- Page 18 Installation 5. To pair with the Bluetooth mouse, select “Use the passkey found in the documentation” and enter the PIN code “1234”. Upon clicking Next, Windows XP will pair with the mouse and install the necessary drivers for your mouse.
- Page 19 Installation 6. At this point, the IOGEAR Bluetooth mouse should be functional. Simply click Finish to close the Wizard.
- Page 20 MAC OS X (10.3.5 or later) Bluetooth support is built-in in MAC OS X. In the example below, we used MAC OS X v10.3.5 to configure the IOGEAR Bluetooth Mini Mouse. 1. Make sure your computer is Bluetooth-enabled and that it supports the Bluetooth HID profile.
- Page 21 Installation 4. Under the settings tab, make sure that 5. Next, select the Devices tab and click Bluetooth is ON and that the box next on Set Up New Device. to Discoverable is checked.
- Page 22 Installation 6. This will start the Bluetooth Setup 7. On the next window, select the Mouse Assistant. Click continue to proceed. option and click Continue.
- Page 23 8. Turn ON the IOGEAR Bluetooth Mini Mouse, then press and hold the Connect button located under the mouse for approximately five (5) seconds. 9. Once the IOGEAR Bluetooth Mini Mouse is detected, it will be listed under the window below. Select the mouse and click Continue.
- Page 24 Installation 10. Your computer will automatically pair with the Bluetooth mouse. If prompted to enter a PIN code, please use “1234”. Upon successful connection, click Continue.
- Page 25 11. You are done! Your Bluetooth mouse should now be functional. To exit the Bluetooth Setup Assistant, click Quit. Once you have connected and paired your mouse with your Bluetooth-enabled computer, you don’t need to repeat this procedure. Even if you turn on/off the...
-
Page 26: Operation
Just plug the USB charger cable into the USB port on your computer, and the mouse, and leave it on for a few hours. You don’t need to turn off the power, and you can use the mouse when it is charging the batteries. A completely depleted battery requires... -
Page 27: Specification
Function Battery Type Frequency Band Interface Operating Range Amps Power Voltage Resolution Specification Ni-Mh Specification 2.4 Ghz Wireless 66 ft. (20m) < 100mA 2.4 V 800 dpi Specification... -
Page 28: Radio & Tv Interference Statement
Radio & TV Interference Statement WARNING!!! This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause interference to radio communications. This equipment has been tested and found to comply with the limits for a Class B computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. -
Page 29: Limited Warranty
Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR’S LIABILITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCU- MENTATION EXCEED THE PRICE PAID FOR THE PRODUCT. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose. - Page 30 ® Contact info. 23 Hubble • Irvine, CA 92618 • (P) 949.453.8782 • (F) 949.453.8785 • www.iogear.com...
