Invacare 1000 Assembly, Installation And Operating Instructions

SAVE THESE INSTRUCTIONS
NOTE: Check all parts for shipping damage before using.
In case of damage, DO NOT use the equipment. Contact
the Dealer/Carrier for further instructions.

SAFETY SUMMARY

The following recommendations are made for safe
installation of the Solid Seat.
GENERAL WARNINGS
DO NOT install or use this equipment without first
reading and understanding these instructions. If
you are unable to understand the Warnings, Cau-
tions or Instructions, contact a healthcare pro-
fessional, dealer or technical personnel before
attempting to install this equipment - otherwise,
injury or damage may occur.
INSTALLATION WARNING
After ANY adjustments, repair or service and BE-
FORE use, make sure that all attaching hard-
ware is tightened securely.
INSTALLING THE SOLID SEAT -
MODEL 1000 AND TRACER LX
WHEELCHAIRS ONLY (FIGURES 1-5)
NOTE: If not stated specifically, the procedure refers to both
Adult/Hemi, Removable, and Permanet Arm Wheelchairs.
1. Remove wheelchair arms.
NOTE: Some wheelchairs may have permanent arms.
2. Fold chair.
3. Remove seat upholstery (All Chairs) and reinsert two
(2) screws behind the front two (2) spacers on the
seat rails (Adult/Hemi Removable Arm) (FIGURE 1).
4. Remove the crossbrace pivot bolt and locknut from
crossbrace (FIGURE 1).
5. Lift one (1) seat guide (front of chair) up and out of the
side frame (Removable arm only) (FIGURE 1).
6. Remove the rear seat guide and tension spring from
the seat rail (FIGURE 1).
NOTE: For Permanent Arm Wheelchairs remove seat
guides from front and rear of chair (FIGURE 1).
7. Repeat steps 5 and 6 for opposite side frame.
ADULT/HEMI REMOVABLE ARM
WHEELCHAIR
Seat Guides
(REAR) and
Tension Springs
Crossbrace
Pivot Nut
PERMANENT ARM
Crossbrace
Pivot Nut

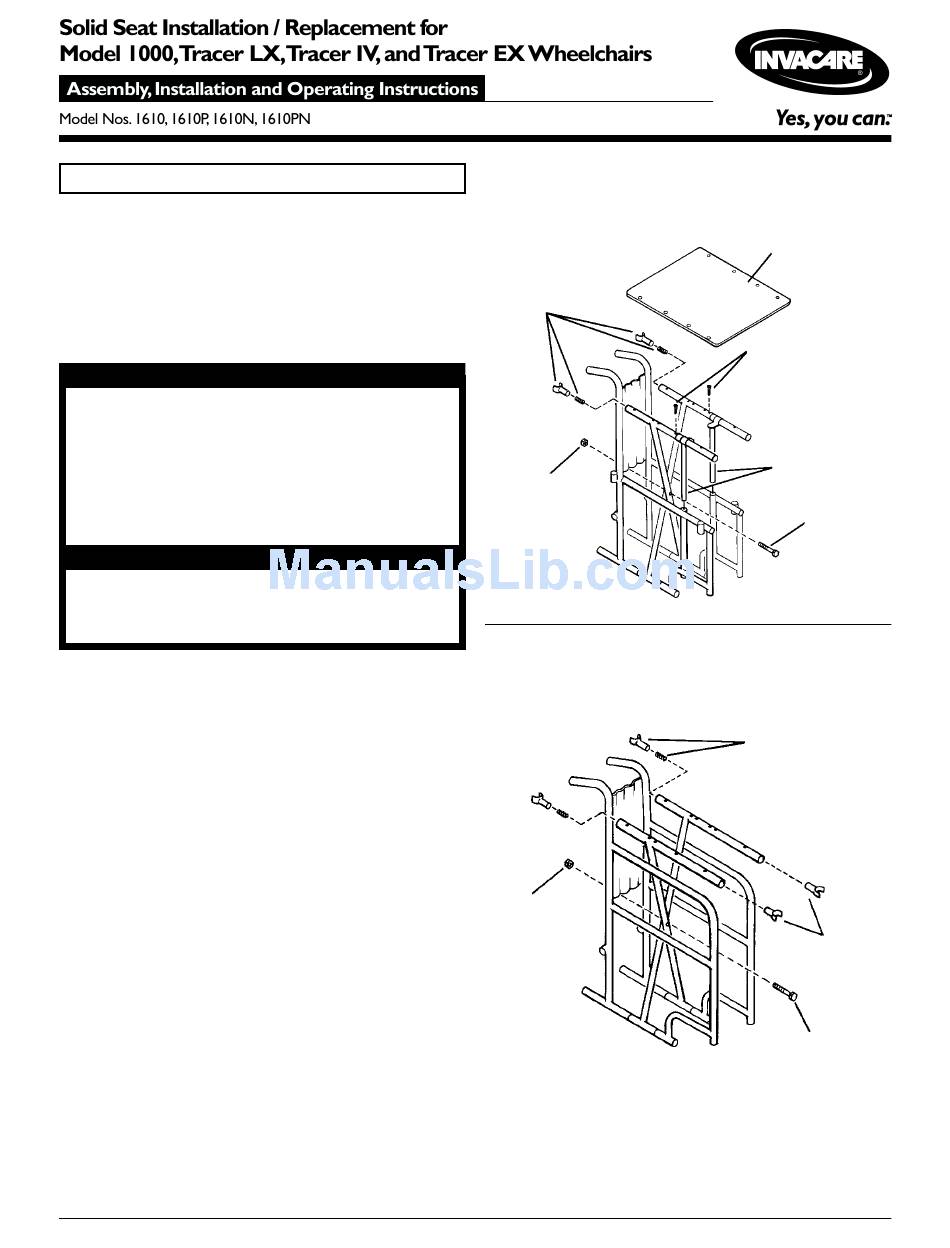

FIGURE 1 - DISASSEMBLY OF THE WHEELCHAIR TO
INSTALL SOLID SEAT
1
Seat Upholstery
Reinsert Two (2)
Screws Here
Seat Guides
(Front of Chair)
Crossbrace
Pivot Bolt
Seat Guides and
Tension Springs
(REAR)
Seat Guides
(Front)
Crossbrace
Pivot Bolt
