Gas Hob Operating Instructions
English
AU












PP 30 TC 120 SF


















Contents
Positioning
Gas Connection
Data Plate
Burner & Injector Specification
Page 1 of 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PP 30 TC 120 SF and is the answer not in the manual?

Questions and answers

Related Manuals for SCHOLTES PP 30 TC 120 SF

Summary of Contents for SCHOLTES PP 30 TC 120 SF

  • Page 1: Table Of Contents

    Description of the Appliance, 7   Overall View     Start-up and Use, 8-9   Practical advise on using the burners   PP 30 TC 120 SF Precautions and Tips, 10 General Safety   Disposal     Maintenance and Care, 11  ...

  • Page 2: Installation

    Gas Hob Operating Instructions Installation ! Before operating your new appliance please read Data Label - The Data Label is located on the this instruction booklet carefully. It contains underside of the appliance. A duplicate label is important information for safe use, installation and supplied to adhere in an accessible area adjacent care of the appliance.

  • Page 3: Installation

    Gas Hob Operating Instructions Securing the appliance to the cabinet There are 3 different methods for installation of the appliance: fig.4 Built-in hobs flush with the worktop (see figure 4, detail H1). In this case it is necessary to make a hole with measurements matching those of the hob in the worktop.

  • Page 4: Electrical Connection

    Gas Hob Operating Instructions Sit-on hobs with edges higher than 58 Electrical Connection mm (see figure 4, detail H3). In this case, the lower casing of the hob does not The hobs come equipped with a 3 pin plug and protrude further than the edge of the power cable.
  • Page 5 Gas Hob Operating Instructions Adapting to various types of gas Having adjusted the flame to the required low setting, while the burner is alight, Warning: Servicing should be carried out only by quickly change the position of the knob authorised personnel. Should the appliance be from minimum to maximum and vice pre-set for a different type of gas than that versa several times, checking that the...
  • Page 6 Gas Hob Operating Instructions Scholtes Models: PP 30 TC 120 SF Natural Gas ULPG Gas Appr. No: GSCS20141 1.0kPa 2.75kPa Injector By-pass* MJ/h Injector By-pass* MJ/h 1.65 ¾ turn 12.5 0.95 Closed Rapid 1.29 ½ turn Closed Semi Rapid ⅜ turn 0.64...

  • Page 7: Description Of The Appliance

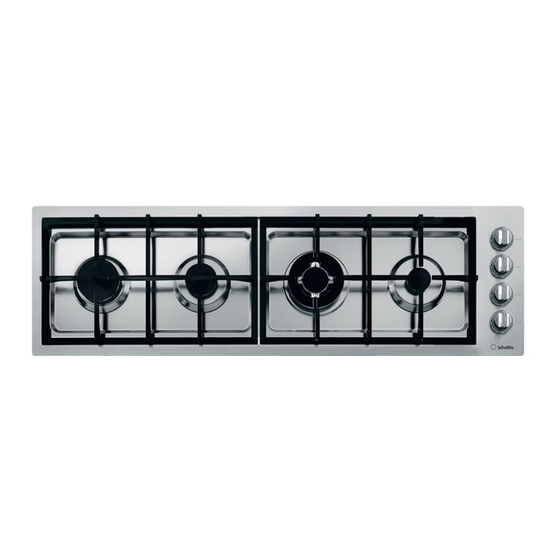

    Gas Hob Operating Instructions Description of the appliance Overall View A Auxiliary gas burner B Semi-rapid gas burner C Rapid gas-burner D Triple ring gas burner E Ignitor for gas burners F Safety device Activates if the flame accidentally goes out (spills, drafts, etc.), interrupting the delivery of gas to the burner.

  • Page 8: Start-Up And Use

    Gas Hob Operating Instructions Start-up and use ! The position of the corresponding gas burner or When the appliance is not in operation, • electric hotplate is shown on every knob. check that the knobs are in the off position. The main gas supply cut-off Gas burners cock should also be closed.

  • Page 9: Practical Advise On Using The Burners

    Gas Hob Operating Instructions Practical advice on using the burners To ensure the burners operate efficiently: Use appropriate cookware for each • burner (see table) so that the flames do not extend beyond the bottom of the cookware. Always use cookware with a flat base •...

  • Page 10: Precautions And Tips

    Gas Hob Operating Instructions Precautions and tips ! This appliance has been designed and Do not use unstable or deformed pans. • manufactured in compliance with international Remove any liquid from the lid before • safety standards. The following warnings are opening it.

  • Page 11: Maintenance And Care

    Gas Hob Operating Instructions Maintenance and care Switching the appliance off Disconnect your appliance from the electricity supply before carrying out any work on it. Cleaning the appliance ! Do not use abrasive or corrosive detergents such as stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair.

  • Page 12: Troubleshooting

    Gas Hob Operating Instructions Troubleshooting It may happen that the appliance does not function properly or at all. Before calling the service centre for assistance, check if anything can be done. First, check to see that there are no interruptions in the gas and electrical supplies, and, in particular, that the gas valves for the mains are open.
