Connecting MM7055 with an AV pre-tuner (AV7005)

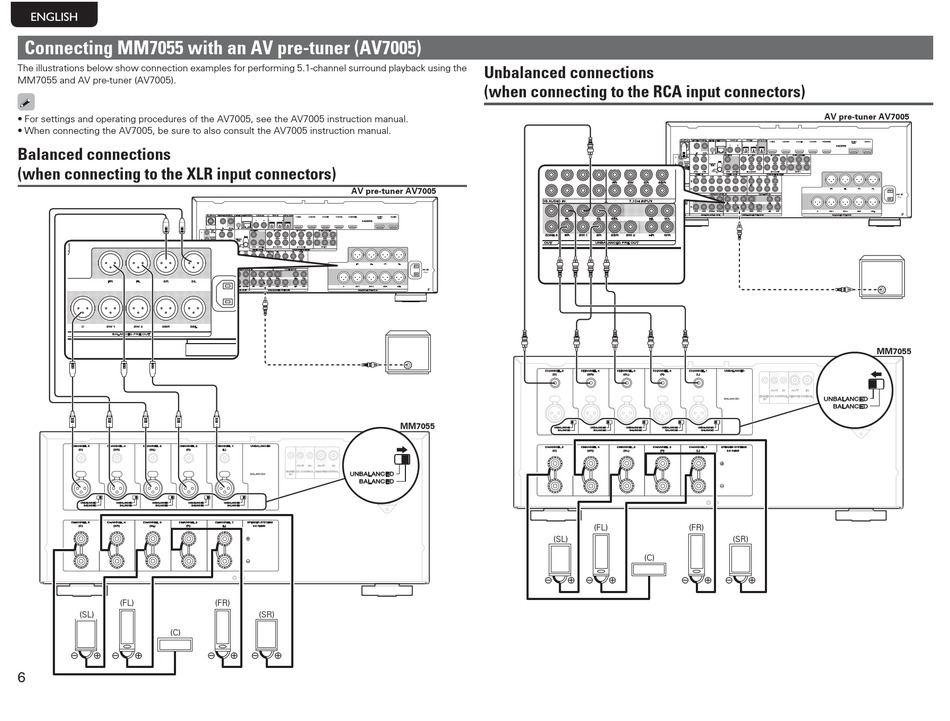

The illustrations below show connection examples for performing 5.1-channel surround playback using the
MM7055 and AV pre-tuner (AV7005).
• For settings and operating procedures of the AV7005, see the AV7005 instruction manual.
• When connecting the AV7005, be sure to also consult the AV7005 instruction manual.
Balanced connections
(when connecting to the XLR input connectors)
(FL)
(SL)
(C)
w
q
w
q
6
AV pre-tuner AV7005
UNBALANCED
BALANCED
(FR)
(SR)
w
q
w
q
Unbalanced connections
(when connecting to the RCA input connectors)
MM7055
(SL)
w
q
(FL)
(FR)
(SR)
(C)
w
q
w
q
w
q
AV pre-tuner AV7005
MM7055
UNBALANCED
BALANCED
