PACOM PAC-MD-WDRX22 Instruction Manual

Fastrax mini-ptz camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

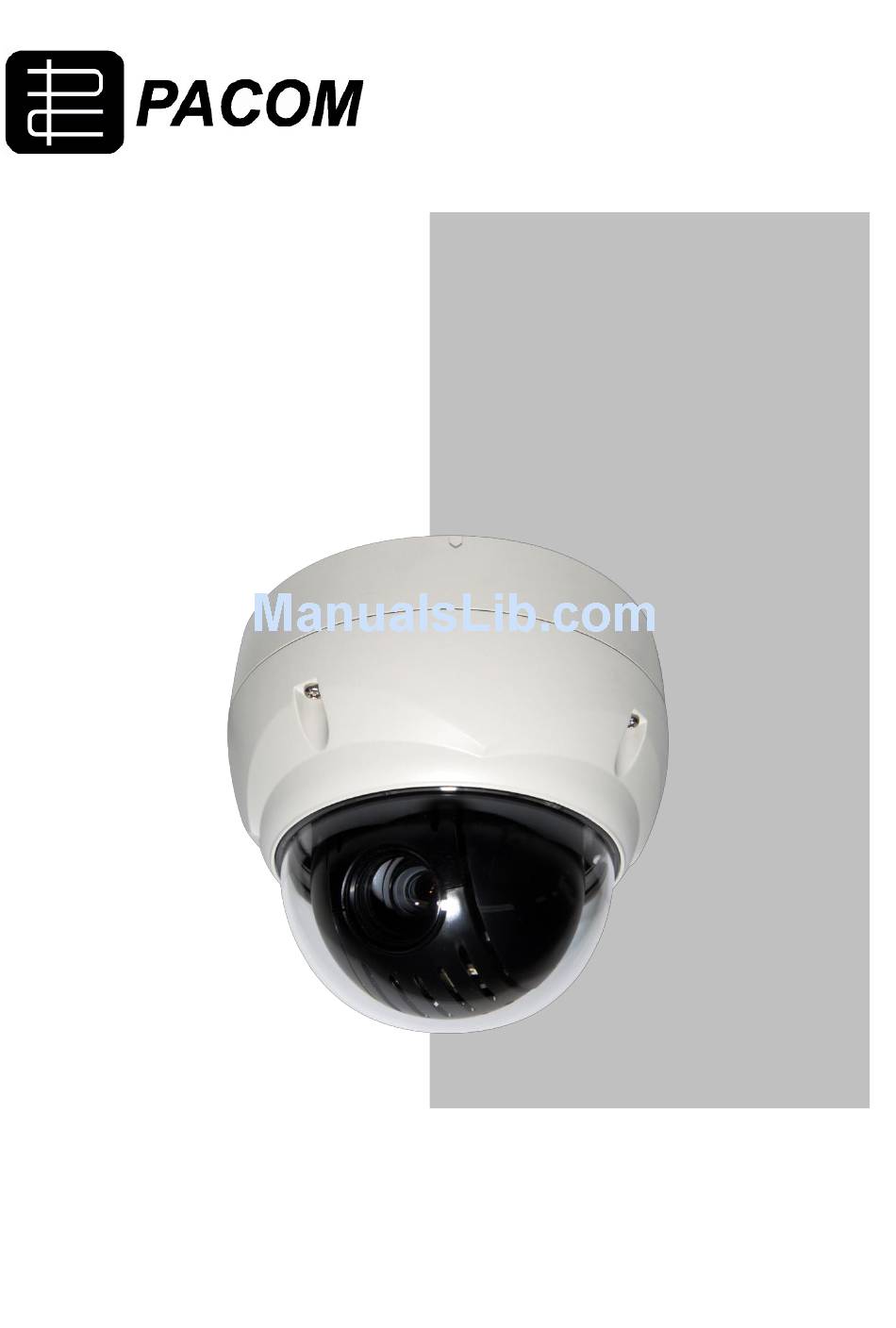

INSTRUCTION MANUAL
PAC-MD-WDRX22 (S46569)
Fastrax Mini-PTZ
CAMERA
Please read this manual thoroughly before use and keep it handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAC-MD-WDRX22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PACOM PAC-MD-WDRX22

Summary of Contents for PACOM PAC-MD-WDRX22

  • Page 1 INSTRUCTION MANUAL PAC-MD-WDRX22 (S46569) Fastrax Mini-PTZ CAMERA Please read this manual thoroughly before use and keep it handy for future reference.
  • Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK)

  • Page 3: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

  • Page 5: Table Of Contents

    Table of Contents Chapter 1 — Introduction ....................1 1.1 Features ..........................1 Chapter 2 — Installation and Configuration ..............2 2.1 Package Contents ....................... 2 2.2 Installation ........................... 3 2.3 Basic Configuration of Dome Camera System ..............6 2.4 Setting Dome Camera Termination ..................7 2.5 Setting Dome Camera Address (ID) ...................

  • Page 6: Chapter 1 - Introduction

    Chapter 1 — Introduction 1.1 Features The dome camera and the keyboard controller make up the building blocks for any surveillance/security system. Using multiple keyboard controllers and multiple dome cameras, no place is too large for monitoring. Extensible and flexible architecture facilitates remote control functions for a variety of external switching devices such as multiplexers and DVRs.

  • Page 7: Chapter 2 - Installation And Configuration

    Chapter 2 — Installation and Configuration 2.1 Package Contents The dome camera is designed with compact, small size, hard dome camera housing. The housing is constructed of aluminum, steel and plastic. The housing is designed to be mounted on a wall or a ceiling.

  • Page 8: Installation

    2.2 Installation The dome camera is for use in surface or pendent mounting applications, and the mounting member must be capable of supporting loads of up to 4.4 lb (2.0 kg). (Pendent mounting must use pendent mount accessory.) The dome camera’s mounting bracket should be attached to a structural object, such as hard wood, wall stud or ceiling rafter that supports the weight of the dome camera.
  • Page 9 CAUTION 1: Before installing mounting bracket to surface pre-adjust the four mounting screws "A" on the base of the dome camera to best match the mounting bracket locked position. Unscrew the locking screw on the side of the dome's base and fit the tab of the mounting bracket into the locking slot. Screws "A" should not be too tight or too loose when the dome is in the locked position.
  • Page 10 2.2.2 Heater Kit Installation 1. Assemble the Heater board to two bossed with screws. Take a reference "B" in the bottom case as below. 2. Place the Heater in the slot "A". Heater cable should be placed away from the Main Board. 3.

  • Page 11: Basic Configuration Of Dome Camera System

    2.3 Basic Configuration of Dome Camera System Figure 1 – Basic Installation Diagram The dome camera must be installed by qualified service personnel in accordance with all local and federal electrical and building codes.

  • Page 12: Setting Dome Camera Termination

    Figure 2 – Layout of DIP switches NOTE: Open the switch cover (position “a”) and change the setting of DIP switches. The cover should be closed after setting DIP switches. 2.4 Setting Dome Camera Termination The device which is connected at end of line, whether it is a dome camera or keyboard controller, must have the cable for communication terminated by setting the appropriate DIP switch.

  • Page 13: Setting Dome Camera Address (Id)

    2.5 Setting Dome Camera Address (ID) To prevent damage, each dome camera must have a unique address (ID). When installing multiple dome cameras using a multiplexer, it is suggested that the dome camera address match the multiplexer port number. The factory default setting is 1. •...
  • Page 14 Example: Port 1 = Dome 1, Port 2 = Dome 2 … Port 16 = Dome 16. If more than 16 dome cameras are installed using two or more multiplexers, ID of the dome camera should be ID of MUX x No. of camera IN. (e.g. multiplexer ID= n, Camera IN= m then ID of Dome =16x(n-1)+m ) DOME ID (16) (32)
  • Page 15 DOME ID (16) (32) (64) (128) Figure 4.2 – Setting Dome Camera Address (ID)
  • Page 16 DOME ID (16) (32) (64) (128) Figure 4.3 – Setting Dome Camera Address (ID)
  • Page 17 DOME ID (16) (32) (64) (128) Figure 4.4 – Setting Dome Camera Address (ID)
  • Page 18 DOME ID (16) (32) (64) (128) Figure 4.5 – Setting Dome Camera Address (ID)
  • Page 19 DOME ID (16) (32) (64) (128) Figure 4.6 – Setting Dome Camera Address (ID)

  • Page 20: Setting Dome Camera Protocol, Baud Rate And Video Type

    2.6 Setting Dome Camera Protocol, Baud rate and Video type If a dome camera is to be installed with the keyboard controller, select the default protocol. Consult service personnel if a dome camera is installed with device other than a keyboard controller.

  • Page 21: Connections

    2.7 Connections • Connecting to the RS-485 The dome camera can be controlled remotely by an external device or control system, such as a control keyboard, using RS-485 half-duplex serial communications signals. • Connecting Video Output connector Connect the video output (BNC) connector to the monitor or video input. •...

  • Page 22: Getting Started

    2.8 Getting Started Once installed apply power to the dome camera. The dome camera will start a configuration sequence. AREA TITLE STATUS of AF AE FOCUS and AE FUNCTION TITLE CAMERA TITLE INFORMATION EMPTY DATA DISPLAY CAMERA ID ALARM:1 DOMEID:001 W→360.0 090.0 PAN &...

  • Page 23: Chapter 3 - Program And Operation

    Chapter 3 — Program and Operation 3.1 Dome Camera Selection Before you program or operate a dome camera, you must select the dome camera by pressing No. + CAM keys. Example: Pressing 1 , 0 + CAM keys sequentially will select dome camera 10. The selected dome camera ID will be displayed on the LCD monitor of the keyboard controller.

  • Page 24: Auto Scan (Shortcut: Scan)

    3.4 Auto Scan (Shortcut: SCAN) The Auto Scan supports up to 17 programmed angles at user-programmable speeds. Follow these steps to program Auto Scan: AUTO SCAN SETUP NUMBER : 01 TITLE : A01 MODE : NORMAL SPEED 5 STEP START ANGLE : ----- ----- END ANGLE : ----- -----...
  • Page 25 6. Select “START ANGLE”. Hold down the CTRL key while selecting the start position using the Joystick. Current panning position will be displayed. Release the CTRL key to complete the selection of the start position. Or press the IRIS Open key then the “CONTROL” displays. Move the desired position and the zoom position.

  • Page 26: Preset (Shortcut: Prst)

    3.5 Preset (Shortcut: PRST) If you need to view specific places routinely, you should program Presets. A Preset is a programmed video scene with automatic pan, tilt, zoom, focus, motion and AE settings. Once programmed, placing the number position and pressing the PRST key on your controller calls up that Preset automatically.
  • Page 27 Select “MOTION SETUP” and push the Joystick to the left or right. Then the MOTION setup displays. MOTION SETUP SENSITIVITY : 06 POSITION : ALL DELAY : 00 SEC OUTPUT : OFF HOLD TIME : 03 SEC EXIT(ESC TO EXIT) Set SENSITIVITY 01 ~ 10 Set POSITION...

  • Page 28: Shortcut Of Preset Program

    3.6 Shortcut of Preset Program After selecting the desired scene, press No. (1 to 240), and press the CTRL and PRST keys subsequently. The current view will be stored to the selected Preset number if the Preset number is empty. If selected Preset number is not empty, “OVER WRITE” message will be displayed on the monitor and select the “OK”...
  • Page 29 8. To edit the “TITLE”, follow the procedure of the Auto Scan above to edit titles. 9. Select “SAVE AND EXIT” and push the Joystick to the right or press the IRIS Open key. Press the ESC or IRIS Close key to exit the program without saving. You can expand the Tour sequence by calling other programmed Tours.

  • Page 30: Pattern (Shortcut: Ptrn)

    3.8 Pattern (Shortcut: PTRN) The Pattern feature records user control of the selected dome camera. Up to 8 Patterns can be stored and played back by pressing No. + PTRN keys subsequently. PATTERN SETUP (CTRL KEY) TITLE PERCENT 01 : P01 00.0% 02 : P02 00.0%...

  • Page 31: Alarm

    3.9 Alarm ALARM SETUP PRI FUN IN HLD LATCH 001 NO --- OFF OFF --- OFF OFF --- OFF OFF DWELL ALARM OUT SETUP SAVE AND EXIT(ESC TO CANCEL) alarm input number PRI (Priority) the lower number has higher priority. (0 ~ 4) FUN (Function) Stored function number to be called by alarm.

  • Page 32: Area Title

    3.10 Area Title Enter a specific name on programmed angle between START and END. For the screen below, when the camera points at an angle between 124.3 (PAN), 30.7 (TILT) to 359.5 (PAN), 45.4 (TILT), ABC will be displayed on the screen. AREA TITLE SETUP NUMBER : 01...

  • Page 33: Privacy Zone

    3.11 Privacy Zone Hide up to 8 unwanted scenes in a camera. PRIVACY ZONE SETUP (CTRL KEY) TITLE METHOD BLOCK V.OFF OFF ---- OFF ---- OFF ---- OFF ---- OFF ---- OFF ---- SAVE AND EXIT(ESC TO CANCEL) 1. Place the cursor at the title field. 2.

  • Page 34: Camera Menu

    3.12 Camera Menu CAMERA SETUP FOCUS CONTROL WB CONTROL AE CONTROL DNR CONTROL LINE LOCK CONTROL SHARPNESS : 05 RESOLUTION : LOW DIGITAL ZOOM : OFF IMAGE FLIP : OFF PRESET FREEZE : OFF STABLIZATION : OFF SAVE AND EXIT(ESC TO CANCEL) SHARPNESS The higher the value, the more edges in the picture will be enhanced.
  • Page 35 • WB (White Balance) CONTROL WB SETUP MODE : AWB R GAIN : --- B GAIN : --- SAVE AND EXIT(ESC TO CANCEL) MODE AWB, WAWB, INDOOR, OUTDOOR, MANUAL Computes the white balance value output using color information from the entire screen automatically. WAWB Wide range auto white balance mode INDOOR...
  • Page 36 NOTE: Values in ( ) are for PAL Camera. The WDR operates in AE1 mode only. NOTE: When BACKLIGHT set BLC or HLC, focus issues may occur in certain lighting conditions. The NIGHT SHOT option removes the IR cutoff filter of the camera and makes the camera sensitive to near infrared.

  • Page 37: Dome Setup

    3.13 Dome Setup CONFIGURATION MENU LANGUAGE : ENGLISH HOME FUNCTION SETUP OSD DISPLAY VIEW ANGLE SETUP INITIALIZE DATA ORIGIN OFFSET DOME RESET SYSTEM MENU SYSTEM INFORMATION SAVE AND EXIT(ESC TO CANCEL) • LANGUAGE SETUP LANGUAGE Select the desired language. • HOME FUNCTION SETUP HOME FUNCTION SETUP HOME FUNCTION : NONE...
  • Page 38 • OSD DISPLAY OSD DISPLAY SETUP CAMERA TITLE : DOMEID VIEW DIRECTION : OFF DOME OSD : ON AREA TITLE : OFF PRESET TITLE : CONSTANT FOCUS EXPOSURE : ON OSD POSITION SETUP SAVE AND EXIT(ESC TO CANCEL) CAMERA TITLE up to 6 characters VIEW DIRECTION ON, OFF...
  • Page 39 • VIEW ANGLE SETUP VIEW ANGLE SETUP PANNING RANGE FLIP : 90 TILT LIMIT : OFF SAVE AND EXIT(ESC TO CANCEL) FLIP OFF, AUTO, 90, 100, 110, 120 OFF: The dome camera moves until 90 vertically. AUTO: When the camera reaches the floor directly above the moving object, it will stop. At that time, release the Joystick instantly and pull it down again to run the auto-flip function.
  • Page 40 • INITIALIZE DATA INITIALIZE DATA FACTORY DEFAULT ERASE PROGRAMMED DATA PRESET FOCUS DEFAULT EXIT(ESC TO EXIT) FACTORY DEFAULT Select “FACTORY DEFAULT” to initialize the data. FACTORY DEFAULT ARE YOU SURE ? CANCEL ERASE PROGRAMMED DATA Erase all stored data from the Flash-ROM of the selected dome camera. You will be asked to enter ON or OFF.
  • Page 41 • ORIGIN OFFSET OFFSET SETUP (CTRL KEY) PAN OFFSET : 000.0 TILT OFFSET : 000.0 ENABLE : OFF SAVE AND EXIT(ESC TO CANCEL) This feature is useful to align a new dome camera exactly the same as the previously installed dome camera.
  • Page 42 MOTOR SETUP Motor Setup menu provides the pan and tilt speed of a camera. User can set the desired speed with pushing the Joystick to the left or right. During operation, pressing 153 + ON keys will change the speed to the SLOW mode and pressing 153 + OFF keys will change the speed to the NORMAL mode.

  • Page 43: Dome Communication

    WHITE DEFECT COMPENSATION White defect of CCD sensor will be compensated. WHITE DEFECT COMPENSATION ARE YOU SURE ? CANCEL • SYSTEM INFORMATION SYSTEM INFORMATION CAMERA TYPE : xxxxx-Vx.xxxx H/W VERSION : Vx.xx-xxxx ROM VERSION : Vx.xxxxx PROTOCOL : xxxx BAUDRATE : 9600 EXIT(ESC TO EXIT) The system information provides essential information about the dome camera if service is...

  • Page 44: Function Run

    3.15 Function Run This Function Run menu allows you to execute the function when you use a keyboard or a DVR without the function keys (Preset. Pattern, Tour and Scan). FUNCTION RUN SETUP (CTRL KEY) PRESET : --- PATTERN : --- TOUR : --- SCAN...

  • Page 45: Appendix A - Specifications

    Appendix A — Specifications 22x Mini-PTZ CAMERA MODEL MODULE CCD Type 1/4" SONY Super HAD CCD II (Double Scan) Optical / Digital Zoom 22x / 16x Max Resolution 700 TVL Focal Length f = 3.9mm ~ 85.8mm 3.9mm – 49.5° (H) Angle of View 85.8mm –...
  • Page 46 Figure 6 – Dimension...

  • Page 47: Appendix B - Troubleshooting

    Appendix B — Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problem Possible Solution Verify that power is connected to all pieces of equipment...
  • Page 48 On-screen Menu The text overlay menu system used for setting dome features. The utility is accessed using a keystroke combination. The utility provides settings for camera functions, zoom, alarm, text display, and password protection. Flip Allows the dome to automatically turn 180 degrees when the camera tilts to its lower limit and stays in that position for a brief delay.

  • Page 49: Slow Shutter

    Slow Shutter Setting used to improve the quality of video obtained in extreme low-light situations. When the Slow Shutter setting is enabled, low-light information is collected over multiple fields based on the Shutter Limit setting. As a result, video may appear blurred or choppy in extreme low-light situations.

  • Page 50: Appendix D - Short Cut Key

    Appendix D — Short Cut Key Short Cut Key Function PRST Pop up Preset setup menu TOUR Pop up Tour setup menu PTRN Pop up Pattern setup menu SCAN Pop up Auto Scan setup menu No.+ CTRL+ PRST Store the current view at the selected number Short Cut Key Function Short Cut Key...
  • Page 52 22x Mini-PTZ CAMERA Printed in Korea 50303207D...
