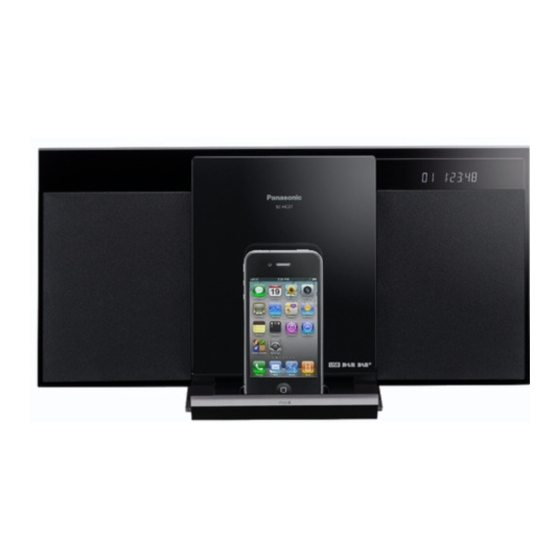

Panasonic SC-HC27DB Operating Instructions

Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Please keep this manual for future reference.
Note:
"EB" on the packaging indicates the United Kingdom.
Pursuant to at the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
Panasonic Corporation
Web Site: http://panasonic.net
© Panasonic Corporation 2012
Do the procedures with the remote control. You can also use the buttons on the main unit if they are the same.
Your system and the illustrations can look differently.

Safety precautions

WARNING!
Unit
• To reduce the risk of fire, electric shock or product
damage,
– Do not expose this unit to rain, moisture, dripping or
splashing.
– Do not place objects filled with liquids, such as vases,
on this unit.
Bottom of product – Use only the recommended accessories.
– Do not remove covers.
– Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
Battery
• Risk of fire, explosion and burns. Do not recharge,
Inside of product disassemble, heat above 60°C or incinerate.
• Keep the button-type battery out of the reach of children.
Never put button-type battery in mouth. If swallowed call
your doctor.
CAUTION!
Unit
• To reduce the risk of fire, electric shock or product
damage,
– Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this unit is
well ventilated.
– Do not obstruct this unit's ventilation openings with
newspapers, tablecloths, curtains, and similar items.
– Do not place sources of naked flames, such as lighted
Product Identification Marking is located on the bottom
candles, on this unit.
of the unit.
• This unit is intended for use in moderate climates.
• Install this unit so that the AC mains lead can be
unplugged from the socket outlet immediately if any
problem occurs.
• This unit may receive radio interference caused by mobile
telephones during use. If such interference occurs, please
increase separation between this unit and the mobile
telephone.
Caution for AC mains lead
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains
plug for your safety and convenience.
Operating Instructions
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that
Compact Stereo System the replacement fuse has a rating of 5-ampere and that it is
approved by ASTA or BSI to BS1362.
Check for the ASTA mark or the BSI mark
of the fuse.
SC-HC27DB
If the plug contains a removable fuse cover you must ensure
Model No.
that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a
replacement cover is obtained.
A replacement fuse cover can be purchased from your local
dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR
THE SOCKET OUTLET IN YOUR HOME THEN THE
FUSE SHOULD BE REMOVED AND THE PLUG CUT
OFF AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL
SHOCK IF THE CUT OFF PLUG IS IN SERTED INTO
ANY 13-AMPERE SOCKET.
If a new plug is to be fitted please observe the wiring code
as stated below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accordance with
EU
the following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured
markings identifying the terminals in your plug, proceed as
follows:
The wire which is coloured Blue must be connected to the
terminal which is marked with the letter N or col oured Black
or Blue.
EB The wire which is coloured Brown must be connected to the
En
terminal which is marked with the letter L or coloured Brown
or Red.
RQT9571-1B
L0112HH1052
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging,
and/or accompanying documents mean that
used electrical and electronic products and
• This unit utilizes a laser. Use of controls or adjustments
batteries should not be mixed with general
or performance of procedures other than those specified
household waste.
herein may result in hazardous radiation exposure.
For proper treatment, recovery and recycling
of old products and used batteries, please
Battery take them to applicable collection points, in
• Danger of explosion if battery is incorrectly replaced.
accordance with your national legislation and
Replace only with the type recommended by the
the Directives 2002/96/EC and 2006/66/EC.
manufacturer.
By disposing of these products and batteries
• When disposing the batteries, please contact your local
correctly, you will help to save valuable
authorities or dealer and ask for the correct method of
resources and prevent any potential
disposal.
• Do not heat or expose to flame. negative effects on human health and the
environment which could otherwise arise
• Do not leave the battery(ies) in a car exposed to direct
sunlight for a long period of time with doors and windows from inappropriate waste handling.
closed.
For more information about collection and
recycling of old products and batteries,
please contact your local municipality, your
waste disposal service or the point of sale
where you purchased the items.
Penalties may be applicable for incorrect

Supplied accessories

disposal of this waste, in accordance with
national legislation.
Check and identify the supplied accessories.
Use numbers indicated in parentheses when asking
for replacement parts. (Product numbers correct as of
January 2012. These may be subject to change.)
1 x AC mains lead 1 x Remote control
Sales and Support Information
(K2CZ3YY00024) (with a battery)
(N2QAYC000059)
Customer Communications Centre
• For customers within the UK: 0844 844 3899
• For customers within Ireland: 01 289 8333
• For further support on your product, please visit our
1 x DAB antenna
website: www.panasonic.co.uk
(RFA3425)

Specifications

WARNING: DO NOT CONNECT EITHER WIRE TO THE Amplifier section
EARTH TERMINAL WHICH IS MARKED WITH THE
LETTER E, BY THE EARTH SYMBOL OR COLOURED RMS output power stereo mode
Front Ch (both ch driven)
GREEN OR GREEN/YELLOW.
5 W per channel (6 ), 1 kHz, 10% THD
THIS PLUG IS NOT WATERPROOF—KEEP DRY.
Total RMS stereo mode power
Before use
on the body Remove the connector cover. Tuner section
How to replace the fuse Preset station
The location of the fuse differ according to the type of AC
Frequency modulation (FM)
mains plug (figures A and B). Confirm the AC mains plug
Frequency range
fitted and follow the instructions below.
87.50 MHz to 108.00 MHz (50 kHz step)
Illustrations may differ from actual AC mains plug.
Antenna terminals
1. Open the fuse cover with a screwdriver.
DAB section
Figure A Figure B
DAB memories
Frequency band (wavelength)
Fuse cover
Band III (UK only)
10B to 12D (211.648 MHz to 229.072 MHz)
Band III (Europe)
5A to 13F (174.928 MHz to 239.200 MHz)
Sensitivity B ER 4x10
-2
Min requirement
DAB external antenna
Terminal
Terminals section
2. Replace the fuse and close or attach the fuse cover.
USB port
Figure A Figure B
USB standard
Media file format support
USB device file system
USB port power
iPod connector
Headphones jack
Fuse (5 ampere)
Terminal
Fuse (5 ampere)
Disc section
Disc played (8 cm or 12 cm)
CD, CD-R/RW (CD-DA, MP3 )
Pick up
Wavelength
Laser power
Audio output (Disc)
Number of channels
FL = Front left channel
For business users in the European Union FR = Front right channel
If you wish to discard electrical and electronic MPEG-1 Layer 3, MPEG-2 Layer 3
equipment, please contact your dealer or
supplier for further information.
Speaker section
[Information on Disposal in other
Type 1 way, 1 speaker system (bass reflex)
Countries outside the European Union]
Speaker unit(s)
These symbols are only valid in the
Full range
European Union. If you wish to discard these
Impedance
items, please contact your local authorities
or dealer and ask for the correct method of
General
disposal.
Power supply
Power consumption
Note for the battery symbol (bottom two
Dimensions (W x H x D) 400 mm x 213 mm x 110 mm
symbol examples):
This symbol might be used in combination
with a chemical symbol. In this case it
Mass
complies with the requirement set by the
Operating temperature range
Directive for the chemical involved.
Operating humidity range
35% to 80% RH (no condensation)
Power consumption in standby mode
Note:
• Specifications are subject to change without notice.
Mass and dimensions are approximate.
• Total harmonic distortion is measured by the digital
spectrum analyzer.
Direct Sales at Panasonic UK
• Order accessory and consumable items for your • Most major credit and debit cards accepted.
product with ease and confidence by phoning our • All enquiries transactions and distribution facilities are
Customer Communications Centre Monday – Thursday provided directly by Panasonic UK.
9:00 a.m. – 5:30 p.m., Friday 9:30 a.m. – 5:30 p.m. • It couldn't be simpler!
(Excluding public holidays). • Also available through our Internet is direct shopping for
• Or go on line through our Internet Accessory ordering a wide range of finished products. Take a browse on our
application at www.pas-europe.com. website for further details.

Overview of controls

Front view
SLEEP DIMMER
10 W
RADIO/
iPod CD
USB
FM 30 stations
SETUP MUTE
75 (unbalanced)
iPod MENU SOUND PLAY MENU
DISPLAY
OK
20 channels ALBUM
A Standby/on switch [`], [1]
• Press to switch the unit from on to standby mode
or vice versa. In standby mode, the unit is still
–98 dBm
consuming a small amount of power.
Top view
F - Connector (75 )
B Select audio source
M N
C Basic Playback control
View the clock and timer options
D
USB 2.0 full speed
E View the iPod menu
MP3 (*.mp3)
View information
FAT12, FAT16, FAT32
F Select the sound effects
DC OUT 5 V, 500 mA MAX
DC OUT 5 V, 1.0 A MAX
G Select the option
Skip album
A B C J O
Stereo, 3.5 mm jack
790 nm (CD)
CLASS 1

Getting started

2 ch (FL, FR)
8 cm cone type x 1/ch
6
1 Connect the DAB antenna. 2 Connect the AC mains lead.
AC 220 to 240 V, 50 Hz
Place the antenna where reception is best.
19 W READ THE "Caution for AC mains lead" BEFORE
CONNECTION.
[D = 72 mm (min)]
Power consumption in standby mode: 0.2 W
[D = 144 mm (tray open)]
(approximate)
2 kg
Do not use an AC mains lead from other equipment.
0°C to +40°C
Tapes
0.2 W (approximate)
Be sure to fully
tighten the nut.
Use DAB outdoor antenna for better reception.
Note:
DAB outdoor antenna
• Some settings return to default when you disconnect the
(not supplied)
system.
• These speakers do not have magnetic shielding. Do
not put them near TVs, PCs or other equipment easily
influenced by magnetism.
• You cannot remove the net of the speakers.
Be sure to fully
tighten the nut.
P Q R H Set the sleep timer
Decrease the brightness of the display panel
I
• Press the button again to cancel.
J Adjust the volume of the system
K Mute the sound of the system
• Press the button again to cancel.
• "MUTE" is also cancelled when you adjust the volume
or when you switch off the system.
L View the play menu
View the radio options
M USB port ( )
S
N Headphones jack ( )
• Plug type: Ø 3.5 mm stereo (not supplied)
• Avoid listening for prolonged periods of time to prevent
hearing damage.
• Excessive sound pressure from earphones and
headphones can cause hearing loss.
• Listening at full volume for long periods may damage
the user's ears.
O Open or close the sliding door
Sliding door
P
Q Remote control sensor
• Maximum range: 7 m directly in front
R Display panel
Open or close the dock for iPod/iPhone
S

Preparing the remote control

Before using
Insulation sheet

Replacing the battery

Replace with a new battery (CR2025 lithium battery).
1
While pressing the stopper, pull out the battery
holder.
2 Insert a new battery with the (+) side facing up.
3 Push the battery holder back fully.
CR2025
To household mains socket
