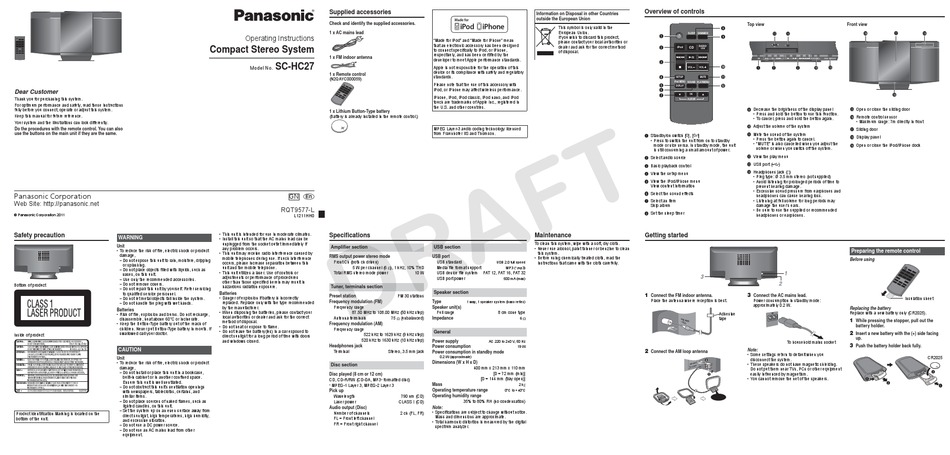

Panasonic SC-HC27 Operating Instructions

Dear Customer
Thank you for purchasing this system.
For optimum performance and safety, read these instructions
fully before you connect, operate or adjust this system.
Keep this manual for future reference.
Your system and the illustrations can look differently.
Do the procedures with the remote control. You can also
use the buttons on the main unit if they are the same.
Panasonic Corporation
Web Site: http://panasonic.net
© Panasonic Corporation 2011
Safety precaution
WARNING
Unit
• To reduce the risk of fire, electric shock or product
damage,
– Do not expose this unit to rain, moisture, dripping
or splashing.
– Do not place objects filled with liquids, such as
vases, on this unit.
– Use only the recommended accessories.
– Do not remove covers.
Bottom of product
– Do not repair this unit by yourself. Refer servicing
to qualified service personnel.
– Do not let metal objects fall inside the system.
– Do not handle the plug with wet hands.
Batteries
• Risk of fire, explosion and burns. Do not recharge,
disassemble, heat above 60°C or incinerate.
Keep the Button-Type battery out of the reach of
•
children. Never put Button-Type battery in mouth. If
swallowed call your doctor.
Inside of product
CAUTION
Unit
• To reduce the risk of fire, electric shock or product
damage,
– Do not install or place this unit in a bookcase,
built-in cabinet or in another confined space.
Ensure this unit is well ventilated.
– Do not obstruct this unit's ventilation openings
with newspapers, tablecloths, curtains, and
similar items.
– Do not place sources of naked flames, such as
lighted candles, on this unit.
– Set the system up on an even surface away from
Product Identification Marking is located on the
direct sunlight, high temperatures, high humidity,
bottom of the unit.
and excessive vibration.
– Do not use a DC power source.
– Do not use an AC mains lead from other
equipment.
Supplied accessories
Check and identify the supplied accessories.
1 x AC mains lead
Operating Instructions
Compact Stereo System
1 x FM indoor antenna
SC-HC27
Model No.
1 x Remote control
(N2QAYC000059)
1 x Lithium Button-Type battery
(Battery is already installed in the remote control.)
GN
En
RQT9577-L
L1211HH0
• This unit is intended for use in moderate climates. Specifications
Install this unit so that the AC mains lead can be
•
unplugged from the socket outlet immediately if
Amplifier section
any problem occurs.
• This unit may receive radio interference caused by
RMS output power stereo mode
mobile telephones during use. If such interference
Front Ch (both ch driven)
occurs, please increase separation between this
5 W per channel (6 ), 1 kHz, 10% THD
unit and the mobile telephone.
This unit utilizes a laser. Use of controls or
• Total RMS stereo mode power
adjustments or performance of procedures
other than those specified herein may result in
hazardous radiation exposure. Tuner, terminals section
Batteries
Preset station
• Danger of explosion if battery is incorrectly
replaced. Replace only with the type recommended Frequency modulation (FM)
by the manufacturer. Frequency range
• When disposing the batteries, please contact your 87.50 MHz to 108.00 MHz (50 kHz step)
local authorities or dealer and ask for the correct
Antenna terminals
method of disposal.
Frequency modulation (AM)
Do not heat or expose to flame.
•
Frequency range
• Do not leave the battery(ies) in a car exposed to
522 kHz to 1629 kHz (9 kHz step)
direct sunlight for a long period of time with doors
520 kHz to 1630 kHz (10 kHz step)
and windows closed.
Headphones jack
Terminal Stereo, 3.5 mm jack
Disc section
Disc played (8 cm or 12 cm)
CD, CD-R/RW (CD-DA, MP3 formatted disc)
MPEG-1 Layer 3, MPEG-2 Layer 3
Pick up
Wavelength
Laser power
Audio output (Disc)
Number of channels
FL = Front left channel
FR = Front right channel
Information on Disposal in other Countries
outside the European Union
This symbol is only valid in the
European Union.
If you wish to discard this product,
"Made for iPod" and "Made for iPhone" mean
please contact your local authorities or
that an electronic accessory has been designed
dealer and ask for the correct method
to connect specifically to iPod, or iPhone,
of disposal.
respectively, and has been certified by the
developer to meet Apple performance standards.
Apple is not responsible for the operation of this
device or its compliance with safety and regulatory
standards.
Please note that the use of this accessory with
iPod, or iPhone may affect wireless performance.
iPhone, iPod, iPod classic, iPod nano, and iPod
touch are trademarks of Apple Inc., registered in
the U.S. and other countries.
MPEG Layer-3 audio coding technology licensed
from Fraunhofer IIS and Thomson.
Maintenance
To clean this system, wipe with a soft, dry cloth.
USB section
• Never use alcohol, paint thinner or benzine to clean
this system.
USB port
Before using chemically treated cloth, read the
•
USB standard USB 2.0 full speed
instructions that came with the cloth carefully.
Media file format support
MP3 ( .mp3)
10 W USB device file system FAT 12, FAT 16, FAT 32
USB port power
500 mA (max)
Speaker section
FM 30 stations
Type 1 way, 1 speaker system (bass reflex)
Speaker unit(s)
Full range 8 cm cone type
75 (unbalanced) Impedance 6
General
Power supply AC 220 to 240 V, 50 Hz
Power consumption 19 W
Power consumption in standby mode
0.2 W (approximate)
Dimensions (W x H x D)
400 mm x 213 mm x 110 mm
[D = 72 mm (min)]
[D = 144 mm (tray open)]
Mass 2 k g
0°C to +40°C
Operating temperature range
790 nm (CD) Operating humidity range
CLASS I (CD) 35% to 80% RH (no condensation)
Note:
2 ch (FL, FR) • Specifications are subject to change without notice.
Mass and dimensions are approximate.
Total harmonic distortion is measured by the digital
•
spectrum analyzer.
Overview of controls
Top view
SLEEP DIMMER M N
RADIO/
iPod CD
USB
A B C J
SETUP MUTE
iPod MENU SOUND PLAYMENU
DISPLAY
OK
ALBUM
I Decrease the brightness of the display panel
Press and hold the button to use this function.
•
To cancel, press and hold the button again.
•
J Adjust the volume of the system
K Mute the sound of the system
A Standby/on switch [`], [1]
Press the button again to cancel.
•
• Press to switch the unit from on to standby
• "MUTE" is also cancelled when you adjust the
mode or vice versa. In standby mode, the unit
volume or when you switch off the system.
is still consuming a small amount of power.
L View the play menu
B Select audio source
M USB port ( )
C Basic playback control
N Headphones jack ( )
D View the setup menu
• Plug type: Ø 3.5 mm stereo (not supplied)
E View the iPod/iPhone menu Avoid listening for prolonged periods of time to
•
View content information prevent hearing damage.
• Excessive sound pressure from earphones and
F Select the sound effects
headphones can cause hearing loss.
G Select an item Listening at full volume for long periods may
•
Skip album damage the user's ears.
• Be sure to use the supplied or recommended
H Set the sleep timer
headphones or earphones.
Getting started
1 3
Connect the FM indoor antenna. Connect the AC mains lead.
Place the antenna where reception is best. Power consumption in standby mode:
approximately 0.2 W.
Adhesive
tape
To household mains socket
Note:
2 Connect the AM loop antenna
• Some settings return to default when you
disconnect the system.
These speakers do not have magnetic shielding.
•
Do not put them near TVs, PCs or other equipment
easily influenced by magnetism.
• You cannot remove the net of the speakers.

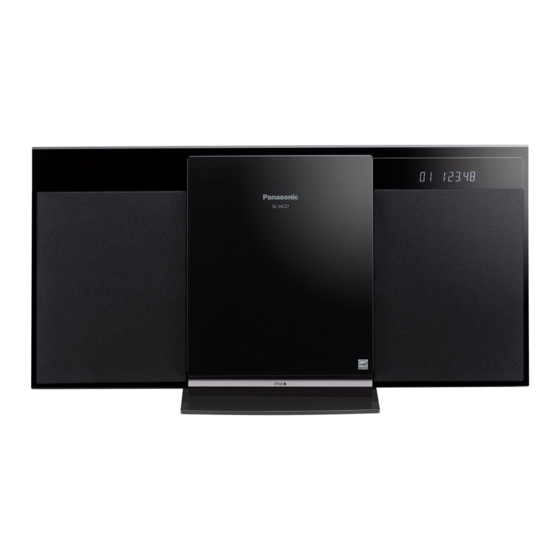

Front view
P Q R
O
S
O Open or close the sliding door
P Remote control sensor
Maximum range: 7m directly in front
•
Q Sliding door
R Display panel
S Open or close the iPod/iPhone dock
Preparing the remote control
Before using
Insulation sheet
Replacing the battery
Replace with a new battery only (CR2025).
1
While pressing the stopper, pull out the
battery holder.
2 Insert a new battery with the (+) side facing
up.
3
Push the battery holder back fully.
CR2025
