Summary of Contents for Volvo V70 2013

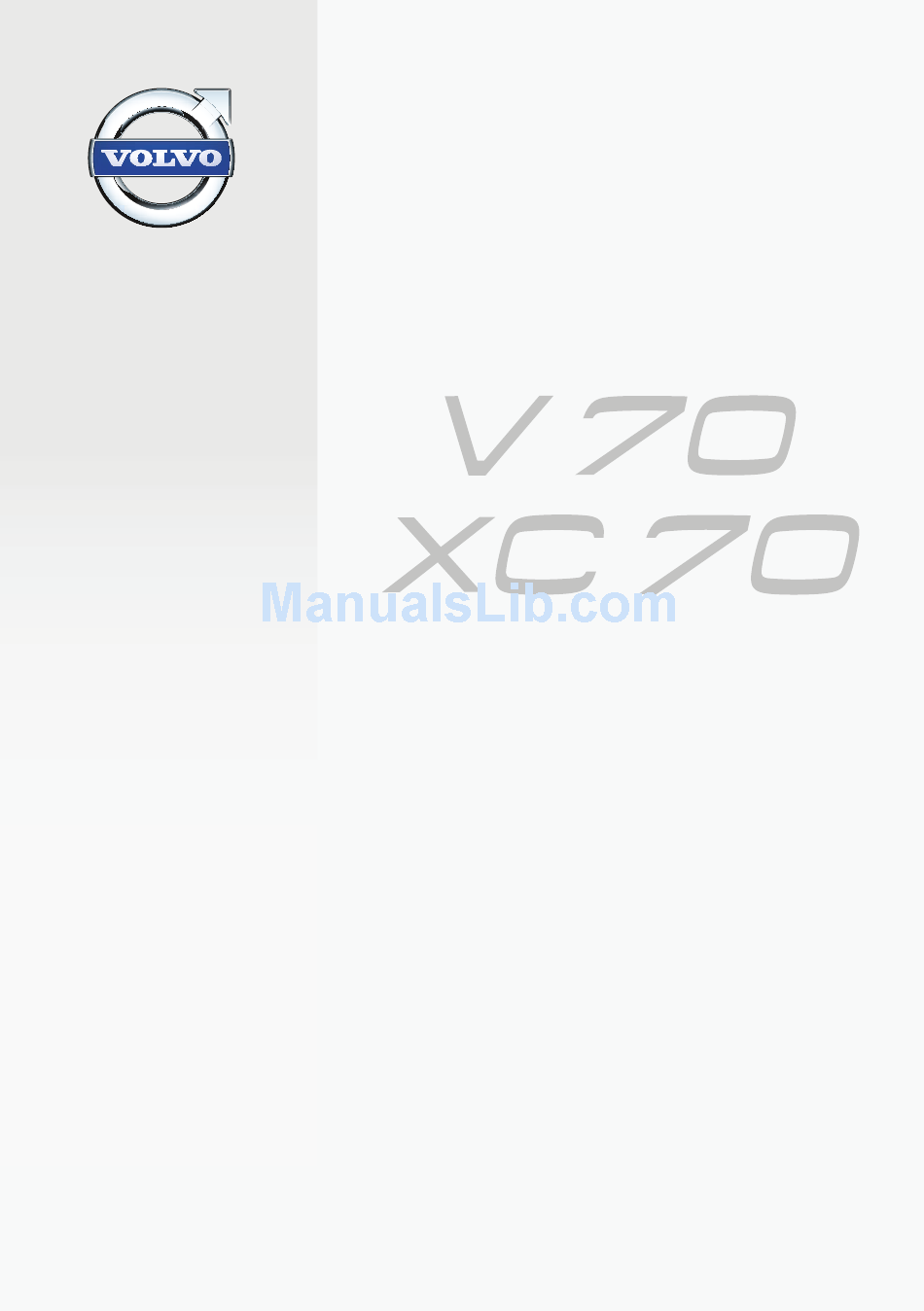

- Page 1 w e b e d i t i o n q u i c k g u i d e...
- Page 2 YouR new VoLVo! this folder contains a selection of the most common functions in your particular car. the owner's manual and other manuals contain important information with all warnings and safety instructions. the following symbols mean: different parts are pointed out in the overview images.
- Page 3 How does the remote control key work? unlocks doors and tailgate and disarms the alarm*. can be set in MY CAR. Locks doors and tailgate and arms the alarm. Approach light duration. one press unlocks the tailgate and one long press opens power tailgate*.
- Page 4 How do I start the engine? Press the remote control key into the ignition switch. depress the clutch or brake pedal. briefly press the START/STOP ENGINE-button and release – the engine starts. How do I switch off the engine? briefly press the START/STOP ENGINE-button – the engine stops.
-
Page 5: Automatic Gearbox
How do I start the windscreen wipers and rain sensor*? Move the lever downward to start the windscreen wipers and upward for a single sweep. Rain sensor on/off. Regulates the sensor sensitivity or the intermittent delay. wiper, rear window - intermittent/normal. What does BLIS do*? Blind Spot Information System advises about vehicles in the blind spot. -
Page 6: Store Setting
How does the pedestrian protection work*? the car has collision warning with Auto brake and cyclist and Pedestrian detection, which can warn, brake and/or stop for vehicles, cyclists and pedestrians. the function is only an aid and does not work in all situ- ations –... - Page 7 How do I adjust the steering wheel? Release the catch. Adjust the steering wheel forward/backward and up/ down. Activate the catch. How does the sunroof work*? Automatic maximum opening. Manual opening. Manual closing. Automatic maximum closing. opening ventilation position. closing ventilation position. How do I open and close the power operated tailgate*? Opening...
- Page 8 How do I regulate the temperature? turn for individual temperature in the left/right-hand area of the passenger compartment. the screen shows the selected temperature. Press AUTO for automatic control of air distribu- tion and other functions. the screen shows AUTO CLIMATE.
- Page 9 How is the trip computer operated? OK opens the trip computer's menu, activates the selected option and extinguishes messages. thumbwheel scrolls between the trip computer op- tions. RESET resets data in the selected trip computer step and goes back in the menu structure. How do I reset the trip meter? turn the left-hand stalk switch thumbwheel to show trip meter...
- Page 10 How does the range/"km to empty tank" work? the combined instrument panel shows an estimation of the possible driving distance based on previous driving conditions and remaining fuel quantity. no guaranteed range remains when "---- km" is shown. Refuel as soon as possible. the illustration shows the digital* combined instrument panel.
- Page 11 How do I switch on and off the Infotainment system? A short press activates the system. A long press (until the screen switches off) deacti- vates. to switch off the sound (Mute): give a short press - the next press reactivates. note that the whole of the Sensus system (including navigation* and phone functions*) starts/switches off at the same time.
- Page 12 How do I answer the phone*? – Press the thumbwheel to accept incoming calls. the call is rejected/interrupted with a press on EXIT. For more ways to answer the phone – see the owner's manual. How do I connect an external audio device? connect an external device via the AuX input or uSb* port in the centre console.
- Page 13 What settings can be made in the menu system? MY CAR handles many of the car's functions, e.g. settings for clock, door mirrors and locks. See the earlier heading "How do i navigate in the infotainment system?" for which buttons to use. How do I set the clock? navigate to Settings >...
- Page 14 Leather requires regular care in order to maintain appear- ance. For this reason, the leather upholstery should be treated using the Volvo Leather care kit 1-4 times per year. the Volvo Leather care kit is available for purchase from a Volvo dealer.
- Page 15 Where are the storage spaces located? Shown here are some of the car's storage spaces. the owner's manual shows the location of more storage spaces. Where are the AUX/USB* and 12 V sockets located? the remote control key must be at least in key position I in order for the 12V sockets* in the passenger compartment to work.
- Page 16 How do I start the engine? After a cold start the idling speed is high irrespective of outside temperature. it is part of Volvo's efficient emissions system. during cold starting, certain diesel engines have a delayed start due to preheating.
