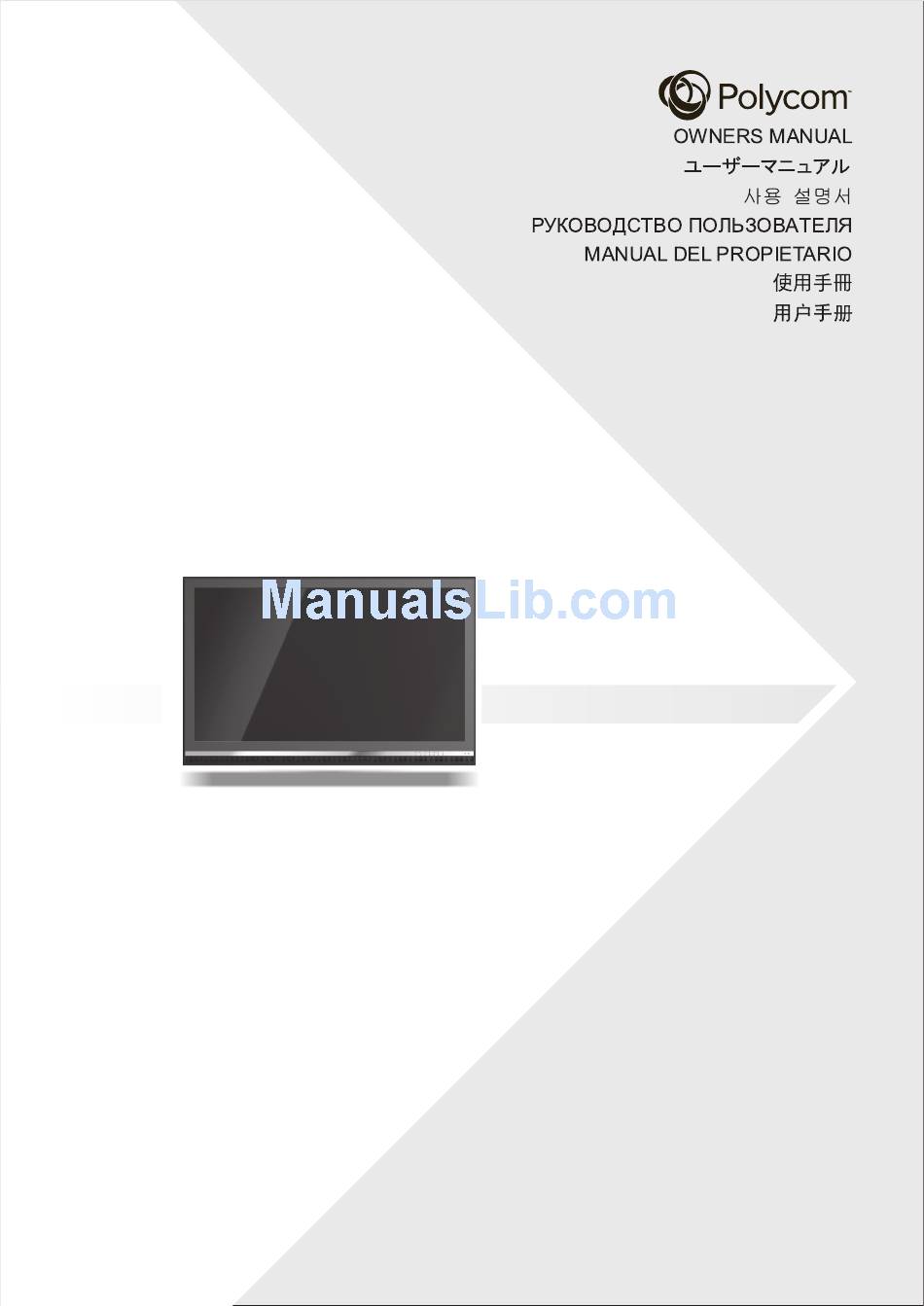

- Page 1 65” LED DISPLAY イ イ ンチ チ ン デ デ ィ ィ スプ プ レ ス レイ イ 65” LED 디 디 스 스 플 플 레 레 이 이 СД-ТЕЛЕВИЗОР С ДИАГОНАЛЬЮ 65" MONITOR LED 65” 吋 吋 顯 顯 示 示 器 器 吋...
-
Page 2: Table Of Contents
Keypad Controls Battery Installation Rear Panel Connections Remote Control Buttons Using the OSD Menu Installation Connecting POLYCOM Video Conferencing System Connecting a DVD Connecting a Set-Top Box Connecting an External Amplifier Connecting an External Amplified Speaker Connecting a PC Connecting a IR Receiver... -
Page 3: Important Safety Instructions
Important Safety Instructions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: To reduce the risk of electric shock, do not remove the front or back covers. No user-serviceable parts inside. Refer servicing to qualified service personnel only. The exclamation point within a triangle The lightning flash with arrow-head is intended to tell the user that important within a triangle is intended to inform... -
Page 4: Cleaning & Maintenance
Important Safety Instructions Disconnect the unit from the main supply and refer servicing to qualified service personnel under the following conditions : Power cord or plug is damaged or frayed. Liquid has been spilled into the product and/or the unit has been exposed to water or moisture. Unit does not operate normally when the operating instructions are not followed. - Page 5 Important Safety Instructions Warning User must use shielded signal interface cables to maintain FCC compliance for the product. Provided with this display is a detachable power supply cord with IEC320 style terminations. It may be suitable for connection to any UL listed personal computer with similar configuration. Before making the connection, make sure the voltage rating of the computer convenience outlet is the same as the monitor and that the ampere rating of the computer convenience outlet is equal to or exceeds the monitor voltage rating.
-
Page 6: Overview
Overview Checking the Accessories Supplied OWNERS M ANUAL OWNERS M ANUAL ユーザーマニュアル ユーザーマニュアル 사용 설명서 사용 설명서 ОВОДСТВО П ЛЬЗОВАТЕЛЯ РУКОВОДСТВО П ОЛЬЗОВАТЕЛЯ MANUAL DEL PROPIETARIO MANUAL DEL PROPIETARIO 使用手冊 使用 手冊 用户手册 用户 手册 65” LED DISPLAY 65” LED DISPLAY LCD Display User’s Manual Remote Controller... -
Page 7: Rear Panel Connections
Rear Panel Connections RS-232 Connector RGB Input Connect to a computer serial port. Connect to RGB input of computer or Set-Top Box. Audio Output HDMI 1 /HDMI 2 Inputs Variable or fixed audio output jacks for connecting Connect to the digital video signals from to an external audio amplifier. -
Page 8: Remote Control Buttons
Standby Power On/off Push this button to turn on the display from standby mode. Push it again to standby mode. POLYCOM Mode Push t his k ey t o select P OLY COM m odes f or optimal c onference performance. -
Page 9: Using The Osd Menu
Overview Using the OSD Menu The On Screen Display (OSD) menu allows access to setup various parameters equipped with this display. To access the OSD menu, press “MENU” OSD Menu button on the remote control or on the OSD Menu Navigation Access rear cover. -
Page 10: Installation
Installation Connecting POLYCOM Video Conferencing System Refer to the Administrator’s Guide included with the POLYCOM video conferencing system for configuring the monitor(s) for optimal performance. Connecting a DVD Using Component Video Input Connect the green-colored (labeled as Y) jack from the DVD to the green-colored jack of the display. -
Page 11: Connecting An External Amplifier
Installation Connecting an External Amplifier This display can be connected to an external amplifier using the AUDIO OUT jacks located on the back of the display. Connect the red (R) and white (L) AUDIO OUT jacks from right side of the connector panel to the external amplifier. - Page 12 Installation Connecting a PC (con’t) Setting Up Your Display Using Plug and Play This display adheres to VESA Plug and Play standard to eliminate complicated and time consuming setup of displays. This display identifies itself to the computer and automatically sends the PC its Extended Display Identification Data (EDID) using Display Data Channel (DDC) protocols.
-
Page 13: Connecting A Ir Receiver
Installation Connecting a IR Receiver IR receiver for remote control (suggested position is shown as below) Plug in the IR connector from the back of the display. (Cable Clip) (This clip is an optional accessory for jointing 2 displays. Please refer to page 27.) Use 4 cable cilps to fix the cable and IR receiver. -
Page 14: Supported Resolutions
Installation Supported Resolutions Under HDMI, DVI and RGB modes, this Display supports the following resolutions: Note: This display does not support Macintosh resolution. “*”:not available for RGB Mode. -
Page 15: Menu System
(4)VIVID. Note: Note that the default Picture Mode setting is set to “POLYCOM”. This setting is standard mode, which is optimized (and recommended) for use with POLYCOM Video conferencing system for all video inputs. As such, many of the adjustment sub-settings are “grayed-out” and are not accessible to the user. -
Page 16: Fine Tuning Under Rgb Mode
Menu System Explanation of Various Picture Control Settings (con’t) H-POSITION Use to change horizontal position of the picture. Increase to shift the picture to the right. Decrease to shift the picture to the left. V-POSITION Use to change vertical position of the picture. Increase to shift the picture up. Decrease to shift the picture down. -
Page 17: Understanding Widescreen Modes
Menu System Understanding Widescreen Modes This display is capable of displaying a wide-screen image on the native 16:9 aspect ratio screen. However, not all available video content fits perfectly in a wide-screen (16:9) format resulting in unused screen space. This display is capable of displaying images in various formats that is suitable for various types of content depending on its size. - Page 18 Menu System Explanation of Various Setup Settings...
-
Page 19: Additional Information
Additional Information Troubleshooting The following table lists possible problems and methods for remedy. Please refer to this table prior to contacting a service representative. Symptom Possible Cause Remedy 1. The power cord is disconnected. 1.Plug in the power cord. No picture is displayed. 2. -
Page 20: Specifications
Additional Information Specifications Display Panel Screen size 65” - 16:9 Aspect ratio 1920(Horizontal) x 1080p(Vertical) pixels 0.744 mm x 0.744 mm Number of pixels Luminance 360 cd/m Power Source Input voltage 100 ~240 Vac, 50/60 Hz Input current 2.0 A Max. Power consumption 200 Watts Max. -
Page 21: Timing For Component
Additional Information Specifications Pin Assignments For 19 Pin HDMI Connector (Digital only) 1.HDMI_RX2+ 8.Ground (For +5V) 15.RX5VDDC SCL 2.Ground (For +5V) 9.HDMI_RX0- 16.RX5VDDC SDAt 3.HDMI_RX2- 10.HDMI_RXC+ 17. Ground (For +5V) 4.HDMI_RX1+ 11.Ground (For +5V) 18. IN_5V 5. Ground (For +5V) 12.HDMI_RXC- 19. - Page 22 Additional Information Specifications Dimensions & Weight Width Height Depth Net Weight Gross Weight 1512mm 882mm 120mm 62.0Kg 75.5Kg 136.7lb 166.5lb Operating Temperature 0~40 C Relative Humidity 10~90% Non-Operating Temperature -20~60 C Relative Humidity 10~90% Acoustics (IHF A-weight 1 meter) 32dB Max. Sound Audio Output (only for HDMI) Audio Input +/- 3dB...
-
Page 23: Rs-232 Connection
Additional Information RS-232 Connection Overview This monitor is equipped with an RS-232 serial terminal for using the monitor with computer controls. The RS-232 serial terminal conforms to the RS-232 interface specification. The computer will require software application (such as Hyper Terminal) which allows the computer to send and receive control data that can support the communication parameters described in the section. - Page 24 Return Model Name INF (Example: REA:INF RCV CFM PME65MA) CFM Power On Source OFF=Normal (Last Memory) CP1=Component, RG1=RGB, HDM=HDMI1, HM2=HDMI2 Picture Mode CNM=MILD, VVD=VIVID, PLC=POLYCOM, USR=CUSTOM 3D NR OFF=OFF, L OW=LOW, M ID=MIDDLE, H IG=HIGH MPEG NR OFF=OFF L OW=LOW H IG=HIGH...
-
Page 25: Dimensional Drawings
Additional Information Dimensional Drawings Color Scheme Item Color Scheme Black Outer Front Bezel... -
Page 26: Packing Break Out
Additional Information Packing Break Out... -
Page 27: Assembly Information
Additional Information Assembly Information The Assembly of Sponge The sponge is applied for eliminating the gap when jointing 2 displays w ith clips. Please paste it on the surface of the side panel as indicated with 5 mm from the edge to the front. - Page 28 TINSE2239Y1----...
