Summary of Contents for Polycom 50” PDP DISPLAY

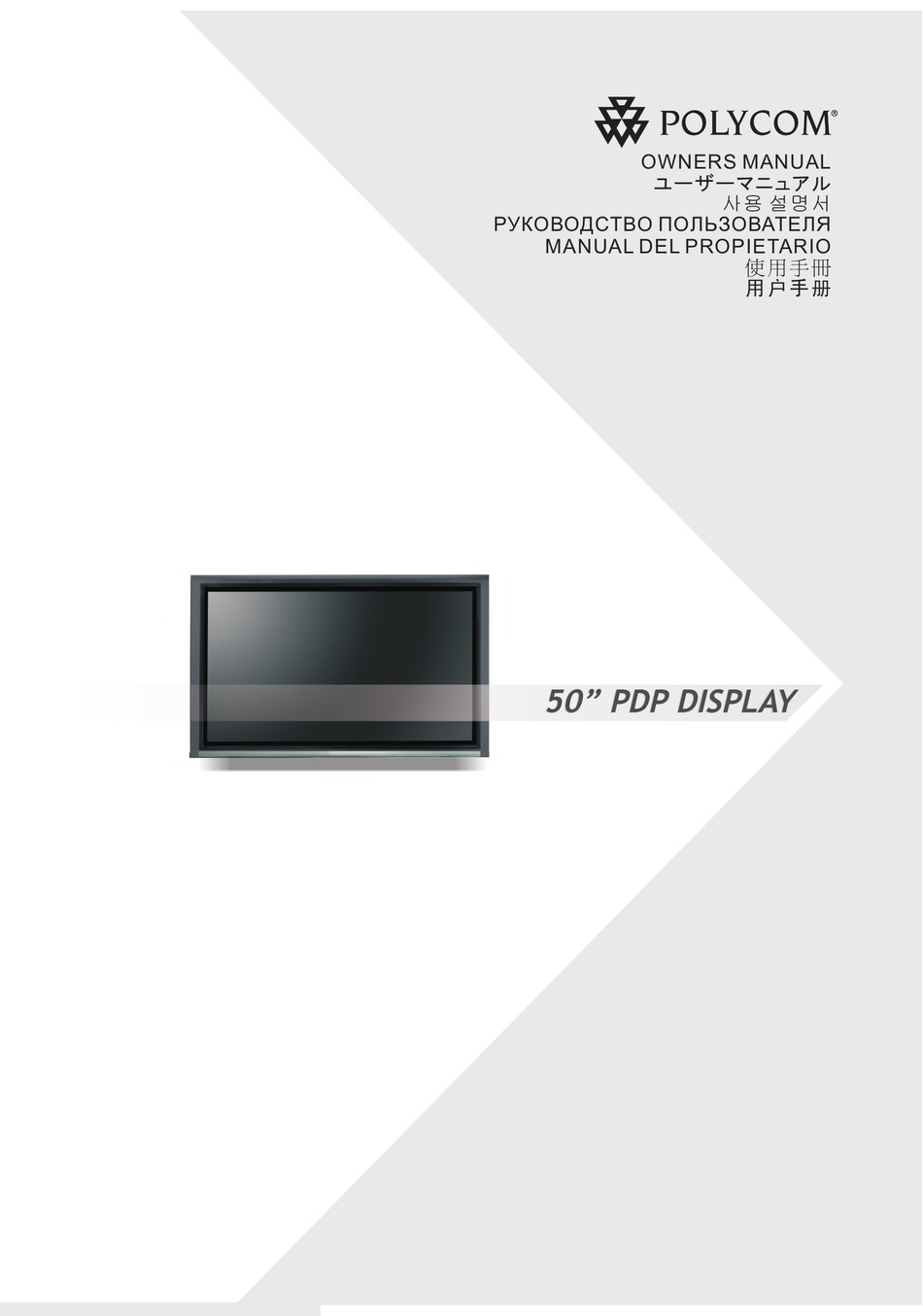

- Page 1 OWNERS MANUAL ユーザーマニュアル 사용 설명서 РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ MANUAL DEL PROPIETARIO 使用手冊 用户手册 50” PDP DISPLAY 50” PDP DISPLAY...
-
Page 2: Table Of Contents
Rear Panel Connections Remote Control Buttons Changing Inputs Using the OSD Menu On-Screen Display Status Display Installation Connecting POLYCOM Video Conferencing System Connecting a VCR Connecting a DVD Connecting a Set-Top Box Connecting an External Amplifiers Connecting External Amplified Speaker... -
Page 3: Important Safety Instructions
Important Safety Instructions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: To reduce the risk of electric shock, do not remove the front or back covers. No user-serviceable parts inside. Refer servicing to qualified service personnel only. The exclamation point within a triangle The lightning flash with arrow-head is intended to tell the user that important with in a triangle is intended to inform... -
Page 4: Cleaning & Maintenance
Important Safety Instructions Disconnect the unit from the main supply and refer servicing to qualified service personnel under the following conditions: Power cord or plug is damages or frayed. Liquid has been spilled into the product and/or the unit has been exposed to water or moisture. - Page 5 Important Safety Instructions Warning User must use shielded signal interface cables to maintain FCC compliance for the product. Provided with this display is a detachable power supply cord with IEC320 style terminations. It may be suitable for connection to any UL Listed personal computer with similar configuration.
-
Page 6: Overview
Overview Checking the Accessories Supplied Remote Control User’s Manual PDP Display with Batteries Front Panel Controls Status LED Volume Adjustment Buttons Use these buttons to adjust volume up and Orange-Standby down. These keys also serve as an navigation The LED will illuminate in orange color if and adjustment keys when On Screen the display is at standby mode and the Display menu is engaged. -
Page 8: Remote Control Buttons
Press to show the status of the display. Q.Access This key is not applicable for this display. Sleep Press this key to engage sleep timer selection directly. Recall Press this key to return to POLYCOM video mode settings for optimal conference performance. -
Page 10: Installation
Installation Connecting POLYCOM Video Conferencing System Refer to the Administrator’s Guide included with the POLYCOM video conferencing system for configuring the monitor(s) and audio system for optimal performance. Connecting a VCR Using Composite/S-Video Connect the Composite/S-Video(4-pin DIN) connector from the VCR to the Composite / S-Video input on the back of display. -
Page 11: Connecting A Set-Top Box
Installation Connecting a DVD (con’t) Using Composite/S-Video Input Connect the Composite/S-Video (4-pin DIN) connector from the DVD to the Composite/S-Video input on the back of display. Connect the red (R) and white (L) audio jacks from the DVD to the red (R) and white (L) audio-in jacks located next to the S-Video connector. -
Page 12: Connecting An External Amplifiers
Installation Connecting to an External Amplifiers This display can be connected to an external amplifier using the AUDIO OUT jacks located on the back of the display. Connect the red (R) and white (L) AUDIO OUT jacks from right side of the connector panel to the external amplifier. - Page 13 Installation Connecting to a PC (con’t) Setting Up Your Display Using Plug and Play This display adheres to VESA Plug and Play standard to eliminate complicated and time consuming setup of displays. This display identifies itself to the computer and automatically sends the PC its Extended Display Identification Data (EDID) using Display Data Channel (DDC) protocols.
- Page 14 Installation Supported Resolutions Under HDMI, DVI and RGB modes, this Display supports the following resolutions: Note: This display does not support Macintosh resolution. “*”:not available for RGB Mode.
-
Page 15: Menu System
(3)MILD; (4)VIVID. Note: Note that the default Picture Mode setting is set to “POLYCOM”. This setting is standard mode, which is optimized (and recommended) for use with POLYCOM Video conferencing system all video inputs. As such, many of the adjustment sub-settings are “gray-out” and are not accessible to the user. -
Page 16: Fine Tune Rgb Mode
Menu System Explanation of Various Picture Control Settings (con’t) H-POSITION Use to change horizontal position of the picture. Increase to shift the picture to the right. Decrease to shift the picture to the left. V-POSITION Use to change vertical position of the picture. Increase to shift the picture up. Decrease to shift the picture down. -
Page 17: Understanding Widescreen Modes
Explanation of Various Sound Control Settings SOUND EFFECT There are four preset audio modes that you can choose from: POLYCOM, MUSIC, MOVIE and CUSTOM. BASS Adjusts the BASS level of the sound. For more bass response, increase the BASS level. -
Page 18: System Adjustment
Menu System Explanation of Various Sound Control Settings BALANCE Adjusts the BALANCE level between left and right channels. SURROUND This display is equipped with Surround Sound circuitry. Use Surround Sound to simulate a surround sound effect if you are not using a muti-channel sound setup. AUDIO OUTPUT Set the type of audio output sent from the audio output jacks located in the rear of the display. -
Page 19: Additional Information
Addition Information Troubleshooting The following table lists possible problems and methods for remedy. Please refer to this table prior to contacting a service representative. Possible Cause Remedy Symptom 1. The power cord is disconnected. 1.Plug in the power cord. No Picture is displayed. 2. -
Page 20: Specification
Addition Information Specification Display Panel Screen size 50” - 16:9 1920(Horizontal) x 1080p(Vertical) pixels Aspect ratio Number of pixels 0.576 mm x 0.576 mm Luminance 1,345 cd/m Power Source Input voltage 100 ~240 Vac, 50/60 Hz Input current 4.2A Max. Power consumption 420 Watts Max. - Page 21 Addition Information Specification Audio Signal Analog 500mV rms/more than 10K ohm. Pin Assignments For D-Sub connector (In/Loop out) 4. GND 1. RED 7. GREENGND 10. GND 13. H-SYNC 5. GND 2. GREEN 8. BULEGND 11.NC 14. V-SYNC 6. REDGND 3. BLUE 9.
- Page 22 Addition Information Specification Dimensions & Weight Without SPK With SPK Without SPK With SPK Without/STAND With/STAND With STAND Without STAND Width 1256mm 1436mm 1256mm 1436mm Height 762mm 793mm 793mm 762mm Depth 135.7mm 260mm 260mm 135.7 Net Weight 68.3lbs/31Kg 79.4lbs/36Kg 72.8lbs/33Kg 75.0lbs/34Kg Gross Weight 88.2lbs/40Kg...
- Page 23 Addition Information Specification Power Management Mode H-sync V-sync Video Power Dissipation Normal Pulse Pulse Active Normal power Stand-by No pulse No pulse No video Less than 0.5 Watt Power Saving Pulse No pulse B(blanked) Less than 0.5 Watt Power Saving No pulse Pulse B(blanked)
-
Page 24: Rs-232 Connection/Command
Addition Information RS-232 Connection Overview This monitor is equipped with an RS-232 serial terminal for using the monitor with computer controls. The RS-232 serial terminal conforms to the RS-232 interface specification. The computer will require software application (such as Hyper Terminal) which allows the computer to send and receive control data that can support the communication parameters described in the section. -
Page 25: Communications Overview
001...100 Recall Mute MON=Mute, OFF=Normal Language ENG=English, SPA=Spanish, FFR=French, ITA=Italian, DEU=German, SWE=Swedish All Black BON=All Black, OFF=Return Polycom mode Aspect Ratio WID=16:9, NOR=4:3 with black bars, PAN=PANORAMA(Only AV/S mode) Keypad Lock FO1=Lock, OFF=Unlock Color Temp MID=Natural, HIG=Cool, 65D=Warm Volume 001...100 Bass 001...100... -
Page 26: Dimension Drawings
Addition Information Dimensional Drawings Color Scheme... -
Page 27: Packing Break Out
Addition Information Packing Break Out TLABM1806Y1---- YRC-294POLYCOMB TINSE2227Y1---- SPAKC0871Y1R--W...
