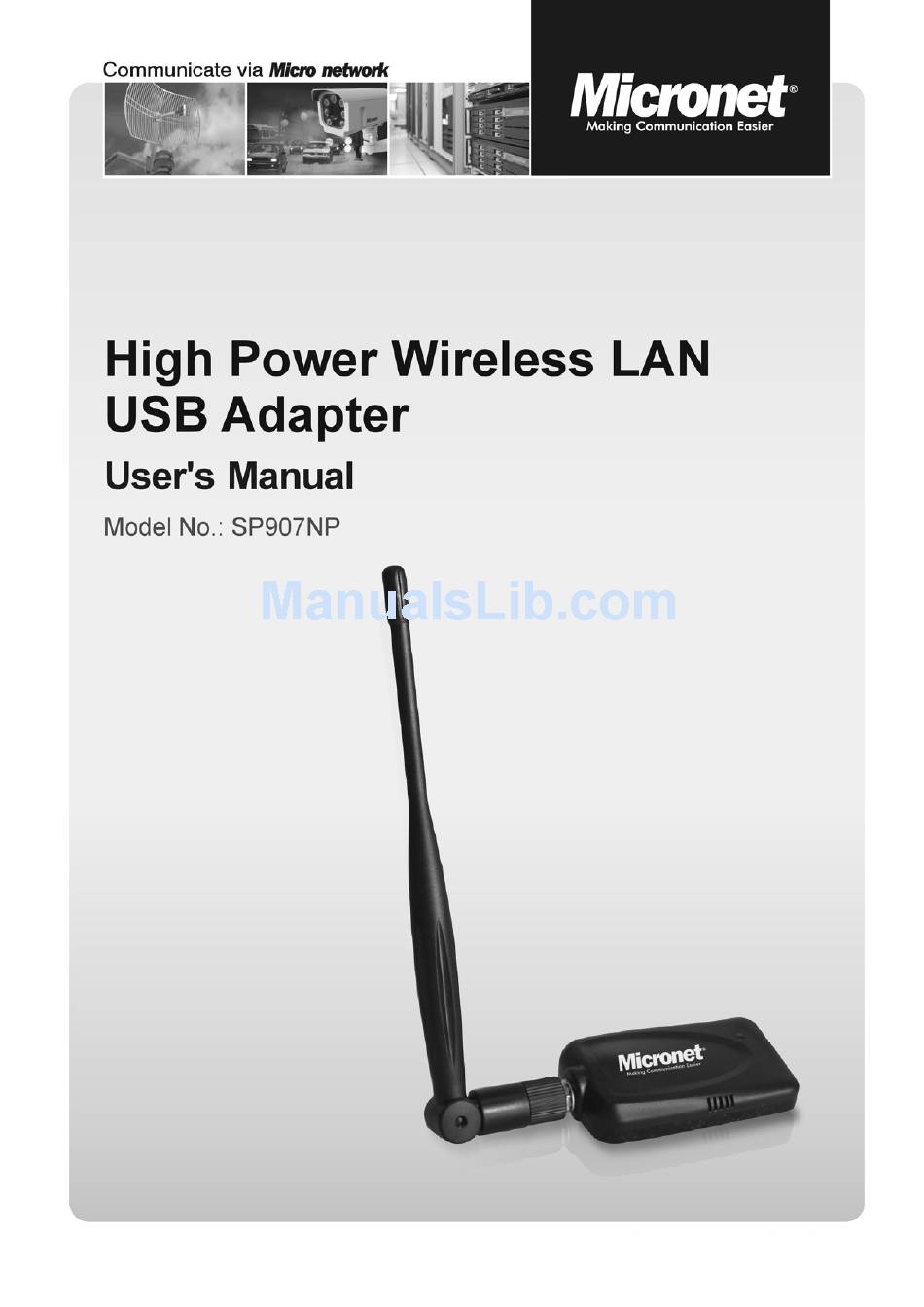

Page 1: User Manual
User Manual 11n Wireless LAN USB Adapter Model No.: SP907NP http://www.micronet.info www.micronet.com.tw... -
Page 2: Table Of Contents
CONTENTS 1 INTRODUCTION ..............1 1.1 Features ......................1 1.2 Specifications ....................1 1.3 Package Contents ..................2 2 INSTALLATION PROCEDURE ..........3 3 CONFIGURATION UTILITY............ 10 3.1 Utility Overview ..................... 10 3.2 Available Network ..................12 3.3 General......................13 3.4 Profile ......................14 3.4.1 Configure the Profile ..................15 3.5 Status ...................... -
Page 3: Introduction
1 Introduction Micronet SP907NP, 11N Wireless LAN USB Adapter, delivers next generation high speed at a more economical and affordable price tag. It is easily implemented for medium-sized business to allow immediate access to high speed wireless experience. It is compliant with IEEE 802.11n and backward compatible with IEEE 802.11b/g. -
Page 4: Package Contents
Certification: FCC, CE 1.3 Package Contents Before you start the installation, please check the items of your package. The package should include the following items: SP907NP Wireless LAN USB Adapter Driver CD Quick Installation Guide ... -
Page 5: Installation Procedure
2 Installation Procedure Before you proceed with the installation, please notice following descriptions. Note1: The following installation was operated under Windows XP. (Procedures are similar for Windows 2000/Vista.) Note2: If you have installed the Wireless PC Adapter driver & utility before, please uninstall the old version first. - Page 6 4 Now you’ll see the following message, please click ‘Install’ to start the installation. 5 The system starts to install the driver and utility.
- Page 7 6 Click “Finish” to complete the driver and utility installation. Connect to Wireless Access Point 1 To start configuring the SP907NP, double click the icon in the system tray or right click the icon and select open configuration utility. 2 The utility of the adapter is displayed. Click “Available Network” and double-click on the wireless...
- Page 8 3 Input the security setting and click “OK” to start network connection. * Use Windows Zero Configuration on Windows Vista:...
- Page 9 1 For Windows Vista user, you can use Windows Zero Configuration to connect to wireless access point. Click ‘Start’ button, then click ‘Control Panel’. Click ‘Network and Internet’ in ‘Control Panel’. 2 Click ‘Connect to a network’ under ‘Network and Sharing Center’...
- Page 10 3 Click the access point you want to use if it’s shown, then click ‘Connect’. 4 If it’s an unnamed access point (i.e. the SSID of this wireless access point is hidden), you’ll be prompted to input it’s name, and the name must be identical to the SSID setting of the wireless access point you’re connecting to.
- Page 11 5 If the access point is protected by encryption method, you have to input its security or passphrase here. It must match the encryption setting on the access point. 6 If you can see this image, the connection between your computer and wireless access point is successfully established.
-
Page 12: Configuration Utility
3 Configuration Utility The Configuration Utility is a powerful application that helps you configure the Wireless LAN Mini USB Adapter and monitor the link status and the statistics during the communication process. The Configuration Utility appears as an icon on the system tray and desktop of Windows. You can open it by double-click on the icon. - Page 13 Parameter Description Refresh – Refresh adapter list in the “B“ block. Mode – There are two modes: Station and Access Point. If “Station“ is selected, the adapter works as a wireless adapter. If “Access Point“ is selected, the adapter will works as a wireless View –...
-
Page 14: Available Network
When you open the Configuration Utility, the system will scan all the channels to find all the access points/stations within the accessible range of SP907NP and automatically connect to the wireless network with the highest signal strength. From the “Available Network(s)” tab, all the networks nearby will be listed. -
Page 15: General
General Check the connection status of the SP907NP, select “General“. This screen shows the information of Link Speed, Network Type, Encryption Method, SSID, Signal Strength, Link Quality and Network Address of the adapter. Parameter Description Status It will show the connection status of the adapter. -
Page 16: Profile
Signal Strength It indicates the wireless signal strength. Link Quality It indicates the wireless link quality. Network Address It shows the MAC, IP address and other information of the adapter. Profile The “Profiles List” is for you to manage the networks you connect to frequently. You are able to Add/Remove/Edit/Duplicate/Set Default to manage a profile. -
Page 17: Configure The Profile
from the available profiles list, click the button. 3.4.1 Configure the Profile Parameter Description Profile Name Define a recognizable profile name for you to identify the different networks. Network Name (SSID) The SSID (up to 32 printable ASCII characters) is the unique name identified in a WLAN. - Page 18 Channel This setting is only available for Ad Hoc mode. Select the number of the radio channel used for the networking. The channel setting should be the same with the network you are connecting to. Network Authentication This setting has to be consistent with the wireless networks that the adapter intends to connect.
- Page 19 WEP 802.1X – It’s a special mode for using IEEE 802.1x/EAP technology for authentication and WEP keys for data encryption. Parameter Description Data Encryption Disabled – Disable the WEP Data Encryption. WEP – Enable the WEP Data Encryption. When the item is selected, you have to continue setting the WEP Encryption keys.
- Page 20 Key Index (advanced) Select one of the four keys to be the data encryption key. Network Key Please enter network security key here to make sure the password is correct. Parameter Description Confirm Network Key Please enter network security key here again. EAP Type GTC –...
-
Page 21: Status
Password User’s password in the RADIUS server. Certificate Select the certificate for RADIUS server authentication Status This screen shows the information of manufacturer, driver version, settings of the wireless network the adapter is connecting to, linking time and link status. If you don’t ensure the status of the adapter and the network you are connecting, please go to the screen for more details. -
Page 22: Wi-Fi Protect Setup (Wps)
Wi-Fi Protect Setup (WPS) Wi-Fi Protected Setup (WPS) is the latest wireless network technology which makes wireless network setup become very simple. If you have WPS-enabled wireless access point, and you want to establish a secure connection to it, you don’t have to configure the wireless access point and setup data encryption by yourself. - Page 23 Pin Input Config (PIN) 1. The PIN code of your wireless network card is an eight-digit number located at the upper-right position of configuration utility. Remember it, and input the number to your wireless access point as the WPS PIN code (Please refer to the user manual of your wireless access point for instructions about how to do this) 2.
- Page 24 4. Please wait while the install procedure is running and wait for few seconds to two minutes. If a wireless access point with correct PIN code is found, you’ll be connected to that access point.
- Page 25 Push Button Config (PBC) 1. Start PBC pairing procedure at access point side (please refer to the instruction given by your access point’s manufacturer), then click ‘PBC’ button in wireless configuration utility to start to establish wireless connection by WPS. Please be patient (This may require several seconds to one minute to complete).
-
Page 26: Software Ap
Software AP This adapter can run as a wireless AP. The relative configurations of the AP including channel, SSID, WEP encryption and so on are described as follows. -
Page 27: Ap Properties Setting
Parameter Description SSID The SSID (up to 32 printable ASCII characters) is the unique name identified in a WLAN. The ID prevents the unintentional merging of two co-located WLANs. The default SSID of the AP is Full Computer Name + “_AP“. Wireless adapters connect to the AP should set up the same SSID as the AP. -
Page 28: Ap Advanced
3.8.2 AP Advanced Parameter Description Beacon Interval Beacon Interval that specifies the duration between beacon packets (milliseconds). The range for the beacon period is between 20-1000 milliseconds with a typical value of 100. DTIM Period Determines the interval the Access Point will send its broadcast traffic. -
Page 29: Ap Statistics
3.8.3 AP Statistics You can get the real time information about the packet transmission and receiving status during wireless communication from the screen. If you want to recount the statistics value, please click “Reset“. 3.8.4 If you want to connect to the internet through this SoftAP, you will need to make a bridge between our SoftAP and your internet connect. -
Page 31: Troubleshooting
4 Troubleshooting This chapter provides solutions to problems usually encountered during the installation and operation of the adapter. 1. What is the IEEE 802.11g standard? 802.11g is the new IEEE standard for high-speed wireless LAN communications that provides for up to 54 Mbps data rate in the 2.4 GHz band. 802.11g is quickly becoming the next mainstream wireless LAN technology for the home, office and public networks. - Page 32 wireless application for mobile workers. 6. What is BSS ID？ A specific Ad hoc LAN is called a Basic Service Set (BSS). Computers in a BSS must be configured with the same BSS ID. 7. What is WEP？ WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 40 bit shared key algorithm, as described in the IEEE 802 .11 standard.
- Page 33 13. What is Spread Spectrum？ Spread Spectrum technology is a wideband radio frequency technique developed by the military for use in reliable, secure, mission-critical communication systems. It is designed to trade off bandwidth efficiency for reliability, integrity, and security. In other words, more bandwidth is consumed than in the case of narrowband transmission, but the trade off produces a signal that is, in effect, louder and thus easier to detect, provided that the receiver knows the parameters of the spread-spectrum signal being broadcast.
