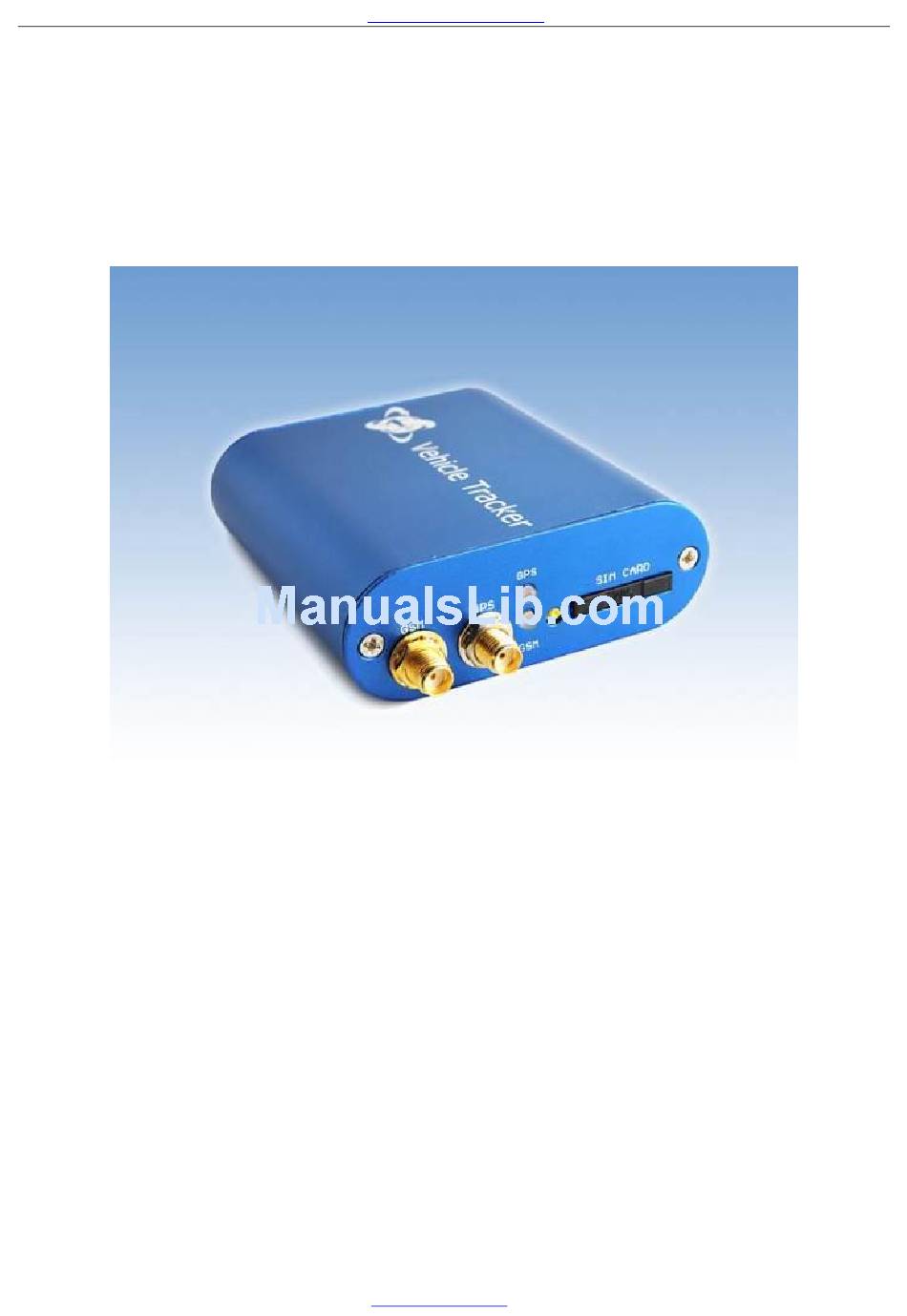

Page 1: User Manual
UVI Group Corporation www.ChinaGpsTracking.com User manual for PT502 Super Mini Vehicle Tracker PT502 User Manual Please read carefully before operation For technical support, please contact us at uvigroups@gmail.com Skype ID: KevinChu1981 1 / 14... -
Page 2: Product Overview
User manual for PT502 1 Product overview PT502 is a GPS/GSM/GPRS tracking device which is specially developed and designed for vehicle real-time tracking and security. With superior GPS and GPRS modules, PT502 has good sensitivity and stable performance. Especially, PT502 is well designed to work with WebTrackings, our web-based tracking system, which is suitable for a company to establish a tracking server to provide real-time tracking solutions to their customers or manage their fleet. -
Page 3: Getting Started
7.0 x 2.4 3 Getting started This section will describe how to set up your PT502 Please follow the specifications as below. Bofan is not liable for damage to the PT502 caused due to user error. 3.1 Hardware and Accessories PT502’s standard package includes following items... - Page 4 UVI Group Corporation www.ChinaGpsTracking.com User manual for PT502 • Main unit • GPS • GSM • Plug-in • Relay Antenna Antenna Wires 3.2 Connecting and Installation If you test your tracker in office, please follow below steps: First, charge the tracker via 12V power charger for 3 hours at least at the first use.
- Page 5 UVI Group Corporation www.ChinaGpsTracking.com User manual for PT502 If you install your tracker in car directly, please follow below steps: First, install the SIM card in the tracker (press the yellow button to make the Card Holder out) Second, Connect the GSM...
- Page 6 UVI Group Corporation www.ChinaGpsTracking.com User manual for PT502 ACC line of tracker Ignition Fifth, Engine Cut (optional) / stop car by relay After you connect relay according to above picture, then you can send following sms commands to stop or restore the car:...
-
Page 7: Start Tracking
4.1 Tracking by SMS on mobile: Tracker replies SMS with coordinates: When you want to know the PT502 location, you can send SMS command to the tracker, and after few seconds, the tracker will reply you SMS with the position Lat & Log data. - Page 8 GPS signal. ) To get PT502’s position by another easier way: 1. Call PT502 using your mobile phone. 2. PT502 will hang up automatically after several rings and reply position SMS to your mobile phone. You can visit our WebTrackings demo www.webtrackings.com which includes the Google map, to get the tracker position.
- Page 9 At now, please use your mobile sending following sms commands config it work with WebTrackings Software (notes: please make sure getting confirm sms from PT502 and then sending next sms command. PT502 will only reply command from a user which uses the correct password. Commands with wrong Password is ignored.) 4.2.2 Set ID...
- Page 10 User manual for PT502 PT502 will send GPRS packet every 30 seconds always (we suggest time interval >= 30 seconds). Note: please only use above Time Interval for sending GPRS packet if you have no special needs for tracker, and don’t use following special extened commands.
-
Page 11: Sms Command List
If set only one number, then PT502 will send SMS to this number before call it after press SOS button. If set two or three numbers, then PT502 only can send SMS to preset numbers and can’t call that numbers after press SOS button. - Page 12 Set time zone <password>TMZ<Time> TMZ=Time Zone difference Time from -13 to 13 Example: 000000TMZ8 Restart <password>RST<Type> RST=Restart Type=0 or null, to reboot PT502 Type=1, to reboot GPS Type=2, to reboot GSM Reset PT502 to <password>DFT DFT=Default default Request Power RPO=Request Power Voltage <password>RPO...
-
Page 13: Troubleshooting
Battery needs charging Recharge battery Problem: Unit will not respond to SMS Possible Cause: Resolution: GSM antenna was not installed properly Make PT502 connect to GSM network. For technical support, please contact us at uvigroups@gmail.com Skype ID: KevinChu1981 13 / 14... - Page 14 Wrong password in your SMS or wrong Write correct password or SMS format SMS format The SIM in PT502 has run out of credit Replace or top up the SIM card No SIM card Insert working SIM card. Check in phone that the SIM can send SMS message.
