Summary of Contents for Samsung Msys 835P

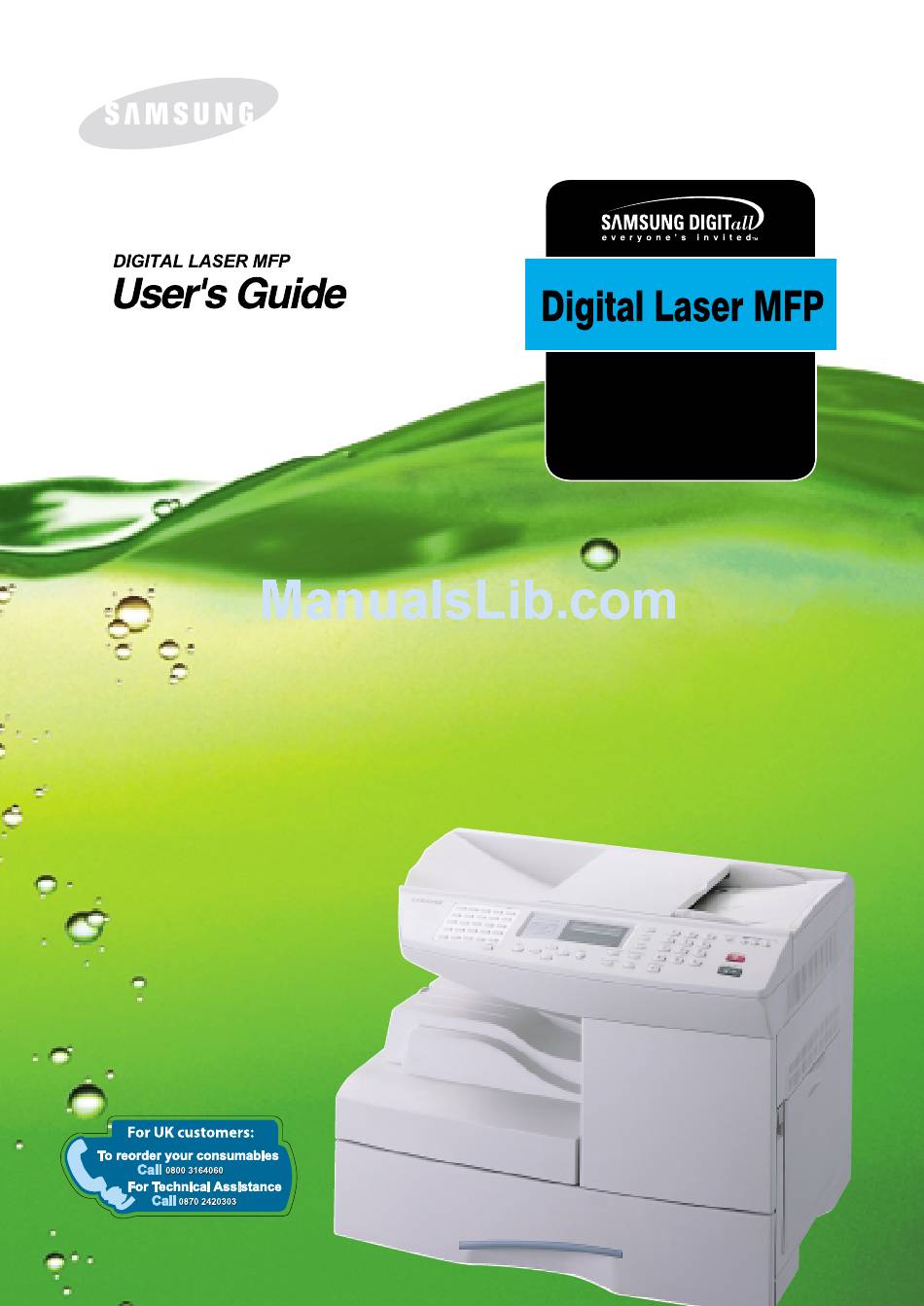

  • Page 1 Msys 835P SF-835P...
  • Page 2 © 2002 Samsung Electronics Co., Ltd. All rights reserved. • Msys 835P, SF-835P and Samsung logo are trademarks of Samsung Electronics Co., Ltd. • IBM and IBM PC are trademarks of International Business Machines Corporation.

  • Page 3: Table Of Contents

    Printer Settings ............ 2.3 Accessing Printer Settings......... 2.3 Printer Properties Tabs ........2.4 Printer Properties Buttons & Icons..... 2.12 CANNING HAPTER Scanning using the Samsung SmarThru....3.2 Scanning Process with TWAIN-enabled Software ..3.4 PPENDIX HAPTER Specifications............4.2 Scanner and Copy ........... 4.2 Print ..............

  • Page 4: Installing Software

    NSTALLING OFTWARE This chapter provides information on installing the supplied Samsung software. You must install the Samsung software to use your product as a printer and scanner. The topics included in this chapter are: • About Samsung Software • System Requirements •...

  • Page 5: About Samsung Software

    About Samsung Software You must install the SmarThru CD-ROM after you have setup your product and connected it to your computer. The SmarThru CD-ROM includes the following: • MFP Driver • SmarThru Software • OCR Software (AnyPage Lite) MFP Driver To use your product as a printer and scanner, you must install the MFP driver.

  • Page 6: System Requirements

    System Requirements Before you begin, ensure your system meets the minimum requirements. Supported Operating System Windows 95 OSR2/Windows 98/Windows 98 SE/Windows NT 4 Workstation or Server with Service Pack 3/Windows 2000 Professional or Advanced Server/Windows XP Home edition or Professional. Minimal Requirements •...

  • Page 7: Installing Samsung Software

    • If you are using a USB cable, you must be running Windows 98/ Me/2000/XP. Windows 98 or Me and connect the printe rusing the USB cable, you must install the Samsung USB driver before proceeding to install the Samsung software. see “Installing USB Driver for Windows 98/Me”...
  • Page 8 If you are asked to select the language, choose the desired language. Click Install the Samsung Software on your PC . Installs the Samsung Software on your PC. Uninstall Samsung Software. See page 1.19. 1 . 5 NSTALLING OFTWARE...
  • Page 9 The Welcome window opens. Click Next. The User Information window opens. Enter company and your name, then click Next. NSTALLING OFTWARE...
  • Page 10 The Choose Destination Location window opens. Click Next. NSTALLING OFTWARE...
  • Page 11 The SmarThru installation supports three types of setup: •Typical: Program will be installed with the most common options and is recommended for most users. •Compact: Only the MFP driver will be installed. •Custom: You may choose the options you want to install. Recommended for advanced users.
  • Page 12 You can choose SmarThru networking option. This feature allows you to share the modems on your computer and the product as a scan device via a network or to access these shared devices located on other computers. Stand-alone configuration does not allow you to use any networking features such as Remote Fax or Remote Scan service.
  • Page 13 Click Next. When the installation is completed, shut down and restart your computer. If your computer does not shut down and restart automatically, you must shut it down manually and restart it before the changes will be saved. 1.10 NSTALLING OFTWARE...

  • Page 14: Installing Usb Driver For Windows 98/Me

    Samsung software. : If you have already used any Samsung printer using USB connection in your PC, you do not need to install the Samsung USB driver. You just install the Samsung software as described on page 1.4.
  • Page 15 Check Search for the best driver for your device and click Next. Check CD-ROM drive and click Browse, then choose x:\USB (where x is the driver letter for the CD-ROM driver). Click Next. 1.12 NSTALLING OFTWARE...
  • Page 16 Click Next. The USB driver will be installed. Click Finish. If you are asked to select the model name, click MFP 830 series. 1.13 NSTALLING OFTWARE...
  • Page 17 When the opening screen appears, select the appropriate language. Click Install the Samsung Software on your PC. Follow the instructions on the screen to complete the installation. For more details, see page 1.4. 1.14 NSTALLING OFTWARE...

  • Page 18: Configuring Fax And Internet Gates

    Configuring Fax and Internet Gates If you select SmarThru networking option (see page 1.9), when your computer restarts after the Samsung software has installed, you will be prompted to configure the fax and Internet gates allowing you to send and receive faxes and e-mails on the SmarThru system.
  • Page 19 OTES • The SmarThru fax feature is available only if there is a fax Cancel if there is no fax modem installed in your PC. Press modem installed in your PC. Otherwise, purchase an internal or external fax modem and install into your PC and then configure the fax modem.
  • Page 20 Enter the addresses of your incoming and outgoing mail servers. Choose the incoming mail server type, then click Next. Your Internet service provider will be able to provide you with this information. Enter your account name and password to access your Internet mail server, then click Next.
  • Page 21 Enter the account record name, then click Next. Click Finish to quit the wizard and enable Internet e-mail service. : If you wish, you can reconfigure the Internet gate later by using SmarThru Configuration. For details, refer to the SmarThru User’s Guide.

  • Page 22: Uninstalling Samsung Software

    Uninstalling the MFP Driver From the Start menu, select Programs, then select Samsung MFP 830 Series. You can select the component in the MFP driver to uninstall individually. If you want to uninstall the scan driver, select TWAIN Driver Uninstall.
  • Page 23 When your computer confirms your selection, click Yes. The selected printer driver and all its components are removed from your computer. When the uninstallation is done, click OK. The message box recommends you restart your computer. Click OK, then restart Windows. : If you want to install the printer driver or the scan driver using the SmarThru CD-ROM, make sure that you select the Setup Type to Compact.

  • Page 24: Uninstalling Samsung Smarthru

    Uninstalling Samsung SmarThru From the Start menu, select Programs. Select Samsung SmarThru, then select SmarThru 3 Uninstall. When your computer asks you to confirm your selection, click Yes. The Uninstall Options dialogue box appears. Uninstall options are: •Backup and delete: Backs up all your data and options to a safe place.
  • Page 25 Follow the on-screen instructions to complete the un- installation. The SmarThru software and all components will be removed. When uninstalling is done, click OK. The message box recommends restarting your computer. Click OK. Shut down and restart your computer to complete the un- installation process and save your changes.

  • Page 26: Using The Smarthru Cd-Rom

    If you are asked to select the model name, click MFP 830 series. If you are asked to select the language, choose the desired language. Click Uninstall the Samsung software on your PC. Follow the on-screen instructions to complete un- installation. You must shut down and restart your computer before any changes you have made will take affect.
  • Page 27 1.24 NSTALLING OFTWARE...

  • Page 28: Printing

    RINTING Read this chapter to learn how to select and load print media and how to use the print settings. This topics included in this chapter are: • Printing a Document • Printer Settings...

  • Page 29: Printing A Document

    Choose Print from the File menu. Make sure that Samsung MFP 830 Series PCL 6 is selected as your default printer. Click Properties if you want to make any adjustments that are appropriate for printing your document.

  • Page 30: Printer Settings

    OK to start the print job. Printer Settings You can use the product with all your Windows 95/98/Me/2000/ XP or Windows NT 4.0 applications. Be sure to set Samsung MFP 830 Series PCL 6 as the default printer for all your Windows operations.

  • Page 31: Printer Properties Tabs

    • Select the File > Print > Properties command from within any Windows application. • Select Samsung MFP 830 Series PCL 6 printer from the Printers folder, click the right mouse button, then select Document Defaults from the drop-down list.
  • Page 32 Paper Tab Use the Paper tab to select what size of paper you have in your printer, the orientation, the number of copies to print, etc. Click on the box to put a check mark to use the different paper source for the first page.
  • Page 33 When you print with the resolution of 300 or 600 dpi, some printed characters or images can appear they have jagged or uneven edges. Set this Samsung Resolution enhancement Technology (SRT) option to improve the print quality of you text and image and make the characters and images appear smoother.
  • Page 34 Output Tab The Output tab provides options for you to adjust how the document will appear on the printed page. The Output Mode Type options includes Multiple Pages per Side, Booklet printing, Fit to Page, Poster and Duplex printing. Multiple Pages per Side Choose the Multiple Pages per Side option to print multiple pages on a single sheet of paper Select the number of page you want to print per sheet.
  • Page 35 Booklet Printing The Booklet Printing option allows you to print a document out as a booklet. Once your document prints, fold the pages in half and staple the pages. Fit to Page Choose this option to scale your print job to any selected paper size regardless of the logical document size.
  • Page 36 Poster Choose the Poster option to enlarge the printed document. To determine the scaling factor, select the style. You can choose from: 2x2, 3x3, or 4x4. For example, if you select 2x2, the output will be automatically stretched to cover 4 physical pages. RINTING...
  • Page 37 Duplex Printing Choose the Duplex option from the Output tab to print the document on both sides of the paper. Choosing Long Edge lets you have the binding orientation along the long edge of the paper as in a megazine. Choosing Short Edge lets you have the binding orientation along the short edge of the paper as in a calendar.
  • Page 38 Watermartk Tab The Watermark tab allows you to create a background image of text to print on each page of your document. Watermarks are useful for printing identifying information on a document, information such as “DRAFT” or “CONFIDENTIAL”, or perhaps the name of your company or department. By changing the watermark settings, you can create faint watermarks that are not intrusive to a document, or bold watermarks to call attention to specific information.

  • Page 39: Printer Properties Buttons & Icons

    The About tab gives you the program version number. If you click on the globe image on the window, you will be connected to the Samsung web site provided you are an internet user. Printer Properties Buttons & Icons • Click OK when done reviewing or making changes.

  • Page 40: Scanning

    Then you can fax or e- mail the files, display them on your web site, or use them to create projects that you can print out using Samsung SmarThru software which came with your product.

  • Page 41: Scanning Using The Samsung Smarthru

    Take the following steps to start scanning using the SmarThru: Feed the document(s) to be scanned face down into the ADF. Once you installed Samsung software, you see the SmarThru icon on the desktop window. Double-click the SmarThru 3 icon.
  • Page 42 The Scan Wizard lets you use the following services: •Scan Lets you scan the original documents and save them in the Image Manager of the Samsung SmarThru system. The Image Manager is an image database manager and image editor program.

  • Page 43: Scanning Process With Twain-Enabled Software

    Click the desired service. The Samsung Scan Manager for the selected service opens. Adjust the scan settings. You can use the Help button to get help. To start scanning, click Scan. For further information, please refer to the SmarThru User’s Guide which came with your product.

  • Page 44: Appendix

    PPENDIX This chapter includes: • Specifications • Using Remote Control Panel...

  • Page 45: Specifications

    Specifications Scanner and Copy Item Description Compatibility TWAIN standard Resolution Optical 300 dpi resolution (Mono and Color) Internal: 32 bit Color bit depth External: 24 bit 1 bit for text mode Mono bit depth 8 bit for Gray mode Copy speed 12 copies per minute Copy resolution 1,200 dpi enhanced...

  • Page 46: Using Remote Control Panel

    When you install the Samsung software, the Remote Control Panel utility is automatically installed. For information on installing the Samsung software, see “Installing Samsung Software”...

  • Page 47: Settings Tab

    Panel with the product. product’s current setting. For details on the system data setting options, please refer to the Samsung SF-830 Series Facsimile User’s Guide. Advanced Tab Click the Advanced tab to change the dafault fax system setup options. PPENDIX...

  • Page 48: Phonebook Tab

    Phonebook Tab Click the Phonebook tab to create and edit phonebook entries. Reads the phonebook entries from the product to the Remote Control Panel. Allows you to download the phonebook entries from the Remote Control Panel to the product. Phonebook entries Allows you to Deletes all...

  • Page 49: Firmware Update

    Firmware Update Click the Firmware Update tab to update the firmware of your product. This feature should be used by an authorised technicians. Please consult with the purchase point. PPENDIX...
  • Page 50 NDEX Firmware Update 4.6 Information 4.5 booklet print 2.8 Phonebook 4.5 Settings 4.4 resolution, print 2.6 default printer 2.2 Duplex printing 2.10 scan driver install 1.4 uninstall 1.19 fit to page print 2.8 SmarThru install 1.4 uninstall 1.21 MFP driver software install 1.4 install 1.4...
  • Page 51 Visit us at: www.samsungelectronics.com/mfp Home P/N: JC68-00903A Rev. 1.00...
