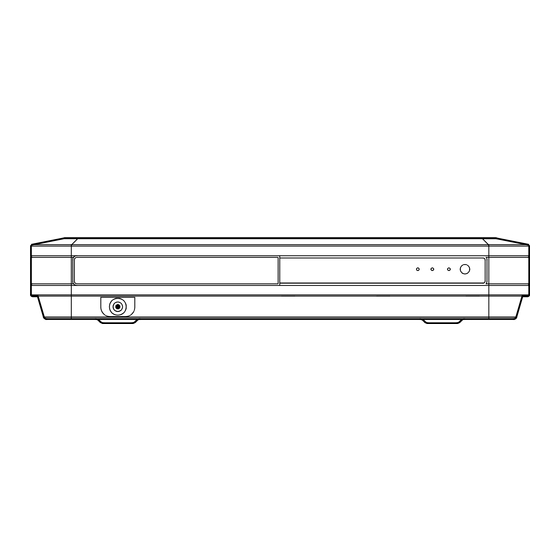

Durabrand STS92D Owner's Manual
  1. Manuals
  2. Brands
  3. Durabrand Manuals
  4. Home Theater System
  5. STS92D
  6. Owner's manual

Durabrand STS92D Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

DVD HOME THEATER SYSTEM
CD-R
1
OWNER'S MANUAL
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STS92D and is the answer not in the manual?

Questions and answers

Related Manuals for Durabrand STS92D

Summary of Contents for Durabrand STS92D

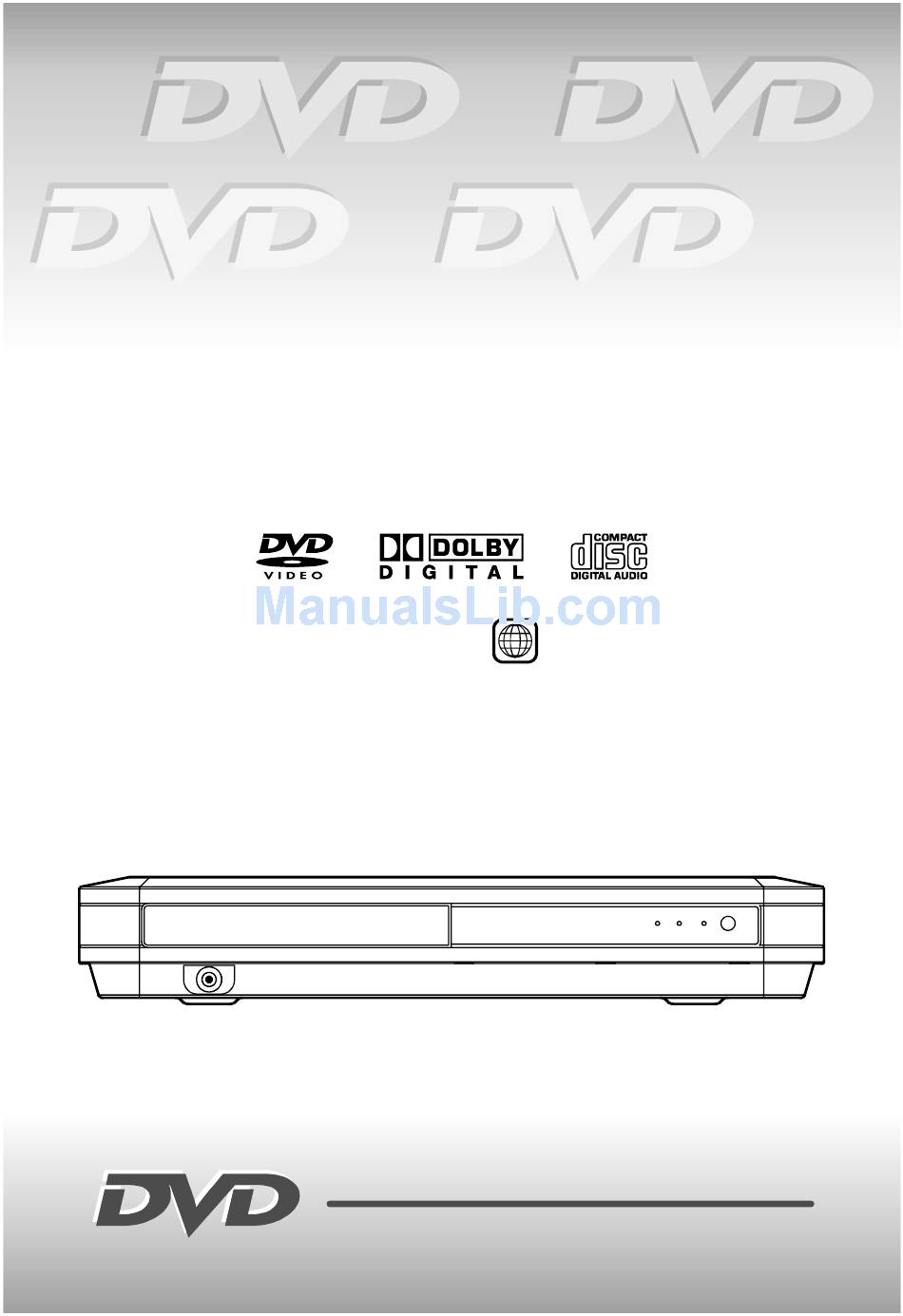

  • Page 1 DVD HOME THEATER SYSTEM CD-R OWNER’S MANUAL OWNER’S MANUAL...

  • Page 2: Safety Precautions

    Safety Precautions The lightning flash with an arrowhead symbol, within the equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to cause an electric shock. The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing)

  • Page 3: Important Safety Instructions

    Important Safety Instructions 1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated. 2. Retain Instructions - The safety and operating instructions should be retained for future reference. 3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to. 4.

  • Page 4: Table Of Contents

    Table of Contents Safety Precautions ........1 Repeat Playback ........16 Important Safety Instructions ....2 Repeating a title/chapter (DVD) ......16 Table of Contents ........3 Repeating a single track/whole disc (CD) ... 16 Repeating a specific section (DVD) ..... 16 Disc Formats ..........

  • Page 5: Disc Formats

    Disc Formats The unit can playback. DVDs [8cm/12cm disc] Audio CDs [8cm/12cm disc] Region Management Information Region Management Information: This unit is designed and manufactured to respond to the Region Management Information that is encoded on DVD discs. If the Region number printed on the DVD disc does not correspond to the Region number of this unit, this unit cannot play that disc.

  • Page 6: Before You Start

    Before You Start Using the Remote Control • Point the Remote Control at the REMOTE SENSOR located on the Unit. • When there is a strong ambient light source, the performance of the infrared REMOTE SENSOR may be degraded, causing unreliable operation. •...

  • Page 7: Remote Control

    Parts and Functions Remote Control 8) SETUP button Open and close the unit's SETUP menu screen. STANDBY/ON FUNCTION CURSOR buttons Use to highlight selections on a menu screen and make adjust certain settings. PREV SEARCH NEXT 10) ENTER button Confirm selections on a menu screen. 11) SLOW button RETURN...

  • Page 8: Parts And Functions

    Parts and Functions Front and Top Panel 5 6 7 8 9 10 11 12 1) AUX IN jack OPEN/CLOSE button Use to open and close the disc tray. 2) Disc tray Open or close tray by pushing OPEN/CLOSE PLAY button button.

  • Page 9: Setup

    Setup A.Connecting your TV The unit can be connected to your TV in several different ways, depending on the design of your TV. RCA Audio/Video cable Note: If you want the sound come from the speakers of the Main Unit, you need not to connect the left/right AUDIO OUT jacks from the Main Unit to your TV.

  • Page 10: Connecting The Speakers & Subwoofer

    Setup D. Connecting the speakers & subwoofer The speaker cords have been color-coded to simplify REAR (RIGHT) CENTER FRONT (LEFT) connection. Just plug the ends of each color-coded speaker wire into the corresponding jacks on the rear of the Unit, matching the color tube on the end of the speaker wire to the color-coded connector.

  • Page 11: Mounting Rear Surround Speakers

    Setup Mounting rear surround speakers 1) Mark the correct mounting position on the wall. 2) Insert a fixing screw(s) at the marked position on the wall. 3) Align the slot hole(s) of the speaker over the screw and pull the speaker downward until it is firmly hooked. Need More Help? DO NOT RETURN THIS TO THE STORE Please visit online help at http://www.1800customersupport.com...

  • Page 12: Adjusting The Sound

    Adjusting the Sound To adjust the surround sound balance while Dolby Digital decoding is in effect Use the remote control to make the following changes to speaker balance: Front speaker (left) • Press the SOUND button repeatedly to display "FRONT L", then press the VOL + or - button to adjust the sound level. It will show on the your TV.

  • Page 13: Playing A Disc

    Playing a Disc Basic playback This owner’s manual explains the basic instructions of this DVD Unit. Some DVD discs are produced in a manner that allows specific or limited operation during playback. As such, the DVD Unit may not respond to all operating commands. This is not a defect in the DVD Unit.

  • Page 14: Fast Foward/Fast Reverse

    Playing a Disc Fast Forward/Fast Reverse 1. Press the SEARCH SEARCH button when a disc is playing. • The disc begins fast scan at x2 speed. x 20 • Four speeds are available. Each time SEARCH SEARCH button is pressed, the speed of fast scan changes in the following sequence: x 20 Note: You also can press and hold SEARCH...

  • Page 15: Special Functions

    Special Function Basic playback DISPLAY function Using DISPLAY, you can check the current settings of the following items: ANGLE, AUDIO, SUBTITLE and BITRATE. Title Chapter Elapsed time • While the disc is playing, press the DISPLAY button to display the screen shown below.

  • Page 16: Cd / Dvd Programmable Memory

    Advanced CD / DVD programmable memory playback Programmable memory The two types of programmed playback provided by this Unit are title programmed playback and chapter programmed playback. Title / Chapter programmed playback 1. Press the MEMORY button while the disc is stopped. 2.

  • Page 17: Repeat Playback

    Repeat Playback Advanced playback You can play a specific title or chapter repeatedly. (Title repeat, chapter repeat, A-B repeat) Repeating a title You can play the same title repeatedly. 1. While the disc is playing, press the REPEAT DISC button until the “ ”...

  • Page 18: Playing Mp3 And Digital Picture Files Disc

    Playing Picture File Disc This unit can play Picture files recorded on CD-R and CD-RW discs. Playing Picture file disc 1. Press OPEN/CLOSE knob to open the disc door. 2. Place the disc on the disc tray with the labe side up. 3.

  • Page 19: Customizing The Function Settings

    Customizing the Function Settings LANGUAGE setting 1. Press the SETUP button in stop mode. 2. Use button to change the highlight cursor. Use button to select a language, then press the ENTER button. The screen will change to your selected language immediately. 3.

  • Page 20: Video Setting

    Customizing the Function Settings RATING setting DVD discs equipped with a password function and are rated according to their content. The contents allowed by parental lock level and the way a DVD disc is controlled may vary from disc to disc. For example, if the disc allowed, you could lock-out violent scenes unsuitable for children or you could lock out playback of the disc altogether.

  • Page 21: Maintenance

    Maintenance Cleaning Disc A defective or soiled disc inserted into the Unit can cause sound to drop out during playback. Handle the disc by holding its inner and outer edges. • Do NOT touch the surface of the unlabeled side of the disc. •...

  • Page 22: Trouble Shooting Guide

    Trouble Shooting Guide SYMPTOM CAUSE (AND REMEDY) No power. • Check that the AC power cord is connected. • You did not turn on the unit. The remote does not • Remove any obstacles between the remote and the Unit. function.
