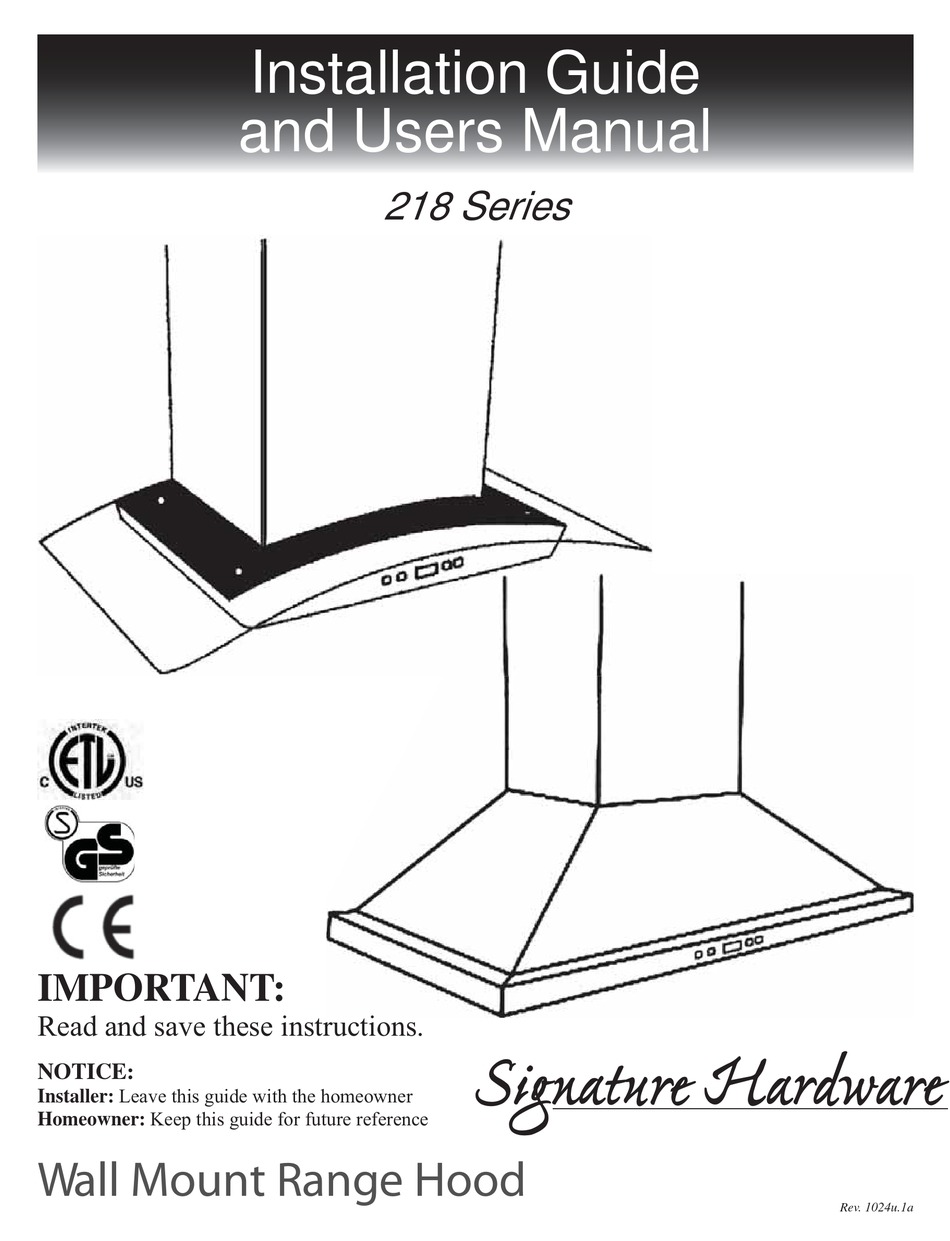

- Page 1 Installation Guide and Users Manual 218 Series IMPORTANT: 5HDG DQG VDYH WKHVH LQVWUXFWLRQV NOTICE: Installer: /HDYH WKLV JXLGH ZLWK WKH KRPHRZQHU Homeowner: .HHS WKLV JXLGH IRU IXWXUH UHIHUHQFH Wall Mount Range Hood Rev. 1024u.1a...
-
Page 2: Important Safety Notice
Important Safety Notice Read all Instructions before Installing and operating this appliance ‡ The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified profession als and in accordance with all applicable codes and standards, including fire-rated construction. - Page 3 Important Safety Notice Read all Instructions before Installing and operating this appliance ‡ Clean ventilating fan frequently. ‡ Always use appropriate cookware and utensils size. ‡ Always use cookware appropriate for the size of the surface element. To reduce the risk of injury to persons in the event of a stove top grease fire: ‡...
-
Page 4: Table Of Contents
Table of Contents INSTALLATION USE AND CARE 7RROV QHHGHG 5DQJH KRRG RSHUDWLRQV121 3DUWV VXSSOLHG Troubleshooting...........14 Venting requirements........5 Use and care information.......15 Mount heights & clearance......5-6 Specifications..........15 Calculating vent system length.......6 Wiring diagram..........16 Venting methods & ductless conversion..7 MAINTENANCE Charcoal filters & electrical requirements..8 Cleaning, replacing filter &... -
Page 5: Parts Supplied
5DQJH +RRG Parts supplied: (vary with model) Grease/Oil Cup )ODSSHUV Mounting Bracket Upper Standard Chimney Lower Standard Chimney (Not supplied with re-circulating kit) Qty: 4 PCS Qty: 4 PCS (For sheet rock only) Charcoal filter (Optional re-circulating kit, SUHLQVWDOOHG ZKHQ RUGHUHG together with range hood) Glass Canopy Screw Qty: 4 PCS... -
Page 6: Venting Requirements
Venting Requirements Height & Clearance ‡ Vent system must terminate to the outside 0RXQWLQJ (roof or side wall). Maximum* ceiling clearance Bracket ‡ DO NOT terminate the vent system in an at 110” at 31” hood mounting Standard WLF RU RWKHU HQFORVHG DUHD height above countertop/stove 8SSHU ‡... -
Page 7: Calculating Vent System Length
IMPORTANT: ‡ A minimum of 6” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separately) must be used to maintain maximum airflow efficiency. ‡ Flexible 6” round duct provided for convenience, always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. -
Page 8: Venting Methods & Ductless Conversion
Venting Methods ‡ This range hood is factory set for venting through the roof or wall. For non-vented (re-circulating) installa tions, see Recirculating (Non-Vented) Kit on Page 10. ‡ Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: ‡... -
Page 9: Charcoal Filters & Electrical Requirements
Charcoal Filter Installation NOTE: The charcoal filters are preinstalled if you purchased the range hood with re-circulating kit from us. Remove aluminum filters on hood. Position the charcoal filters onto each side of the motor and turn until it locks. Re-install aluminum filters. Charcoal filters must be replaced after 120 hours of use (or approximately every 2 to 3 months based on the average of 1 to 2 hours of daily cooking time). -
Page 10: Preparation
Preparation Advanced Preparations: WARNING Be familiar with the controls of the range hood by reading WKURXJK Range Hood Operations, 3DJH 12 Place the range hood on a flat, stable surface. Connect the Excessive Weight range hood to a designated standard outlet (please refer the Require three or more person to move and product label for the suitable voltage of this unit) and turn on install this range hood. -
Page 11: Installation
Installation Installations (refer to Page 4 & 11 for parts): Measure the distance between stove top and the bottom of range hood. A distance of 28” to 31” is recommended*. *Due to different ceiling height configurations, recom- mended height may not be applicable. Make sure the range hood is level and not tilted. -
Page 12: Installation Overview
Installation (Continued) the height of the duct tube and extend approximately 6 inches longer than required, connect the lower Calculate end of the duct tube to the range hood and the upper end to the vent system (or air diverter). Make sure the main electrical supply remains disconnected then connect power plug to the electrical cord or wall plug. -
Page 13: Range Hood Operations
Range Hood Operations Control Panel Layout and Buttons Configurations: 3RZHU /LJKW Decrease Value Increase Value Blower Power Indicator Power-On Elapsed Digital Timer Blower Speed Indicator Power-Off Delay Digital Timer Light Power Indicator Power-Off Delay Timer Indicator The range hood is designed to remove smoke, cooking vapors and odors from the cook top area. For best results, start the range hood before cooking and allow it to operate several minutes after the cooking incomplete to clear all smoke and odors from the kitchen. - Page 14 Range Hood Operations (Continued) Control Panel Layout and Buttons Configurations: 3RZHU /LJKW Decrease Value Increase Value Blower Power Indicator Power-On Elapsed Digital Timer Blower Speed Indicator Power-Off Delay Digital Timer Light Power Indicator Power-Off Delay Timer Indicator ‡ Controls: ‡ Adjusting the timer function: While the blower (motor) is not running, press and hold Decrease Value button over 3 seconds to ‡...
-
Page 15: Troubleshooting
Troubleshooting ‡ If the range hood or halogen light does not operate Check if the range hood has been plugged in, make after installation: sure that all power has been turned back ON, fused not blown and all electrical wiring are properly con QHFWHG ‡... -
Page 16: Use And Care Information
Use and Care Information Operations: ‡ Read and understand all instructions and warnings in this manual before operating the appliance. Save these LQVWUXFWLRQV IRU IXWXUH UHIHUHQFH ‡ Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. -
Page 17: Wiring Diagram
Wiring Diagram Six Speed with Type GU10 Bulb Six Speed with Type MR16 Bulb Page 16... -
Page 18: Cleaning, Replacing Filter & Light Bulb
Maintenance SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! SAFETY WARNING: Ne For optimal operation, clean range hood and all baffle/spacer/filter/grease tunnel/oil container regularly. Regular care will KHOS SUHVHUYH WKH DSSHDUDQFH RI WKH UDQJH KRRG Cleaning Exterior surfaces: ‡... -
Page 19: Coverage & Exceptions
Warranty must rese sent chas date Pl Plea ease a an h a hase l e les re rece i n invo i in d e der ai ain se serv i c ice d e der warr rran )LYH Year Parts Warranty: For ILYH yearV from the date of original purchase, your local reseller will provide free of charge, non-consumable replace ment parts or components that failed due to manufacturing defects. -
Page 20: Disclaimer & Contact Information
Carefully inspect all items for damages before accepting delivery. note any damages on the freight bill or express receipt. request name and signature of the carrier’s agent and keep copy to support your claim. Upon DFFHSWDQFH RI LWHPV RZQHU DVVXPHV UHVSRQVLELOLW\ IRU LWV VDIH DUULYDO 5HSRUW GDPDJHV WR WKH FDUULHU DQG ¿OH a claim immediately. - Page 21 Your Notes Page 20...
