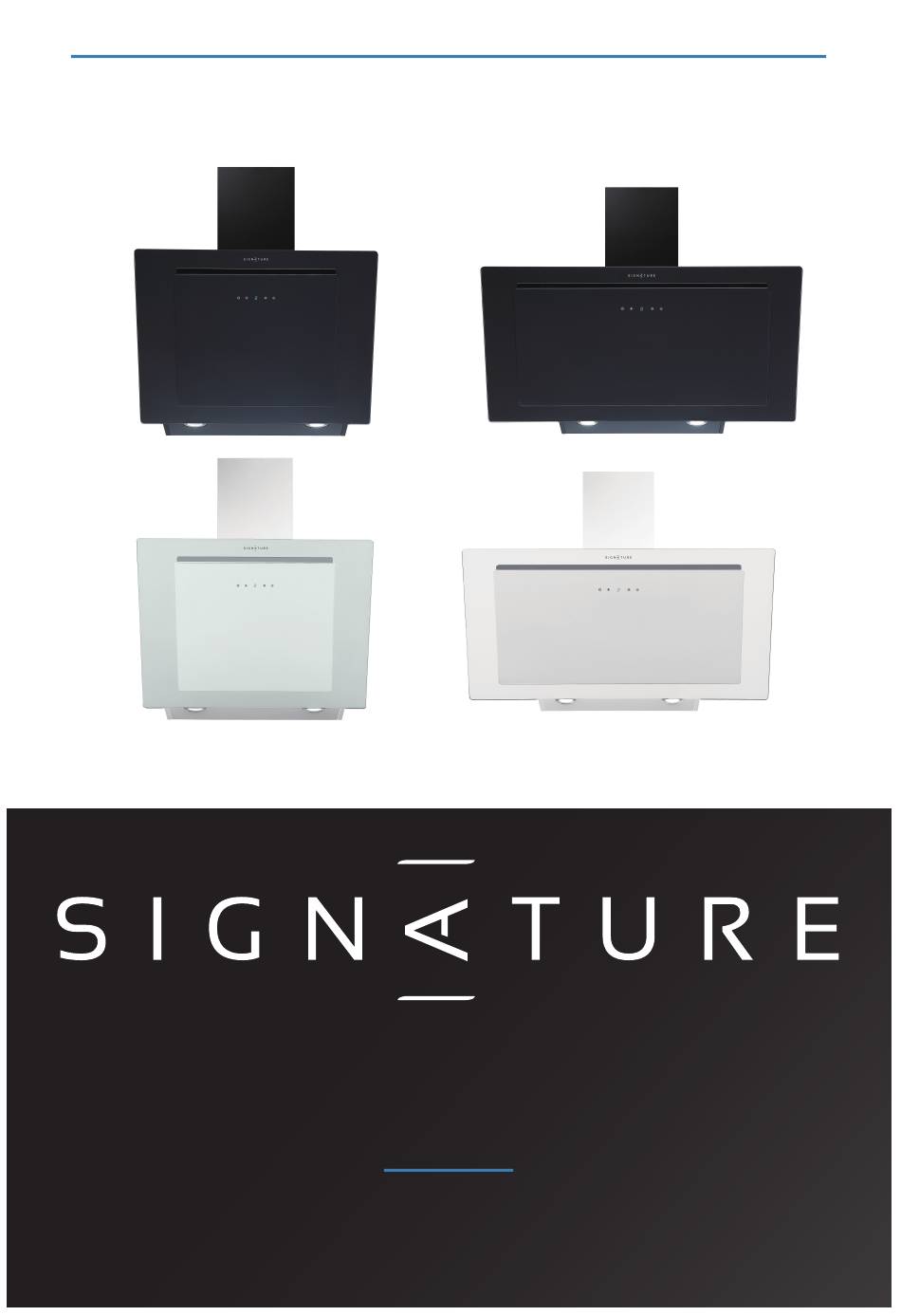

M A N U E L D ' U T I L I S A T I O N - F R
H O T T E D É C O R A T I O N
S H D 6 0 P E R I / 3
S H D 9 0 P E R I / 3
S H D 6 0 W P E R I / 3 S H D 9 0 W P E R I / 3

Advertisement

loading
Need help?

Need help?

Do you have a question about the SHD60PERI/3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Signature SHD60PERI/3

  • Page 1 M A N U E L D ’ U T I L I S A T I O N - F R H O T T E D É C O R A T I O N S H D 6 0 P E R I / 3 S H D 9 0 P E R I / 3 S H D 6 0 W P E R I / 3 S H D 9 0 W P E R I / 3...
  • Page 2 TABLE DES MATIERES 1. Consignes de sécurité - 2 - - 6 - 2. Fonctions et caractéristiques - 7 - 3. Instructions d’installation -10 - 4. Utilisation de votre hotte -11 - 5. Entretien et nettoyage -13 - 6. Dépannage -14 - 7.
  • Page 3 CET APPAREIL EST DESTINE A UN USAGE DOMESTIQUE UNIQUEMENT! Veuillez lire toutes les instructions attentivement avant la première utilisation et les conservez pour une référence ultérieure. 1. CONSIGNES DE SECURITE 1. Avant l’installation et le branchement, vérifiez que l’alimentation à votre domicile correspond bien à...
  • Page 4 qu'elles aient reçu des instructions les dangers encourus. Les enfants ne enfants, sans surveillance. 5. L'installation doit être entreprise par un 6. Ne pas flamber d'aliments sous la hotte de cuisine. 7. ATTENTION : Les parties accessibles de cet appareil peuvent devenir chaudes lorsqu'il est utilisé...
  • Page 5 sur un socle de prise de courant comportant un contact de terre. 10. Gardez l'appareil et son cordon enfants de moins de 8 ans. par le fabricant, son service après-vente, ou une personne de danger. utilisant du gaz ou autres combustibles. ait une bonne ventilation dans la pièce lorsque sont en fonctionnement.
  • Page 6 16. Assurez-vous que votre hotte soit débranchée avant tout nettoyage. 17. Nettoyez la hotte selon les instructions et tenez la hotte à l’écart du risque d’inflammation. 18. Pour une meilleure performance de votre hotte, lisez soigneusement ce manuel d’utilisation avant l’installation et l’utilisation, et stockez-la dans un lieu sûr.
  • Page 7 23. Mise en garde: le non-respect des consignes d’installation peut entraîner des graves blessures. 24. Code ILCOS D  pour cette lampe est DSR-1.5/65-S-64. 25: Lors de l’installation de l’appareil, veillez à ce que les distances suivantes entre la partie supérieure de la cuisinière ou du plan de cuisine et la partie inférieure de la hotte de cuisine soient respectées: >...
  • Page 8 SHD60PERI/3 SHD90PERI/3 SHD60WPERI/3 SHD90WPERI/3 Longueur de la cheminée: 400+400mm ( Avant I’assemblage) 1. Si vous disposez d’une ventilation vers l’extérieur, votre hotte aspirante peut être connectée tel qu’illustré sur l’image ci-dessous par le biais d’une gaine d’extraction (émail, aluminium, conduit flexible ou matériau ignifugé...
  • Page 9 3. INSTRUCTIONS D’INSTALLATION 5. Fixez le tuyau d’évacuation sur le clapet de non-retour tel qu’illustré ci-dessous. Les deux extrémités du tuyau étirable sont différentes; une extrémité porte l’indication «Φ153mm», raccordez-la à la hotte tel qu’illustré ci-dessous. Fixez-le à l’aide du collier de serrage fourni comme illustré...
  • Page 10 3. INSTRUCTIONS D’INSTALLATION 8xCheville Conduit d’échappement 2xVis(4mm x 30mm) schéma 1 schéma 2 schéma 3 Cheminée Attache de câble Plateau I 2xVis(4mm x 8mm) schéma 5 schéma 4 2xVis(4mm x 30mm) schéma 6 Plateau II 2xVis(4mm x 40mm) 2xVis(4mm x 8mm) 2xVis(4mm x 40mm) 2xVis(4mm x 8mm) schéma 7...
  • Page 11 ● Pour raison de sécurité, utilisez seulement des vis de même dimensions que celles indiquées. ● Mise en garde: le non-respect des consignes d’installation peut entraîner des graves blessures. Avertissement: Ne pas suivre les instructions pour l'installation des vis oudispositifs de fixation peutentrainer des dangers électriques. 4.
  • Page 12 5. ENTRETIEN ET NETTOYAGE Conseils pour remplacer et nettoyer les filtres de graisses ● Retirez les filtres comme indiqué dans le schéma.10 ● Nettoyez les filtres comme suit : 1. Plongez les filtres dans l’eau chaude pendant 3 minutes (40-50 dégrées) avec le détergent, et puis le brossez avec une brosse souple.
  • Page 13 schéma 10 schéma 11 schéma 12 - 12 -...
  • Page 14 6. DEPANNAGE Défaut Solution La hotte ne fonctionne pas. ● Vérifiez si l’appareil est branché ● Vérifiez si le bouton de vitesse est bien pressé. La hotte ne fonctionne pas efficacement ● Le bouton à vitesse forte n’est pas pressé. ●...
  • Page 15 SHD60PERI/3, SHD90PERI/3 SHD60WPERI/3, SHD90WPERI/3 190W 2X1.5W 193W (Le panneau avant est ouvert.) SHD60 SHD90 PERI/3 PERI/3 SHD60 SHD90 WPERI/3 WPERI/3 61,7 59,5 hotte 21,5 21,5 hotte 67,7 67,4 hotte 301,4 275,8 572,9 581,8 133,7 128,4 moyen - 14 -...
  • Page 16 0,46 0,46 Niveau sonore LEhotte Lux/w * Le fabriquant et le revendeur ne peuvent pas être tenus responsable 2012/19/EU Remarque : direct et aussi court que possible. processus de cuisson. - 15 -...
  • Page 17 I N S T R U C T I O N S F O R U S E - E N C O O K E R H O O D S H D 6 0 P E R I / 3 S H D 9 0 P E R I / 3 S H D 6 0 W P E R I / 3 S H D 9 0 W P E R I / 3...
  • Page 18: Table Of Contents

    TABLE OF CONTENTS 1. Safety instructions - 17 - - 21 - 2. Function and feature - 21 - 3. Installation - 24 - 4. How to use your cooker hood - 25 - 5. Cleaning and maintenance - 27 - 6.
  • Page 19: Safety Instructions

    THIS PRODUCT IS FOR HOUSEHOLD USE ONLY! Please read these instructions carefully before the first use of this product and save this manual for your future reference 1. SAFETY INSTRUCTIONS 1. Before installation and usage, make sure that the voltage (V) and the frequency (Hz) indicated on your cooker hood are exactly the sameas the voltage (V) and the frequency (Hz) in your home.
  • Page 20 4. Your cooker hood is for domestic use only, not suitable for barbecue, roast shop and other commercial use. 5. Any installation work must be carried out by a qualified electrician or competent person. 6. Do not flambé under the range hood. 7.
  • Page 21 13. Please keep the room draughty when your cooker hood and gas hob are working. 14. The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. 15. The cooker hood and its filter mesh should be cleaned regularly in order to keep in good working order.
  • Page 22 20. It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged. 21. Regarding the information for installation, for cleaning and for changing the light, thanks to refer to the below paragraph of the manual.
  • Page 23: Function And Feature

    * The grease filter is easy to remove and clean, and only wipe lightly for the motor and other interior parts. * Special wind tunnel construction and oil collector design, avoiding redundant grease left in the flue. SHD60PERI/3 SHD90PERI/3 SHD60WPERI/3 SHD90WPERI/3...
  • Page 24 1. If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable material with an interior diameter of 150mm). 2. Before installation, turn the unit off and unplug it from the outlet. 3.
  • Page 25 Note : ● Any installation work must be carried out by a qualified electrician or competent person. ● Do not connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer tube, gas tube, and hot wind tube.
  • Page 26: How To Use Your Cooker Hood

    Pic. 9 4. HOW TO USE YOUR COOKER HOOD 1. Turn the unit off and unplug it from the outlet. Then open the front panel. 2. Touch the “Power” button, the button control the “on” & “off ” of the hood.
  • Page 27: Cleaning And Maintenance

    5. CLEANING AND MAINTENANCE Changing and cleaning the anti-grease filters ● Removing the filters as the instruction in Pic. 10 ● You can clean the filter as below measure: 1. Soak them for about 3 minute in hot water (40-50 degrees) with a grease-loosening detergent then brush it gently with a soft brush.
  • Page 28 pic. 10 pic. 11 pic. 12 - 26 -...
  • Page 29: Trouble Shooting

    6. TROUBLE SHOOTING Symptom Solution ● Check that the hood is connected to The cooker hood does not start . the electricity supply. ● Check that the fan speed control is set properly. ● The fan speed is not set high enough. The cooker hood is not working ●...
  • Page 30 SHD60PERI/3, SHD90PERI/3 Model SHD60WPERI/3, SHD90WPERI/3 Volatge / Frequecy Rated motor input power 190W 2X1.5W Illumination Rated input power 193W SHD60 SHD90 PERI/3 PERI/3 SHD60 SHD90 WPERI/3 WPERI/3 61,7 59,5 21,5 21,5 67,7 67,4 301,4 275,8 572,9 581,8 133,7 128,4 - 28 -...
  • Page 31: Environmental Protection

    Measured power consumption on 0,46 0,46 off mode Sound power level Light Efficiency LEhood Lux/w * We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.
  • Page 32 Tous les papiers      BUT INTERNATIONAL 1 Avenue Spinoza 77184 Emerainville, France...

This manual is also suitable for:

Shd60wperi/3Shd90peri/3Shd90wperi/3
