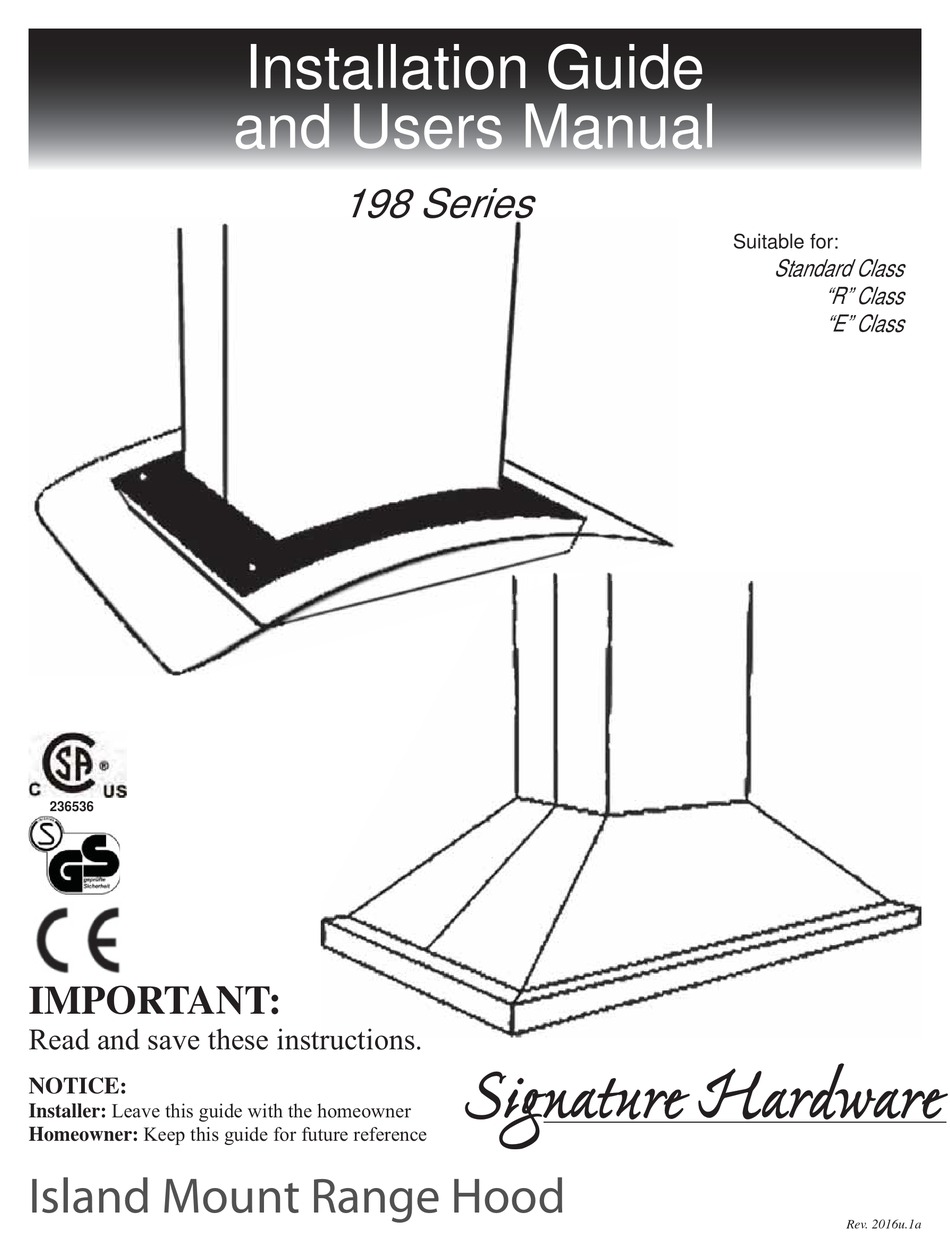

- Page 1 Installation Guide and Users Manual 198 Series Suitable for: Standard Class “R” Class “E” Class 236536 IMPORTANT: 5HDG DQG VDYH WKHVH LQVWUXFWLRQV NOTICE: Installer: /HDYH WKLV JXLGH ZLWK WKH KRPHRZQHU Homeowner: .HHS WKLV JXLGH IRU IXWXUH UHIHUHQFH Island Mount Range Hood...
-
Page 2: Important Safety Notice
Important Safety Notice Read all Instructions before Installing and operating this appliance ‡ The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified profession als and in accordance with all applicable codes and standards, including fire-rated construction. - Page 3 Important Safety Notice Read all Instructions before Installing and operating this appliance ‡ Clean ventilating fan frequently. ‡ Always use appropriate cookware and utensils size. ‡ Always use cookware appropriate for the size of the surface element. To reduce the risk of injury to persons in the event of a stove top grease fire: ‡...
-
Page 4: Table Of Contents
Table of Contents INSTALLATION USE AND CARE Tools needed............3 Troubleshooting...........21 Parts supplied...........4 Use and care information.......22 Venting requirements........5 Specifications..........22 Mount heights & clearance......5-6 MAINTENANCE Calculating vent system length.......6 Cleaning..........23 Venting methods & ductless conversion..7 Replacing filter & light bulb......23 Charcoal filters & electrical requirements..8 WARRANTY Preparation............9 Coverage &... -
Page 5: Parts Supplied
Range Hood (vary with model) Parts supplied: )ODSSHUV Remote Control $LU GLYHUWHU (Optional w/ “R” Class (Optional re-circulating kit) Control) Upper standard chimney Lower standard chimney Charcoal Filter (Optional re-circulating kit) Aluminum Filter(s) Flexible Duct Tube Support Frame Structure 'HVFULSWLRQ Quantity Hexagonal Wood Screws 4 Pcs... -
Page 6: Venting Requirements
Venting Requirements Height & Clearance ‡ Vent system must terminate to the outside Support Maximum* ceiling clearance (roof or side wall). 101” at 31” hood mounting Structure ‡ height above countertop/stove DO NOT terminate the vent system in an at WLF RU RWKHU HQFORVHG DUHD (may vary with different Standard... -
Page 7: Calculating Vent System Length
IMPORTANT: ‡ A minimum of 6” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separately) must be used to maintain maximum airflow efficiency. ‡ Flexible 6” round duct provided for convenience, always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. -
Page 8: Venting Methods & Ductless Conversion
Venting Methods ‡ This range hood is factory set for venting through the roof or wall. For non-vented (re-circulating) installa tions, see Recirculating (Non-Vented) Kit on Page 11. ‡ Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: ‡... -
Page 9: Charcoal Filters & Electrical Requirements
Charcoal Filter Installation NOTE: The charcoal filters are preinstalled if you purchased the range hood with re-circulating kit from us. NOTE Th l filt i t ll d if Remove aluminum filters on hood. Remove the safety filter under the aluminum filter by unscrewing two screws, then position the charcoal filter and align the screw holes, reinstall and fasten two screws. -
Page 10: Preparation
Preparation WARNING Excessive Weight Require three or more person to move and install this range hood. Spinal or other bodi- ly injuries could occur if it is not followed. Advanced Preparations: Read the entire installation guide and users manual thoroughly, understand instructions and warnings. Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 13. -
Page 11: Installation
Installation Installations (refer to Page 4 for parts): As illustrated in Figure 1A, drill four holes with diam eter not exceeding 5/8” and depth of 3” to 3-1/2” on the false ceiling. Fasten two hexagonal wood screws at two of these holes opposite from each other, reserve approx imately 1/8”... - Page 12 Installation (Continued) WARNING As shown in Figure 4A, 4B and 4C, slide in both upper chim Excessive Weight ney and lower chimney, pay extra attention to sharp edges Require three or more person to move and on the chimneys and minimize chimney movements to avoid install this range hood.
- Page 13 Installation (Continued) WARNING Due to excessive weight, two or more person is recommended for this step. Install the hood body onto the support frame and secure Excessive Weight it with sixteen (16) 4mm x 16mm Phillips Head Tapping Require three or more person to move and Screw, see Figure 6A.
-
Page 14: Range Hood Operations
Range Hood Operations & Wiring Diagram SV168/198 Series Standard Class (3 Speed Mechanical Control) Low Speed High Speed Power Switch Medium Speed Light Switch Turn On: ‡ Press the speed control (Low Speed, Medium Speed, High Speed) switch to select the desired level of power. - Page 15 Range Hood Operations & Wiring Diagram (Continued) SV168/198 Series “R” Class (4 Speed Electronic Control w/ Remote) Power-Off Delay Control Power / Fan Speed Control Remote Control Sensor Speed / Timer Indicator Light Control This range hood is equipped with a credit card size remote control (approximately 20ft range), three built-in elec tronic controls, a powerful centrifugal squirrel cage motor, grease filters and two bright 12V 20W halogen lights.
- Page 16 Range Hood Operations & Wiring Diagram (Continued) SV168/198 Series “R” Class (4 Speed Electronic Control w/ Remote) Power-Off Delay Control Power / Fan Speed Control Remote Control Sensor Speed / Timer Indicator Light Control 7KH FUHGLW FDUG VL]H UHPRWH FRQWURO FRQWUROV WKH SRZHU RI WKH /LJKWV...
- Page 17 Range Hood Operations & Wiring Diagram (Continued) SV168 Series “R” Class Wiring Diagram SV198 Series “R” Class Wiring Diagram Page 16...
- Page 18 Range Hood Operations & Wiring Diagram (Continued) SV168/198 Series “E” Class (4 or 6 Speed Electronic Touch Control) /LJKW Power Power-Off Delay Increase Value Decrease Value Power-Off Delay Digital Timer Blower Speed Indicator Cleaning Reminder Indicator The range hood is designed to remove smoke, cooking vapors and odors from the cook top area. For best results, start the range hood before cooking and allow it to operate several minutes after the cooking incomplete to clear all smoke and odors from the kitchen.
- Page 19 Range Hood Operations & Wiring Diagram (Continued) SV168/198 Series “E” Class (4 or 6 Speed Electronic Touch Control) /LJKW Power Power-Off Delay Increase Value Decrease Value Power-Off Delay Digital Timer Blower Speed Indicator Cleaning Reminder Indicator ‡ Controls: ‡ Adjusting the timer function: While the blower (motor) is not running, press and hold Decrease Value button over 3 seconds to ‡...
- Page 20 Range Hood Operations & Wiring Diagram (Continued) SV168 Series “E” Class Wiring Diagram (4 Speed) SV198 Series “E” Class Wiring Diagram (4 Speed) Page 19...
-
Page 21: Range Hood Operations
Range Hood Operations & Wiring Diagram (Continued) SV168 Series “E” Class Wiring Diagram (6 Speed) SV198 Series “E” Class Wiring Diagram (6 Speed) Page 20... -
Page 22: Troubleshooting
Troubleshooting ‡ If the range hood or halogen light does not operate Check if the range hood has been plugged in, make after installation: sure that all power has been turned back ON, fused not blown and all electrical wiring are properly con QHFWHG ‡... -
Page 23: Use And Care Information
Use and Care Information Operations: ‡ Read and understand all instructions and warnings in this manual before operating the appliance. Save these LQVWUXFWLRQV IRU IXWXUH UHIHUHQFH ‡ Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. -
Page 24: Cleaning
Maintenance SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! For optimal operation, clean range hood and all baffle/spacer/filter/grease tunnel/oil container regularly. Regular care will KHOS SUHVHUYH WKH DSSHDUDQFH RI WKH UDQJH KRRG Cleaning Exterior surfaces: ‡... -
Page 25: Coverage & Exceptions
Warranty must rese sent chas date Pl Plea ease a an h a hase l e les re rece i n invo i in d e der ai ain se serv i c ice d e der warr rran )LYH Year Parts Warranty: For ILYH \HDUV from the date of original purchase, your local reseller will provide free of charge, non-consumable replace ment parts or components that failed due to manufacturing defects. -
Page 26: Disclaimer & Contact Information
Carefully inspect all items for damages before accepting delivery. note any damages on the freight bill or express receipt. request name and signature of the carrier’s agent and keep copy to support your claim. Upon DFFHSWDQFH RI LWHPV RZQHU DVVXPHV UHVSRQVLELOLW\ IRU LWV VDIH DUULYDO 5HSRUW GDPDJHV WR WKH FDUULHU DQG ¿OH a claim immediately. - Page 27 Your Notes Page 26...
- Page 28 Your Notes Page 27...
