Telecom R109 User Manual page 10

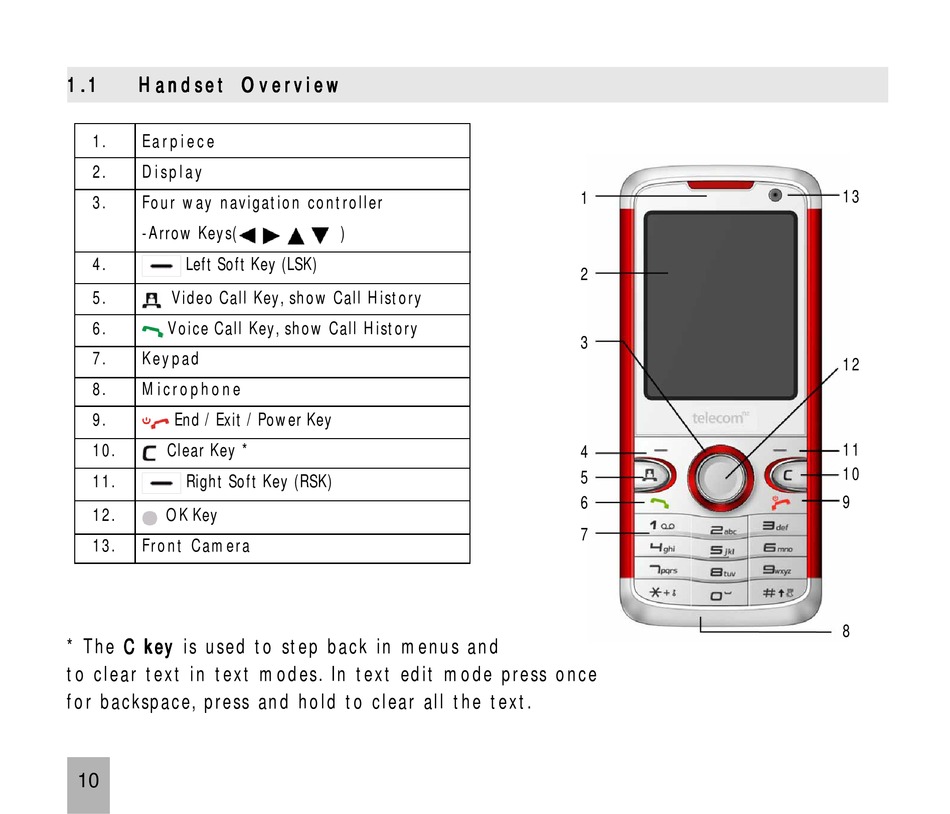

1 . 1 1 . 1 H a n d s e t O v e r v i e w H a n d s e t O v e r v i e w
1 . 1 1 . 1 1 . 1 H a n d s e t O v e r v i e w H a n d s e t O v e r v i e w H a n d s e t O v e r v i e w
1. E a r p i e c e
2. Display
3. Four way navigation controller
-Arrow Keys(
4. Left Soft Key (LSK)
5. Video Call Key, show Call History
6. Voice Call Key, show Call History
7. Keypad
8. Microphone
9. End / Exit / Power Key
10. Clear Key *
11. Right Soft Key (RSK)
12. OK Key
13. Front Camera
* The C ke C ke C ke C ke C key y y y y is used to step back in menus and
to clear text in text modes. In text edit mode press once
for backspace, press and hold to clear all the text.
10
)
1
2
3
4
5
6
7
13
12
11
10
9
8
