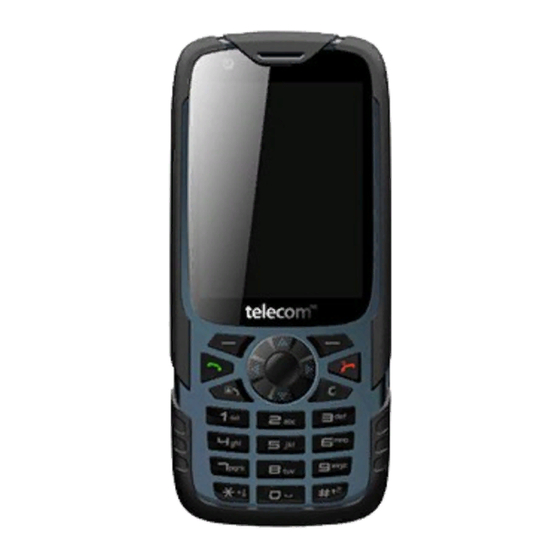

- Page 1 Telecom R54 Rugged Mobile Phone User Manual...
-
Page 2: Warnings And Safety Notices
PC Software Requirements Join Me PC Software included supports Microsoft Windows 7, Vista (32 and 64 bit), XP with Service Pack 2 & 3. A limited version of Join Me is supplied that supports MAC OS 10.5, 10.6 ZTE cannot guarantee that third party hardware or software is compatible with this product. Warnings and Safety Notices Please read all the safety notices before using this device. -
Page 3: Table Of Contents
Contents Liquid Damage - Important Note ..........................4 RF Safety Information ..............................5 Handset Overview ................................6 Information Bar Icons ..............................8 Menu Quick Reference Guide ............................. 9 Getting Started ....................... 11 Insert the (U)SIM Card ......................... 11 Insert the battery .......................... 12 Installing Additional Memory (Optional) ................ -
Page 4: Liquid Damage - Important Note
Special Characters and SMS Message Length ..............24 How to send a Multimedia Message (MMS) ............... 25 How to receive a Multimedia Message (MMS) ..............25 WAP Push Messages ........................26 How to send an Email ......................... 26 3.10 How to receive an Email ......................27 3.11 How to set up automatic Email Retrieval................ -
Page 5: Rf Safety Information
RF Safety Information The handset has an internal antenna located at the top of the phone. For optimum performance with minimum power consumption do not cover the antenna area with your hand. Hold the handset between thumb and finger in the middle of the device. Covering the antenna affects call quality, may cause the handset to operate at higher power level than needed, and may shorten talk and idle times. -
Page 6: Handset Overview
Handset Overview Earpiece Front camera Display Left & Right Soft Keys Performs the function Power / End Key shown on the display Hold down to power On or Off. Call Key Press to End a call. Call a number, answer a call, C Key show Call History Step back in menus. - Page 7 Handset Overview Antenna Port Speaker Camera Volume USB, Headphones Camera Key & Charging Port Cover lock Left Rear Right...
-
Page 8: Information Bar Icons
Information Bar Icons 3G Signal Strength Battery Level Indicator GSM Signal Strength Alarm is set Signal Strength of the EDGE Network Missed Call New SMS Message Missed Video Call Message Memory is Full Bluetooth ON New MMS Message Silent Mode Vibrate mode enabled New E-mail Call Forward is Active... -
Page 9: Menu Quick Reference Guide
Menu Quick Reference Guide... - Page 10 Menu Quick Reference Guide Continued…...
-
Page 11: Getting Started
Getting Started Insert the (U)SIM Card The (U)SIM card (UMTS Subscriber Interface Module) is the small plastic smart-card with gold contacts. It holds account and contact information and can be used to store text messages. It can be moved between different phones if required. The (U)SIM card must be inserted before use. -
Page 12: Insert The Battery
Insert the battery Rotate the locking screw to the right to unlock the battery cover. Open the battery cover using the thumb notches on the bottom on the cover. Insert the battery as shown with the contacts located against the gold springs. Press the battery down flush into the case Line the battery cover up correctly, close the case and engage the locking screw. -
Page 13: Installing Additional Memory (Optional)
Installing Additional Memory (Optional) Handset memory can be increased by inserting a microSD™ card up to 16GB. microSD™ cards up to 2GB are supported (FAT 16 format). microSDHC™ (high capacity) cards up to 16GB are supported (FAT 32 format). Class 4 Memory cards are required. •... -
Page 14: How To Switch The Phone On Or Off
How to switch the phone On or Off Press and hold the red key for two seconds to switch the phone ON or OFF. Enter (U)SIM PIN code – supplied with your (U)SIM card. The start up screen below is referred to throughout the manual as the Idle Screen: The Information bar The Idle Screen:... -
Page 15: Tips About Charging And Battery Life
Tips about charging and battery life • Only use the AC charger and USB lead supplied. • Insert the charger lead carefully with the plug and socket aligned correctly. • Normal charge time is 3-4 hours. Do not leave on charge for more than 24hrs. •... -
Page 16: How To Make A Voice Call
How to make a voice call • Enter the number on the keypad and press the green key to make the call. • Press OK to activate Speaker (Handsfree) mode • Press the red key to end the call. How to answer an incoming call 1.10 •... -
Page 17: How To Navigate The Menu
How to navigate the Menu 1.12 The Main Menu is a grid of icons that are used to access key features on the phone. ▲▼◄► From the Idle Screen press OK to access the Main Menu. Use the Arrow Keys move the cursor or press the corresponding number key as shown on the grid below. -
Page 18: Call Features Summary
Call Features Summary 1.13 Check the table below to quickly find the Call Feature you require: Function Description Menu Selection Any key to Enable any key to answer for an Menu > Settings > arrow answer incoming call. right to Call > Any key to answer Call a Contact Access your Contacts list and dial... - Page 19 Function Description Menu Selection Missed Calls Alert Hear an alert tone at your specified Menu > Settings > tab interval to remind you of a missed right to Handset > Missed call. calls alert Send my number Show or hide your number when Menu >...
-
Page 20: Contacts
Contacts There are some numbers that you may want to call again and again so it makes sense to add these to your Contacts. You can then access these numbers quickly and easily and add special features such as Speed Dialling a dedicated Ringtone and Photo. Function Description Menu Selection... - Page 21 Function Description Menu Selection Insert a Pause or When dialling manually ‘P’ inserts a 3 seconds delay. Wait character press the * key three times ‘W’ waits indefinitely until you enter while dialling for a Pause or four times the next character. for a Wait.
-
Page 22: Messages And Emails
Messages and Emails How to send a Text Message (SMS) Press the Left Arrow Key as a shortcut to Messages or Menu > Messages > New message > Text message • Press the OK Key to Add a Contact or enter the number manually. •... -
Page 23: How To Use Predictive Text
How to use Predictive Text Predictive text allows words to be entered more efficiently using a single keypress for each letter, as opposed to multiple keypresses in multi-tap text mode. Compare how to write the word ‘the’: Traditional multi-tap text mode (ABC, abc) Predictive Text Mode (En) Press 8 (tuv) once to select ‘t’... -
Page 24: How To Add Words To The Built In Dictionary (My Words)
How to add words to the built in Dictionary (My Words) • From predictive text mode enter words directly by choosing Spell Word? • From the text entry screen press the Options key and select My Words • The first time you use My Words press OK to Add a new word •... -
Page 25: How To Send A Multimedia Message (Mms)
How to send a Multimedia Message (MMS) Use a Multimedia Message to send pictures, music or video files. You can also send an MMS directly to an Email address. Menu > Messages > New message > Multimedia message • Enter the phone number, email or press OK for Contacts •... -
Page 26: Wap Push Messages
Use the Browser to view Push Messages. Set to Reject to disable Push Messages. How to send an Email Menu > Messages > tab right to Email > Settings > Mailbox Settings > Edit • The default Email client is configured for Telecom • Add your username, password and My Email address •... -
Page 27: How To Receive An Email
How to retrieve an Email 3.10 Configure the Email Client with your personal settings to enable Emails. Menu > Messages > arrow right ► to Email > Settings > Mailbox Settings > Edit • The default Email client is configured for your service provider •... -
Page 28: How To Create A New Mailbox
How to create a new Mailbox 3.13 Create a new Mailbox to set up alternate Email providers: Menu > Email > Scroll down to Settings > Mailbox Settings > Add Complete all the required fields for your service provider, example shown is for Gmail: The fields in bold should not be changed as they are linked to your phone service provider. -
Page 29: Handset Features & Applications
Handset Features & Applications Function Description Menu Selection Alarms Set and edit Alarms Menu > Tools > Alarm > Add (or View) Menu > Settings > Backlight timers Backlighting Set the backlighting timers Change the display brightness Menu > Settings > Display Brightness Brightness Bluetooth... -
Page 30: Function Description
Function Description Menu Selection Download Sets the default storage when Menu > Settings > arrow right to location using a memory card. Handset > Download location File Manager Access and manage your files Menu > File Manager FM Radio You need to insert your Menu >... - Page 31 Function Description Menu Selection Meeting Mode Quickly engage Meeting mode Long Press the # Key Message Tone Change the incoming message Menu > Profiles > Edit > Message tone tone My Audio Play your audio files Menu > File Manager > Audios > My Audios Menu >...
- Page 32 Function Description Menu Selection Slide Show Create a slide show to view Menu > Multimedia > Slide show > pictures in sequence. Add > Photos > My Pictures Stopwatch Activate the Stopwatch timer Menu > Tools > Stopwatch Vibrate Mode Switch on vibrate mode Menu >...
-
Page 33: Installing The Join Me Computer Suite
Installing the Join Me Computer suite Embedded in your handset is a computer connection suite. The computer suite is compatible with Windows 7, Vista and XP for the PC and MAC OS 10.5 and above. To install the computer suite you need to connect your handset to your computer using the USB lead supplied. When the Join Me installation window appears please run the Autorun file to install the application. -
Page 34: Troubleshooting, Technical And Warranty Information
Troubleshooting, Technical and Warranty Information Troubleshooting and FAQ’s Please check the manual thoroughly before contacting your service provider Symptom Solution No incoming ring Check the ring tone and ring volume settings under Profiles key) or alarm tone Check the handset is not muted (Long press the (No) keytones when Check the key tone settings in the current profile. - Page 35 Symptom Resolution Check: Menu > Settings > Handset > PC Connection > USB I cannot connect to Press Help in Join Me for more instructions. Join Me Uninstall and re-install the software See FAQ’s at http://www.zte.co.nz/ for more assistance Restart your phone to refresh the memory. My phone is slow to Delete or archive old SMS messages and other content.
-
Page 36: Error Messages
Symptom Resolution The handset switches on An alarm or calendar event switches the handset on automatically automatically. My phone is not able to Turn Bluetooth on. Set visibility to Show. Possible compatibility connect to other issues. Manufacturers incorporate different Bluetooth profiles. Bluetooth devices Not all functionality is supported. -
Page 37: Technical Parameters
Technical Parameters Network 3G UMTS 850, 1900, 2100 MHz Compatibility 2G GSM 850, 900, 1800, 1900 MHz Dimensions Approx 118mm x 53.5mm x 16mm L×W×H Weight Approx 130g (Including standard battery) Features MP4 video, MP3 audio, 3.0/0.3MPixel cameras, USB, FM Radio, MIDP 2.0 JAVA, 2.4”... -
Page 38: Support Information
Support Information • For Warranty Service directions please consult your Service Provider or your Retailer. • All calls for PIN number enquiries, Network problems, Web Access, Account and Billing Information, (U)SIM card registration and other general enquiries should be directed to your Service Provider. - Page 39 Safety and General Information The handset contains delicate electronic circuitry, magnets and battery systems. You should treat it with care and pay attention to the following points: • Handle the handset with care. Do not drop handset. • Take care not to allow metal objects such or throw the handset.
- Page 40 • Do not place the handset close to the disconnected for a long time, otherwise edge of a table in case it moves when set your personal data may be lost. • Remember to make backup copies of all on vibrate mode. •...
