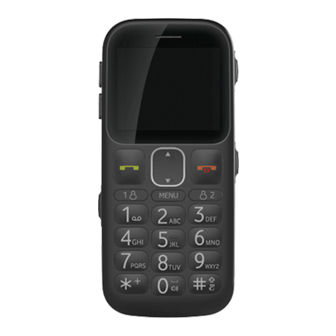

Telecom R303 User Manual

3g mobile phone
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the R303 and is the answer not in the manual?

Questions and answers

Related Manuals for Telecom R303

Summary of Contents for Telecom R303

  • Page 2 TELECOM R303 3G MOBILE PHONE USER GUIDE...
  • Page 3 CONTENTS DEVICE OVERVIEW .............. 3 GET TO KNOW YOUR PHONE ..........9 STEP BY STEP GUIDE ............17 WARNINGS AND SAFETY NOTICES ........47...

  • Page 4: Device Overview

    DEVICE OVERVIEW...
  • Page 5 INSERT THE SIM CARD Remove the battery cover by pressing down on the back cover and sliding the cover down. Insert the SIM card with the metal contacts facing down and the notch on the bottom left corner as shown:...
  • Page 6 INSERT THE BATTERY 1. Insert the battery carefully with the contacts located against the gold springs - the battery will only fit one way. 2. Replace the battery cover. Make sure that the cover closes completely.
  • Page 7 CHARGING THE BATTERY The phone can be charged in the On or Off state. Make sure that the battery is inserted before charging. The charger lead will only fit one way. Insert the lead carefully observing the correct alignment of the plug.
  • Page 8 BATTERY LEVEL INDICATOR Charging Charged The phone will give an audible alert when battery is low and display a low battery message on screen. Please recharge the battery promptly to maintain service. SWITCH YOUR PHONE ON Press and hold the red key for 2 seconds to switch the phone on.
  • Page 9 will be locked. The phone will request you to enter the PUK code. Contact your service provider to obtain the PUK code if required. If your handset displays: Enter the PIN supplied with your SIM card. Limited Service Check the SIM card is inserted correctly. Enter PUK code Contact your Service Provider.

  • Page 10: Get To Know Your Phone

    GET TO KNOW YOUR PHONE MAIN DISPLAY Information Bar Network Provider Time & Day Date DISPLAY ICONS...
  • Page 11 Battery level Keypad locked Network signal level Headset inserted New SMS message Alarm enabled SMS memory is full Silent Mode enabled Missed call Roaming Call Forwarding active...
  • Page 12 Key Functions Description  Call key Press to make a call. Press to answer a (Green Key) call.  From the idle screen, press to access call history.  Press to confirm the function you choose.  End key Long press to power on or off. ...
  • Page 13 Key Functions Description  Press to move cursor up.  Down key From the idle screen, press to enter menu.  Press to move cursor down.  Menu Key Access the menu, jump to the top of the menu  Easy Call keys Programmable keys to call dedicated numbers.
  • Page 14 Key Functions Description Press to input „#‟.  # key Switch SMS text input mode – (Predictive)   Hold down to switch Silent mode On or Off  From the idle screen press to enter „*‟, „+‟,  * key „W‟, or „P‟...
  • Page 15 Key Functions Description  Press to insert common symbols in SMS messages  Programmable Activate your Switch Call and SMS Switch (see Programmable Switch Setting).  Volume keys Adjust the volume up and down.  Torch switch Turn the torch on or off. ...
  • Page 16 MENU MAP...

  • Page 18: Step By Step Guide

    STEP BY STEP GUIDE PROGRAMMABLE SWITCH SETTING The Programmable Switch on the back of the handset can be programmed to make a call and/or send an SMS to friends or relatives simultaneously.  Press Down > Down > Down > Down > OK to enter the Settings Menu ...
  • Page 19 automated text message you must enter a message in this field.  When enabled and programmed, pushing the Switch Key will send an SMS message to numbers 2-5 and initiate a call to the first defined number.  The Alert tone (Settings > 5.Switch Setup > 2.Volume) will continue after the call until the Switch Key is pushed back to the down position.
  • Page 20 standby mode. Switch Dialling is still activated when the keypad is locked. MAKE A CALL  Enter the phone number using the number keys and press the Green key to dial. Use the Red Key to delete any mistakes.  Long press the Red key to clear and return to the idle screen.
  • Page 21  If you have set speed dial numbers long press the numeric keys to dial the corresponding contact.  Press the Volume keys to adjust volume during the call.  Press and hold the 0 key during a call to enable Loud Speaker mode.
  • Page 22 RECEIVE A CALL When you get an incoming call the handset will Ring, Light up and Vibrate depending on your chosen audio profile setting.  Press the Green key to answer an incoming call,  Press the Volume keys to adjust volume during the call. ...
  • Page 23  Type the name using the keypad letter keys, (eg press the key once for the first letter, twice for the second letter etc.), press Done when finished. Press the # key to change text input modes (eZiEng, abc, ABC, 123) if required.
  • Page 24 name of your Phone Book contact.  Eg. Press 5 to search for John. Press 5 twice to search for Karen.  Use the up and down arrows to scan your Phone Book contacts  When you have selected the required contact press Option > Dial to make a call to that contact.
  • Page 25 off go to Menu > Settings > 8.Voice Broadcast > Auto SMS Broadcast > Broadcast Status - Off  From the idle screen press Down > Down to access Messages > Write message to start a new message.  Add the Contact in the To: field, either manually or press Search. ...
  • Page 26  The Outbox shows messages that failed to send. Sent shows sent messages.  Drafts shows all your saved messages which have not been sent.  Select Message Settings for Valid Time, SMS Centre Number, Delivery Report and Cell ID Display options. ...
  • Page 27 letter appears.  Enter Words: In eZiEng mode, input each letter with a single key press. The word updates as you enter more letters. Predictive text is based on a built-in dictionary. If the word is correct press the Space key (0) to move on or press the down arrow to select alternate words, then the Green key to Select.
  • Page 28 common symbols and use the Up/Down keys to highlight the required character.  Press the 0 key to input space, (not available in 123 mode).  Press the Red key to clear a character. Hold the Red key to delete all characters. ...
  • Page 29 Input the first letters of the name, the phone will list the corresponding records.  Select Phone Book > Add New Contact to add a new contact to the SIM or phone. Press Edit then enter the details in each field: ...
  • Page 30 Option > 4.Delete  Select Phone Book > 4.Copy All or 5.Move All to copy or move all from SIM to phone or phone to SIM.  Select Phone Book > 7.Memory Status to view SIM card or phone memory status. ...
  • Page 31  Select Yes > Search Contacts to add a contact from your Phone Book  Select Yes > Add New Contact to create a new Phone Book record.  Once you have selected or added the number then press the Green key to confirm and add the number.
  • Page 32 on the keypad. (1 is reserved for Voicemail, 3 is preset but can be changed)  Select Settings > 4.Easy Call Setup > Speed Dial. Choose a speed dial key from the available list, then press Assign > Search Contacts or Add New Contact. ...
  • Page 33 AUDIO SETTINGS 3.13 Select Settings > Audio Profiles > Personalise to set the following: Tone Setup 1. Incoming Call 5. Message Tone 2. Alarms / Reminder 6. Keypad Tone 3. Power On 7. Alert Tone 4. Power Off  The Power On / Off tones are played when the phone is switched on or off.
  • Page 34 Ring Tone volume. From Settings > Audio Profiles > Personalise b) Volume 1. Ring Tone 3. Earphone 2. Key Tone 4. In Call Volume c) Alert Type Ring Only Vibrate Then Ring Vibrate Only Light only Vibrate and Ring (Default)
  • Page 35 PHONE SETTINGS 3.14 Select Settings > Phone Setup > 1. Set Time to set time (24hrs only) and date. Network Time is enabled by default and will automatically update the time from the network. Switch off Network Time to set the time and date manually or to use Home City to change time zones.
  • Page 36 8. Master Reset – Restore factory settings. The default phone lock code is 0000. CALL SETTINGS 3.15 Select Settings > Call Setup > 1. Call Forwarding. Enables your calls to be diverted to another number when your phone is busy, after no reply, or unreachable. The default number is your Voicemail service.
  • Page 37 password which is available from your service provider. 4. Send My Number. By default your number is displayed to the other party. You can disable this if preferred. 5. Call Time Reminder > Periodic (set your required time from 1-3000 seconds) You hear a beep during an active call to remind you of the current call duration.
  • Page 38 SETTINGS > SECURITY CODE 3.17 Select Settings > Security Code to Activate or Change PIN codes. The Handset Code is shown on power up and protects the handset from wrong use. The default handset code is 0000. The PIN code is stored on the SIM card and protects the SIM (account) from misuse.
  • Page 39  New Call will read out the incoming caller details.  New SMS will read out the incoming SMS sender details.  Auto SMS Broadcast will read the message contents when viewed. ORGANISER > ALARMS / REMINDERS 3.19 Select Menu > Organiser > Alarms/Reminders Alarm Name Required Fields Alarm...
  • Page 40 Set the Name, Time Daily Medication Reminder Getting Up Set the Name, Time Daily Entertainment Set the Name, Time Daily Set the Name, Countdown time Once Count Down Others Set the Name, Time, date, repeat User hh:mm choice  Select Add > Edit to enter a name (optional). ...
  • Page 41 ORGANISER > CALENDAR 3.20  Go to Organiser > Calendar to view the calendar. ORGANISER > CALCULATOR 3.21  Go to Organiser > Select Calculator. Press Up/Down keys to highlight the required functions +, -, *, /, = and press the Green key for Equals.
  • Page 42 TORCH 3.22 Switch the torch on or off using the side switch. The torch works whether the handset is on or off, or in the locked or unlocked state so be careful not to activate the torch while the handset is in your pocket.
  • Page 43 FM RADIO SWITCH 3.24  Slide the FM key switch up to turn the radio on.  Press the Up / Down arrow keys to search for available channels.  Use the side volume keys to adjust the volume.  Select Option >...
  • Page 44 selected channel.  Select Option > Manual Input to manually input a channel.  Select Option > 4.Preset Auto Search to preset the playlist with available channels.  Reception is improved by adding a charger lead or earphone lead.  When an earphone is inserted you can select Option >...
  • Page 45 TECHNICAL SPECIFICATIONS 3.25 Network UMTS 850,2100 MHz. GSM 900,1800 MHz Dimensions Approx 112.8mm x 50.6mm x 13.9mm, L×W×H, Weight Approx 88g (including standard battery) Features SMS, FM Radio, 3.5mm headset jack, LED torch, T-Coil, Programmable Switch Call function, Spoken keys, Text to Voice Battery 1100mA hours, Lithium ion (Li-ion) Screen...
  • Page 46  All calls for PIN number enquiries, Network problems, XT Services, account information, Web Access, Account and Billing Information, (U)SIM card registration and general enquiries should be directed to Telecom. WARRANTY INFORMATION 3.27 The warranty does not apply to defects or errors in the...
  • Page 47 (a) Reasonable abrasion. (b) Misuse including mishandling, physical damage, improper installation, unauthorized disassembly of the product. (c) Water, exposure to solvents or any other liquid damage. (d) Any unauthorized repair or modification. (e) Power surges, lightning damage, fire, flood or other events outside ZTE‟s reasonable control.

  • Page 48: Warnings And Safety Notices

    WARNINGS AND SAFETY NOTICES GENERAL PRECAUTIONS  The antenna is located in the top portion of the handset, behind the display. When you are using the handset try to avoid shielding the antenna area with your hand. Hold the handset between your thumb and fingers towards the base of the handset.
  • Page 49 clean the handset.  The handset will be damaged by liquid ingress. The handset contains a liquid detection sticker which changes colour when exposed to liquids. Liquid ingress is not covered by warranty under any circumstances.  Do not expose the handset to solvents, chemicals or abrasive cleaning products.
  • Page 50 terms and conditions.  As your mobile phone can produce electromagnetic field, do not place it near magnetic items such as computer disks or bank cards. Do not expose to metal filings which can stick to the speaker area.  Using the phone near electrical appliances such as TV, telephone, radio and personal computer may cause interference.
  • Page 51 driving.  Do not place your phone on an airbag or in the airbag deployment area. If a phone is in the airbag deployment area it may be propelled with great force and cause injury to occupants of the vehicle. ...
  • Page 52 PRECAUTIONS FOR MEDICAL DEVICES  If you use a pacemaker please keep the phone at least twenty centimetres from the pacemaker when the phone is switched on. Do not carry the phone in your breast pocket. Use the ear opposite the pacemaker to minimize the potential for interference.
  • Page 53 places such as hospitals, airports, service stations, refineries, chemical works etc. Switch off your phone as required. PRECAUTIONS FOR EXPLOSIVE ATMOSPHERES  Switch off your phone prior to entering any area with potentially explosive atmospheres, such as fuel or chemical transfer or storage facilities.
  • Page 54 BATTERY SAFETY  Do not short-circuit the battery terminals. Do not carry the battery in your pocket in case of accidental short circuits.  Do not store battery in hot areas or dispose of the battery in a fire.  Do not disassemble, pierce or modify the battery in any way.
  • Page 55 of it in accordance with environmental regulations. Do not dispose of it in household rubbish.  If the battery is damaged do not recharge it. In the unlikely event of battery leakage avoid contact with your skin and wash the affected area thoroughly in water. LIMITATION OF LIABILITY ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages resulting from or arising out of...
  • Page 56 RF SAFETY (SAR) SAR tests have been completed as per the Radiocommunications Standard 2003 (Human Exposure). The limit defined by this standard is 2.0W/Kg. The highest value SAR recorded for the device is 1.54 W/Kg. Copyright © ZTE CORPORATION. Version 1.0 Aug 2013 The pictures and icons shown in the manual are for reference only.
  • Page 57 Starship. Phones can be left in recycle bins located in Telecom stores and offices nationwide. More information on the Starship Mobile Phone Appeal can be...
