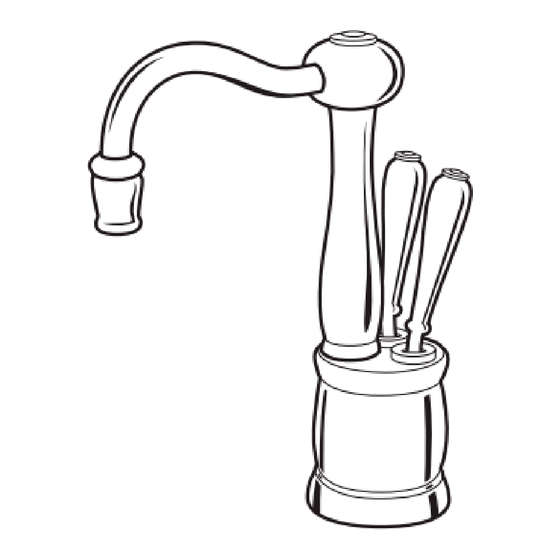

  • Page 1 Instant Hot Water Owner’s Manual Installation, Care & Use Instalacion, cuidado & uso Installation, soin et utilisation Series 2200 Series 1100 Dispenser...
  • Page 2 This unique appliance will save you time and effort in the kitchen, and you’ll enjoy discovering new uses for it each day. That’s exactly why millions of people are now using an InSinkErator Instant Hot Water Dispenser. We are confident that by following our step-by-step instructions, you’ll soon be enjoying the convenience of instant hot water.
  • Page 3 Identify the model of your instant hot water dispenser and record it here:________________ F-HC2200 F-GN2200 HOW TO USE THIS INSTRUCTION MANUAL These instructions are separated into main sections, indicated by numbers, and subsections, indicated by capital letters. The manual is setup this way to allow you to take a break at any point after completing a section or subsection without affecting the installation process.
  • Page 4 COMPONENTS IN THIS PACKAGE F-HC2200 F-HC2215 F-HC1100 Plug (1) Quick Connector SST-FLTR F-GN2200 Rubber O-Ring F-GN2215 Semi-circular Mounting Plate F-GN1100 Filter Head 3/8" Tubes (2) Brass Nut / Ferrule / Tube Insert Hex Nut Hex Tool Snap-Connect Filter Cartridge Fitting (3 pieces) Filter Discharge Tube 3/4"...
  • Page 5 IF INSTALLING ONLY NEW FAUCET Release Ring Release 1/4" 7/16" 5/16" blue white clear Tank A Tank B Property Damage: Do not pinch or break copper tubing. Do not distort the last 1 inch of tubing. Tank A Tank B Property Damage: Turn off water &...
  • Page 6: Start Here

    ⁄ " - 1 ⁄ " hot water dispenser. If drilling a hole into a stainless steel sink or counter top, you can cut a mounting hole for the dispenser with a hole saw for stainless steel, or you can...
  • Page 7: Installing The Faucet

    INSTALLING THE FAUCET Property Damage: Do not pinch or break copper tubing. Do not distort the last 1 inch of tubing. Make sure to use rubber O-ring to ensure proper seal. An assistant may be needed to hold the dispenser head in place while securing the dispenser.
  • Page 8 MOUNTING THE TANK Property Damage: Tank must be located within 16" of faucet and within 30" or less of a standard grounded outlet. DO NOT extend plumbing or electrical lines. Leave 1/4" for hanging tank. Mount tank vertically in an area that allows clearance on the underside of the tank for drainage, if necessary.
  • Page 9 INSTALLING FILTRATION SYSTEM Personal Injury: Do not locate filter above an outlet or other electrical device. Install head and bracket so that connections require no stretching, kinking or pinching of tubing. from water supply line Property Damage: Tube runs need to form to the cabinet’s contours to allow storage space with no sharp bends.
  • Page 10 If the water coming from the faucet is not hot 15 minutes after the unit has been plugged in – or for other issues related to the operation of your instant hot water dispenser – refer to the “Troubleshooting” section on Page 14. Install a T-fitting (not included) onto the cold water supply line.
  • Page 11: Warranty Information

    If warranty service is required during the warranty period, contact an authorized InSinkErator service agent to replace or repair the unit in your home at no cost to you. If your dispenser is replaced rather than repaired, the warranty on the new unit shall be for the duration of the remaining portion of the original dispenser’s warranty.
  • Page 12: Care And Use

    May result in severe burns. SEASONAL STORAGE/DRAINAGE Anytime the instant hot water dispenser is not used for extended periods of time, unplug and drain unit. If it is below freezing you will need to unplug the unit and drain it.
  • Page 13 The InSinkErator ® Instant Hot Water Dispenser Filtration System is intended for use in filtering sediment, chlorine taste and odor from drinking water, and has not been evaluated for other uses. The system is typically installed (near or beneath a sink) where filtered drinking water is desired, and must be installed, operated and maintained as specified in the installation and use instructions.
  • Page 14: Troubleshooting

    Please read Troubleshooting Guide and/or visit www.insinkerator.com before calling AnswerLine PROBLEM POSSIBLE CAUSE Water and steam spits • Unit is boiling. forcefully from spout May be normal during initial setup. without turning on the dispenser faucet. Water is not hot.
  • Page 15 1.800.558.5700 The Emerson logo is a trademark and service mark of Emerson Electric Co. www.insinkerator.com © 2007 InSinkErator, a division of Emerson Electric Co. All Rights Reserved. 44069 REV. A Printed in USA...

This manual is also suitable for:

F-hc2200F-gn2200F-hc2215F-gn2215F-hc1100F-gn1100
