Insignia 09-0878 User Manual

Welcome

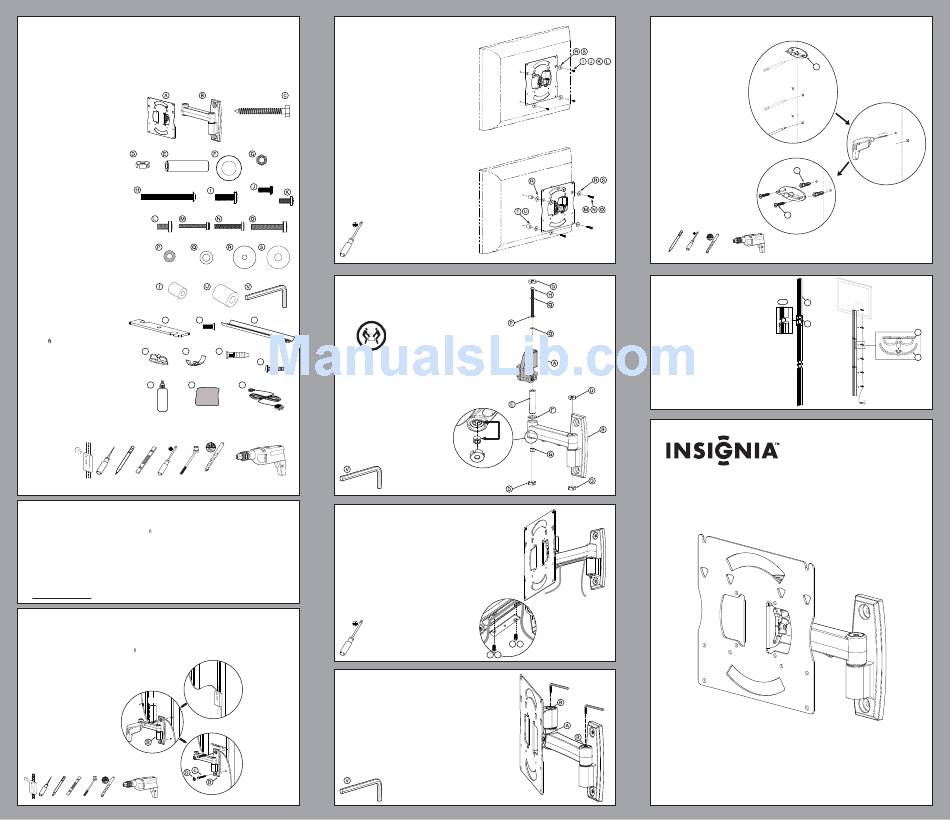

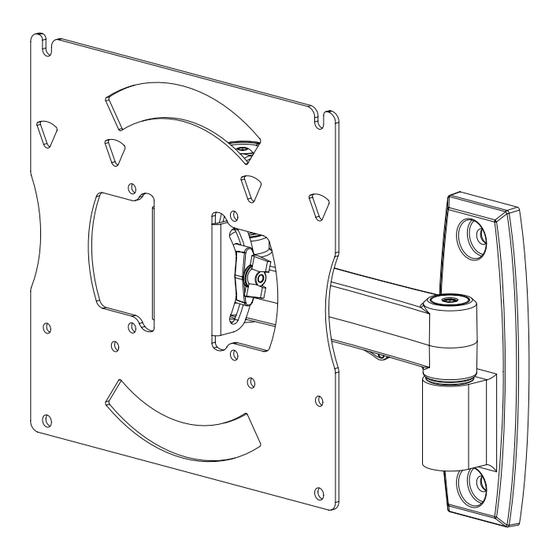

Thank you for your purchase of the NS-TVM101 wall mount. It is a full-motion mount that allows the TV
or monitor to tilt ±15°, swivel ±15°, and extend 8.8 inches (22.4 cm) from the wall. The cable tunnels can
hide cables and can be cut and painted to any desired size and color.
PARTS LIST
Before starting assembly, verify that all parts are included and undamaged. If any parts are missing or
damaged, do not return the item to your dealer, but contact Customer Service. Never use damaged
parts. Missing parts? Call (877) 467-4289.
Note: Not all parts will be used
A TV bracket (1)
B Wall bracket (1)
C Lag bolt (2)
D Hinge caps (6)
E Swivel head bearing (1)
F Swivel head washer (1)
G Swivel head nut (1)
H 1/4" × 3.25" (82.6 mm) bolt (1)
I M6× 0.78" (20 mm) bolt (4)
J M4 × 0.47" (12 mm) bolt (4)
K M5 × 0.47" (12 mm) bolt (4)
L M6 × 0.47" (12 mm) bolt (4)
1/4-20 x 3.25 in.
M M4 × 1.18" (30 mm) bolt (4)
N M5 × 1.18" (30 mm) bolt (4)
O M6 × 1.38" (35 mm) bolt (4)
P Plastic 0.5" (12.7 mm) washer (1)
M4 x 30mm
M6 x 12mm
Q 0.5" (12.7 mm) washer (2)
R M4/M5 washer (8)
Plastic
S M6 washer (4)
T M4/M5 spacer (4)
U M6 spacer (4)
0.5 in.
V Allen (hex) wrench (1)
AA Cable cover (1)
BB Cable cover screw (2)
CC Cable tunnel (3)
M4 / M5
DD Cable clip (6)
EE Cable tunnel connector (2)
FF Wall anchor for cable clip (12)
AA BB
GG Wall screw (12)
HH Screen cleaner
II Micro- ber cleaning cloth
JJ 9' In-wall rated HDMI cable (1)
DD EE
Tools you will need:
• Power drill
• 3/16" wood drill bit
• Phillips screwdriver HH II
• Level
• Socket wrench with 1/2" socket
• Pencil, awl, or other marking tool
• Stud finder
Important safety instructions
The NS-TVM101 TV mount is designed to support a TV or monitor weighing up to 40 lbs. (18.1 kg) mounted on a vertical wall.
Caution
Do not use this product for any purpose not explicitly speci ed by Insignia. Improper installation may cause property damage or
personal injury. If you do not understand these directions, or have doubts about the safety of the installation, contact Customer
Service or call a qualified contractor. Insignia is not responsible for damage or injury caused by incorrect installation or use.
Warnings
• The weight of your television must not exceed 40 lbs. (18.1 kg). The wall must be capable of supporting five times the weight
of the television, plus the wall mount. If you are unsure if your wall is capable of supporting this weight, contact Customer
Service or a qualified contractor.
• This product contains small items that could be a choking hazard if swallowed. Keep these items away from young children.
Three year warranty
Visit www.insigniaproducts.com for details.
1
Wood Stud Wall
Attach the wall bracket to a wood stud wall
Warning: To avoid potential injuries or property damage, any material covering the wall must not exceed 5/8" (16 mm).
Caution: Do not over-tighten the lag bolts (C).
Tighten the lag bolts (C) only until they are pulled rmly against the wall bracket (B).
63.5 mm
(2.5 in.)
< 16 mm
(5/8 in.)
[02]
[12]
[05]
3/16 in.
5mm
2
Flat Back Panel
Attach the TV bracket (for TVs with flat back panels)
Tip: Determine the diameter of the screw your TV requires
by hand threading them into the threaded insert on the
back of your TV. Stop immediately if you encounter any
resistance.
5/16 x 2.5
Rounded or Angular Back Panel TVs
Attach the TV bracket (for TVs with rounded
or angular back panels)
Tip: Determine the diameter of the screw your TV requires
by hand threading them into the threaded insert on the
back of your TV. Stop immediately if you encounter any
resistance.
M4 x 12mm
Optional: Use washer (R) with M4 or M5 hardware only.
M6 x 20mm
M5 x 12mm
M5 x 30mm M6 x 35mm
Metal
0.5 in.
M4 / M5
M6 / M8
3
Mount the TV bracket to the wall bracket
M6 / M8
CC
8-32 x 0.5 in.
FF
HEAVY! You will need
GG assistance with this step.
JJ
3/16 in.
5 mm
4
Conceal the cables in the arm
Route the cables through the arm, leaving
enough slack to prevent stretching the cable
when the arm is moved.
5
Use the head adjustment nut (A) to set the tension
required to tilt the TV and the arm adjustment (B) to
set the tension required to swivel or rotate the arm.
[02]
© 2009 Best Buy Enterprise Services, Inc. All rights reserved. INSIGNIA is a trademark of Best Buy Enterprise Services, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.
OPTIONAL
[05]
[09]
[11]
[10]
[11]
For clarity, TV and face
[01]
plate are not shown.
[05]
[06]
[07]
[02]
[08]
[05]
[05]
For clarity, TV is not shown.
AA BB
AA BB
[B]
[A]
[B]
6
Drywall
Install the cable clips on the drywall
DD [26]
FF
[29]
GG
[28]
3/16 in.
5mm
7
Connect cable covers CC and EE.
Route cable. Install cable covers
CC to DD.
2x CC
[27]
EE
[29]
NS-TVM101 TV Mount Kit (includes HDMI cable)
USER GUIDE
1"
DD
[28]
CC
[27]
ENGLISH 09-0878
6907-002003 <00>
