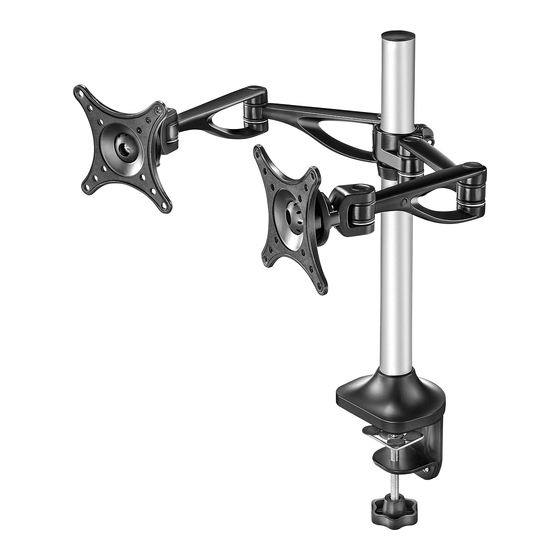

USER GUIDE
Single Screen/Double Screen
Desktop Monitor Mount
NS-PMM6120/NS-PMM6220
Before using your new product, please read these instructions to prevent any damage.

Advertisement

loading
Need help?

Need help?

Do you have a question about the NS-PMM6120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Insignia NS-PMM6120

Summary of Contents for Insignia NS-PMM6120

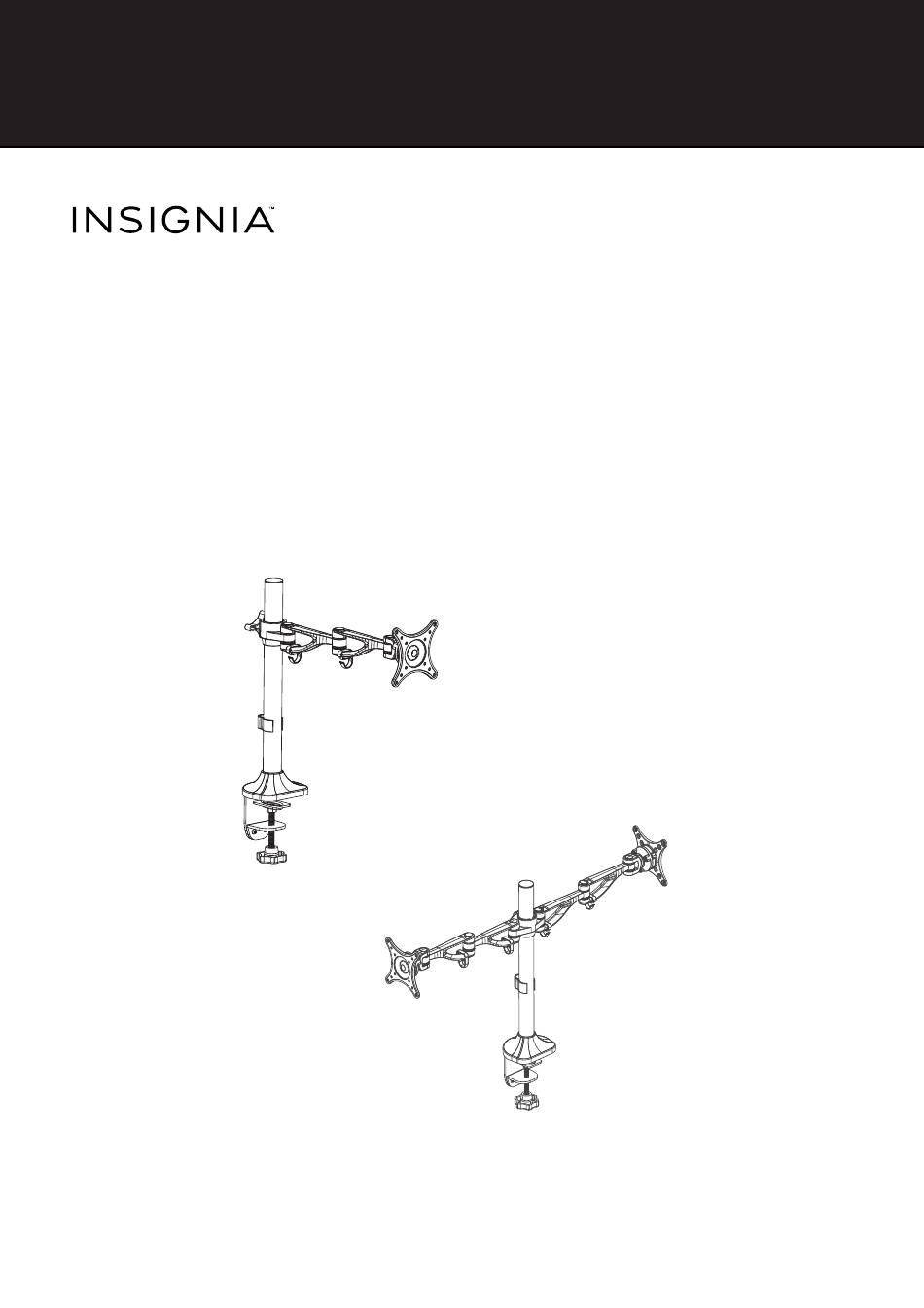

  • Page 1 USER GUIDE Single Screen/Double Screen Desktop Monitor Mount NS-PMM6120/NS-PMM6220 Before using your new product, please read these instructions to prevent any damage.

  • Page 2: Table Of Contents

    Specifications ........... . 8 ONE-YEAR LIMITED WARRANTY - INSIGNIA ......9 Introduction Congratulations on your purchase of a high-quality Insignia product.

  • Page 3: Important Safety Instructions

    Insignia Single Screen/Double Screen Monitor Mount Important Safety Instructions WARNING 1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Clean only with a damp cloth. 6 This product contains small items that could be a choking hazard if swallowed.

  • Page 4: Package Contents

    Insignia Single Screen/Double Screen Monitor Mount Package contents Item Tube cap Tightening knob Monitor plate and support arm assembly Single-arm knob (single monitor unit only) Base support Arm support ring M5 x 10 mm sunk bolt Support tube Cable support clip...

  • Page 5: Assembling And Installing The Monitor Mount

    Insignia Single Screen/Double Screen Monitor Mount Assembling and installing the monitor mount (Applies to single or double monitor versions - single monitor version shown) Step 1 - Assembling the support arm and support tube 1 Install the cable support clip (9) by sliding it on the support tube (8).
  • Page 6 Insignia Single Screen/Double Screen Monitor Mount Step 2 - Attaching the monitor mount to the edge of the desk Select the position on the desk where you want your monitor mount installed. Make sure that there is enough room for the monitor. The desk should between 0.6 in.
  • Page 7 Insignia Single Screen/Double Screen Monitor Mount 4 Install the bottom plate (10) on the support tube using the four screws you previously removed. 5 Place the padded mat feet (11) to cover the heads of the four screws and place the monitor mount on the desk surface over the hole you drilled.

  • Page 8: Specifications

    Tilt angle -5° ~ 15° Integrated cable management Copyright Insignia is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC © 2015 Best Buy. All rights reserved. Made in China. For service and support call 1-877-467-4289.

  • Page 9: One-Year Limited Warranty - Insignia

    Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period.
  • Page 10 FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND...
  • Page 11 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC V1 ENGLISH ©2015 Best Buy. All rights reserved. 15-0664 Made in China.
