Insignia NS-HTMS1 Assembly Manual

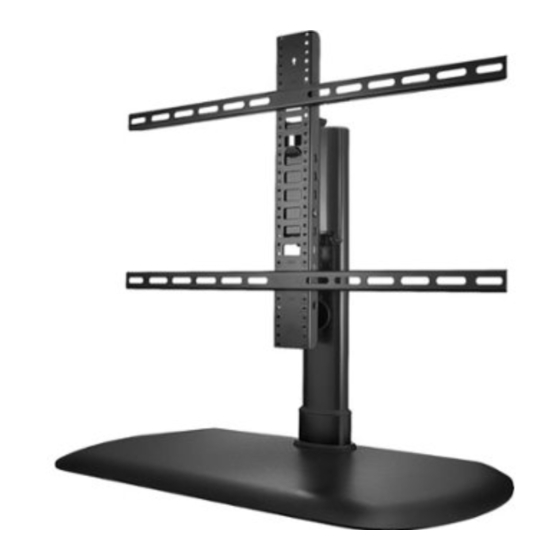

Universal swivel tv base
Hide thumbs
Table of Contents

Advertisement

Quick Links

V1
FINAL
FOR PRINT
Final Trim Size: 5.512 x 8.268 in. (140 x 210 mm)
NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 1 Thursday, October 24, 2019 10:34 AM
ASSEMBLY GUIDE
Universal Swivel
TV Base
NS-HTMS1
Before using your new product, please read these instructions to prevent any damage.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-HTMS1 and is the answer not in the manual?

Questions and answers

Related Manuals for Insignia NS-HTMS1

Summary of Contents for Insignia NS-HTMS1

  • Page 1 Final Trim Size: 5.512 x 8.268 in. (140 x 210 mm) NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 1 Thursday, October 24, 2019 10:34 AM ASSEMBLY GUIDE Universal Swivel TV Base NS-HTMS1 Before using your new product, please read these instructions to prevent any damage.

  • Page 2: Table Of Contents

    ONE-YEAR LIMITED WARRANTY .........22 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-HTMS1 represents the state of the TV stand design and is designed for reliable and trouble-free performance. IMPORTANT SAFETY INSTRUCTIONS Please read through these instructions completely to be sure you’re comfortable...

  • Page 3: Features

    NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 3 Thursday, October 24, 2019 10:34 AM Universal Swivel TV Base • WARNING: Relocating audio and/or video equipment to furniture not specifically designed to support audio and/or video equipment may result in death or serious injury due to the furnishing collapsing or overturning onto a child.

  • Page 4: Dimensions

    NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 4 Thursday, October 24, 2019 10:34 AM NS-HTMS1 Dimensions Tools needed You need the following tools to assemble your new TV stand: Phillips screwdriver Level www.insigniaproducts.com...

  • Page 5: Package Contents

    NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 5 Thursday, October 24, 2019 10:34 AM Universal Swivel TV Base Package contents Make sure that you have all the parts and hardware needed to assemble your new TV stand. Parts 01 Horizontal brackets (2) 14 Vertical bracket (1) 17 Base (1) 16 Post (1) www.insigniaproducts.com...

  • Page 6: Hardware

    NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 6 Thursday, October 24, 2019 10:34 AM NS-HTMS1 Hardware LBL. HARDWARE LBL. HARDWARE Spacer (2.5 mm) M8 × 25 mm screw M4 × 35 mm screw Spacer (22 mm) M6 × 35 mm screw M4 washer M6/M8 washer M8 ×...

  • Page 7: Assembly Instructions

    NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 7 Thursday, October 24, 2019 10:34 AM Universal Swivel TV Base Assembly instructions Step 1 – Determine whether your TV has a flat back or an irregular or obstructed back Carefully place your TV face-down on a cushioned, clean surface to protect the screen from damages and scratches.
  • Page 8 NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 8 Thursday, October 24, 2019 10:34 AM NS-HTMS1 Step 2 – Select screws, washers, and spacers Select the hardware for your TV (screws, washers, and spacers). A limited number of TVs come with mounting hardware included. (If screws came with your TV, they are almost always in the holes on the back of your TV.) If you...
  • Page 9 NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 9 Thursday, October 24, 2019 10:34 AM Universal Swivel TV Base Step 3 – Option 1: Attach the horizontal brackets to a flat-back TV You’ll need Washers Screws (select 1 set) (select 1 set) 06 M4 × 12 mm (4) 07 M6 ×...
  • Page 10 NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 10 Thursday, October 24, 2019 10:34 AM NS-HTMS1 Step 3 – Option 2: Attach the horizontal brackets to an obstructed or irregularly-shaped TV back You’ll need Washers Spacers (select 1 set) 01 Horizontal bracket (2) 03 Spacer 02 Spacer...
  • Page 11 NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 11 Thursday, October 24, 2019 10:34 AM Universal Swivel TV Base Step 4 – Attach the vertical bracket You’ll need 15 Interface screw Phillips screwdriver 14 Vertical bracket (1) Center the vertical bracket (14) on the back of your TV. Secure the vertical bracket to the horizontal brackets (1) with four interface screws (15).
  • Page 12 NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 12 Thursday, October 24, 2019 10:34 AM NS-HTMS1 Step 5 – Attach the post to the base You’ll need 17 Base (1) Phillips screwdriver 18 Lock screw (2) 16 Post (1) Note: The base (17) is made of plastic with steel structuring underneath. It has rubber feet which prevent it from sliding.
  • Page 13 NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 13 Thursday, October 24, 2019 10:34 AM Universal Swivel TV Base Secure the post to the base with two lock screws (18). Make sure that the post is securely fastened before moving on to the next step. Do not over-tighten the screws.
  • Page 14 NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 14 Thursday, October 24, 2019 10:34 AM NS-HTMS1 Step 6 – Attach your TV to the post You’ll need Phillips screwdriver 18 Lock screw (2) HEAVY! You may need assistance with this step. Determine the height where you want to hang your TV.
  • Page 15 NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 15 Thursday, October 24, 2019 10:34 AM Universal Swivel TV Base Examples of the highest and lowest hanging positions: Highest position Lowest position 11 in. (27.8 cm) 2.8 in. (7.2 cm) Carefully hang the TV/bracket assembly on the post. www.insigniaproducts.com...
  • Page 16 NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 16 Thursday, October 24, 2019 10:34 AM NS-HTMS1 Secure the TV/bracket assembly to the post with two lock screws (18). Make sure that the assembly is securely fastened before moving on to the next step. Do not over-tighten the screws.
  • Page 17 NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 17 Thursday, October 24, 2019 10:34 AM Universal Swivel TV Base Step 7 – Manage cables • Route your cables through the front or top opening in the post (16), then out the back. www.insigniaproducts.com...
  • Page 18 NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 18 Thursday, October 24, 2019 10:34 AM NS-HTMS1 Step 8 – Adjust the TV viewing angle • Hold the sides of the TV and swivel the TV left or right. Top of your stand 35° 35° www.insigniaproducts.com...
  • Page 19 NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 19 Thursday, October 24, 2019 10:34 AM Universal Swivel TV Base If you ever need to remove your TV from the post You’ll need Phillips screwdriver HEAVY! You may need assistance with this step. Remove the two lock screws (15) that secure the TV/bracket assembly to the post.
  • Page 20 NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 20 Thursday, October 24, 2019 10:34 AM NS-HTMS1 Carefully lift the assembly up and off the post. www.insigniaproducts.com...

  • Page 21: Specifications

    NS-HTMS1_19-0634_ASSEMBLY_MAN_V1_EN.fm Page 21 Thursday, October 24, 2019 10:34 AM Universal Swivel TV Base Specifications Dimensions (W × H × D) 25.4 × 28.6 × 13.2 in. (64.4 × 72.6 × 33.5 cm) Stand weight 17.9 lbs (8.1 kg) (including packaging) Max.

  • Page 22: One-Year Limited Warranty

    Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts.
  • Page 23 Universal Swivel TV Base • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults” • Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.) •...
  • Page 24 For product inquiries, please contact us with the information below: 1-877-467-4289 www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2019 Best Buy. All rights reserved.
