5) Replacement Parts and Service
178-01597-0128: BT128-0 Rechargeable Battery
178-01597-0126: BT126-0 Rechargeable Battery
178-00203: Parallel Cable
178-01681-0010: DC Power Adapter assembly
178-00202: AC Power Adapter assembly
195-50363-0128: Charger assembly for BT128-0
195-50362-0126: Charger assembly for BT126-0
195-50363-0010: Battery Charger w/AC Power Adapter for
BT128-0 battery
195-50363-0020: Battery Charger w/DC Power Adapter for
BT128-0 battery
195-50363-0030: Battery Charger w/parallel cable for BT128-0
battery
195-50362-0010: Battery Charger w/AC Power Adapter for
BT126-0 battery
195-50362-0020: Battery Charger w/DC Power Adapter for
BT126-0 battery
195-50362-0030: Battery Charger w/parallel cable for BT126-0
battery
If there are any problems or questions in regards to the operation
of this unit, please contact one of our representatives:
U.S. Service Information
1.866.MAG.SERV
(1.866.624.7378)
Magnetek Material Handling
N49 W13650 Campbell Drive
Menomonee Falls, WI 53051
Phone: 800.288.8178
Fax (Service):
262.783.3508
Battery Charger Instruction Manual – October 2010
Canada Service Information:
4090B Sladeview Crescent
Mississauga, Ontario
L5L 5Y5 Canada
Phone: 1.800.792.7253
Fax: 1.905.828.5707
12

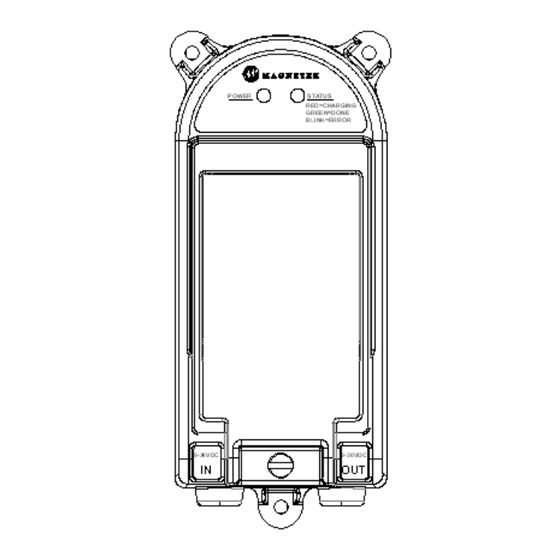

Magnetek Battery
Charger
NiMH Battery Charger (Fast
Charge)
Instruction Manual
For use in:
195-50363-0010, 195-50363-0020, 195-50363-0030
195-50362-0010, 195-50362-0020, 195-50362-0030
Part Number: 195-50479-R1
©Copyright 2010 Magnetek
Battery Charger Instruction Manual – October 2010
October 2010
1
Advertisement
Related Manuals for Magnetek NiMH Battery Charger (Fast Charge)
Summary of Contents for Magnetek NiMH Battery Charger (Fast Charge)
-
Page 1: Instruction Manual
U.S. Service Information Canada Service Information: 1.866.MAG.SERV (1.866.624.7378) 4090B Sladeview Crescent Mississauga, Ontario Magnetek Material Handling L5L 5Y5 Canada N49 W13650 Campbell Drive Menomonee Falls, WI 53051 Phone: 1.800.792.7253 Fax: 1.905.828.5707 Phone: 800.288.8178 Fax (Service): 262.783.3508... -
Page 2: Troubleshooting
In this case, the charger will stop charging after a full charge pre-programmed time and indicate a fault. If this in allotted happens repeatedly contact, Magnetek Inc. as the time charger may require service. Charger too Re-locate charger to an environment that does not ©2010 MAGNETEK MATERIAL HANDLING... -
Page 3: Battery Chargers
3) MULTIPLE CHARGERS (Max. 2) You can only use up to two chargers with one power supply. Using more will damage the charger and/or power BATTERY CHARGERS: supply. This will also void the warranty. Plug charger power supply adapter into 120 VAC 60 Hz power source. - Page 4 Figure 3 Once in place, the Status LED will turn RED, indicating the battery is charging. When the battery is fully charged, the Status LED will turn GREEN. The battery will be charged within 3 hours. If an error has occurred with the charging process, the Status LED will flash RED.
-
Page 5: Warnings And Cautions
1) Warnings and Cautions Recharging a battery only after it is fully discharged will prolong its life. Avoid recharging battery when fully or near fully WARNING, CAUTION, and Note statements are used throughout charged. this manual to emphasize important and critical information. You must read these statements to help ensure safety and to prevent 2) Single Charger Instructions product damage. - Page 6 Celsius) Always dispose of used batteries in accordance with appropriate regulations. Use only with approved Magnetek products. Not for use with other manufacturer’s products. Do not attempt to manually discharge battery packs. General Suggestions: For the longest battery life, rechargeable batteries should be recharged at least every 6 months, even when in storage.
