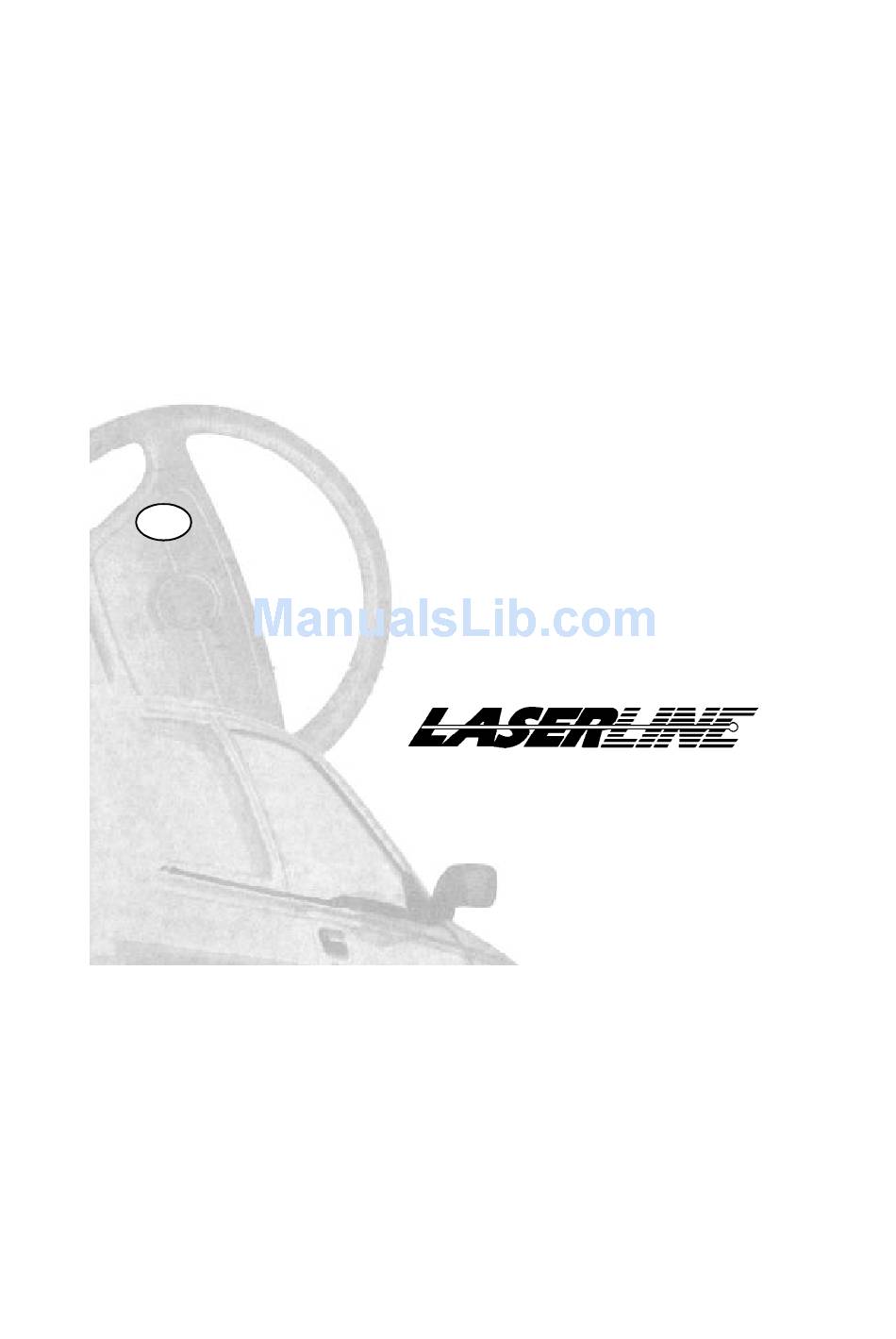

Page 1: User Guide
670T INSURANCE APPROVED CAN BUS ALARM (ORIGINAL REMOTE CONTROL UPGRADE) USER GUIDE ® ALARM SYSTEMS ISUT670T NEW.p65 19/12/2011, 16.06... -
Page 2: Table Of Contents
ENGLISH 1 - INDEX 1) Index ............................2 2) Introduction ..........................3 3) 670T System Components ....................... 4 4) Alarm system Operation: ......................5 4.1 - Alarm System Arming/Disarming ..................5 4.2 - Alarm Condition ....................... 5 4.3 - Alarm Cycle Limitation ..................... 6 4.4 - Alarm Trigger History ....................... -
Page 3: Introduction
Issue 2 Criteria] product, as evaluated by Thatcham (MIRRC). Note: Category 2 à 1 (L2 à 1) product – 670T alarm system is only to be fitted in conjunction with a Category 2 (L2) immobiliser to obtain Category 1 status for the vehicle security. -
Page 4: 670T System Components
ENGLISH and when doors are locked or unlocked. Using this data means there are less connections from the alarm to the vehicle. 3 - 670T SYSTEM COMPONENTS Your alarm system consists of the following items: Alarm unit Electronic key Receptacle... -
Page 5: Alarm System Operation
ENGLISH 4 - ALARM SYSTEM OPERATION 4.1 - ALARM SYSTEM ARMING/DISARMIG To arm the alarm, press the lock or deadlock** button on the vehicles original remote control; the alarm may give two acoustic tones* and the direction indicator lights may flash a number of times** to indicate that the system is now armed. -
Page 6: Alarm Cycle Limitation
ENGLISH 4.3 - ALARM CYCLE LIMITATION The system will automatically exclude the sensor, which has generated 8 alarm cycles in one armed period. All the other sensors will continue to protect the vehicle. The maximum number of alarm cycles for every sensor is 8, except for power supply interruption to siren (10 alarm cycles). -
Page 7: Problem Solving
ENGLISH 5 - PROBLEM SOLVING If you find you have to get closer to the vehicle to unlock/disarm the alarm, this is normally a indication that the original remote control batteries may need replacing. Refer to vehicle’s user guide for replacing the remote batteries. If your alarm sounds for no apparent reason, please refer to the “ALARM TRIGGER HISTORY”... -
Page 8: Ultrasonic Exclusions
ENGLISH 7 - ULTRASONIC EXCLUSION Ultrasonic exclusion (e.g. if you want to use the alarm whilst keeping vehicle windows open); To disable the ultrasonic sensors for one arming cycle: Œ With the alarm system disarmed and the ignition in the off position; •... -
Page 9: Arming/Disarm By The Electronic Key
ENGLISH To exit Garage Mode and be able to arm/disarm the alarm with the vehicles remote control: Œ insert an electronic key into the receptacle socket, LED in receptacle will illuminate (pre-set time); • whilst the LED is illuminated (pre-set time) insert an electronic key for a second time into the receptacle socket (alarm will disarm). -
Page 10: Programming Of New Electronic Key
Electronic keys not programmed during the last self-learning session will be automati- Ø cally cancelled from the alarm memory. 11 - 670T TEST APPROVAL NUMBER 670T - MIRRC Reference Number: Category 2 - 1 TU2-1426/1207 670T - MIRRC Reference Number: Category L2 - 1 TUL1-151/1207 * Optional. ** Vehicle dependent. -
Page 11: Homologations
02 0035 XXXXXXXX 12V 13 - TECHNICAL DATA 670T POWER SUPPLY .................... 9-15V negative ground CURRENT ABSORBED WITH ALARM ARMED (with ultrasonic) ..........<10 mA PRE-ALARM TIME ........................40 sec. DELAY ENTRY TIME (armed by passive arming or electronic key) ........10 sec. -
Page 12: Lifetime Warranty
ENGLISH 14 - LIFETIME WARRANTY Product warranty covers units to be free from defects in manufacture for the lifetime ownership of the original vehicle, in accordance with the terms and conditions of this warranty document. Any product, which is deemed to be defective, will be replaced or repaired. Accessories including electronic keys and additional modules are guaranteed for a period of 12 months from date of installation. - Page 13 NOTE Manufacturer declines any responsibility for damage of the alarm/immobiliser and the vehicle electrical system due to WRONG INSTALLATION OR TAMPERING. LASERLINE SpA RESERVES THE RIGHT TO EFFECT CHANGES OF THE PRODUCT WITHOUT FURTHER NOTICE. pag. 13 ISUT670T NEW.p65...
-
Page 14: Service Inspection
ENGLISH 15 - SERVICE INSPECTION 2 YRS 3 YRS 1 YRS 4 YRS Installer’s Stamp Installer’s Stamp Installer’s Stamp Installer’s Stamp Cert. No. Cert. No. Cert. No. Cert. No. Reg. No. Reg. No. Reg. No. Reg. No. Date. Date. Date. Date. - Page 15 ENGLISH 16 - CUSTOMER LIFETIME WARRANTY REGISTRATION Alarm/Immobiliser Model No. ………...…………….....Make………………………....……. Accessories Fitted …………………………......Model………………….....…… Date of Installation……………………………….....Reg.No. ……….…..………..……. Customer Name………………………………......Year of Manufacture…………....Address………………………………......………………………………....……………................................... Postcode ………………………......…...Tel No....……….....…………… Installer Name …………………..……………..Account No. …....……………..…….. Address…………………………………………………………………………………..………………... Postcode ……………………………………………..Tel No. ……....…....………… I have read and understood the terms and conditions of the Customer Lifetime Warranty. Customer Signature...............
- Page 16 ENGLISH Return to: Laserline S.p.A. Limited 73, Manchester Road Woolston Warrington Cheshire WA1 4AE pag. 16 ISUT670T NEW.p65 19/12/2011, 16.06...
- Page 17 ENGLISH NOTES pag. 17 ISUT670T NEW.p65 19/12/2011, 16.06...
- Page 18 ENGLISH NOTES pag. 18 ISUT670T NEW.p65 19/12/2011, 16.06...
- Page 19 ENGLISH NOTES pag. 19 ISUT670T NEW.p65 19/12/2011, 16.06...
- Page 20 Dealer Stamp Our commissioned Sales and Support Agents in the UK are Laserline S.p.A Limited 73, Manchester - Road Woolston - Warrington - Cheshire WA1 4AE ISUT670T NEW.p65 19/12/2011, 16.06...
