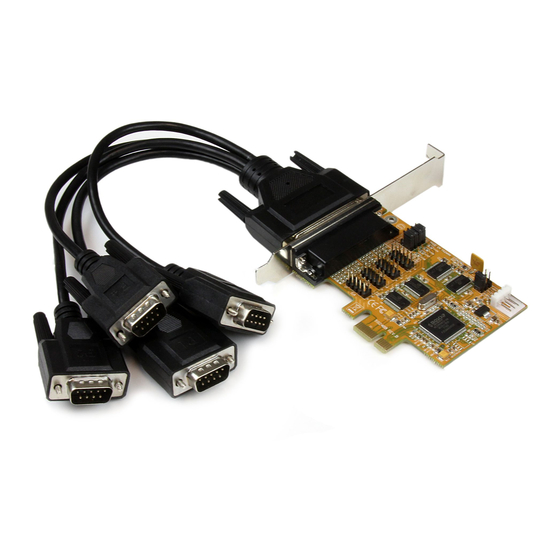

4 Port PCI Express RS232 Serial Card with
Power Output and 15kV ESD Protection
PEX4S553S
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 06/03/2013
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com PEX4S553S
Summary of Contents for StarTech.com PEX4S553S
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 06/03/2013...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Overview ..................2 Jumper Settings ............................2 IDC Header Pinout ............................ 4 Installation ....................4 Hardware Installation ..........................4 Driver Installation ............................5 Verifying Installation ..........................6 Specifications ..................7 Technical Support ..................8 Warranty Information ................8 Instruction Manual... -
Page 4: Introduction
Introduction The PEX4S553S 4-Port PCI Express Serial Card lets you add four ESD-Protected (15kV) RS232 ports, with 5V or 12V selectable power output through a PCI Express slot. Packaging Contents • 1 x Serial Card • 1 x Breakout Cable •... -
Page 5: Product Overview
Product Overview Power over Serial Enable/Disable Aux Power jumpers (per-port) Source Selector SP4 Aux Power Connector S1~S4 Internal header Connector DB44 External Connector 4-port DB44 to DB9MX4 Breakout Cable Jumper Settings Power over serial Enable/Disable (per-port): Each port can be individually configured to provide power over Pin 9, or not. - Page 6 Aux power source selection: X5V: DC5V, from SP4, an SP4 X12V power connection is required I12V X12V: DC12V, from SP4, an SP4 X12V power connection is required I12V I12V (factory default): DC12V, from X12V PCI Express slot, I12V RS232 Pinout Pin 1 Pin 2 Pin 3...
-
Page 7: Idc Header Pinout
WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 8: Driver Installation
5. (Optional) Connect an available SP4 power connection from your system power supply to the card if additional power is required. 6. Place the cover back onto the computer case. 7. Connect the 4 Port breakout cable to the large connector on the card. 8. -
Page 9: Verifying Installation
Verifying Installation 1. Open the Device Manager by right-clicking on Computer, and then select Manage. In the new Computer Management window, select Device Manager from the left window panel (For Windows 8, open the Control Panel and select Device Manager). 2. -
Page 10: Specifications
Specifications Host Interface PCI Express Form Factor Standard Profile (Low Profile bracket incl.) Chipset ID ASIX/MOschip - MCS9904 External Connectors 4x DB-9 (9 pin; D-Sub) Supported Protocols RS-232 Maximum Baud Rate 921.6 Kbps ESD Protection 15kV Data Bits 5, 6, 7, 8, 9 Parity Even, Odd, Mark, Space, None Stop Bits... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
