SERVICE MANUAL
The electrical adjustments are done
automatically in this set.
System Compact disc digital audio system
Disc Compact disc
Laser Semiconductor laser (λ=780 nm)
Spindle speed 200 r.p.m. to 500 r.p.m. (CLV)
Error correction Sony Super Strategy Cross Interleave Read
Solomon Code
Number of channels 2
D-A conversion 1-bit
Frequency response 20 to 20,000 Hz
Harmonic distortion 0.02% (1 kHz)
Dynamic range 85 dB
Signal to noise ratio 85 dB
Channel separation 70 dB
Wow and flutter Below measurable limit
Outputs Ford Signal Connector
MICROFILM
XR3F-19B160
SPECIFICATIONS
+1.0
dB
–1.5
Model Name Using Similar Mechanism
CD Drive Mechanism Type
Optical Pick-Up Name
Disc
Track pitch 1.6 µm
Sampling frequency 44.1 kHz
Quantization 16 bit linear quantizing/channel
Modulation system EFM
Transfer rate 2.03 Mbit/sec. (before modulation)
General
Power requirements 14.4 V dc car battery (negative ground)
Current drain 1 A (playback)
2 A (during disc loading or eject)
Operating temperature –20˚C to +60˚C (–4˚F to +120˚F)
Approx. 188 × 59 × 160.6 mm (w/h/d)
Dimensions
(7-1/2 × 2-7/20 × 6-2/5 in.)
including projecting parts and controls
Weight Approx. 1.3 kg (3 lb), net

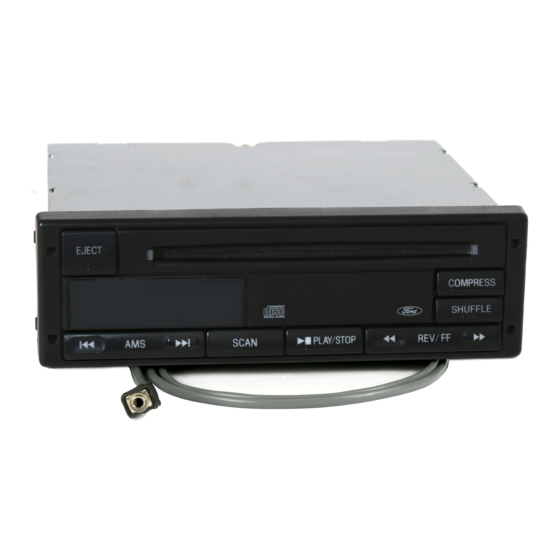

COMPACT DISC PLAYER
US Model
Version: –AA
F8ZF-19B160
MG-205F-132
KSS-313B/Z-N
