Page 1: Instruction Manual

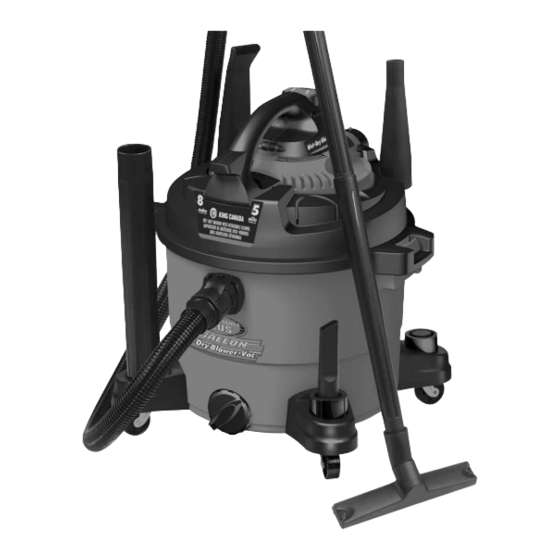

WET•DRY VACUUM WITH DETACHABLE BLOWER W W e e t• t•Dr Dry Blo y Blow w er• er•V V ac ac MODEL: 8531LP-B INSTRUCTION MANUAL COPYRIGHT © 2009 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC. -
Page 2: Warranty Information
Warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence or accidents, repairs or alterations and lack of maintenance. KING CANADA shall in no event be liable for death, injuries to persons or property or for incidental, special or consequential damages arising from the use of our products. -
Page 3: Getting To Know Your Vacuum
POWER SUPPLY- WARNING: YOUR VACUUM MUST BE SPECIFICATIONS CONNECTED TO A 110V, MINIMUM 15-AMP. BRANCH CIRCUIT. FAILURE TO CONNECT IN THIS WAY CAN RESULT IN INJURY Model ................8531LP-B FROM SHOCK OR FIRE. Voltage................110V Horsepower ............5 HP (peak) WARNING: The warnings, cautions, and instructions discussed in this Amperage ................10A... -
Page 4: Caster Wheel Assembly
UNPACKING & ASSEMBLING YOUR VACUUM ATTENTION! The vacuum accessories are packed inside the vacuum tank. UNPACKING YOUR VACUUM Remove the entire contents of the carton, please note that most of the accessories are packed inside the vacuum tank. To access these accessories, push the cover latches (step 1) Fig.3 inward, lift the tank cover/motor assembly (step 2) and then remove the accessories inside the tank. -
Page 5: Operation
OPERATION DRY VACUUMING OPERATIONAL STEPS Before vacuuming dry materials, it is important that you have read and understood the safety rules in this manual. 1) Unplug the power cord from the power source. 2) Install a clean and dry foam filter. If the vacuuming operation is extremely dusty, install the reusable filter over the foam filter or only install an optional cartridge filter instead of both other filters. -
Page 6: Using The Detachable Blower
OPERATION WET VACUUMING OPERATIONAL STEPS AUTOMATIC SUCTION SHUT-OFF AND EMPTYING LIQUID FROM TANK This section relates to wet vacuuming operations. This vacuum is fitted with an automatic suction shut-off float cup (A) Fig.13 which floats up when the liquid level increases in the tank, it then stops the suction action when the tank has reached its maximum capacity of liquid. - Page 7 Inlet is block or tank is full- Unblock inlet or empty tank through tank drain. PARTS DIAGRAM & PARTS LISTS FIGURE 18 Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.
