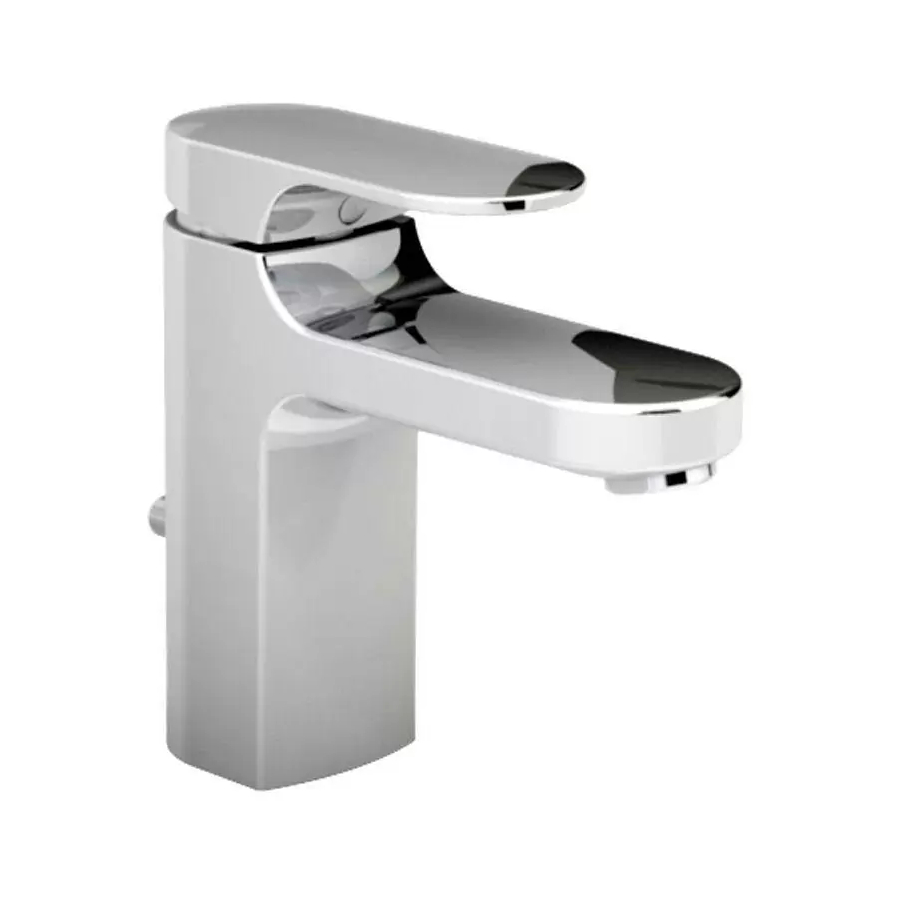

Monoblock lavatory faucet with speed connect drain

Advertisement

Quick Links

MOMENTS
Monoblock Lavatory Faucet with
Speed Connect™ Drain
Congratulations on purchasing your American Standard
faucet with Speed Connect drain, a feature found only on
American Standard faucets.
Speed Connect Drain*
• Fewer parts, installs in less time
• Never needs adjustment
• Guaranteed to seal properly the first time, every time.
*Your new American Standard faucet is designed to work only with the Speed Connect drain.
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
Recommended tools
1

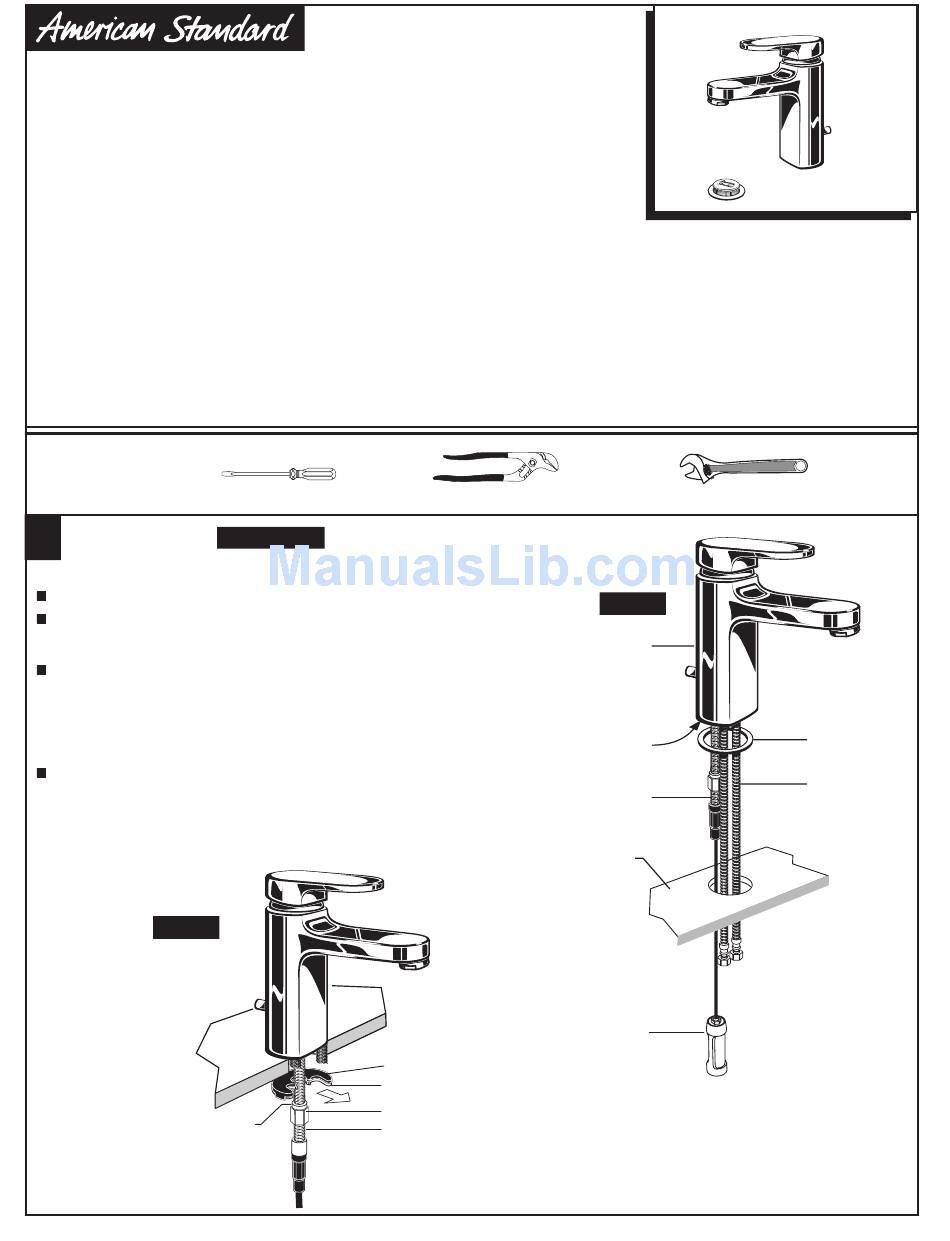

INSTALL FAUCET

Seat SEAL (1) into under side of FAUCET BASE (2).
Feed FAUCET SUPPLIES (3), MOUNTING STUD (4) and DRAIN
CABLE ASSEMBLY (8) through the mounting hole of lavatory or
mounting surface. Fig. A.
From below, push GASKET (7) and RETAINING WASHER (5) onto
MOUNTING STUD (4). Secure Faucet with MOUNTING NUT (6),
pulling faucet to front of sink, so SUPPLIES (3) rests against
mounting hole. Before final tightening, make sure collar on
MOUNTING NUT (6) is seated into RETAINING WASHER (5).
Fig. B.
Adjust Faucet so that it is centered. Tighten MOUNTING NUT (6)
to complete faucet mounting.
Fig. B.
COLLAR ON
MOUNTING NUT
Screwdriver
Turn off hot and cold water
CAUTION
supplies before beginning.
7
5
6
4
Installation
Instructions
2506.101
Channel Locks
Fig. A.
GROOVE
(FAUCET
BASE)
MOUNTING SURFACE
1
Certified to comply with ANSI A112.18.1
M 9 6 8 9 4 1 R e v . 1 . 2
Adjustable Wrench
2
1
3
4
8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOMENTS 2506.101 and is the answer not in the manual?

Questions and answers

Summary of Contents for American Standard MOMENTS 2506.101

  • Page 1 • Never needs adjustment • Guaranteed to seal properly the first time, every time. *Your new American Standard faucet is designed to work only with the Speed Connect drain. To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
  • Page 2 POP-UP DRAIN Fig. A. Fig. B. Remove CLEAR PLASTIC COVER (1). Remove CARDBOARD SPACER (2) from under DRAIN DRAIN POP-UP (3). BODY Tighten TAILPIECE (4) on DRAIN BODY before Fig. B. installing DRAIN BODY. REMOVE FLANGE Fig. A. Fig. B. Thread FLANGE (1) counter-clockwise and remove FLANGE (1) and FOAM GASKET (2) from drain Fig.
  • Page 3 ATTACH CABLE CONNECTOR Fig. A. Fig. B. Thread CABLE CONNECTOR (1) clockwise onto DRAIN BODY CONNECTION (2) and hand tighten. Fig. A. Your new POP-UP DRAIN installation is now complete. Fig. B. Note: Tailpeice on pop-up drain is 1-1/4” O.D. Fig.
  • Page 4 TEST INSTALLED FITTING With HANDLE (1) in OFF position, turn on WATER SUPPLIES (2) and check all connections for leaks. COLD Remove AERATOR (3). Operate HANDLE (1) to flush water lines thoroughly. Replace AERATOR (3). CHECK DRAIN CONNECTIONS Operate POP-UP KNOB (4) and fill lavatory with water. Check that DRAIN STOPPER (5) makes a good seal and retains water in SINK.
  • Page 5: Troubleshooting Guide

    Speed Connect™ Drain Troubleshooting Guide If sink does not hold water even though Stopper is in the “down” position: • Follow CABLE ADJUSTMENT PROCEDURE. If Stopper does not raise up fully or sink drains too slowly: • Follow CABLE ADJUSTMENT PROCEDURE. If you need to remove the Stopper: •...
  • Page 6 To install the stopper in “Unlocked” mode, insert the Stopper into the Drain so that the Plastic Loop is facing toward the front of the Sink and the American Standard logo is facing rear. Rotate Stopper slightly if necessary so that the Stopper slides all the way down.
  • Page 7 MOMENTS Momoblock Lavatory Faucet with Pop-up Drain M962558-YYY0A HANDLE MODEL NUMBERS M962559-0070A 2506.101 BUTTON AND A906099-0070A SCREW KIT HANDLE ADAPTER 2.5mm HEX KEY M962561-YYY0A CARTRIDGE COVER M923320-YYY0A CARTRIDGE NUT A912740-0070A O-RING 951970-0070A CARTRIDGE M962544-YYY0A STOPPER ASSEMBLY M961619-0070A MANIFOLD M952430-0070A CABLE ASSEMBLY M952425-YYY0A DRAIN ASSEMBLY M962457-YYY0A...
