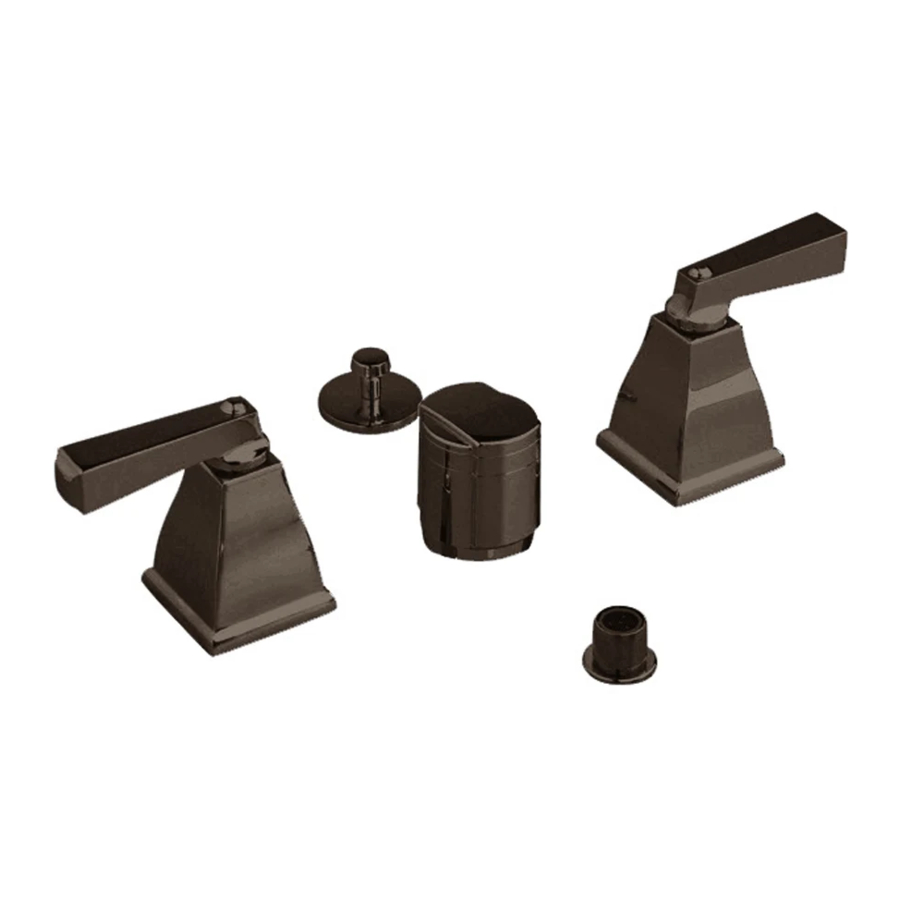

Bidet fitting with everclean finish

Advertisement

Quick Links

TOWN SQUARE
BIDET FITTING
Congratulations on purchasing your American Standard faucet
with EverClean finish found only on American Standard faucets.
EverClean Finish
• One wipe effortlessly removes spots
• Eliminates the need for cleaners and scrubbing
• Permanent surface protectant remains beautiful
for the life of the faucet
• EverClean™ available on: Polished Chrome, Satin Nickel,
Stainless Steel, Polished Brass (or any combination of these finishes)
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
Required Tools
Flat Blade Screwdriver
Phillips Screwdriver
*Hex key
*Wrench
*Supplied with Fitting
BIDET FAUCET INSTALLATION
Turn off hot and cold water
CAUTION
supplies before beginning.
Assemble MOUNTING NUTS with RUBBER WASHERS (1)
onto the VALVE BODIES (2) and insert VALVE BODIES (2)
through outside holes, from underside of the BIDET
LEDGE. Drop the RUBBER RING (3) over the VALVE
BODIES (2) and screw on the ESCUTCHEON (4) until it
locks against the internal stop.
Tighten the MOUNTING NUT (1) to secure the
VALVE BODY (2).
Remove ESCUTCHEON (5), FRICTION RING (10) and
UPPER GASKET (7) from TRANSFER VALVE (8) and
insert into the center forward hole of BIDET.
Replace UPPER GASKET (7) and FRICTION RING (10).
Position the side threaded outlet rearward and secure by
tightening MOUNTING NUT (9). Thread ESCUTCHEON (5)
onto TRANSFER VALVE (8) until it seats against the
BIDET LEDGE.
5
4
3
BIDET
LEDGE
HOT
1
8
with
EverClean™ Finish
Adjustable Wrench
Channel Locks
10
2
COLD
7
9
Installation
Instructions
2555.400
Roughing-in Dimensions
BIDET OUTLINE
IS SYMBOLIC
DOUCHE
SPRAY
3-7/8
(C)
1-3/16 DIA.
1-1/4 MAX.
FINISHED
FLOOR
DRAIN INSTALLATION
Thread LOCKNUT (6), WASHER (7) and
GASKET (8) onto DRAIN BODY (5).
Apply a bead of PUTTY to underside
of FLANGE (9).
Feed DRAIN BODY (5) up through BIDET
and thread FLANGE (9) fully onto
BODY (5).
Tighten LOCKNUT (6) firmly, keeping the
PIVOT ROD (3) pointed towards the back
of the BIDET.
Place STOPPER into drain and assemble
O-RING (1), WASHER (2), PIVOT ROD (3)
and NUT (4) to DRAIN BODY (5). Concave
side of cup WASHER (2) is toward ball.
Push DRAIN ESCUTCHEON (10) onto
TAILPIECE (11).
Certified to comply with ASME A112.18.1M
U.S. Patent No. 5,819,789
FINISHED
WALL
TRANSFER VALVE
(FOR FLUSHING
RIM OR SPRAY)
7/8 DIA.
ADJ. 1-1/4
2-1/8
DIA.
TO 2-1/4
1-3/8
DIA.
5-1/2
1-1/4 O.D. TAILPIECE
8 TO 12
DIVERTER
ASSEMBLY
(H)
2-1/4
DIA.
4-1/4
FOR GROUND JOINT
CONNECTION OR 1/2 "
O.D. SLIP (INLETS)
REAR VIEW WITH
WALL REMOVED
8
7
6
STOPPER
9
PUTTY
BIDET
CLIP
4
2
3
1
5
11
10
