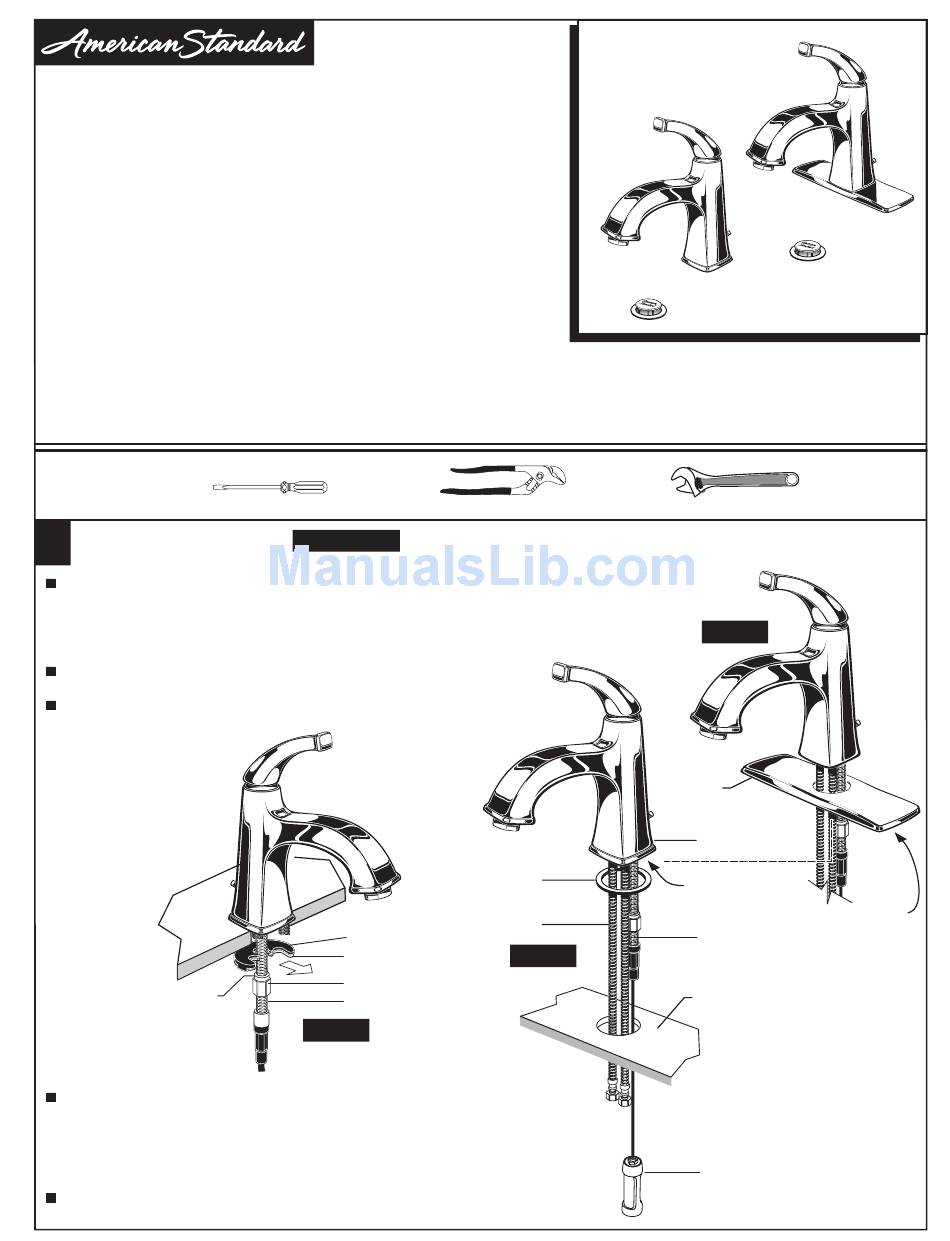

TOWNSQUARE™
MONOBLOCK LAVATORY
FAUCET with Speed Connect™ Drain
Congratulations on purchasing your American Standard
faucet with Speed Connect drain, a feature found only
on American Standard faucets.
Speed Connect Drain*
• Fewer parts, installs in less time
• Never needs adjustment
• Guaranteed to seal properly the first time, every time.
*Your new American Standard faucet is designed to work only with the Speed Connect drain.
To ensure that your installation proceeds smoothly-please read these instructions carefully
before you begin.
Recommended tools
1
INSTALL FAUCET
Installation with ESCUTCHEON PLATE:
to underside of ESCUTCHEON PLATE (9) if mounting surface is uneven. Place ESCUTCHEON
PLATE (9) onto sink or mounting surface. Feed FAUCET SUPPLIES (3), MOUNTING
STUD (4) and DRAIN CABLE ASSEMBLY (8) through ESCUTCHEON PLATE and PUTTY
PLATE (9) and mounting hole of lavatory or mounting surface. Fig. A.
Installation less ESCUTCHEON PLATE:
Seat SEAL (1) into under side of FAUCET BASE (2).
Feed FAUCET SUPPLIES (3), MOUNTING STUD (4) and DRAIN
CABLE ASSEMBLY (8) through the mounting hole of lavatory or
mounting surface. Fig. B.
COLLAR ON
MOUNTING NUT
From below, push GASKET (7) and RETAINING WASHER (5) onto
MOUNTING STUD (4). Secure Faucet with MOUNTING NUT (6),
pulling faucet to front of sink, so SUPPLIES (3) rests against
mounting hole. Before final tightening, make sure collar on
MOUNTING NUT (6) is seated into RETAINING WASHER (5).
Fig. C .
Adjust Faucet so that it is centered. Tighten MOUNTING NUT (6)
to complete faucet mounting.
Installation
Instructions
2555.101
Screwdriver
Turn off hot and cold water
CAUTION
supplies before beginning.
Apply a light bead of plumbers putty
7
5
6
4
Fig. C.
Series
Channel Locks
1
3
Fig. B.
1
Certified to comply with ANSI A112.18.1
M965074 REV.1.4
Adjustable Wrench
Fig. A.
9
2
GROOVE
(FAUCET
BASE)
PUTTY
IF REQUIRED
4
MOUNTING SURFACE
8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TOWNSQUARE 2555.101 Series and is the answer not in the manual?

Questions and answers

Related Manuals for American Standard TOWNSQUARE 2555.101 Series

Summary of Contents for American Standard TOWNSQUARE 2555.101 Series

  • Page 1 Certified to comply with ANSI A112.18.1 • Guaranteed to seal properly the first time, every time. *Your new American Standard faucet is designed to work only with the Speed Connect drain. To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
  • Page 2 POP-UP DRAIN Fig. A. Fig. B. Remove CLEAR PLASTIC COVER (1). Remove CARDBOARD SPACER (2) from under DRAIN DRAIN POP-UP (3). BODY Tighten TAILPIECE (4) on DRAIN BODY before Fig. B. installing DRAIN BODY. REMOVE FLANGE Fig. A. Fig. B. Thread FLANGE (1) counter-clockwise and remove FLANGE (1) and FOAM GASKET (2) from drain Fig.
  • Page 3 ATTACH CABLE CONNECTOR Fig. A. Fig. B. Thread CABLE CONNECTOR (1) clockwise onto DRAIN BODY CONNECTION (2) and hand tighten. Fig. A. Your new POP-UP DRAIN installation is now complete. Fig. B. Note: Tailpeice on pop-up drain is 1-1/4” O.D. Fig.

  • Page 4: Care Instructions

    TEST INSTALLED FITTING COLD With HANDLE (1) in OFF position, turn on WATER SUPPLIES (2) and check all connections for leaks. Remove AERATOR (3). Operate HANDLE (1) to flush water lines thoroughly. Replace AERATOR (3). CHECK DRAIN CONNECTIONS Operate POP-UP KNOB (4) and fill lavatory with water. Check that DRAIN STOPPER (5) makes a good seal and retains water in SINK.

  • Page 5: Cable Adjustment Procedure

    Speed Connect™ Drain Troubleshooting Guide If sink does not hold water even though Stopper is in the “down” position: • Follow CABLE ADJUSTMENT PROCEDURE. If Stopper does not raise up fully or sink drains too slowly: • Follow CABLE ADJUSTMENT PROCEDURE. If you need to remove the Stopper: •...
  • Page 6 To install the stopper in “Unlocked” mode, insert the Stopper into the Drain so that the Plastic Loop is facing toward the front of the Sink and the American Standard logo is facing rear. Rotate Stopper slightly if necessary so that the Stopper slides all the way down.

  • Page 7: Model Numbers

    TOWNSQUARE™ Monoblock Lavatory Faucet with Speed Connect™ Drain M962028-YYY0A HANDLE KIT MODEL NUMBERS 2555.101 Series M962094-YYYOA INDEX & SCREW KIT M907063-YYY0A CARTRIDGE COVER M904528-0070A CARTRIDGE NUT A918462-0070A SCREW M962682-0070A M962544-YYY0A M962420-YYY0A STOPPER POP-UP ROD ASSEMBLY M952425-YYY0A DRAIN ASSEMBLY M952430-0070A CABLE ASSEMBLY M962457-YYY0A FLANGE ASSEMBLY...
