Summary of Contents for ECOVACS DEEBOT D77

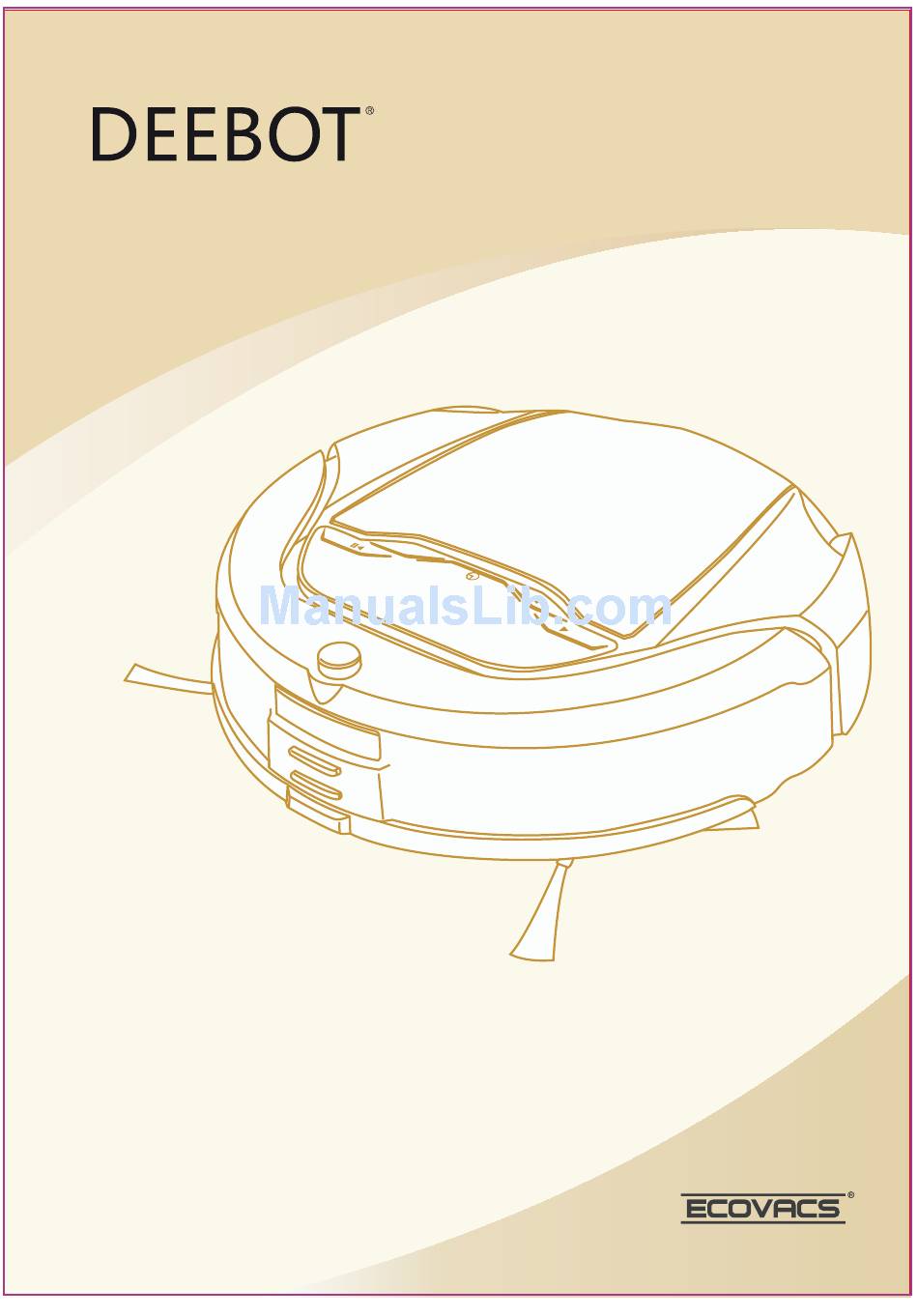

- Page 1 D77 Instruction Manual...
- Page 2 Congratulations on your purchase of the ECOVACS DEEBOT patented floor cleaning robot. We hope it brings you many years of satisfaction. We trust the purchase of your new product will help you to keep your home clean and provide you more quality time to enjoy other things.
-
Page 3: Table Of Contents
Contents 1. Safety Instructions 1.1 User Guidelines 1.2 Power Supply 1.3 Product Application Range 1.4 Notes before Cleaning 2. Package Contents and Technical Specifications 2.1 Contents 2.2 Technical Specifications 2.3 Product Diagram 2.4 LCD and Control Panel 2.5 Remote Control 3. -
Page 4: Safety Instructions
Take care not to damage the cord. Do not remove plug from the power supply by pulling on the cord. When not using the charging dock for a long period of time, please unplug it. ECOVACS Robotics, Inc. is an eco-friendly company. Please dispose of used batteries in accordance with your local regulations. -
Page 5: Product Application Range
1.3 Product Application Range DEEBOT is capable of cleaning all types of flooring, whether it’s wood, marble, tile, linoleum or short/medium pile carpet (up to 0.8 inch). It is not suitable for use on long-pile (longer than 0.8 inch) carpet. Inappropriate environments Extremely hot or cold Wet floors or floors with... -
Page 6: Package Contents And Technical Specifications
2. Package Contents and Technical Specifications 2.1 Contents Handheld Vacuum Cleaner Instruction Manual and Main Unit Charging Dock (4) Side Brushes /Dust Container Quick Start Guide Remote Control Main Brush Blow Mold Case Handheld Assembly Shoulder Strap with Batteries Cleaning Tool Hose Telescopic Wand Wall &... -
Page 7: Product Diagram
2.3 Product Diagram Drop Sensors Main Unit Control Buttons LCD and All-Round Wheel Side Brush Control Panel Screw Edge Sensor Main Brush Driving Wheels Infrared Squeegee Receiver Charging Dock ON/OFF Electrode Switch Top View Bottom View Buffer Plate Elevation of Robot Dust Box Handle Dust Inlet Dust Sensors... -
Page 8: Lcd And Control Panel
2.4 LCD and Control Panel Model D77 Mode 1. Battery Display 8. Pause Status 15. Cancel Scheduled Cleaning 2. Indicator - Dust Box Full 9. Spot Cleaning Mode 16. Daily Scheduled Cleaning 3. Indicator - Dust Box Missing 10. Return to Charger Mode 17. -
Page 9: Operating And Programming
3. Operating and Programming 3.1 Assemble and Charge Charging Dock Placement Place the Charging Dock on a level floor surface with the base perpendicular to the ground. Keep the immediate area in front of the charger (1.5 m or approx. 5 feet) clear of objects and reflective surfaces that would interfere with the infrared receiver. -
Page 10: Power On/Pause Mode/Power Off
3.2 Power ON/Pause Mode/Power OFF 1. Turn ON the power 2. Choose a cleaning mode by switch on the bottom pressing the Mode key on the of the robot. robot’s control panel or on the Remote Control. Press Start/Pause key start the robot. -
Page 11: Programming The Robot
Edge Cleaning Mode: This mode is good for cleaning the edges of a room. In Edge Cleaning Mode, the DEEBOT will detect a border - such as a wall - and it will continue along that path until it meets an obstacle at which point it will alter its direction. -
Page 12: Alarm Function
3.5 Alarm Function When the robot detects a problem, it will alert you so you can resolve the issue. An alarm will sound and the charging indicator will flash orange with an indicator illuminating the problem on the LCD. Icon Problem Solution Low battery... -
Page 13: Handheld Vacuum Cleaner
3.7 Hand-held Vacuum Cleaner The detachable hand-held vacuum cleaner with attachments gives you 3-dimensional cleaning ability. Assemble the Hand-held Vacuum Cleaner 1. Press the release button 2. Connect the Hand-held on the back of the Charging Assembly to the Hand-held Dock and remove the Vacuum Cleaner canister. -
Page 14: Maintenance
4. Maintenance 4.1 Cleaning the Robot and Charging Dock Cleaning the Robot Cleaning the Charging Dock Turn off the robot Pull out the power plug Use a cleaning cloth dampened with water or neutral detergent, wipe and dry the product. Do not let water penetrate inside the product. -
Page 15: Dust Box And Sponge Filter
4.3 Dust Box and Sponge Filter Cleaning the robot’s Dust Box and Sponge Filter. Turn the robot’s power Grasp the handle of the dust OFF and open the cover. box. Slowly and carefully remove the dust box to avoid spilling dust. Open the dust box cover, After cleaning and/or replacing empty it, and remove the... -
Page 16: Cleaning The Handheld Dust Container
4.5 Cleaning the Handheld Dust Container Under normal conditions, the dust container only needs to be cleaned once per week. If you use the Handheld Vacuum Cleaner separately, we suggest you clean the dust container after each use. Cleaning the Handheld Dust Container Press the release button on the back of the Charging Station and take the dust container out by grabbing the handle. -
Page 17: Common Malfunctions
5. Common Malfunctions Malfunction Possible Causes Solutions Power switch on the bottom of the Turn ON the power switch on the robot is not turned ON. bottom of the robot. Be sure that the robot has made a connection with the electrodes There robot has not made a connection on the charging dock. - Page 18 Malfunction Possible Causes Solutions Turn robot’s power OFF and try to rotate the main brush by hand. If the brush Remove the main brush and will not spin, the brush may be installed reinstall it correctly. incorrectly. Main brush is tangled with hair or When the robot is working, Clean main brush.
- Page 19 DEEBOT, even if ECOVACS Robotics, Inc. has been advised of the possibility of such damages. Because some states/jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply to you.
- Page 20 D77-000IM2013R00 ©2013 ECOVACS Robotics, Inc., All rights reserved. Patent Pending...
