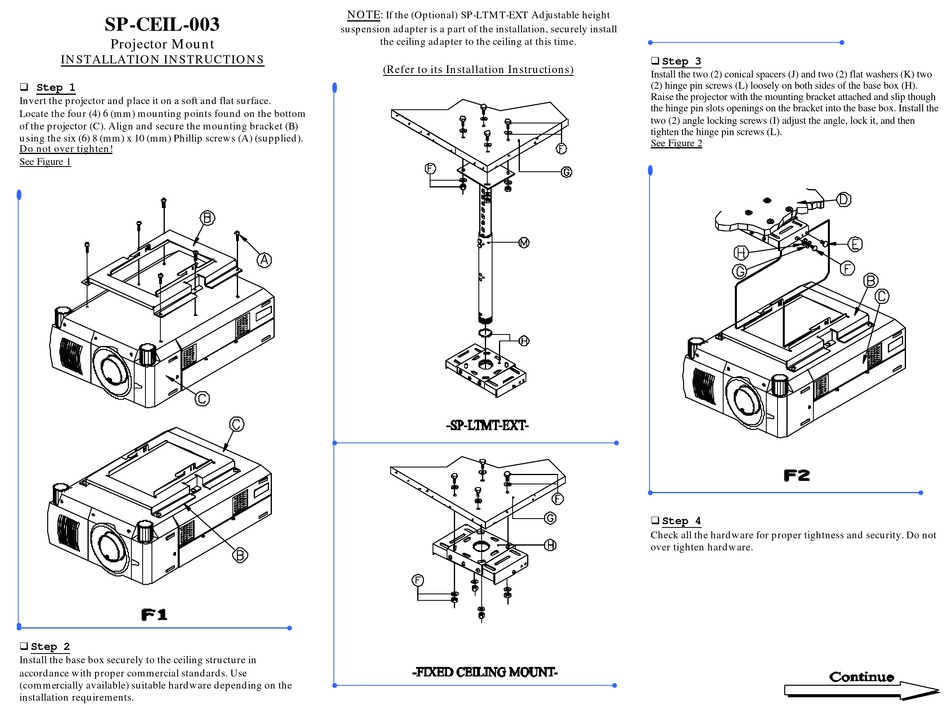

InFocus SP-CEIL-003 Installation Instructions

SP-CEIL-003
Projector Mount

INSTALLATION INSTRUCTIONS

q
Step 1
Invert the projector and place it on a soft and flat surface.
Locate the four (4) 6 (mm) mounting points found on the bottom
of the projector (C). Align and secure the mounting bracket (B)
using the six (6) 8 (mm) x 10 (mm) Phillip screws (A) (supplied).
Do not over tighten!
See Figure 1
q
Step 2
Install the base box securely to the ceiling structure in
accordance with proper commercial standards. Use
(commercially available) suitable hardware depending on the
installation requirements.
NOTE: If the (Optional) SP-LTMT-EXT Adjustable height
suspension adapter is a part of the installation, securely install
the ceiling adapter to the ceiling at this time.
(Refer to its Installation Instructions)
q
Step 3
Install the two (2) conical spacers (J) and two (2) flat washers (K) two
(2) hinge pin screws (L) loosely on both sides of the base box (H).
Raise the projector with the mounting bracket attached and slip though
the hinge pin slots openings on the bracket into the base box. Install the
two (2) angle locking screws (I) adjust the angle, lock it, and then
tighten the hinge pin screws (L).
See Figure 2
q
Step 4
Check all the hardware for proper tightness and security. Do not
over tighten hardware.
