Summary of Contents for Ayra ALO 030

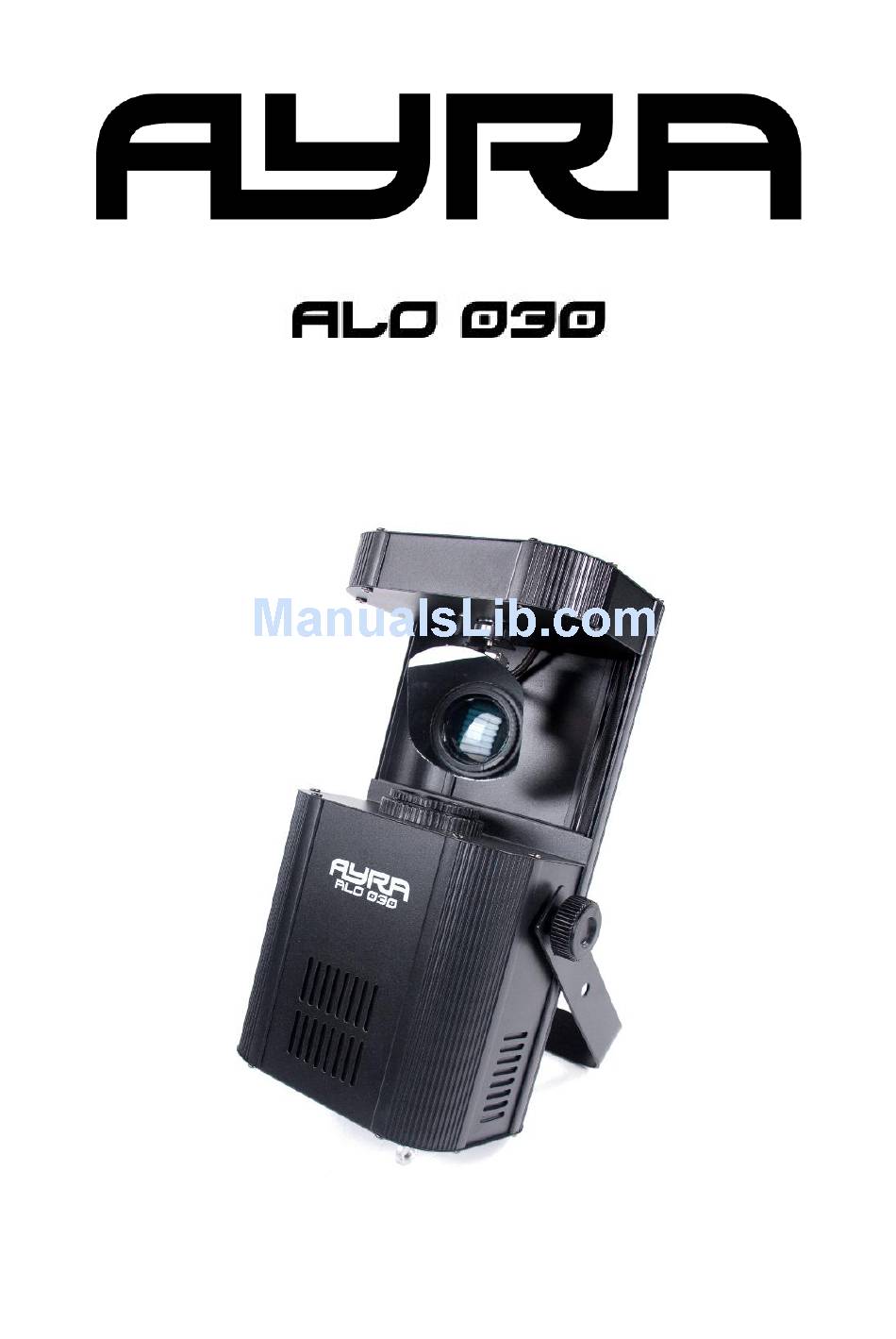

- Page 1 30 Watt LED scanner User manual...
-
Page 2: Safety Precautions
WARNING: Do not look directly into the beam from a short distance. This may cause serious injury to the eyes. Ayra is not responsible for any injuries caused by incorrect use of this device. Installation requirements: - Always check the power supply to which you want to connect the device. If the voltage requirements do not meet, do not connect the device as this may cause serious damage. -
Page 3: Box Contents
Box contents Box contents 1x ALO 030 scanner 1x power cable Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it. -
Page 4: Device Overview
Device overview 1. Moving mirror 2. Beam output with manual focus 3. Standing/hanging adjustable bracket 4. Ventilation slots 5. On/Off switch 6. IEC Power inlet with integrated fuse holder 7. Control panel display with MENU, UP and DOWN buttons 8. Sound sensitivity potentiometer 9. -
Page 5: Setting Up The Unit
Setting up the unit To activate the unit, connect the included power supply with the unit and a suitable 230V, 50 Hz power outlet. The unit will activate directly after it is plugged in to a wall outlet or other power source. Give the scanner time to calibrate the stepping motors, which are used to determine the position of the mirror. - Page 6 LED display mode: d 0 The LED display of the unit can be turned off during use, which makes your light-show more attractive, especially if the display is visible for your audience. When using the menu-buttons the display will be lit, but after several seconds inactivity the display will be turned off.
- Page 7 Channel 5: Shutter/Strobe: Start value End value Function Blackout Shutter open Strobe slow-fast (variable) Shutter open Shutter slow open -> fast close Shutter open Shutter fast open -> slow close Shutter open (235 = reset function when the value is selected for 3-5 seconds) Random strobe Shutter open...
-
Page 8: Installation And Maintenance
Installation and maintenance Mounting the bracket A pre-mounted hanging bracket is provided, with screwknobs at both sides of the scanner. This bracket can be used to position the scanner on a table or booth (without stressing the cables and connectors), but it is also possible to use this bracket for hanging purposes. Installing the scanner in a hanging position When you wish to hang the scanner against a wall, ceiling or beam, make sure to use proper installation tools and let a skilled technician install the scanner for you. - Page 9 This prevents possible electrical shocks The mirror and lens can be cleaned with a non-aggressive glass cleaning solution, but is not recommended. Ayra recommends to clean the mirror and lens with a fine brush, while removing dust and/or dirt with a vacuum cleaner.
-
Page 10: Technical Specifications
Technical specifications Compact scanner with LED light source LED module: 1x 30W LED chip 8 DMX-channels 3-pin XLR in- and output Music controlled mode with internal microphone Microphone sensitivity adjustable Maximum flash rate: 18 Hz Maximum ambient temperature: 45 degrees Celsius Maximum distance from flammable surfaces: 0.5m Power consumption: 50W max.
