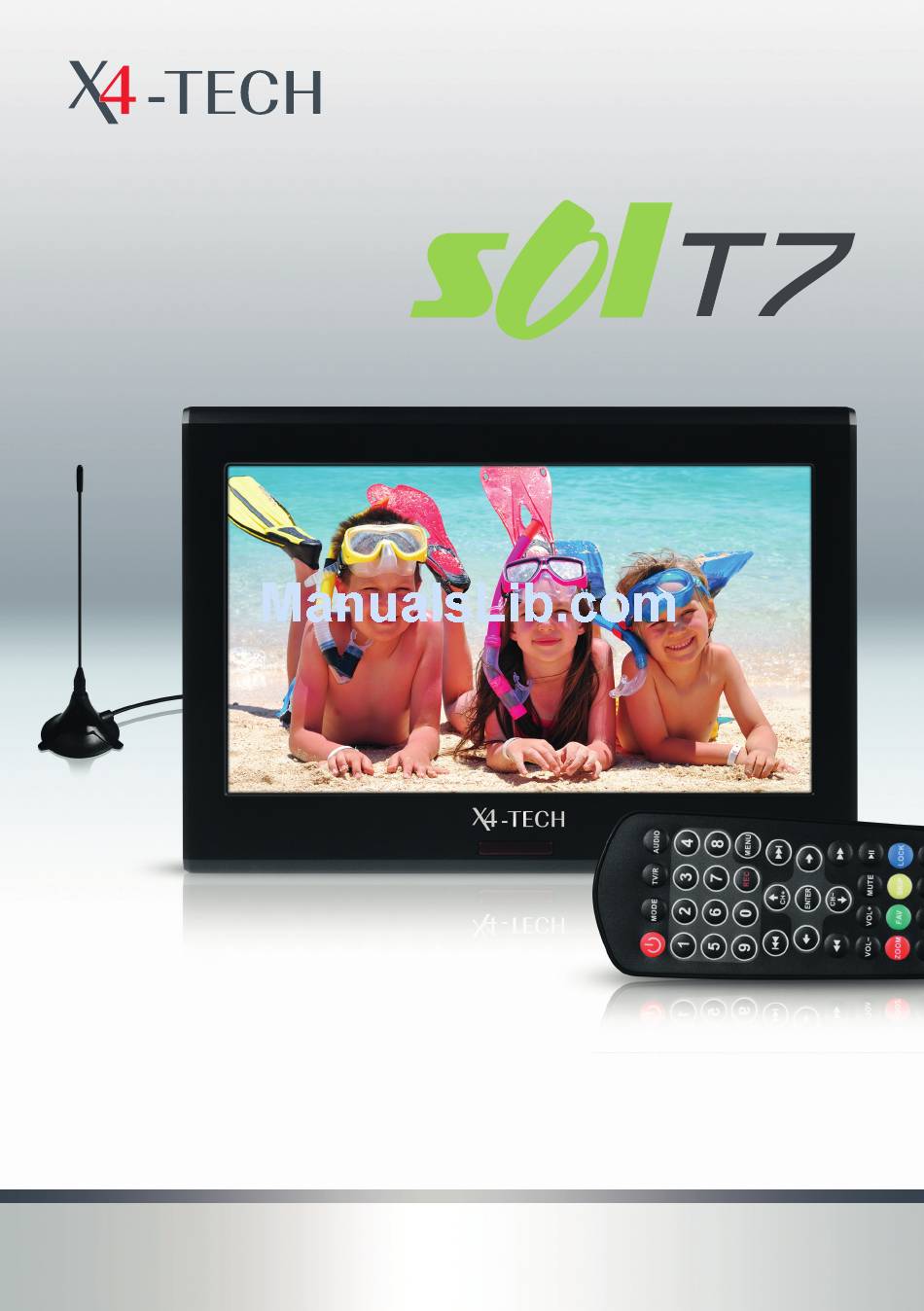

- Page 1 DVB-T TV with photo frame and MP3 function Instruction Manual...
-
Page 2: Table Of Contents
Table of Contents 6 Chapter 1 Intended use 31 Chapter 8 Record 6 Explanation of symbols 32 Chapter 9 Troubleshooting 7 Chapter 2 Safety information 1 0 Before use 33 Chapter 10 Maintenance, handling and cleaning 1 1 Copyright information 1 1 Note on volume regulation 36 Chapter 11 Specifications Technical data 12 Chapter 3 Features 37 Delivery contents... - Page 3 Dear Customer: Thank you for deciding on purchasing this quality product from X4-TECH. This instruction manual will give you a general idea of how this device operates, as well as provide you with information on cleaning and safety procedures. Please take a few minutes to read and follow all safety and operating instructions found in this manual carefully, in order to maintain this products condition and ensure safe operation. Reta- in this manual for future reference and pass on to third parties where applicable. Should you have any additional questions regarding this device or should any sugge- stions arise, please contract a specialized dealer or our service team for further infor- mation. We look forward to you recommending us to others and hope you enjoy using this device from X4-TECH. Your X4-TECH Team All company and product names mentioned in this document are registered trade- marks of their respective owners. All rights reserved.
-
Page 4: Chapter 1 Intended Use
Intended use Safety information The SOL T7 is intended for DVB-T television reception and playback. USB flash drives Dear Customer: and hard disks can be used via the USB 2.0 connection. You can also use MS, MMC, SD and SDHC memory cards with this device. Video, music and image files found on the The following safety and hazard warnings are not only for the protection of your de- above mentioned storage media can be used with this device. vice, but also serve as a protection against potential health hazards. Please take time to read the following instructions carefully. Please adhere to all of the safety information/instructions found in this instruc- tion manual! We assume no liability for personal or property damage resulting from the failure to comply with the safety instructions, improper operation and handling. Under such circumstances, all claims under warranty will become void. - Page 5 › Unplug the power plug from the wall outlet in order to completely cut off › Condensation can build up suddenly when this device is brought from the power supply to the device. Merely turning the device off with the ON/ a colder into a warmer area (e.g. when transporting). Should this happen, OFF button is not sufficient enough. Make sure that receptacles are easily allow the device to warm up to room temperature first before using. accessible. › Care should be taken that liquids do not come in contact with the interior; › Always pull on the plug’s grips and never on the cable to remove from a this is why containers containing liquids, e.g. bucket, vase or plants should power outlet. never be placed anywhere near or on this device. This can not only damage the device, but also become a fire hazard. › The device should be unplugged from the power outlet if it is not in use for a longer period of time. › It is imperative to avoid contact with moisture, e.g. in the bathroom. › For safety reasons always unplug the device from the power outlet during › Never touch the power plug with damp or wet hands. There is the risk of electric shock! thunderstorms. › Eliminate potential tripping hazards by routing cables so that no one can › Ensure that the device is properly ventilated during operation and never trip or stumble over them. operate it in constricted areas, such as for example in a bookcase or shelf. › Never use the device if the power cable or device is damaged. › Never block ventilation openings with magazines, tablecloths, curtains or similar. This device is not suitable for children under 3 years of age. Small children are unaware of the serious and immediate dangers › Make sure the device is placed on a firm and stable surface.
-
Page 6: Before Use
› Please adhere to the additional safety information found in the individual Copyright information chapters of this instruction manual. The reproduction, duplication and copying of copyright protected material, as well as › When connecting other devices, please refer to the safety and operating the distribution, circulation, public access to or even the rental of these, without expli- instructions found in the literature accompanying these devices. cit authorization of the copyright holder, is strictly prohibited. Please contact our technical hotline or a service technician for further in- formation, should you be in doubt about device operation, safety or when making connections or if any questions arise that are not explained within Note on volume regulation this manual. › Contribute to a better environment by using a designated disposal sy- Try to maintain a safe volume level with this device and avoid excessive noise. stem (e.g. Dual System in Germany) or recycling site for the disposal of pa- Over a certain amount of time your hearing will become accustomed to the ckaging material. adjusted volume level. Before use Please read this instruction manual thoroughly before operating this device and re- tain it for further reference, questions and use. Following and heeding all information found in this instruction manual shall maintain this products condition and ensure safe operation. Pass on to third parties, where applicable. This instruction manual contains information on how to operate and maintain this de- vice. Should a component require maintenance, servicing or repairs, then please con- sult a qualified dealer or service technician. -
Page 7: Chapter 3 Features
Features The device › USB 2.0 connection for USB flash drives with a capacity of up to 8 GB and hard disks with a capacity of up to 160 GB formatted to FAT32. › Card reader for SDHC/SD cards up to 8 GB, MMC cards up to 1 GB and MS cards up Front panel to 2 GB formatted to FAT32. › Lithium-ion polymer rechargeable battery with a capacity of 1400 mAh › 17.6 cm (7“) TFT display › DVB-T reception › Remote control › View and display photos › Play music › Recording function 1. IR sensor (Receptor for the remote control) 2. LED display (1) The LED indicator will not light up when the device is turned on. (2) When the device is turned off the LED indicator: › will blink during a battery charging mode. › will light up permanently when the battery has been completely charged. 3. 17.6 cm (7“) analogue TFT display Chapter 3 Features Chapter 4 The device... - Page 8 8. Button panel Back panel a) MODE Press this button repeatedly to switch through various setting options available during a DVB-T mode. b) MENU Press to switch from a DVB-T mode to the main menu. c) CH + / / 1. Skip to the next channel during DVB-T operation. 2. Moves the cursor upwards. 3. Skips to the next track in a USB or memory card mode. 1. Antenna connection d) CH – / / 2. USB 2.0 connection 1. Return to the previous channel during DVB-T operation. 2. Moves the cursor downwards. 3. Memory card slot 3. Skips to the previous track in a USB or memory card mode. Suitable for SDHC/SD/MMC/MS cards e) /Decrease the volume 4. Speaker 1. Moves the cursor to the left. 2. Regulates setting options during DVB-T operation. 5. Stand 3. Press this button to decrease the volume. Carefully fold out the stand. Where required, rotate carefully downwards until it engages into place taking note of the small arrows when doing so.
-
Page 9: Remote Control
Remote control 4. AUDIO Sets the audio channel or language 5. 0 – 9 Numerical buttons 6. MENU Opens/Exits a menu/moves one browser level higher 7. Next photo/video/song 8. /CH + Next channel/move cursor upwards /mirror photo left to right/ move zoom section upwards 9. Previous photo/video/song 10. Move cursor to the left / setting for display settings/move zoom section to the left 11. Move cursor to the right/setting for display settings/move zoom section to the left 12. Enter Confirm selection / starts a slideshow 13. Press repeatedly to switch through various fast reverse levels/zoom in ON/OFF button 14. 2. MODE Press repeatedly to switch through various fast forward levels/zoom out Press repeatedly to switch through display setting options 15. /CH – 3. TV/R Previous channel/move cursor downwards/mirror photo top to bottom/move Switches between a television and radio mode zoom section downwards Chapter 4 The device... -
Page 10: Rechargeable Battery
16. VOL + 28. REC Increase volume Starts/Stops recording a DVB-T program 17. VOL – For best possible results, point the remote control directly at the device. Ensure that Decrease volume there is not more than a distance of 5 meters between the remote control and device and that the remote control is not used at an angle of over 60 degrees. 18. Start/pause/resume playback 19. MUTE Batteries/Changing/Inserting batteries Deactivates the sound 20. SKIP This remote control requires a CR2025 battery for operation. Yellow function button Always remove the battery if the device is not in use for longer periods of time. 21. FAV Green function button › Carefully slide the battery compartment in the direction of the arrow, as displayed on the back of the compartment. 22. ZOOM Red function button/photo zoom on/off › Remove the used battery and dispose of accordingly. 23. LOCK › Remove a new battery from its packaging and insert into the battery compartment. Blue function button Ensure correct polarity as indicated on the back of the battery compartment. 24. S.TITLE Select a subtitle Rechargeable battery 25. EPG Displays the electronic program guide › This device utilizes a lithium-ion polymer rechargeable battery with a capacity of 1400 26. INFO mAh. A fully charged battery will give you the opportunity to watch television for up Displays information when available to approximately two hours. -
Page 11: Information On Handling Batteries/Rechargeable Batteries
› Rechargeable batteries have a limited number of charge cycles. Each charging cycle, › Make sure that batteries are not dismantled, short-circuited or are thrown into fire. even a short one, shortens the battery lifespan. To increase battery lifespan, always Never recharge non-rechargeable batteries. There is a risk of explosion! recharge batteries completely and without disruption. › Please follow manufacturer instructions when charging rechargeable batteries. › This device has a permanent built-in lithium-ion polymer rechargeable battery that › Touching leaking or damaged batteries could cause skin burns. Use suitable protec- should be kept away from sources of warmth. Never try to remove the rechargeable tive gloves when handling such batteries. battery. Please contract your local dealer if a malfunction occurs during operation or battery replacement is required. › Always ensure that the device has been turned off after use. › Please fully charge the battery in a turned off state completely first, before › Always change/replace all batteries at the same time. using it for the first time. This may otherwise impair capacity. › Clean battery and device contacts before inserting, where required. › Try to avoid deeply discharging your rechargeable battery. This could impair capacity. › Avoid totally discharging rechargeable batteries. Information on handling batteries/rechargeable batteries Always heed the following information when using/handling batteries. › Keep batteries out of children’s reach. › Batteries are hazardous waste and do not belong in household waste. › Ensure that batteries are always inserted according to the correct polarity. › Always remove batteries when not in use for longer periods of time. -
Page 12: Chapter 5 Connections
Connections Power supply The USB connection does not warrant a supply of power to the external me- dium used, for example a hard disk. Please refer to the user manual accompa- nying the device connected. Turn the device off. Connect the power adapter’s connector to the DC IN 5 V power supply connection on the device. Now you can plug the power adapter’s plug into a power outlet that has been correctly installed according to your public power system. Please bear in mind that the device consumes a minimal amount of power, even in a Memory cards standby mode. Remove the adapter from the power supply source in order to com- pletely cut off the power supply to the device. SDHC and SD memory cards with a capacity of up to 8 GB and MMC cards with a capa- city of up to 1 GB can be inserted, according to the illustration on the card, into the card slot on the side of the device. Push the memory card in until it locks into place. A click can usually be heard when doing so. Antenna MS memory cards with a capacity of up to 2 GB can be inserted, according to the illus- tration on the card, into the card slot as well. Push the memory card in until it locks into Carefully place the antenna connector onto the thread found on the device. Screw the place. A click can usually be heard when doing so. connector to tighten. The above storage mediums must be formatted to FAT32. Use the included adapter if you´d like to connect the device to a rooftop aerial. USB connection With the USB 2.0 connection you will be able to use USB flash drives with a capacity of up to 8 GB. These storage mediums must be formatted to FAT32. You can also use USB hard disks with a capacity of up to 160 GB. These storage medi- ums must be formatted to FAT32 as well. Please note that USB cables connected must be less than 3 m in length in or- der to maintain EMC compliance. Using cables longer than 3 m could influence electromagnetic compatibility, which could lead to disturbance or failure. Chapter 5 Connections Chapter 5 Connections... -
Page 13: Chapter 6 Turning On/Off
Turning on/off Menu Push the switch to „ON” to turn the device on. Push the switch to „OFF” to turn the de- In general, you will be able to navigate within a menu by using the arrow buttons on vice off. The device will automatically switch over to a battery operational mode if it is the remote control. Confirm selections with the „ENTER” button. You can press the not connected to an external power supply. „MENU” button to either open the main menu or exit it again. If „INFO” is displayed towards the bottom of the menu screen in a main menu mode, then you can press the Once switched to „ON” you can use the remote control to turn the device on or to „INFO” button on the remote control to display controls available within the following switch over to a standby mode. -
Page 14: Digital Tv
Green › Adds channels to your favourites Factory Returns all settings to a factory Yellow › Moves channels Default default setting Blue › Locks channels Version Displays various information about device hardware/ software Channel grouping Movie Opens the browser for video file You can use the numeric buttons to assign a channel to a certain group display Music Opens the browser for music file display Delete all This option lets you delete all television channels and radio stations. Photo Opens the browser for displaying photos Disk Ma- Opens a browser that displays files nager recorded with the device Installation Partition For formatting a storage medium Format Search for channels with this option. Auto Search › starts an automatic channel scan Manual Search › input a certain frequency directly and set the bandwidth in which... -
Page 15: 9 Movie
Timer mode › Select the mode of frequency OSD › Sets the background schema Wakeup mode › Select to set the alarm mode OSD Language › Sets the menu language Wakeup channel › Select a channel to wakeup to 1. Audio Language › Sets the preferred audio language Wakeup date › Set the alarm date 2. Audio Language › Sets the preferred second audio language On Time › Select to set the starting time Duration › Select to set the duration of the wakeup timer Default Partition › Select to set the default partition Aspect Ratio › For selecting a preferred aspect ratio Brightness › For adjusting the brightness Software upgrade Contrast › For adjusting the contrast This option opens a browser that allows a software upgrade to be carried out. . Hue › For hue adjustments Please not that the user is solely responsible for any upgrades and all actions Saturation › For saturation adjustments carried out. System Setup Factory Default EQ Setup › Select a preferred equalizer sound setting This option can be selected to return all device settings to a factory default setting. -
Page 16: 0 Music
Record Music You can record television programs with your SOL T7. A USB storage medium must be connected to the device beforehand. Select the channel to be recorded from and press the “ REC” button. Confirm with “ YES” to start recording. During recording, you can press This option opens a file browser that lets you search for music files stored on your sto- the “YELLOW” button to set the recording time, the “INFO” button to see the elapsed rage medium. time or the “REC” button again to stop recording. Note Please note that you can also start recordings via the timer. Photo This option opens a file browser that lets you search for photo files stored on your storage medium. Chapter 7 Menu Chapter 8 Record... -
Page 17: Chapter 9 Troubleshooting
Maintenance, handling Troubleshooting and cleaning The device you have just purchased is equipped with state-of-the-art technology and Never operate the device in places with extreme high or low temperatures. is safe to operate. Nevertheless, problems or malfunctions may occur. Permissible storage temperatures: – 25° C bis 60° C Before contacting a service technician, refer to the following possible solutions: Permissible operating temperatures: 0° C bis 40° C Distorted sound or no sound is audible Should pixel errors (to light or to dark pixels) appear during operation, then this does › Check if everything has been connected properly. not necessarily mean that the device is defect. These errors are a common TFT LCD technology problem. Up to 5 pixel errors are acceptable. The remote control is not working › Check if the batteries have been inserted correctly. - Page 18 Repairs are only to be carried out by qualified personnel, who are familiar with the hazards involved and the relevant regulations. Transporting or sending the device Please retain the original box and the packaging material in case you need to transport or send the device out for maintenance at a later date. Please note that the device should be repacked in the original packaging. The box and packaging have been es- pecially developed for this device in order to protect it during transport and against damage. Retain this instruction manual for future reference and where required pass it along with the device if handed over to a third party. Keeping the external case clean Never use volatile fluids near the device, as for example insect spray. Avoid letting the device come in contact with rubber or plastic products for longer periods of time. The- se could otherwise leave marks behind. Cleaning the device Unplug the power cable before cleaning. Always use a soft and dry cloth to clean the unit’s exterior. If the device is extremely dirty you can use a soft cloth, dampened with water or a mild cleaning solution to clean. Never use any abrasive or harsh cleaning agents (e.g. alcohol, benzine or thinners) as these could damage the controls, casing or any markings and labels found on the device.
-
Page 19: Chapter 11 Specifications
Specifications Technical data Delivery contents Operating voltage: Power supply: 100– 240 V ~50/60 Hz Please check that the following contents/accessories are included in delivery. Device: 5 V/2 A DC Screen diagonal: 17.6 cm (7“) › SOL T7 with integrated rechargeable battery Picture format: 16:9 and 4:3 › AC/DC adapter Pixels: 480 x 234 x RGB › Instruction manual Video: Video output,1.0 Vpp/75 Ω (PAL/NTSC) › Remote control with battery Brightness: 200 cd/m › DVB-T antenna Contrast: 200:1 › Service data sheet DVB-T receiver: VHF, UHF... - Page 20 Version 1.0 – 1/2010 Service Should questions arise then please contact a specialist or our service hotline: Hotline: +49 (0) 53 02/8 06-450 Address: x-services.eu gmbh Service department X4-TECH Brackestraße 3 38159 Vechelde/Germany Information and updates: http://www.x4-tech.de › We reserve the right to alter specifications and information contained in this manual without notice. › All brands mentioned are property of X4-TECH or of their respective owners. › X4-TECH assumes no responsibility or liability for any errors or inaccuracies that may appear in this instruction manual. © 2010 X4-TECH All Rights Reserved. Manufacturer x-peer.de GmbH · Brackestraße 3 · D-38159 Vechelde Internet: www.x-peer.de · E-Mail: info@x-peer.de www.x4-tech.de...
