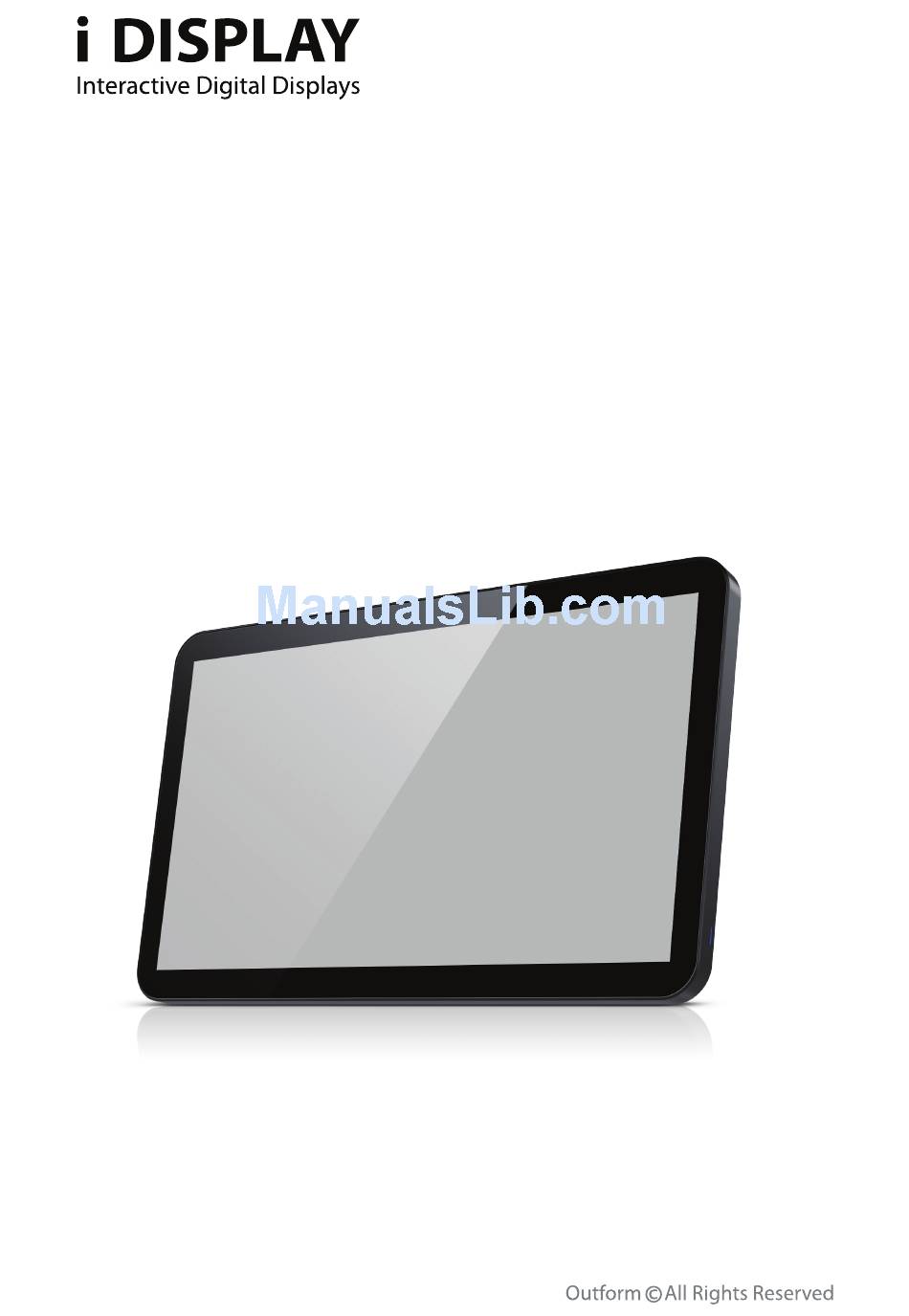

- Page 1 Advertising Display 18.5” User Manual...
- Page 3 About This Guide Thank you for purchasing an i DISPLAY product. We recommend reading this user guide carefully in order to achieve optimal pleasure and performance and to maximize the service life of this product. This guide describes how to setup the Advertising Display. This guide is intended for retail personnel, sales people and anyone who wants to set up the Advertising Display in a retail environment.
-
Page 5: Table Of Contents
Index Safety and Warnings Introducing the Advertising Display Getting Started Playing Content Main Android OS Screen (Home Screen) Advertising Display Accessories... -
Page 6: Safety And Warnings
Safety and Warnings NOTE This mark is applied to indicate that the equipment conforms to European safety and electro-magnetic compatibility standards. WARNING! Main Supply: This equipment is designed to operate from a 100-240 Volt, 50/60Hz AC main supply. The use of other power sources may damage this equipment. Check that the voltage marked on the rating plate located at the rear of the power adaptor states 100-240V. -
Page 7: Introducing The Advertising Display
Introducing the Advertising Display 18.5” This chapter introduces the Advertising Display and its components. What is the Advertising Display? The Android Advertising Display is a perfect solution for brands and retailers who wish to remotely advertise their marketing message across the retail environment. The Android Advertising Display can run a variety of images, videos and applications to reinforce marketing messages. - Page 8 Introducing the Advertising Display 18.5”...
- Page 9 Description Screen with embedded Wi-Fi and 3G (optional) Power Indicator Bracket Screws for Attaching Multiple VESA Options Home Button (Back) USB Port Micro SD port for playing content USB Port PB-Molex connector for Connect Box. A Connect box has up to 12 buttons (push or touch) and one motion sensor.
-
Page 10: Getting Started
You may refer to the Logging Out of the Advertising Display Autoplay Application section on page 11 for instructions on logging out of the i DISPLAY Autoplay application in order to access a standard Android OS screen. - Page 11 The Advertising Display is preconfigured to automatically start its Autoplay demonstration when it is turned on. The following describes how to log out of the i DISPLAY Autoplay application in order to go to a standard Android OS screen. To access the Android OS screen: While content is playing, quickly click the Home button (for one second).
- Page 12 A standard Android Home screen is then displayed, as shown below: By default, the Advertising Display is password protected in order to ensure that only authorized retail personnel can modify and configure it, as described below. You have the option to disable/enable the requirement to enter a password using the Enable/Disable Password.
-
Page 14: Playing Content
Playing Content This chapter describes the various options for displaying videos, pictures and applications on the Advertising Display. What Does the Advertising Display Play? The Advertising Display runs standard Android applications (apk) using Android OS 2.3. • Video Formats: The Advertising Display plays the following video formats: •... - Page 15 order: • car-choice-banner.jpg car-choice-banner.mpeg • • top-of-range.mpeg then the device will first display the car-choice-banner.jpg image for three seconds, and then play the discount-car.mpeg video and then play the top-of- range.mpeg video. The device will then repeatedly play this sequence in a loop. Connect Box –...
- Page 16 file in the Root directory of the device when a barcode reader is connected. Copy a file onto the Advertising Display with the same exact name as the barcode. The device will then automatically play the content of that file when a product with that barcode is read.
- Page 17 copying. We recommend removing the USB disk after its content has been successfully copied. Loading Content into Other Folders You can use the standard Android Explorer to copy folders/files to the Advertising Display. For example, into the Folders 1 through 12, the MS folder or a file with the same name as a barcode.
-
Page 18: Main Android Os Screen (Home Screen)
Settings: Click to configure Advertising Display settings, such as Wi-Fi, Mobile and so on. i Display: Click to return to autoplaying the content of Folder 0 in a loop. Explorer: Click to open a standard file explorer window which you can use to transfer files to/from the Advertising Display. - Page 19 This menu also enables you to configure Bluetooth settings for working with Bluetooth accessories, such as Bluetooth earphones. Display Brightness We recommend setting the Advertising Display screen to its maximum brightness, as follows. Either: Use the Brightness button on the back of the Advertising Display –...
-
Page 20: Advertising Display Accessories
Advertising Display Accessories This chapter describes the mounting attachments and other accessories that can be connected to the Advertising Display. Printer The Advertising Display supports standard Android OS 2.3 printer drivers. This enables the connection of a printer that can be used by the applications (apks) that you load, such as coupon printer. - Page 21 Mounting Options The following are some of the mounting options available from i-DISPLAY. Fixed Shelf or Table Bracket Rotating Shelf or Table Bracket Advertising Display Accessories...
- Page 22 Counter Display Floor Display Refer to www.i-display.com to download the latest product specification sheet Advertising Display Accessories...
- Page 24 For further information or support, please contact: support@i-display.com...
