i View Classic
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i view classic and is the answer not in the manual?

Questions and answers

Related Manuals for i Display i view classic

Summary of Contents for i Display i view classic

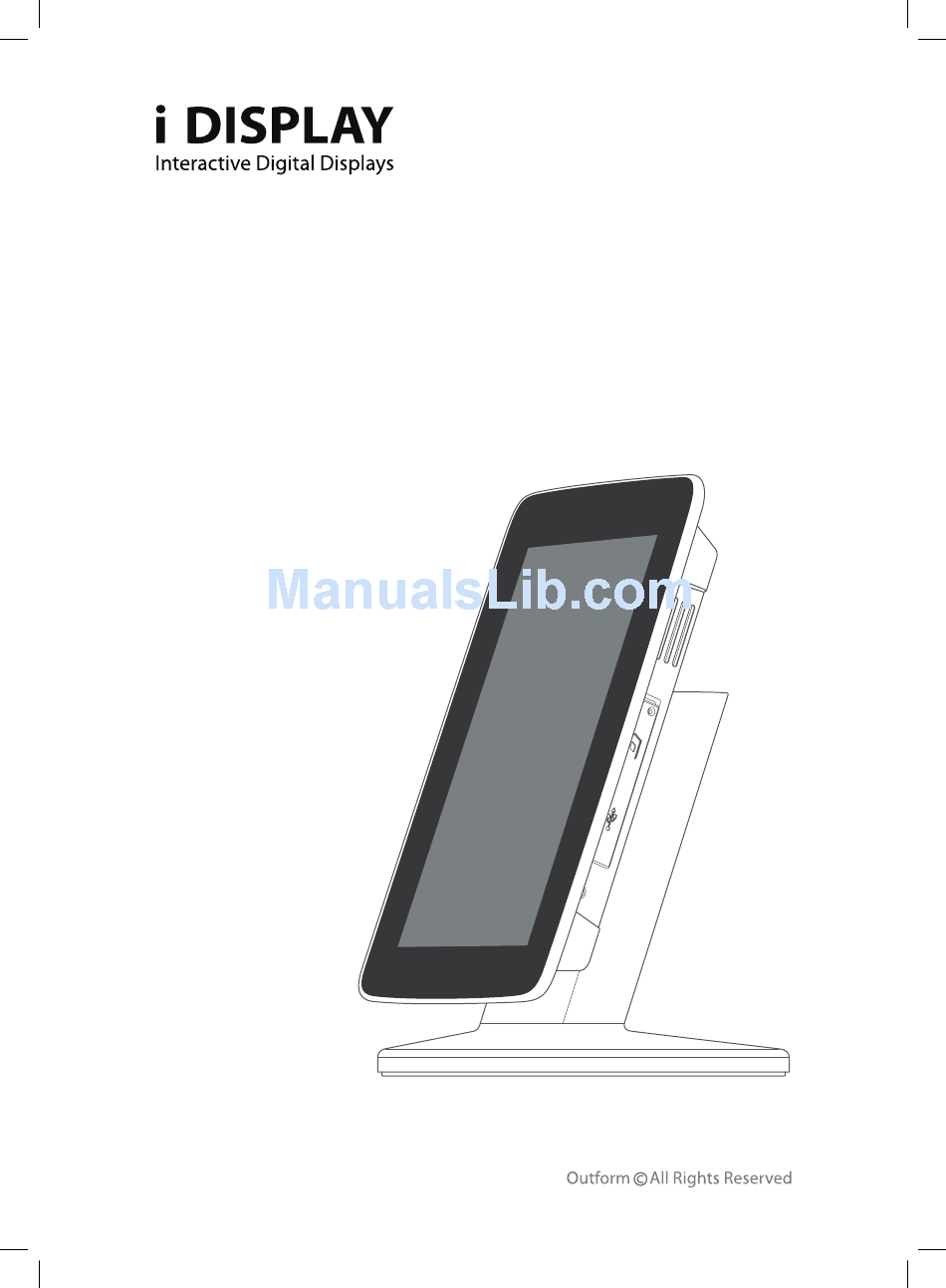

  • Page 1 View Classic User Manual...
  • Page 2 Index LCD Screen Specification...

  • Page 3: Safety And Warnings

    Safety and Warnings Main Supply This equipment is designed to operate from a 100-240 Volt, 50/60Hz AC main supply. The use of other power sources may damage this equipment. Check that the voltage marked on the rating plate located at the rear of the power adaptor states 100-240V.

  • Page 4: Fcc Radiation Exposure Statement

    Consult the dealer or an experienced radio / TV technician for help. In accordance with FCC requirements, changes or modifications not expressly approved by manufacturer could void the user’s authority to operate this product. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
  • Page 5 Overview Components i View Classic unit Power Supply Unit – US, EU, UK Plugs available Remote Control 4 Cell Rechargeable Battery – Not included in the package. (Must be purchased separately) Desk Mount Clip (not seen in picture) – Not included in the package..
  • Page 6 Side A Setting buttons Left In menu mode, this function is used for moving left through the various options. In playback mode you can go to the previous content in the playlist. (Note: it is only operational for content copied from USB or SD Card, not for content downloaded from i-Display Content Management System).
  • Page 7 Side B Silicon cover for slots This reduces access to slots or prevents stealing of SD Card (if used). To insert or remove an SD Card the Silicon cover needs to be positioned as shown and can be easily opened by gently lifting up and turning clockwise.
  • Page 8 Rechargeable battery slot Used to house the rechargeable battery. The rechargeable battery needs to be placed as shown in these images. Placing the Rechargeable Battery Removing the Rechargeable Battery Back...
  • Page 9 Rotating screen to horizontal position Back...

  • Page 10: Quick Start

    Operating Instructions Quick Start Turning On Plug into electricity or insert fully charged battery. Display will automatically load movie and play. (If the unit does not play a movie automatically, press the power button at the back of the display. RED light indicates standby mode and GREEN light indicates the unit is switched ON.) Playing other movies / change content Connect a USB stick to the unit.

  • Page 11: Buttons And Remote Control

    Picture Recommended Picture Resolution: Landscape Format: JPG Resolution: 1024x600 Portrait Format: JPG Resolution: 600x1024 Buttons and Remote Control ON/OFF MUTE MENU SLIDE SHOW ENTER ROTATE ZOOM Remote Control On/Off Turns the unit on/off. Volume (- / +) Increase/decrease volume when movies are played. Picture / Buttons and Remote Control...
  • Page 12 Menu Returns the unit to setup mode. Left In menu mode, this function is used for moving left through the various options. In playback mode, this function allows you to go to the previous content in the playlist. (Please note: This is only operational for content that is copied from USB or SD Card, not for content downloaded from i-Display Content Management System.) Right In menu mode, this function is used for moving right through the various options.

  • Page 13: Screen Status Indicators

    Play/Pause In playback mode, this function is used to pause or play a specific JPG or movie. (This function is only operational on content copied from a USB or SD Card or a playlist viewed from an SD Card and not for content downloaded from i-Display Content Management System.) Stop In playback mode, pressing this function once will stop the current content playing and will make the screen return to the menu mode.

  • Page 14: Menu Features

    Menu Features The Menu includes 4 main features: Playlist / Wi-Fi & Activation to Remote Content Management / Calendar / Settings. Each can be accessed and activated by either the remote control or buttons on the side of the unit. Playlist The playlist holds a list of content, which can be played on the unit.
  • Page 15 Click OSD to copy / delete / sort content. (Please note: This function is only operational on content copied from a USB or SD Card or a playlist viewed from an SD Card and not for content downloaded from i-Display Content Management System) Use the arrows to move between these options and Click “Enter”...
  • Page 16 Click OK on DHCP, the player will automatically locate available Wi-Fi networks. Click ENTER on your selected wireless network. (If your Wi-Fi connection does not require a password the Player will connect to the wireless network automatically. However, if the wireless network requires a password, click ENTER, you will need to fill-in the Password.) Wi-Fi...
  • Page 17 On secure Wi-Fi networks, insert relevant network code using the remote control, then click Done. Once the unit is connected, a Wi-Fi signal will appear. If an error message appears, retype your username and password (please ensure you are using the right information and capital letters if applicable, otherwise the Player will not be able to connect to the wireless network).
  • Page 18 Step Two: Getting an activation code Make sure the unit is connected to Wi-Fi (Wi-Fi connection via DHCP or Manual Link explained in Wi-Fi section). Use the remote control or Player buttons and go to Wi-Fi List in Wi-Fi tab, then click ENTER.
  • Page 19 Write down the activation code, as it is needed to activate this specific Player on the i-Display Content Management System. Step Three: Activate your Player within i-Display Content Management System Log on to i-Display Content Management System at www.i-display.com (http:// www.i-display.com) and click on the LOGIN link in the home page.
  • Page 20 Enter a Player name (it is highly recommended that the Player name will include a unique number which you will then be able to use to identify it from other players) and the unique Activation Code shown on the Player screen, as shown in Step Two: Getting an activation code.
  • Page 21 The name that appears on the Account Config should be the same as your account name in i-Display Content Management System (the same account name you gave when you registered). If the name matches your registered account name, your Player is now connected to the i-Display Content Management System. For an introduction on how to use the Content Management System, please select the Demo tab to get more information.
  • Page 22 Settings Holds a list of functions as shown in the screenshots below e.g. Slideshow Frequency, Transition effect, etc.: Slide Show Frequency: Controls the amount of time each JPG will be shown when played. This only affects content copied from USB or SD Card to internal memory or content played from SD Card and not content downloaded from i-Display Content Management System.

  • Page 23: Troubleshooting

    Display: Allows changing Brightness, Contrast, Saturation and Hue of unit. Photo View Options: Allows JPGs to be shown in their original size or fill in the screen. Copy Option: Allows reduction of the size of the files copied from USB or SD Card to internal memory.
  • Page 24 For further information or support, please contact: support_iView@i-display.com...
