Summary of Contents for i Display i Shelf 2

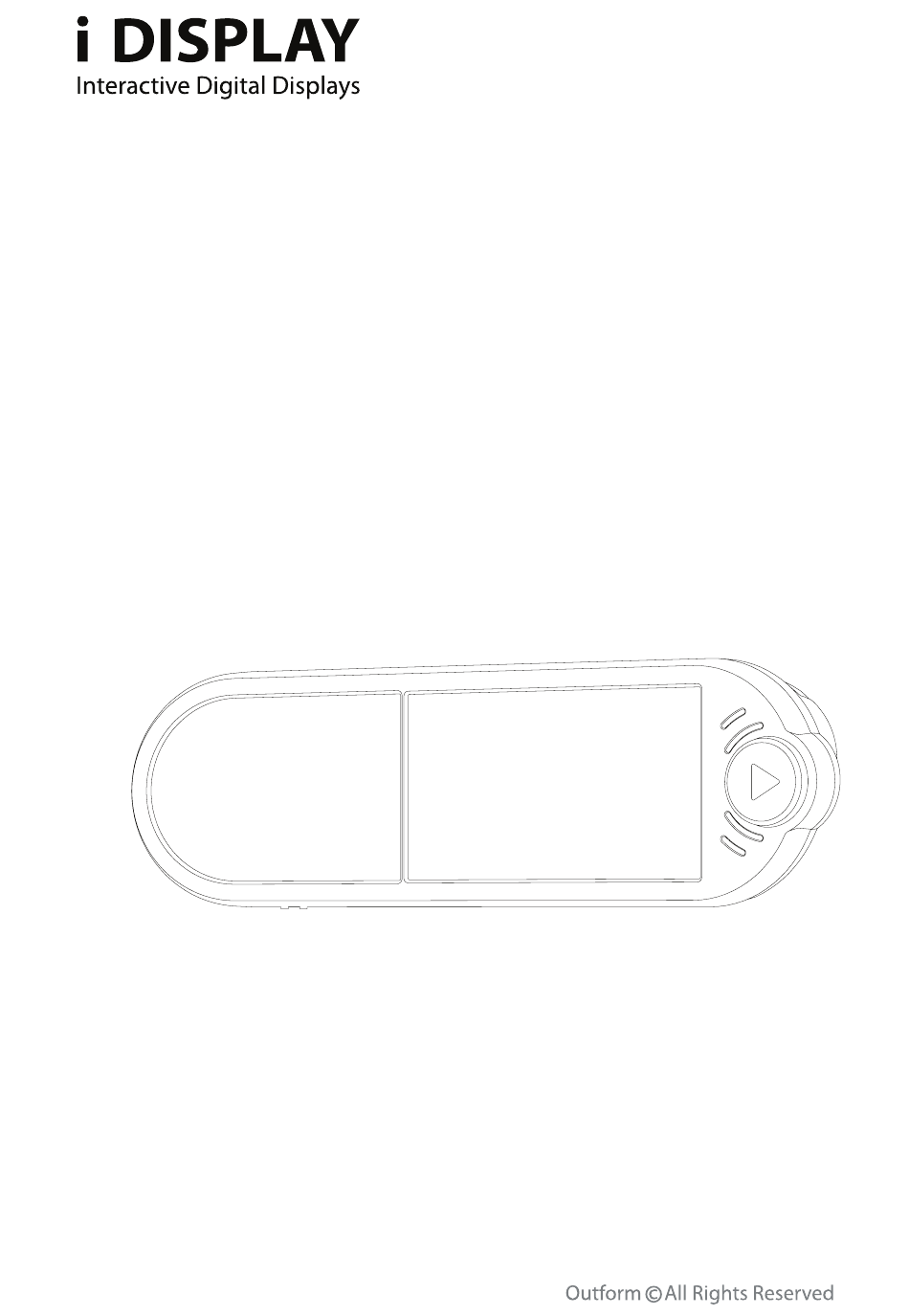

- Page 1 7” i Shelf 2 User Manual...
-
Page 2: Table Of Contents
Index Safety and Warnings Main Supply Main Adaptor FCC Radiation Exposure Statement Warning Overview Components Features Operating Instructions Quick Start Accessories Troubleshooting Power Supply Unit Electrical Data... - Page 3 Thank you for purchasing an i Display product. Before you start to use your new i Display, please read the user manual carefully to enjoy best performance and longer service life. Keep this manual in a safe place for future reference.
-
Page 4: Safety And Warnings
Safety and Warnings Main Supply This equipment is designed to operate from a 100-240 Volt, 50/60Hz AC main supply. The use of other power sources may damage this equipment. Check that the voltage marked on the rating plate located at the rear of the power adaptor states 100-240V. - Page 5 Consult the dealer or an experienced radio / TV technician for help. In accordance with FCC requirements, changes or modifications not expressly approved by manufacturer could void the user’s authority to operate this product. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
-
Page 6: Overview
Overview Components i Display i Shelf 2 Power Supply Unit Screwdriver User Manual Features Activation Button USB Port Volume S.D Port Security hole, used to secure the unit with a cable ON/OFF/SB Switch Components / Features... -
Page 7: Operating Instructions
Operating Instructions Quick Start Turning on The display has a choice between 2 play modes: • STANDBY (SB) mode: When the unit is turned on (ON/OFF/SB Switch is turned to SB), the unit will play the promotional movie (located in folder 1) once, and then a blank screen will appear. - Page 8 Playing other movies / change content Prepare a USB stick with new content. SB mode: Make sure the content is copied onto the USB stick in a folder named 1. Connect the USB stick to the USB socket. The content which was in the internal memory will be deleted and the new content in the USB stick will be copied automatically.
- Page 9 the unit will start playing the new content automatically. The USB stick can now be removed. Setting To enter the settings page, push and hold the volume buttons. In the settings page you will find Colour, Brightness, Count clear and Data options. To navigate in the settings page, use the up / down volume buttons.
-
Page 10: Accessories
Accessories • i Shelf Metal Shelf Clip All accessories are purchased separately For more information on the range of accessories, please log on to www.i-display.com Accessories... -
Page 11: Troubleshooting
Troubleshooting Problem Troubleshooting SD/USB is not recognized 1. Ensure the content is copied in the correct folder format (named 0 / 1 as outlined earlier in this manual). 2. Make sure the content is created in accordance with our recommended compatible formats (outlined earlier in this manual). -
Page 12: Power Supply Unit Electrical Data
Power Supply Unit Electrical Data Power Adaptor Input 100-240V 50/60Hz, 0.3A ; Output 5V/1.5A Important note Use only the original power adaptor Power Supply Unit Electrical Data... - Page 13 For further information or support, please contact: support@i-display.com...
