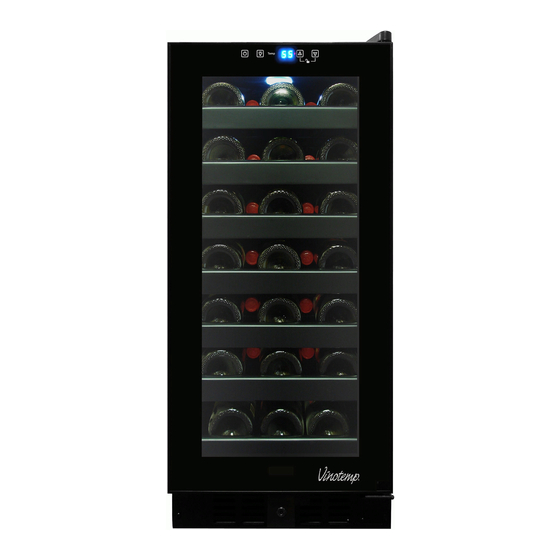

Vinotemp VT-32TS-FE Owner's Manual

33 bottles capacity
Hide thumbs Also See for VT-32TS-FE:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual

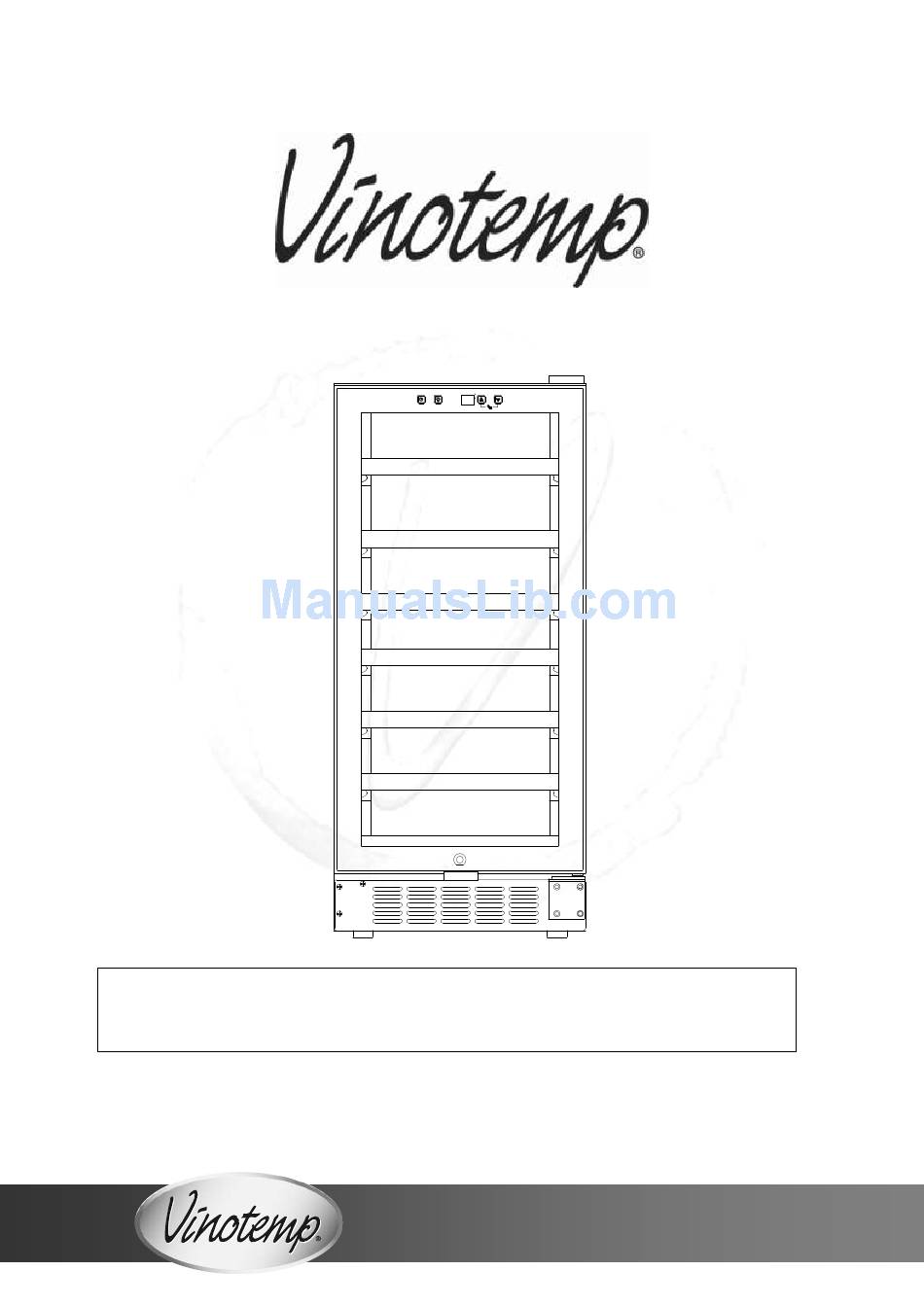

A P R O U D H E R I T A G E O F E X P E R I E N C E & Q U A L I T Y
c
F
Temp.
W I N E C O O L E R
V T - 3 2 T S - F E ( 3 3 b o t t l e s )
O W N E R ' S
M A N U A L
W W W . V I N O T E M P . C O M
1

Advertisement

Table of Contents
loading

Related Manuals for Vinotemp VT-32TS-FE

Summary of Contents for Vinotemp VT-32TS-FE

  • Page 1 A P R O U D H E R I T A G E O F E X P E R I E N C E & Q U A L I T Y Temp. W I N E C O O L E R V T - 3 2 T S - F E ( 3 3 b o t t l e s ) O W N E R ’...
  • Page 2 Y o u r W i n e C e l l a r This unit can be used for storage and/or service. The unit has a glass door and soft interior light to elegantly display your wine. S e r v i n g W i n e s Storing wines at the proper temperature is important.
  • Page 3 Upon receipt and inspection of unit, the supply cord must be replaced if it is damaged. Contact our customer service at 1-800-777-8466 or info@vinotemp.com. READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE -Save these instructions- 1 7 6 2 1 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1...

  • Page 4: Table Of Contents

    Table of Contents IMPORTANT SAFETY INSTRUCTIONS ......5 ELECTRICAL CONNECTION ........6 PARTS AND SPECIFICATIONS ......... 7 INSTALLATION ............. 8 OPERATING YOUR WINE COOLER ......8 CARE AND MAINTENANCE ........11 TROUBLESHOOTING ..........12 TERMS OF SALE AND WARRANTY ......13 W W W .

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock or injury when using your appliance, follow these basic precautions:  Do not operate this or any other appliance with a damaged cord.  Do not operate if housing is removed or damaged. ...

  • Page 6: Electrical Connection

    ELECTRICAL CONNECTION For your protection, this unit is equipped with a 3-conductor cord set that has a molded 3-prong grounding-type plug, and should be used in combination with a properly connected grounding-type outlet.  Do not under any circumstances cut or remove the third ground prong from the power cord supplied.

  • Page 7: Parts And Specifications

    PARTS AND SPECIFICATIONS Temp. Model No. VT-32TS-FE Voltage AC 115/120V Frequency 60 Hz Ambient Temperature Range 60°- 90°F Control Temperature Range 40°- 72°F Refrigerant R134a/1.41oz Power Consumption 0.8kw.h/24h Input Power 130W Volume Net Weight 79 LBS Gross Weight 85 LBS 14.75”...

  • Page 8: Installation

    INSTALLATION  Remove all packing material before using your wine cooler.  IMPORTANT: Before connecting the unit to a power source, let it stand upright for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. ...
  • Page 9 POWER To control this appliance turn on/off. To turn OFF the appliance, touch and hold the mark for 5 seconds. LIGHT To control the inner light turn on/off. Used to raise (warm) the set temperature by 1°C or 1ºF. DOWN Used to lower (cool) the set temperature by 1°C or 1ºF.

  • Page 10: Storing Wine

    DYNAMIC COOLING/SILENT MODES The Dynamic Cooling feature enables the relative humidity inside the unit and the temperature to be distributed evenly around the interior so you can store all your wine under exactly the same excellent conditions. If you would like to use the unit to store wine long term, the dynamic cooling is a must.

  • Page 11: Care And Maintenance

    CARE AND MAINTENANCE CLEANING YOUR WINE COOLER IMPORTANT: Always unplug the unit before cleaning or performing maintenance. Never use harsh cleansers or scouring pads to clean any part of the unit.  Turn off the power, unplug the appliance, and remove all items including shelves. ...

  • Page 12: Troubleshooting

    TROUBLESHOOTING You can solve many common wine cellar problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before contacting Vinotemp at info@vinotemp.com. SYMPTOM POSSIBLE CAUSE Wine Cooler does ...

  • Page 13: Terms Of Sale And Warranty

    Any claim for damages incurred during shipment by the carrier of the goods are insured and handled directly with the carrier and must be noted at time of delivery. Any damages due to manufacture defects will be handled directly with Vinotemp International, subject to the limited warranty.
  • Page 14 W W W . V I N O T E M P . C O M...
  • Page 15 1 7 6 2 1 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1 i n f o @ v i n o t e m p .
  • Page 16 Rancho Dominguez, CA 90221 www.vinotemp.com Vinotemp is a registered trademark of Vinotemp International. All products, features, and services are subject to change without notice. We cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes.
