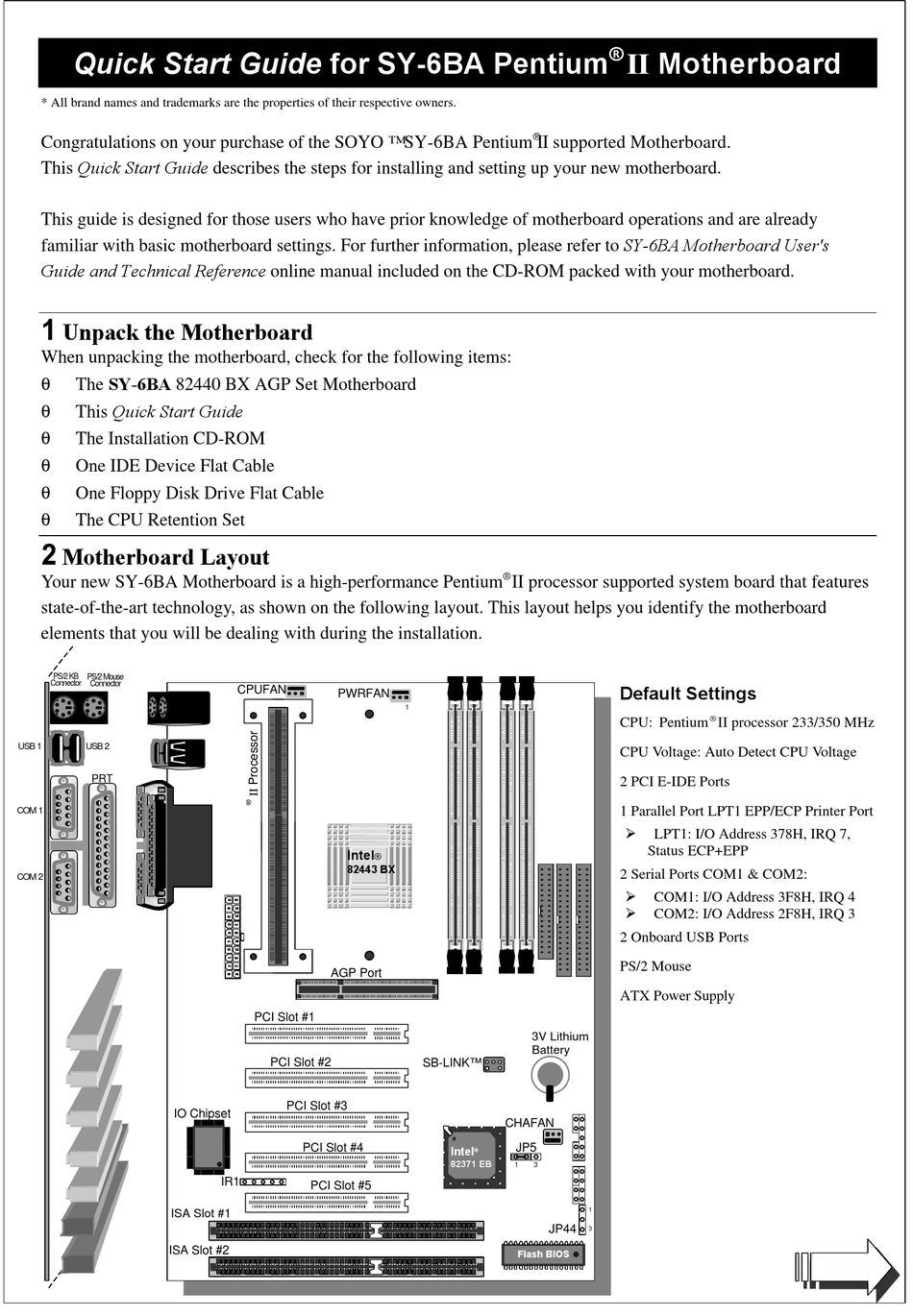

SOYO SY-6BA Quick Start Manual

Quick Start Guide for SY-6BA Pentium
* All brand names and trademarks are the properties of their respective owners.
Congratulations on your purchase of the SOYO ™ SY-6BA Pentium
This Quick Start Guide describes the steps for installing and setting up your new motherboard.
This guide is designed for those users who have prior knowledge of motherboard operations and are already
familiar with basic motherboard settings. For further information, please refer to SY-6BA Motherboard User's
Guide and Technical Reference online manual included on the CD-ROM packed with your motherboard.
1

Unpack the Motherboard

When unpacking the motherboard, check for the following items:
θ
The SY-6BA 82440 BX AGP Set Motherboard
θ
This Quick Start Guide
θ
The Installation CD-ROM
θ
One IDE Device Flat Cable
θ
One Floppy Disk Drive Flat Cable
θ
The CPU Retention Set
2

Motherboard Layout

Your new SY-6BA Motherboard is a high-performance Pentium
state-of-the-art technology, as shown on the following layout. This layout helps you identify the motherboard
elements that you will be dealing with during the installation.
PS/2 KB
PS/2 Mouse
Connector Connector
USB 1 USB 2
PRT
COM 1
COM 2
IO Chipset
ISA Slot #1
ISA Slot #2
CPUFAN
PWRFAN
Intel
®
82443 BX
AGP Port
PCI Slot #1
PCI Slot #2
PCI Slot #3
PCI Slot #4
IR1
PCI Slot #5 (Slave)
®
II supported Motherboard.
®
II processor supported system board that features
1
3V Lithium
Battery
SB-LINK™
CHAFAN
JP5
Intel
®
82371 EB
1 3
JP44
Flash BIOS
®
II Motherboard

Default Settings

®
CPU: Pentium II processor 233/350 MHz
CPU Voltage: Auto Detect CPU Voltage
2 PCI E-IDE Ports
1 Parallel Port LPT1 EPP/ECP Printer Port
Ø
LPT1: I/O Address 378H, IRQ 7,
Status ECP+EPP
2 Serial Ports COM1 & COM2:
Ø
COM1: I/O Address 3F8H, IRQ 4
Ø
COM2: I/O Address 2F8H, IRQ 3
2 Onboard USB Ports
PS/2 Mouse
ATX Power Supply
1
3
